UT5583 Series

UT5583 Series

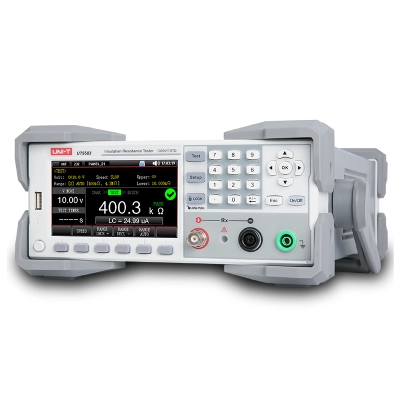

UT5583 Insulation Resistance Tester is a miniature desktop instrument with high performance and real-time detection. The instrument adopts a 4.3-inch true-color LCD display, a full digital keyboard, and a real-time operating system to make the display clearer and the operation more convenient. It can be used to measure the insulation resistance and leakage current of various electronic components, equipment, dielectric materials and wires and cables.

IR, Leakage current

TEST ITEMS

10kΩ～10TΩ

R RANGE

33rdgs/s

MEASUREMENT SPEED

1V～1000V (DC)

VOLTAGE

1%

R ACCURACY

4.3” TFT LCD

DISPLAY

RS232C，USB HOST，HANDLER，FOOT， LAN，RS485(optional)

Connectivity

REQUEST A QUOTE DOWNLOAD CATLOUGE

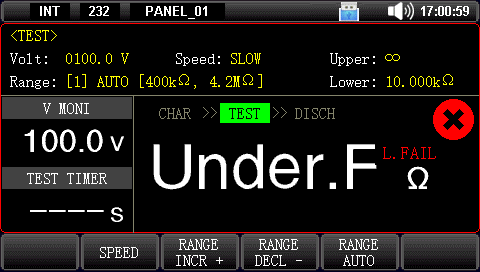

Automatic sorting

With comparator sorting function. And provide sound and light alarm. When the measured resistance value exceeds the upper and lower limits of the range, there will be a corresponding display

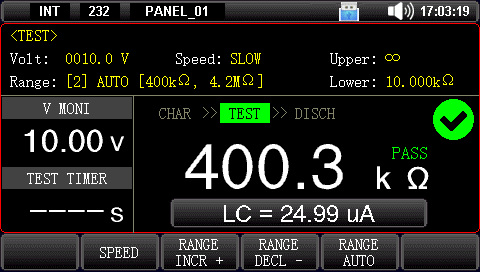

Double test and double display

Display mode selectable resistance/current, simultaneously display measured resistance and leakage current

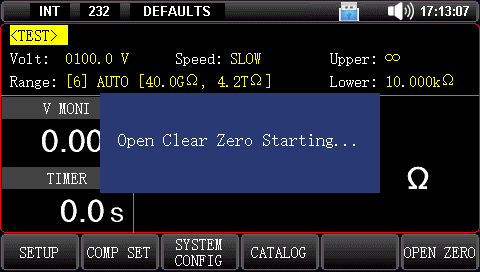

Open circuit calibration

Provides a simple and easy-to-operate open-circuit calibration method

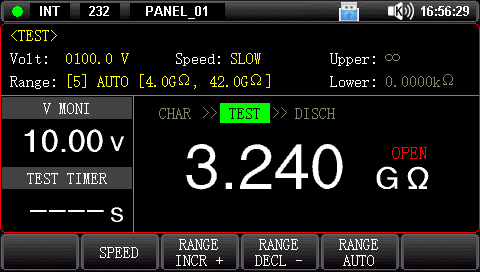

Contact check

During capacitive load test, OPEN alarm when the test loop is open

MODEL	TEST ITEMS	R RANGE	MEASUREMENT SPEED	VOLTAGE	R ACCURACY	DISPLAY	CONNECTIVITY
UT5583	IR, Leakage current	10kΩ～10TΩ	33rdgs/s	1V～1000V (DC)	1%	4.3'' TFT LCD	RS232C，USB HOST，HANDLER，FOOT， LAN，RS485(optional)

UT5583 Insulation Resistance Testers - Data Sheet

UT5583 Insulation Resistance Testers - Programming Manual

UT5583 Insulation Resistance Testers - User Manual
