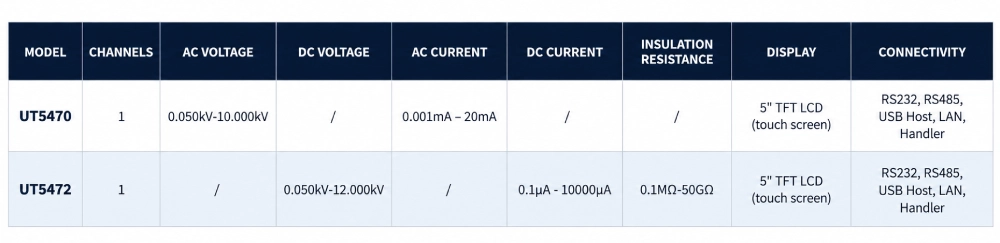

The UT5470 Series Ultra-High Voltage Withstand Testers are engineered to address rigorous testing requirements for high-voltage insulation and component reliability. Capable of delivering outputs up to 12 kV with a precise current resolution of 0.1 μA, the series ensures accurate and dependable performance in demanding applications. It includes two dedicated models: the UT5470 for AC testing (10 kV/20 mA) and the UT5472 for DC testing (12 kV/10 mA). Designed with user efficiency in mind, the instruments feature a 5-inch multi-touch screen and integrated barcode scanning, streamlining operation and test management. With comprehensive connectivity interfaces, the UT5470 series readily integrates into automated test systems, supporting enhanced safety, reliability, and productivity in industrial environments.

1

CHANNELS

0.050kV-10.000kV

AC VOLTAGE

0.050kV-12.000kV

DC VOLTAGE

0.001mA – 20mA

AC CURRENT

0.1μA – 10000μA

DC CURRENT

0.1MΩ-50GΩ

INSULATION RESISTANCE

5” TFT LCD (touch screen)

DISPLAY

RS232, RS485, USB Host, LAN, Handler

CONNECTIVITY

REQUEST A QUOTE DOWNLOAD CATLOUGE

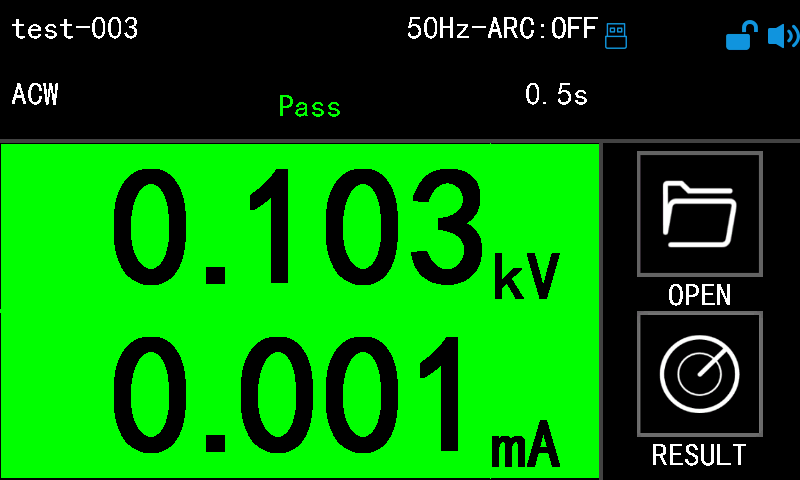

AC Withstand Voltage (ACW)

Maximum supported range:
Voltage: 0.05 kV to 10 kV;
Current: 0.001 mA to 20.00 mA.

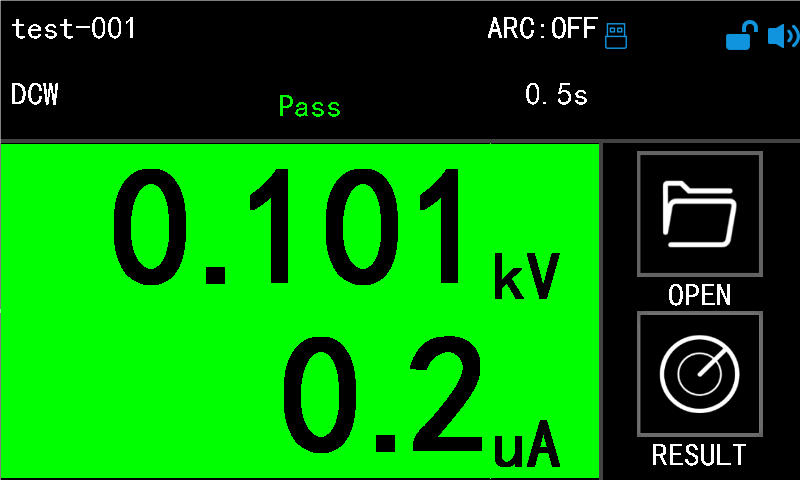

DC Withstand Voltage (DCW)

Maximum supported range:
Voltage: 0.05 kV to 12 kV;
Current: 0.1 μA to 10.00 mA.

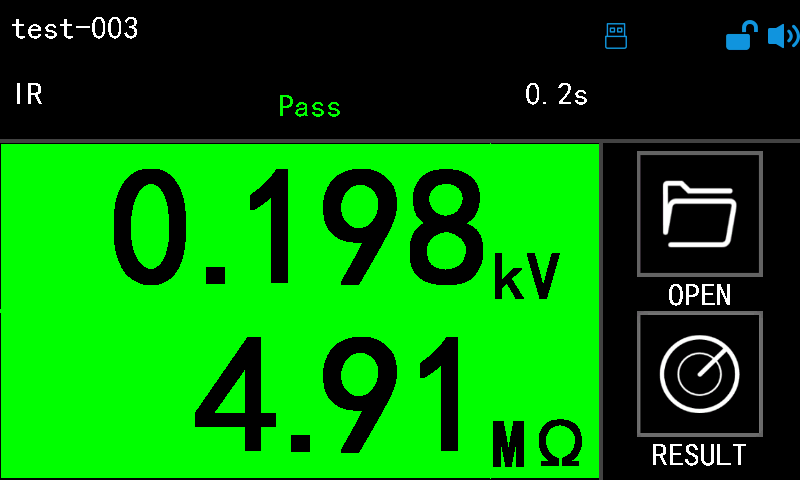

Insulation Resistance Test (IR)

Maximum supported range:
Voltage: 0.05 kV to 6 kV;
Resistance: 0.1 MΩ to 50 GΩ

Convenient and Efficient User Interface

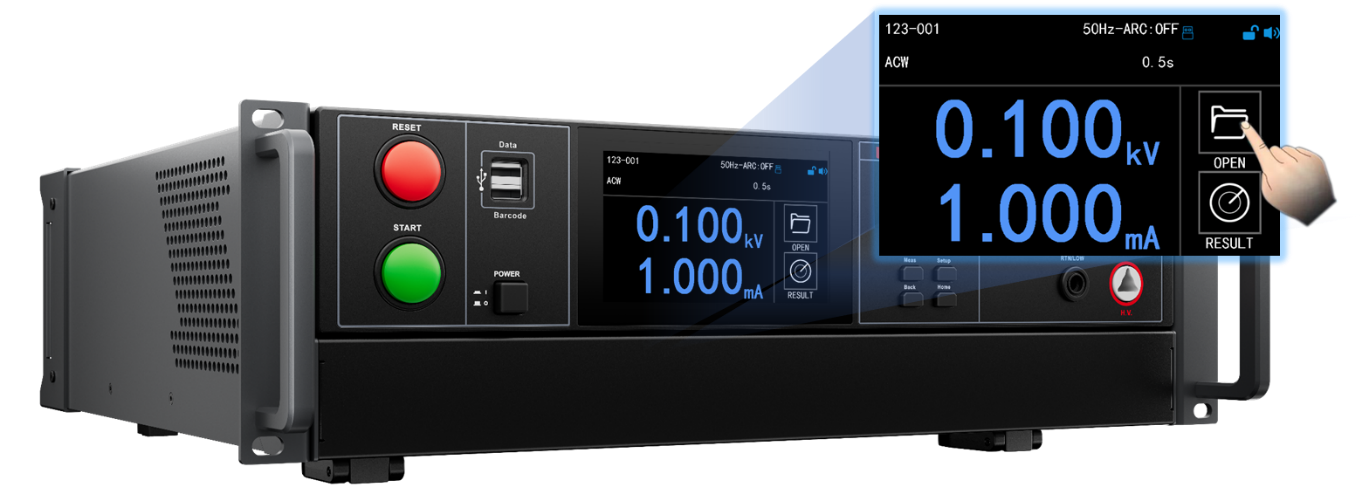

-5-inch capacitive touchscreen

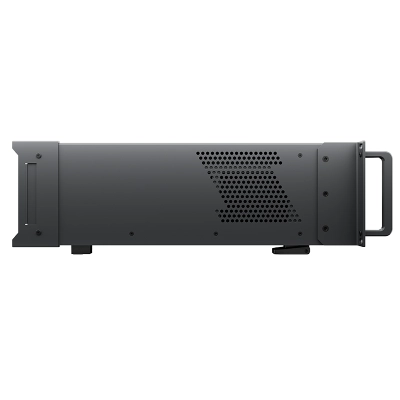

-3U standard rack height

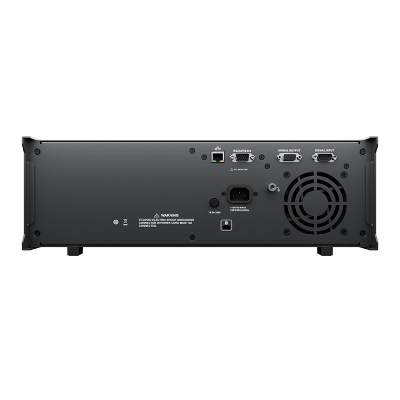

-Extensive interfaces: RS232/485, USB Host, LAN, Handler, Barcode
-Standard protocols: SCPI, MODBUS

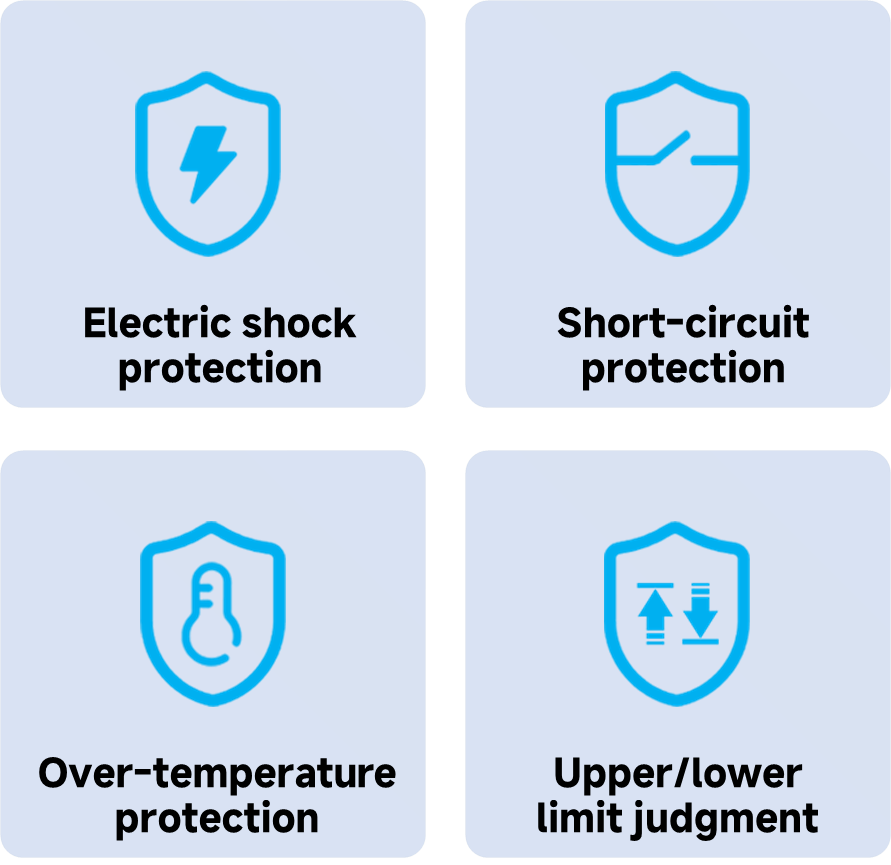

Multiple Safety Protections

Designed with multiple layers of safety protection, the instrument includes electric shock protection, short-circuit protection, upper/lower limit judgment, and over-temperature protection to safeguard both operators and equipment.

Continuous Output

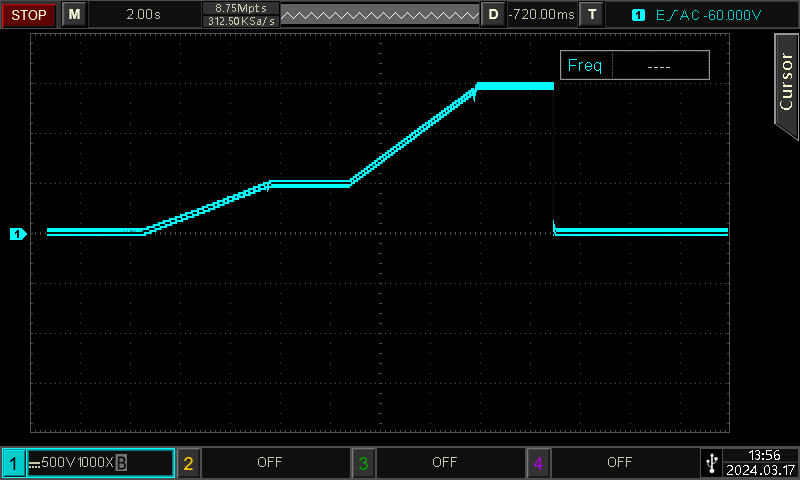

Unlike conventional testers where voltage drops, continuous output enables step-by-step boosting and cyclic aging tests to meet advanced safety requirements.

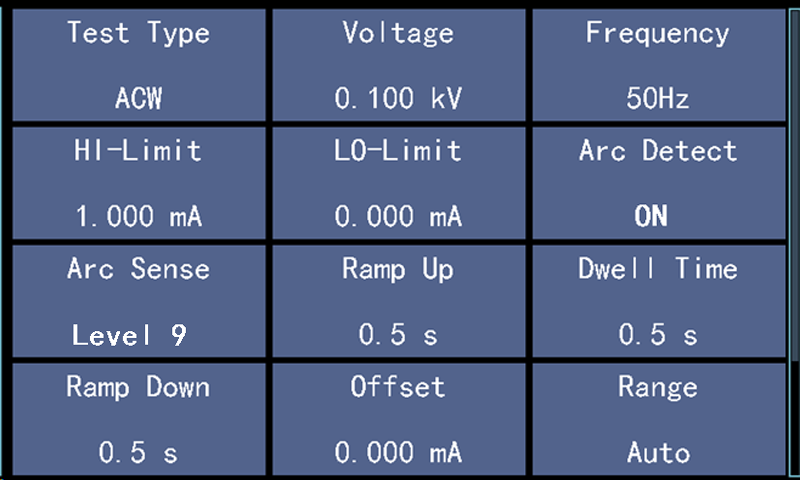

Level 9 Arc Detection

The adjustable Arc Detection (1-9 levels, with off option) provides unmatched precision in identifying hazardous leakage currents. This enhances test reliability and offers crucial flexibility for diverse safety compliance applications.

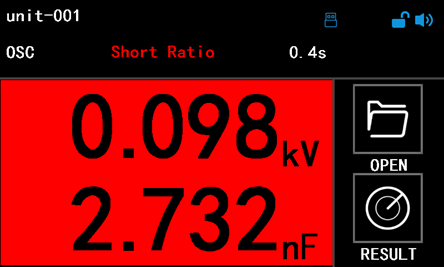

Wiring Reliability Detection

The UT5470 is equipped with OSC functionality, which detects wiring faults and thereby enhances testing efficiency and reliability.
