UT5320R-SxA Series

UT5320R-SxA Series

TUT5320R-SxA series is an instrument that integrates multiple testing functions of electrical strength (AC/DC withstand voltage) and insulation resistance. It can be widely used in the safety performance inspection of household appliances, transformers, electrical equipment and components.

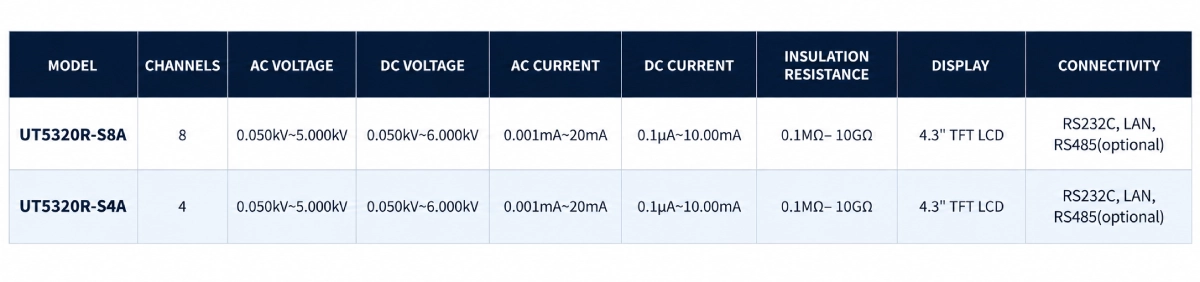

8

CHANNELS

0.050kV~5.000kV

AC VOLTAGE

0.050kV~6.000kV

DC VOLTAGE

0.001mA~20mA

AC CURRENT

0.1μA~10.00mA

DC CURRENT

0.1MΩ– 10GΩ

INSULATION RESISTANCE

4.3” TFT LCD

DISPLAY

RS232C，LAN，RS485(optional)

CONNECTIVITY

REQUEST A QUOTE DOWNLOAD CATLOUGE

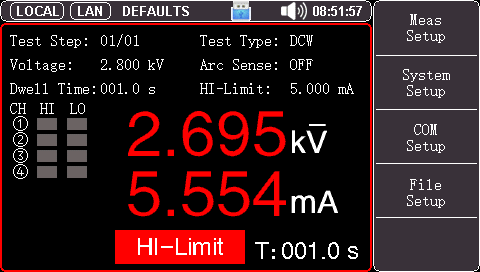

AMultiple test modes

Intelligent judgment

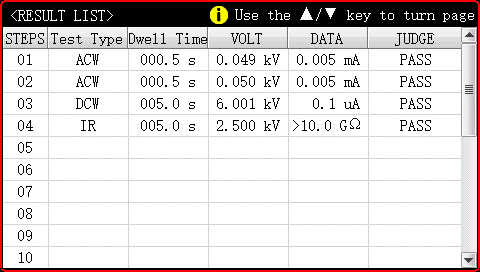

Provide a good prompt for the measurement work, and broadcast the results immediately.

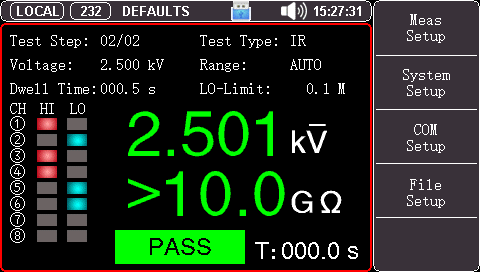

Insulation resistance test voltage is 2.5kV as standard, 5.0kV is optional, suitable for more test occasions

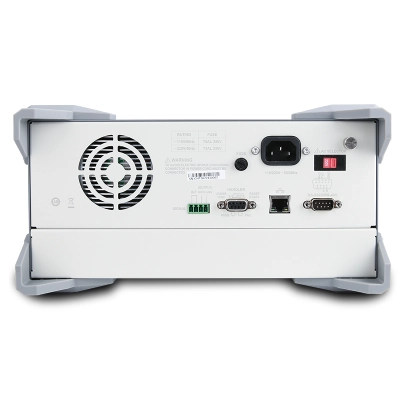

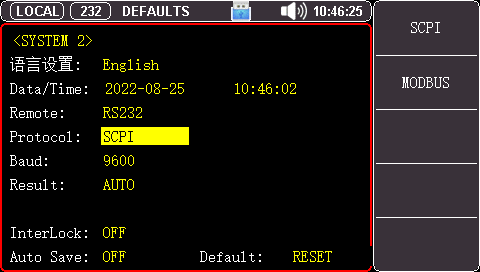

Equipped with Handler (PLC), RS485 (option), RS-232C and LAN interface. Support SCPI and Modbus RTU dual protocols.

Multiple protection functions provide you with a safer test environment

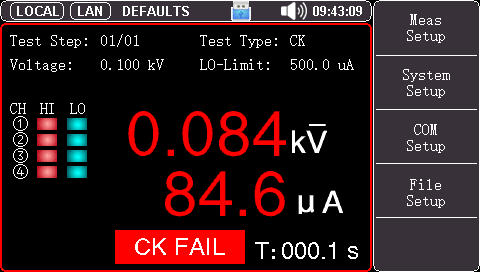

Unique hardware contact test, fast and reliable

UT5320R-SxA Series Hipot Testers - Data Sheet

UT5300+ & UT5320R-SxA Series Hipot Testers - Programming Manual

UT5300+ & UT5320R-SxA Series Hipot Testers - User Manual
