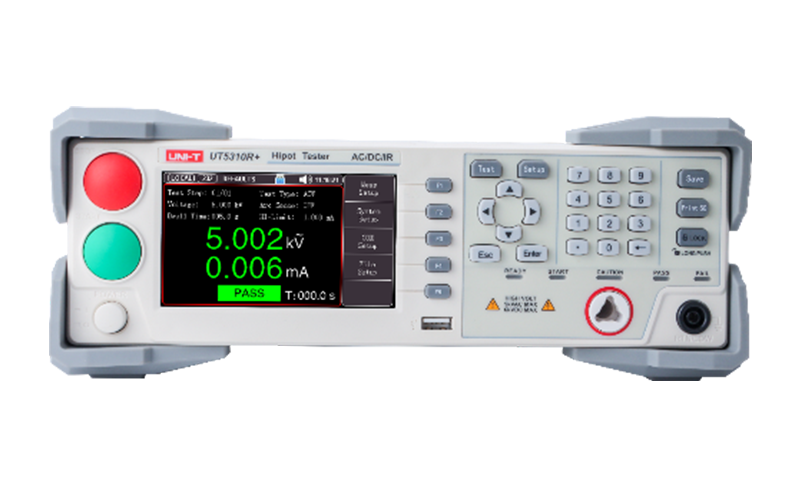

UT5300+ Series

UT5300+ Series

UT5300+ series is an instrument that integrates multiple testing functions of electrical strength (AC/DC withstand voltage) and insulation resistance. It can be widely used in the safety performance inspection of household appliances, transformers, electrical equipment and components.

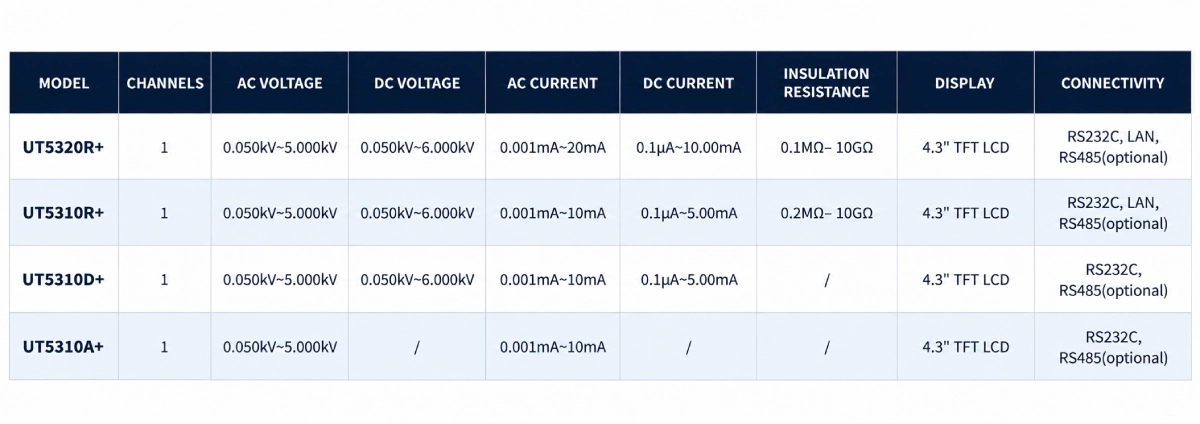

1

CHANNELS

0.050kV~5.000kV

AC VOLTAGE

0.050kV~6.000kV

DC VOLTAGE

0.001mA~20mA

AC CURRENT

0.1μA~10.00mA

DC CURRENT

0.1MΩ– 10GΩ

INSULATION RESISTANCE

4.3” TFT LCD

DISPLAY

RS232C，LAN，RS485(optional)

CONNECTIVITY

REQUEST A QUOTE DOWNLOAD CATLOUGE

Multiple test modes

Support multiple test modes, support AC, DC withstand voltage test, insulation resistance test. high accuracy and fast measurement speed

Easy to operate

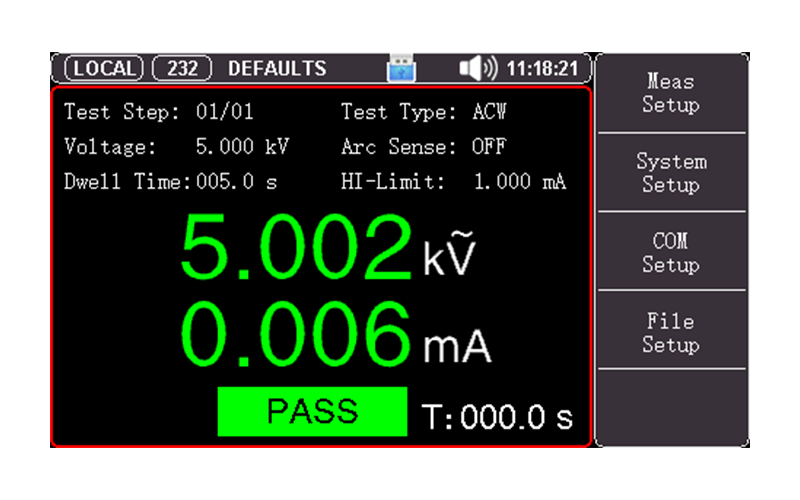

With 4.3 inch LCD screen, numeric keys and function keys, it is convenient to set up, select and control the test process. The screen is large and the displayed content is specific and clear.

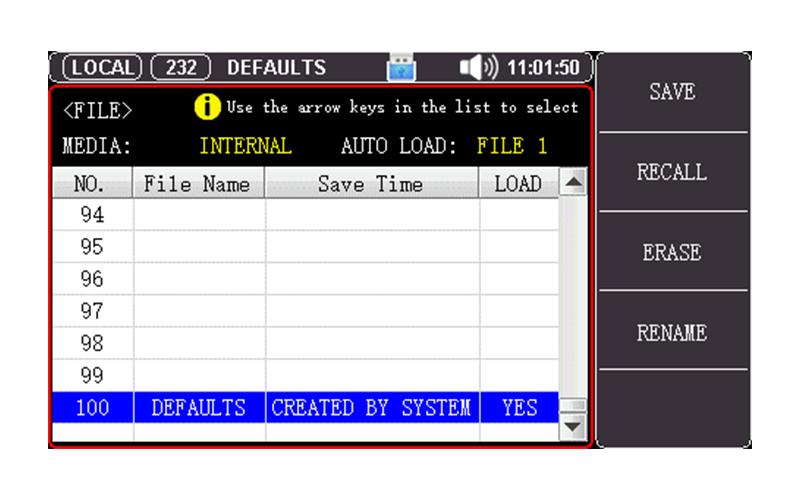

File management

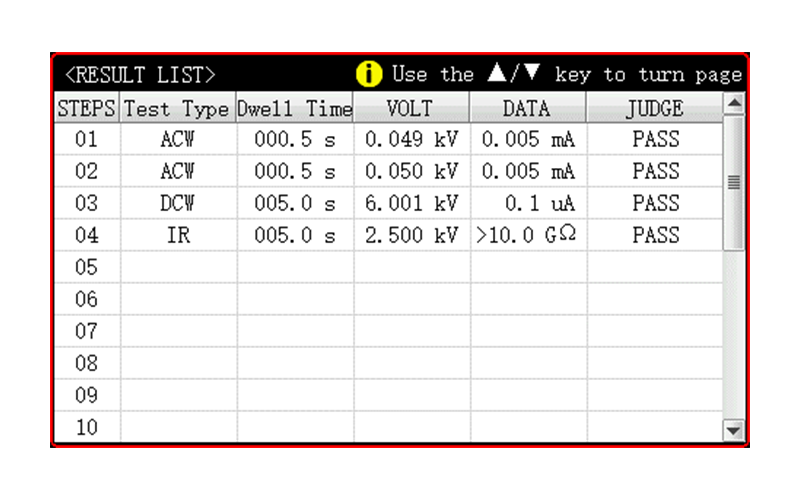

Programmable 100 groups of test files, each group can contain 20 steps of test operations. Create favorable conditions for programmatic control of safety testing operations.

Intelligent judgment

Upper and lower limit intelligent judgment function, and provide sound and light alarm at the same time. Provide a good prompt for the measurement work, and broadcast the results immediately.

IR measurement

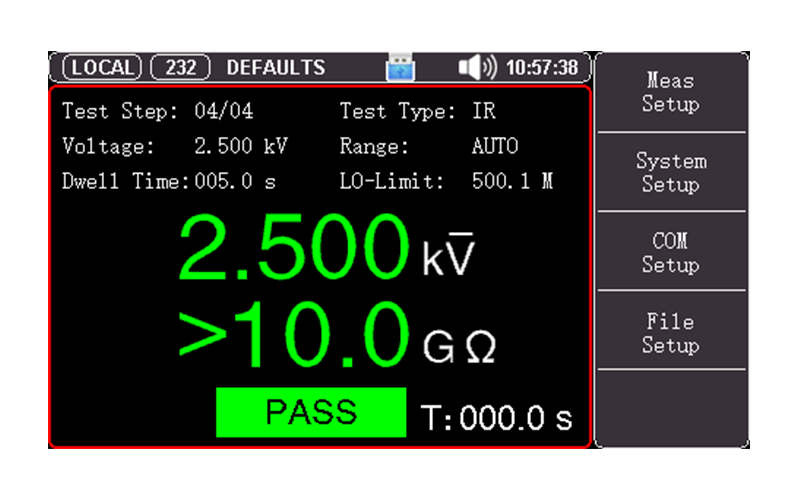

Insulation resistance test voltage is 2.5kV as standard, 5.0kV is optional, suitable for more test occasions.

Rich interface

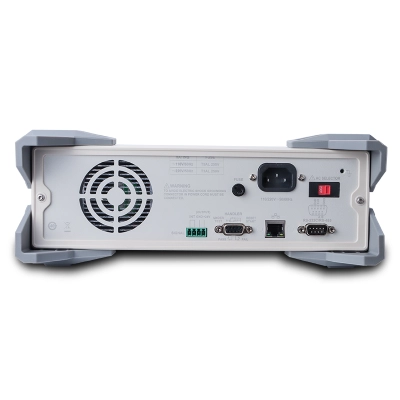

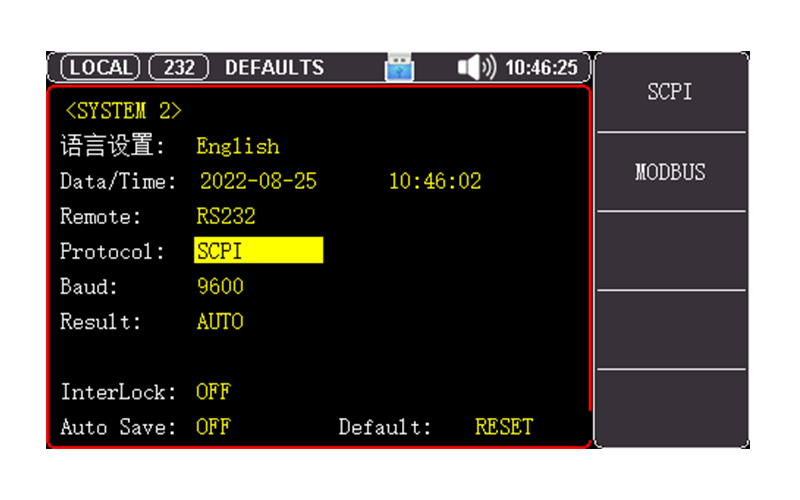

Equipped with Handler (PLC) interface for industrial control, RS485 (option), RS-232C and LAN interface for connecting to a computer. At the same time, it supports two communication protocols, SCPI and Modbus RTU, and efficiently completes the functions of remote control and data acquisition.

UT5300+ Series Hipot Testers - Data Sheet

UT5300+ & UT5320R-SxA Series Hipot Testers - Programming Manual

UT5300+ & UT5320R-SxA Series Hipot Testers - User Manual

What are the differences between AC withstand voltage test and DC withstand voltage test?

AC withstand voltage test can perform voltage test immediately and basically no discharge is required after the test. DC withstand voltage test can measured products with capacitive loads.

What are the differences between withstand voltage test and insulated resistance test?

Insulated resistance test is to measure the resistance value between the conductor and the insulation layer. The greater the resistance value the better the insulation performance Typically, the value of insulation impedance (IR) must not fall below a certain megohm (MΩ). The test is usually conducted with a DC voltage of 500V or 1000V and the results are measured in megohm resistance (MΩ). The withstand voltage test is an insulation voltage test of insulation layer. The withstand voltage value test value is determined by the actual used voltage level , but the added voltage is higher than that of the insulation impedance (IR) test. And depending on the different requirements, it can be performed at AC or DC voltage. The results are measured in milliamperes (mA) or microamperes (uA).

How to select voltage in withstand voltage test?

Confirm the test requirements of the relevant safety standards before testing. Recommended voltage for general non-standard withstand voltage test = 1000V + 2 times the operating voltage (test time 60 seconds). For example, a product that works on 220V, the recommended test voltage is at least 1440V. The withstand voltage test or high voltage test (HIPOT test) is a test used to verify the quality and electrical safety characteristics of products (such as UL, CE, VDE, CSA, TUV and other standards required by international safety agencies required )
