UTL8200+ Series

UTL8200+ series electronic load is equipped with a 2.8-inch LCD display, which is easy to operate and stylish in appearance. Its test resolution is up to 1mV/1mA. Equipped with rich test functions and modes for you to choose. The equipment is equipped with RS232 communication module, which can flexibly meet various on-site test conditions, and is convenient for seamless connection with automated production lines and automatic test systems. The electronic load operates stably and has a wide range of applications, adapting to various testing requirements.

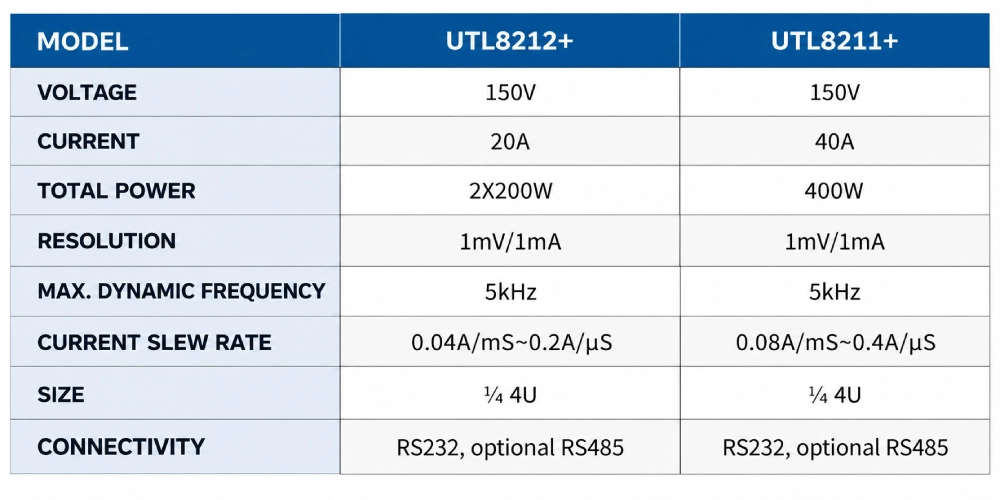

150V

VOLTAGE

20A/40A

CURRENT

400W

TOTAL POWER

1mV/1mA

RESOLUTION

5kHz

MAX. DYNAMIC FREQUENCY

0.04A/mS~0.2A/μS

CURRENT SLEW RATE

¼ 4U

SIZE

RS232,optional RS485

CONNECTIVITY

REQUEST A QUOTE     DOWNLOAD CATLOUGE

Compare
Add to wishlist
Categories: , , ,
Description

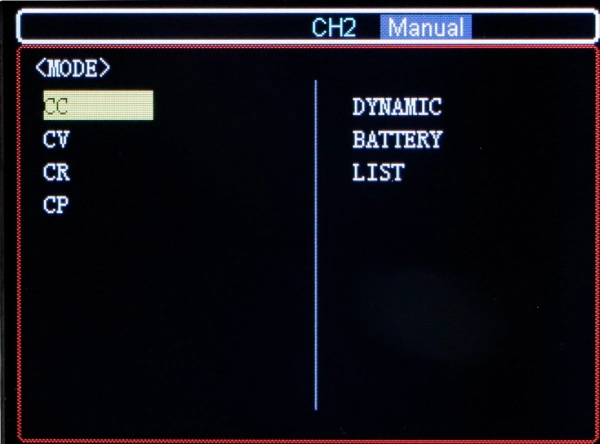

7 test modes to help you complete the test work better

Multiple protection functions and flexible adjustment

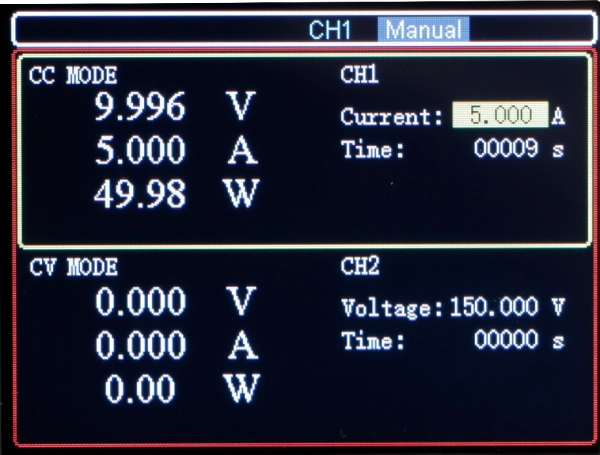

2.8inch LCD display, clearly displaying more information

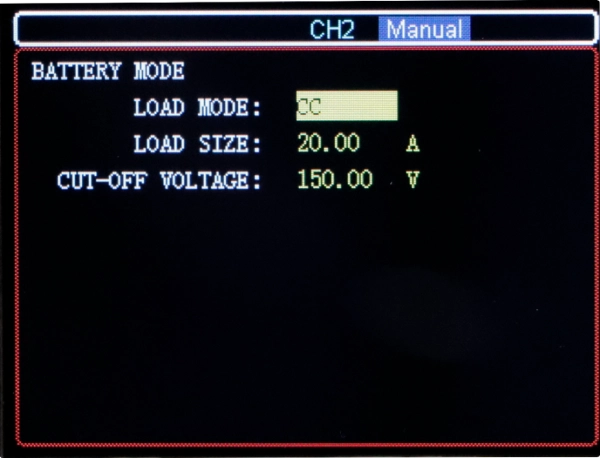

CC,CR,CP Multi-mode battery discharge test

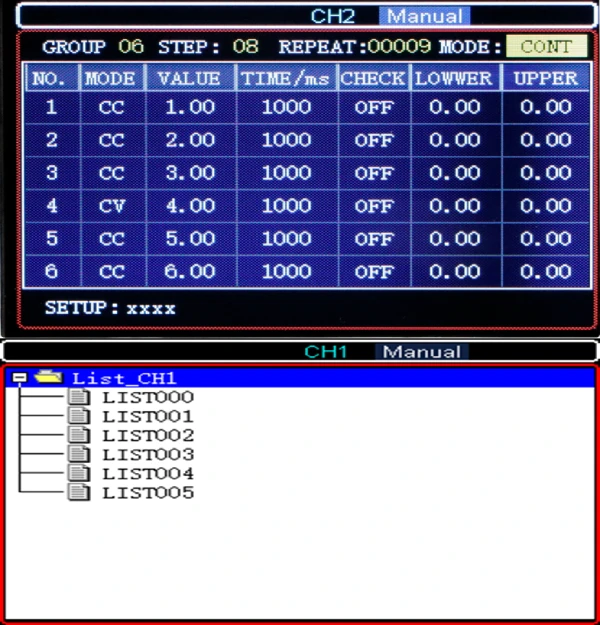

List mode to help you automate

Combining automatic unloading and self-starting voltage to effectively improve test efficiency

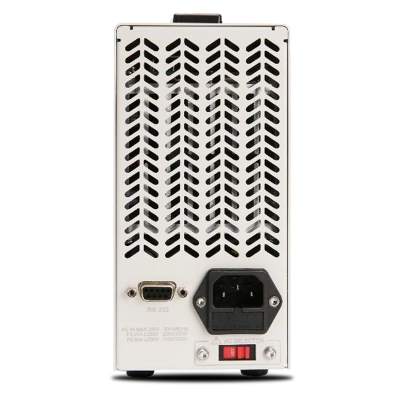

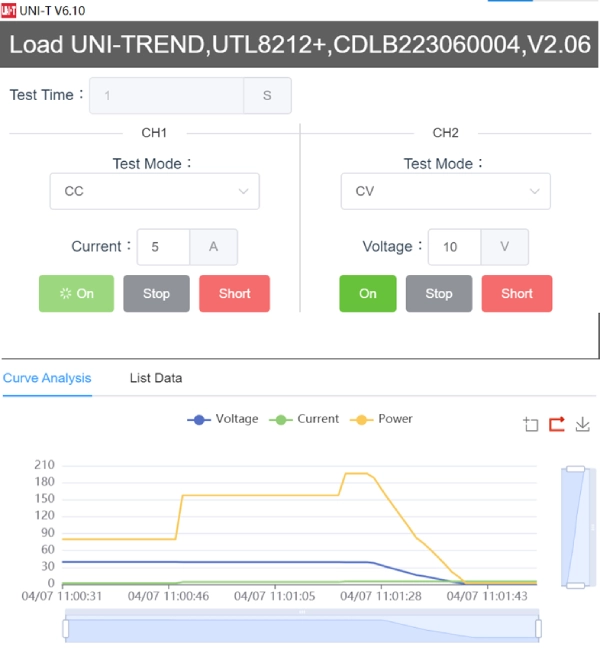

Standard 232 ports, optional 485 ports. Support SCPI protocol, providing a more convenient choice for remote control

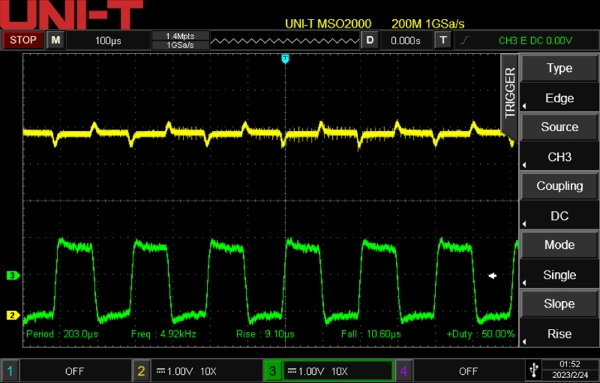

Dynamic load is up to 5kHz

UTL8200+ Series DC Electronic Loads - Data Sheet

UTL8200+ Series DC Electronic Loads - Programming Manual

UTL8200+ Series DC Electronic Loads - User Manual
