UDP6900 Series

UDP6900 Series

The UDP6900 series are single output programmable DC power supplies. It can achieve a variety of voltage and current combination outputs under a fixed power. A single power supply can meet the test of two types of DUTs, high voltage and low current or high current and low voltage, greatly saving your cost and space. UDP6900B series has standard RS232, RS485, LAN, USB and analog interfaces, supports SCPI protocol, and is convenient for remote control, industrial PLC control and building an intelligent test platform. Widely used in various testing fields such as DC/DC power modules, battery charging and sensors.

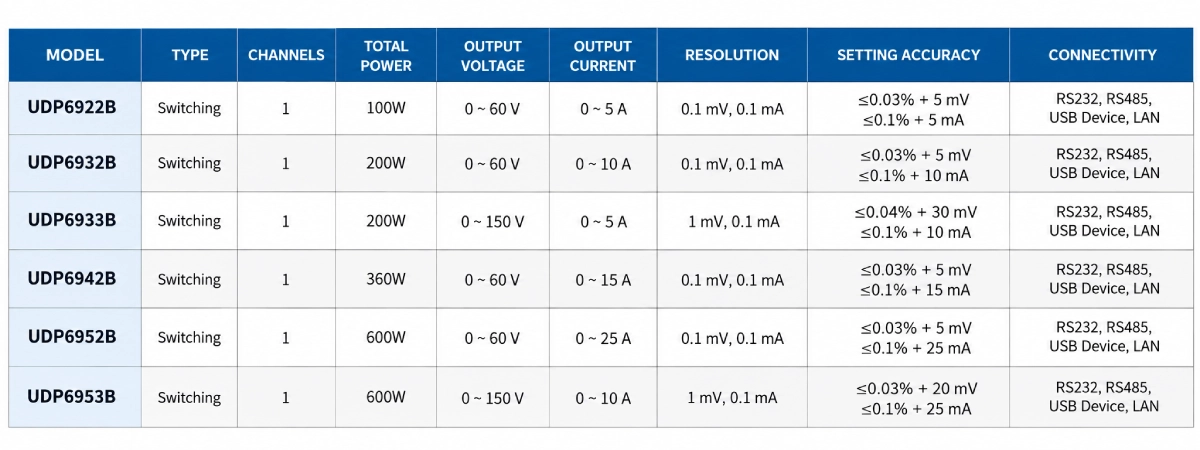

Switching

TYPE

1

CHANNELS

600W

TOTAL POWER

0~150V

OUTPUT VOLTAGE

0~25A

OUTPUT CURRENT

0.1mV，0.1mA

RESOLUTION

≤0.03%+5mV
≤0.1%+5mA

SETTING ACCURACY

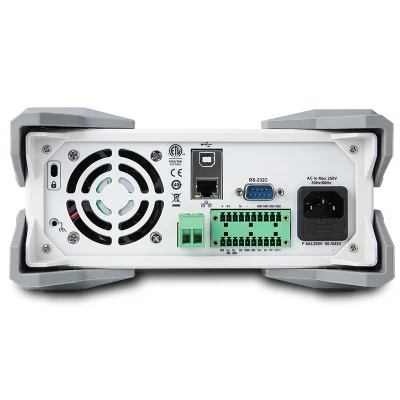

RS232，RS485，
USB Device，LAN

CONNECTIVITY

REQUEST A QUOTE DOWNLOAD CATLOUGE

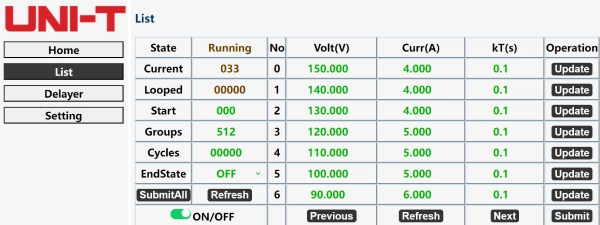

Remote control

Remote control and data observation can be achieved through host computer software or WEB access

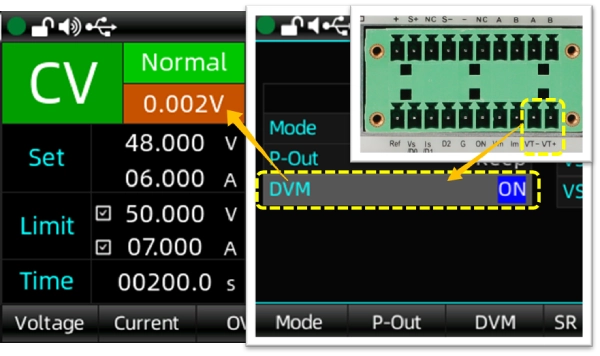

Voltmeter

Can measure external voltage, flexible application

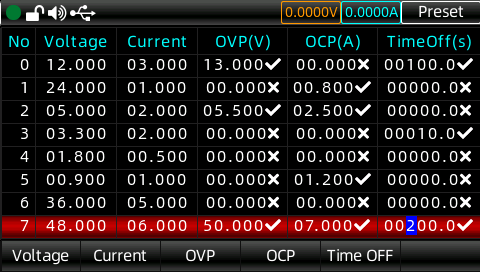

Preset function

Provides 18×8 preset storage so common tests can be performed and used at any time

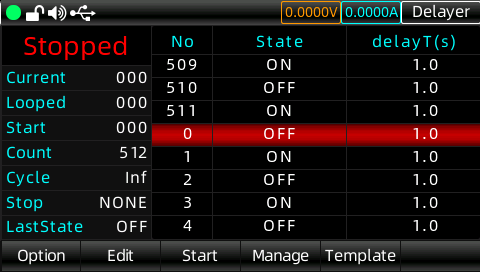

Delayer function

Help you automate power-on/off tests

List function

Quickly edit automated test programs

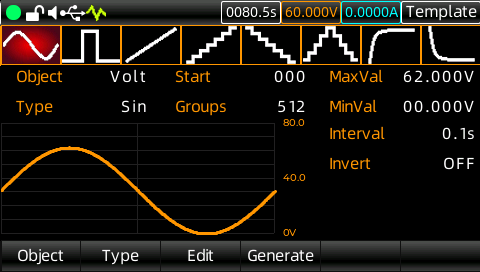

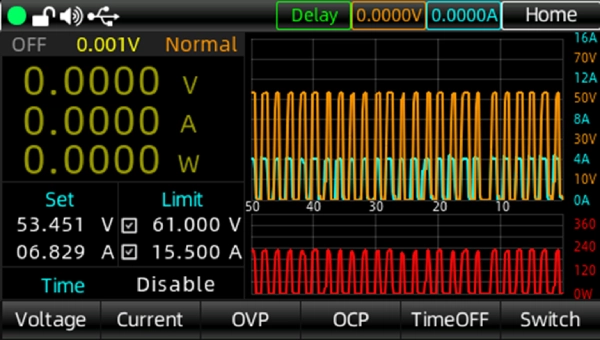

Waveform display

Trend chart, visually display the change trend of test data

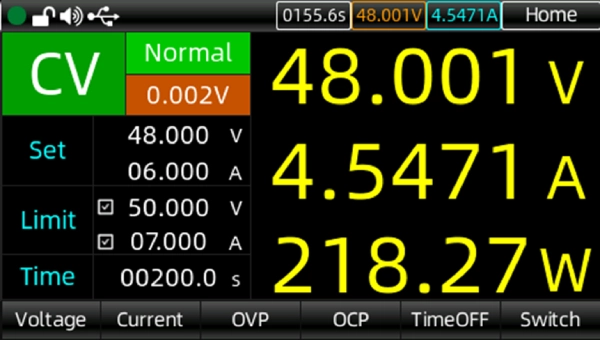

4.3-inch full-color LCD

Clearly show more of what you care about

Model	Description
UT-L0615-oo	Double O type terminal 60A/1.5m power supply/electronic load test wire；Length: 1.5m；Wire diameter: 6.8mm；Max current: 60A；Terminal: O type-O type；Color: red and black
UT-L0312-UU	Double U-type terminal 30A/1.2m power supply/electronic load test wire；Length: 1.2m；Wire diameter: 5.4mm；Max current: 30A；Terminal: double U-type；Color: red and black
UT-L0110-BU	Fold insert-U type terminal 10A/1m power supply/electronic load test wire；Length: 1m；Wire diameter: 3.6mm；Max current: 10A；Terminal: Fold insert-U type；Color: red and black
UT-L0320-UU	Double U-type terminal 30A/2m power supply/electronic load test wire；Length: 2m；Wire diameter: 5.4mm；Max current: 30A；Terminal: double U-type；Color: red and black
UT-L0110-BB	Double Fold insert 10A/1m power supply/electronic load test wire；Length: 1m；Wire diameter: 3.6mm；Max current: 10A；Terminal: Fold insert- Fold insert；Color: red and black
UTE-L16C	1m/16A alligator clip test wire；Wire diameter: 3.6mm；Length:1m；Rated voltage:220V；Rated current:16A；Color: red and black

UDP6900 Series DC Power Supplies - Data Sheet

UDP6900 Series DC Power Supplies SCPI - Programming Manual

UDP6900 Series DC Power Supplies - User Manual

What is the Baud rate of RS232?

Baud rate≥ Communication baud rate The range can be set to 9600, 14400, 19200, 38400, 57600, 115200. For more details, refer to the programming manual.
