UDP6720 Series

UDP6720 Series

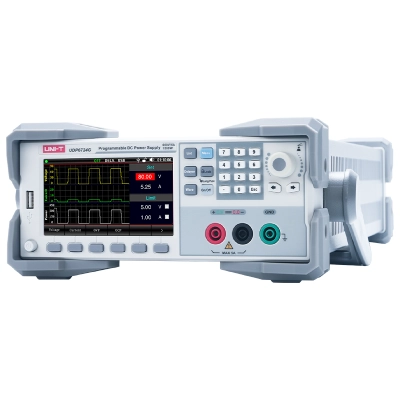

The UDP6720 series programmable DC power supply is a versatile switching power supply offering a wide operating range. This model is compact, lightweight, and highly functional, featuring a 4.3-inch LCD screen for intuitive parameter display and quick operation. It is suitable for use in automated test systems, product development and debugging, laboratories, teaching experiments, and mobile phone or home appliance repair.

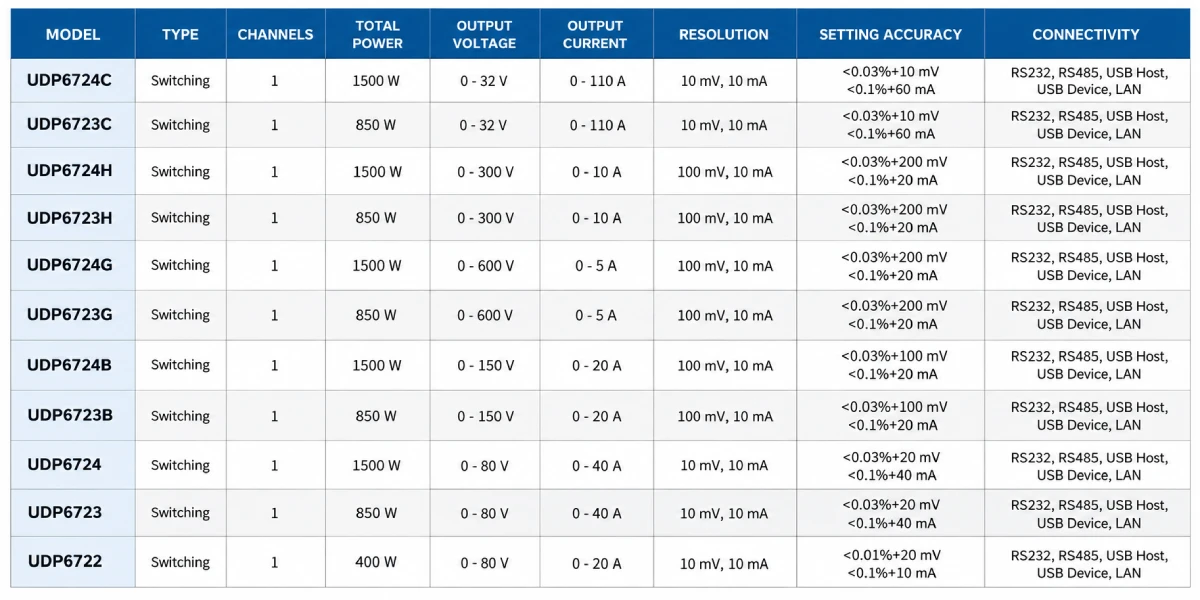

Switching

TYPE

1

CHANNELS

1500 W

TOTAL POWER

0 – 600 V

OUTPUT VOLTAGE

0 – 110 A

OUTPUT CURRENT

10 mV,10 mA

RESOLUTION

<0.01%+20 mV <0.1%+10 mA

SETTING ACCURACY

RS232, RS485, USB Host,
USB Device, LAN

CONNECTIVITY

REQUEST A QUOTE DOWNLOAD CATLOUGE

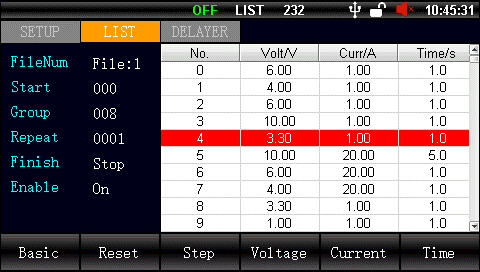

List function

The list mode provides a sequence output of up to 200 steps to suit various output needs.

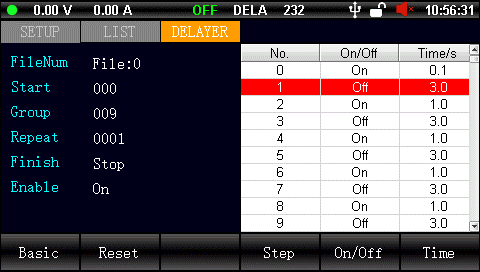

Delayer function

The delayer mode provides a sequence output of up to 200 steps to realize automatic multiple power-on/off operations.

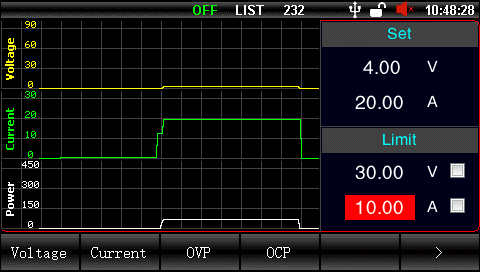

The output curve display

Intuitive voltage, current, power waveform display

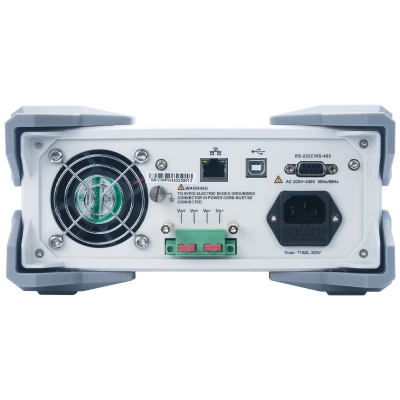

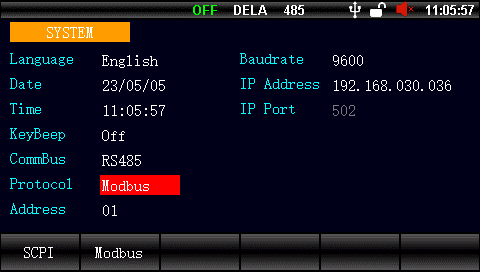

Multiple interfaces & Dual protocol

Support SCPI, MODBUS dual protocol With RS232, RS 485, LAN, USB multiple interconnection ports

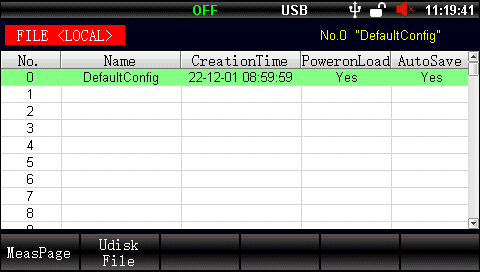

Perfect file management

100 configuration files, 40 delayer files and 40 list files can be saved

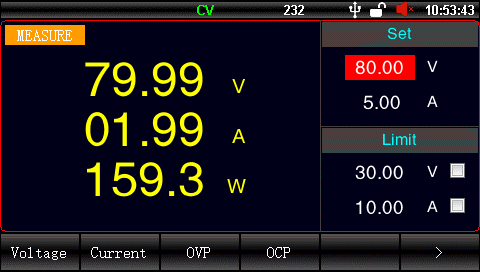

4.3 inch full color LCD

Comprehensive information display, color separation to display different content, more convenient to use s

Model	Description
UT-L0615-oo	Double O type terminal 60A/1.5m power supply/electronic load test wire；Length: 1.5m；Wire diameter: 6.8mm；Max current: 60A；Terminal: O type-O type；Color: red and black
UT-L0312-UU	Double U-type terminal 30A/1.2m power supply/electronic load test wire；Length: 1.2m；Wire diameter: 5.4mm；Max current: 30A；Terminal: double U-type；Color: red and black
UT-L0110-BU	Fold insert-U type terminal 10A/1m power supply/electronic load test wire；Length: 1m；Wire diameter: 3.6mm；Max current: 10A；Terminal: Fold insert-U type；Color: red and black
UT-L0320-UU	Double U-type terminal 30A/2m power supply/electronic load test wire；Length: 2m；Wire diameter: 5.4mm；Max current: 30A；Terminal: double U-type；Color: red and black
UT-L0110-BB	Double Fold insert 10A/1m power supply/electronic load test wire；Length: 1m；Wire diameter: 3.6mm；Max current: 10A；Terminal: Fold insert- Fold insert；Color: red and black
UTE-L16C	1m/16A alligator clip test wire；Wire diameter: 3.6mm；Length:1m；Rated voltage:220V；Rated current:16A；Color: red and black

UDP6720 Series DC Power Supplies - Data Sheet

UDP6720 Series DC Power Supplies - User Manual

UDP6720 Series DC Power Supplies - QuickStart Guide

UDP6720 Series DC Power Supplies - Programming Manual
