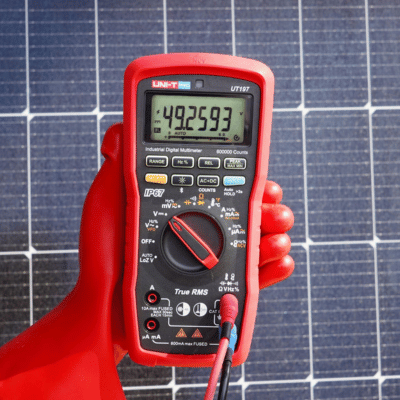

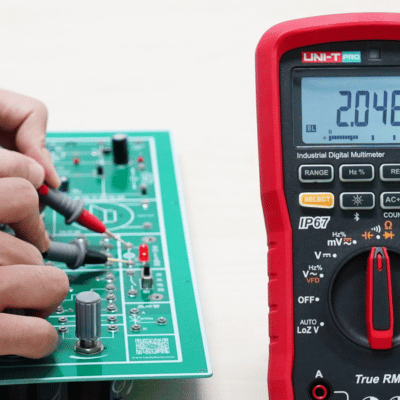

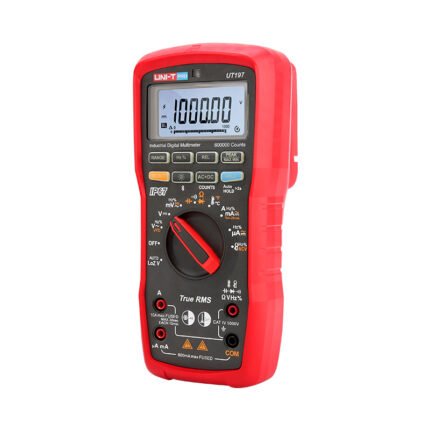

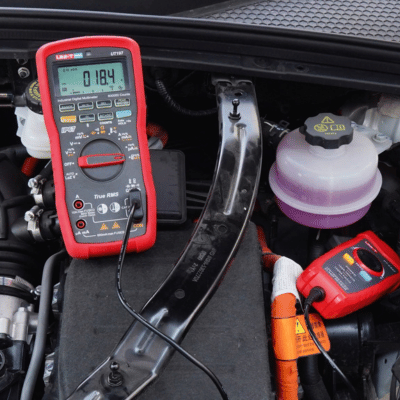

    UT197 Industrial Digital Multimeter
    UT197 Industrial Digital Multimeter
    Back to products

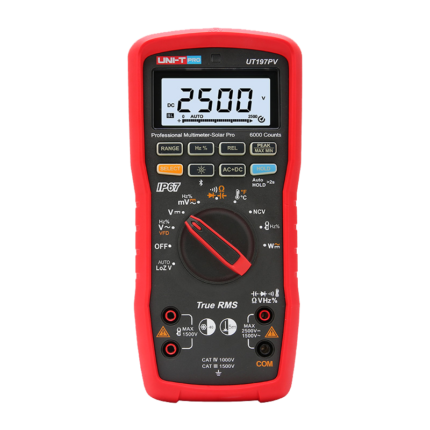

    UT197PV professional multimeter-solar pro
    UT197PV professional multimeter-solar pro

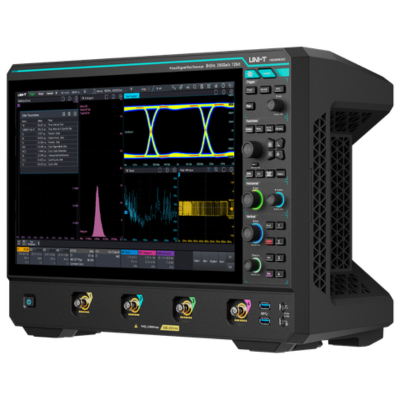

    MSO8000HD Series

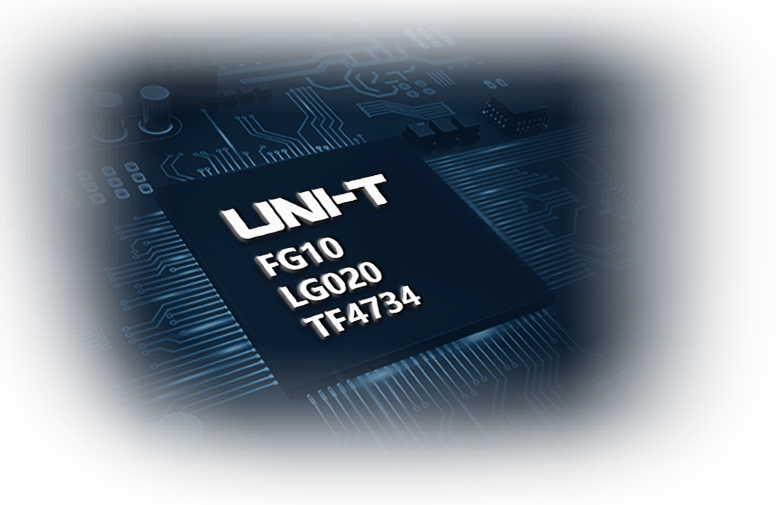

    The MSO8000HD Series high-resolution oscilloscopes provides three bandwidth 8 GHz, 6GHz and 5 GHz. The entire series features a standard 20 GSa/s sample rate and 12-bit vertical resolution. Equipped with UNI-T’s independently developed analog front-end chipset, these oscilloscopes offer optimized performance and a lower noise floor, delivering significant advantages in testing high-speed and high-dynamic-range signals.

    5~8 GHz

    BANDWIDTH

    4

    ANALOG CHANNELS

    20 GSa/s

    REAL-TIME SAMPLE RATE

    2 Gpts(opt.)

    MAX. MEMORY DEPTH

    1.000,000wfms/s

    WAVEFORM CAPTURE RATE

    16(opt.)

    DIGITAL CHANNELS

    REQUEST A QUOTE     DOWNLOAD CATLOUGE

    Compare
    Add to wishlist
    Categories: High Resolution Oscilloscopes, Testing Instruments, UNI-T
    Share:
    • Description
    Description

    Lower Noise and Enhanced ENOB

    • Noise floor: 50mV/div, as low as 800μV at full bandwidth (Typ.)
    • ENOB: >7 bits (at full system bandwidth, 50Ω, 50 mV/div, -3dBFS).
    • SFDR: ≥ 50dBc (Typ.)
    • Low intrinsic jitter: ≤150fs RMS
    • High bandwidth precision BNC connector: >10GHz.

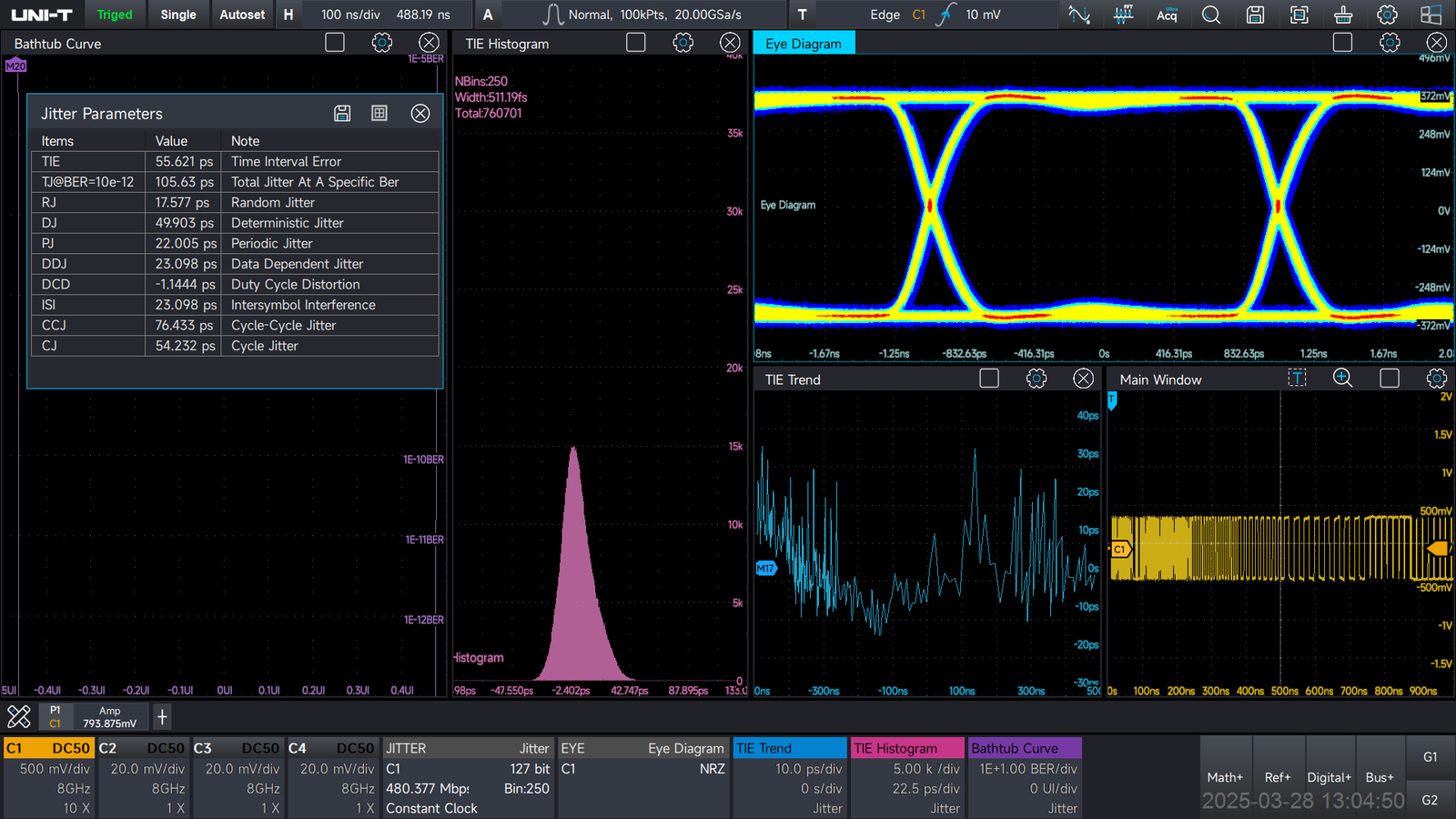

    Jitter Analysis and Eye Diagram

    • Jitter Analysis View: Eye Diagram, Trend Chart, Histogram, TIE spectrum, Bath Curve
    • Jitter Measurement: TIE, Cycle-Cycle Jitter, Period Jitter, PJ, TJ@BER, RJ, DJ, DDJ, DCD, ISI

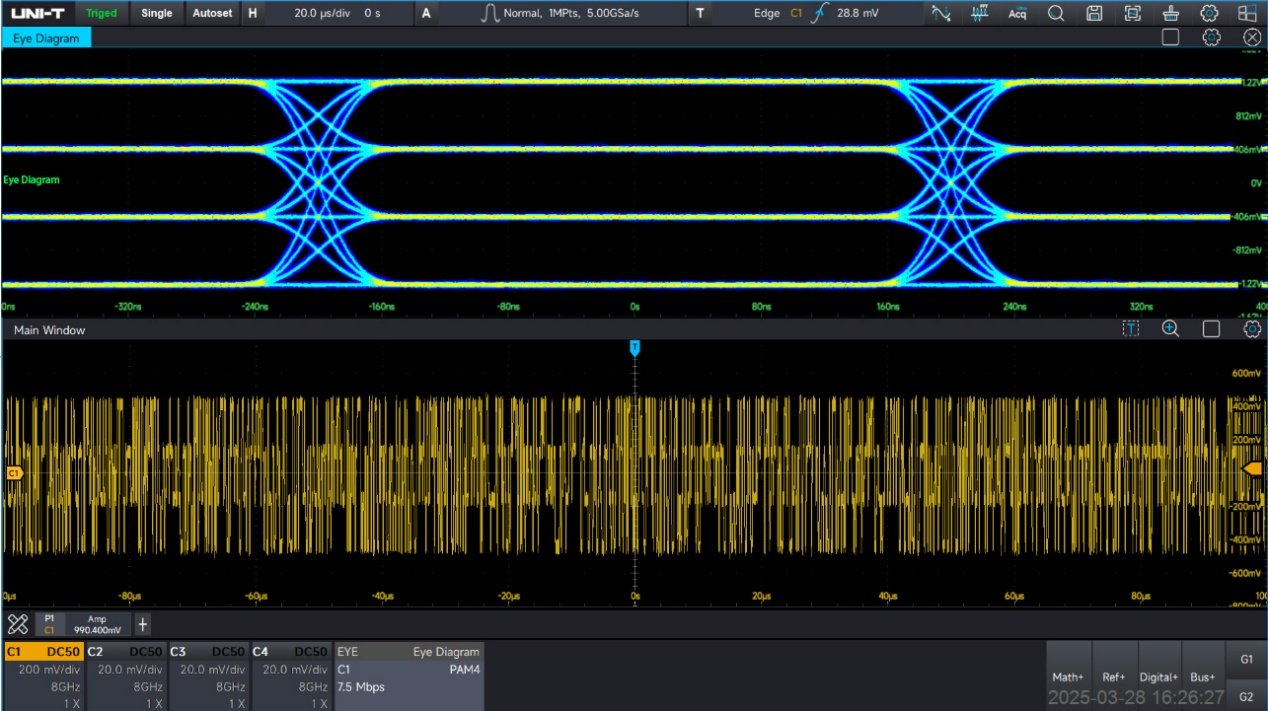

    PAM-N Analysis

    • Supports to PAM-3 to PAM-16 signal analysis. Equipped with a 12-bit ADC and delivering over 7 bits of Effective Number of Bits (ENOB) at full bandwidth, it can recover clocks from PAM-N signals with small amplitude differences and perform real-time eye diagram measurements.

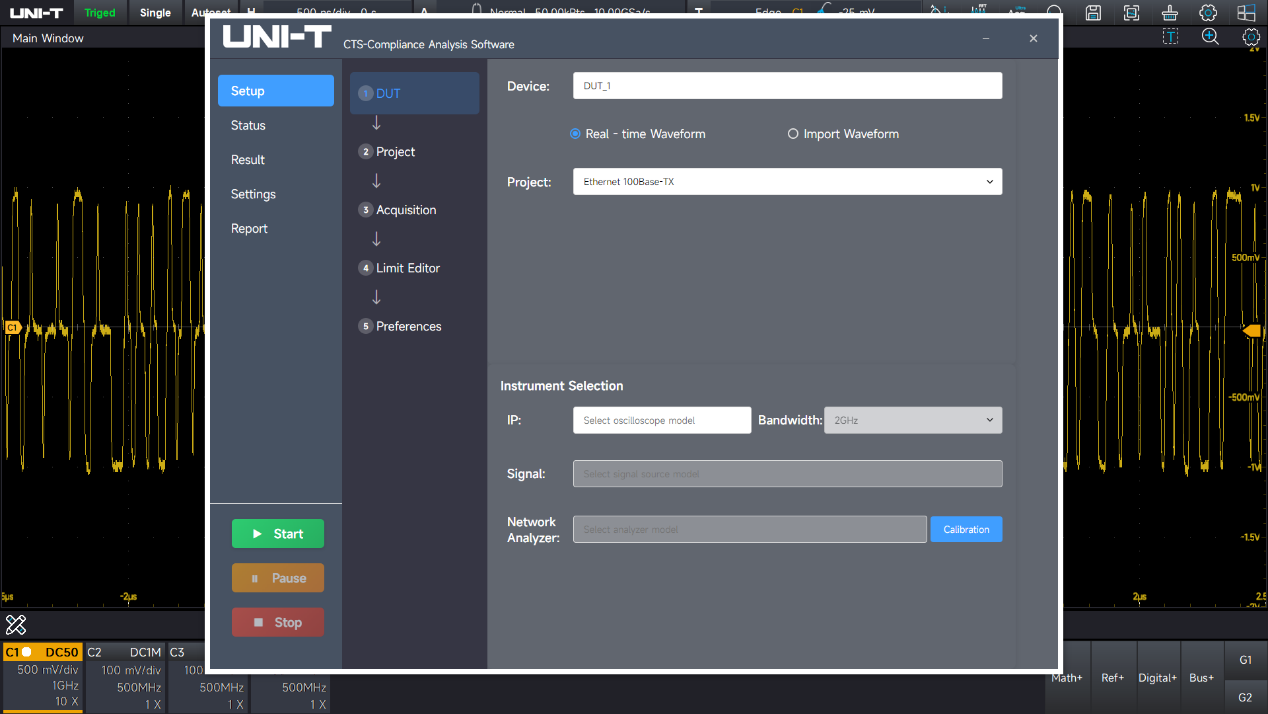

    Protocol Compliance Test

    • Comprehensive compliance testing support for USB 2.0, 100BASE-TX, 1000BASE-T, 100BASE-T1, 1000BASE-T1, and MIPI D-PHY v1.2 protocols.

    Serial Protocol Analysis

    • Supports more than 21 protocols
    • Embedded serial bus: RS-232/422/485/UART, I2C, SPI, SMBUS, SPMI, AudioBus (I2S, LJ, RJ, TDM)
    • Automotive serial bus: CAN, LIN, CAN-FD, SENT, FlexRay, I3C, PSI5 -Computers & Communications: USB2.0, PCIe2.0, Ethernet, NRZ, Manchester, 8b/10b
    • Aerospace serial bus: MIL-STD-1553,ARINC 429

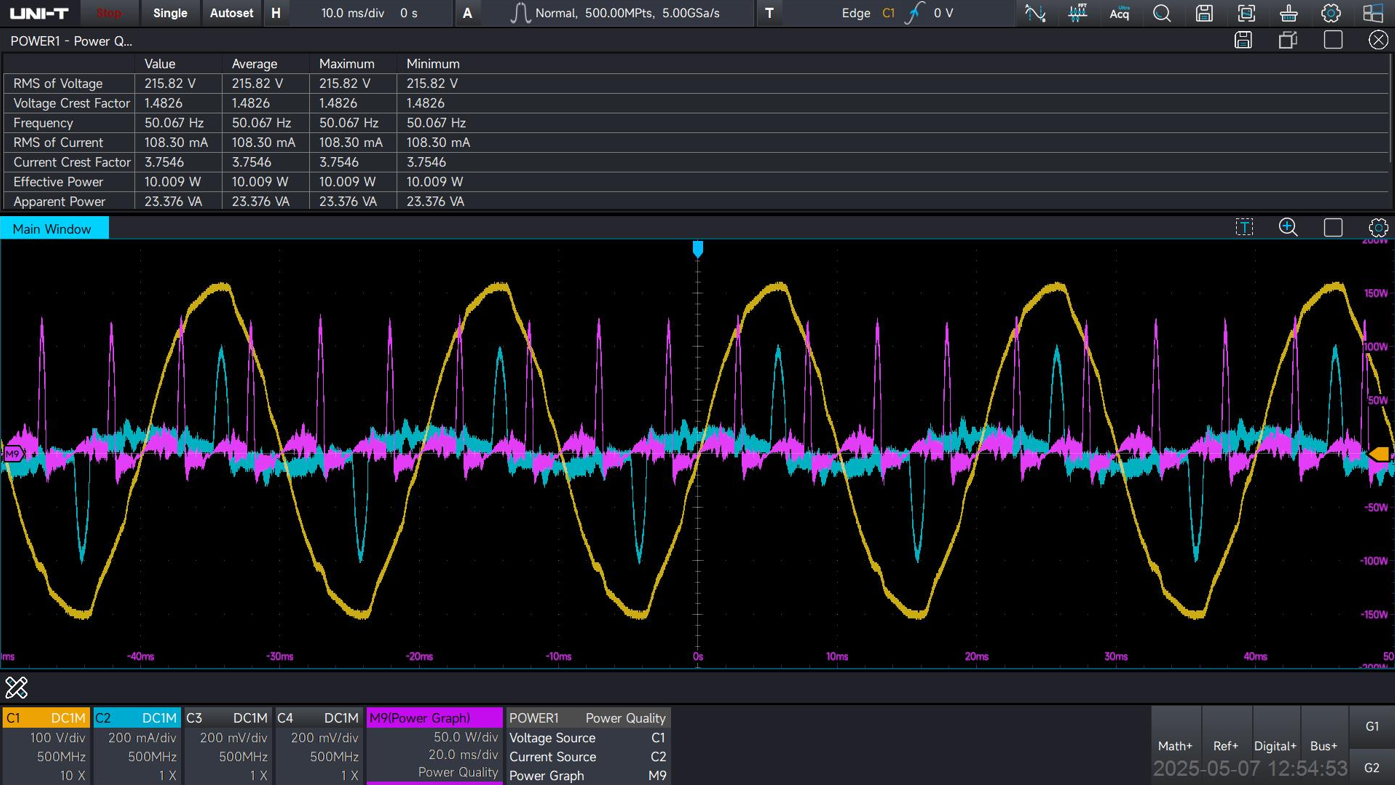

    Advanced Power Analysis

    • The comprehensive advanced power analysis option available on the MSO8000HD enables fast, repeatable evaluation of key power parameters.
    • Input Analysis: Power Quality, Harmonic Analysis, Inrush Current
    • Switching Analysis: Switching Loss, Safe Operating Area (SOA), Slew Rate, Rds (on), Modulation Analysis
    • Output Analysis: Ripple Analysis, Power Efficiency, Transient Response, ON/OFF time
    • Loop Analysis: Bode Plot, Power Supply Rejection Ratio (PSRR)

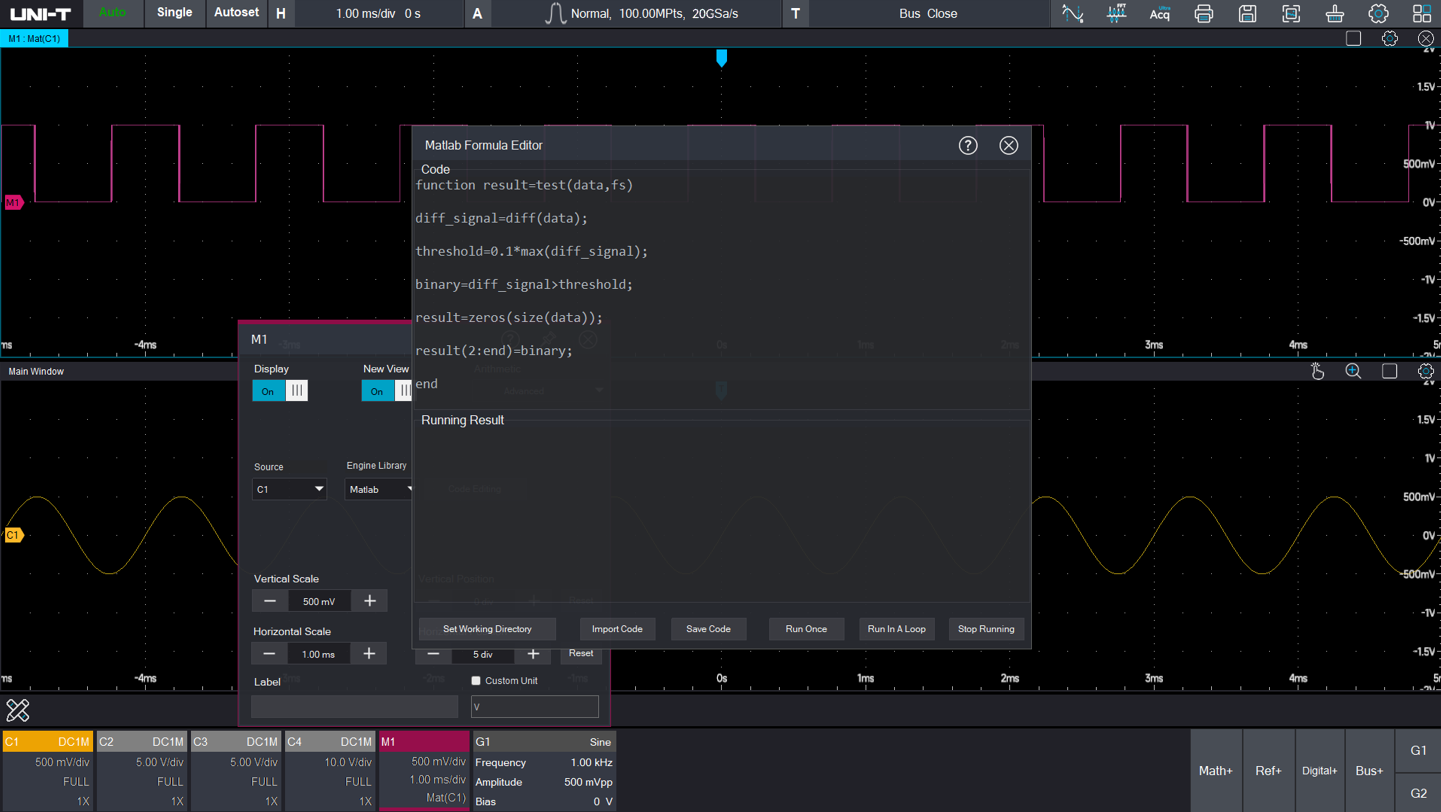

    MATLAB Embedded Programming

    • Support MATLAB embedded programming , Operational results are rendered directly to the oscilloscope window.

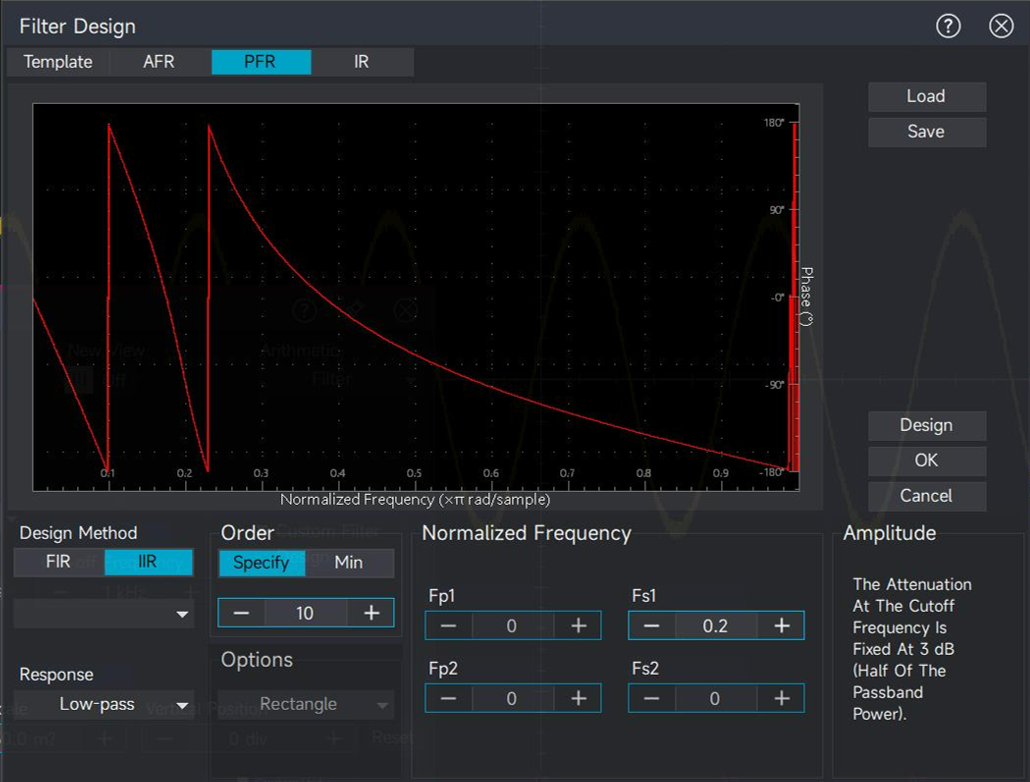

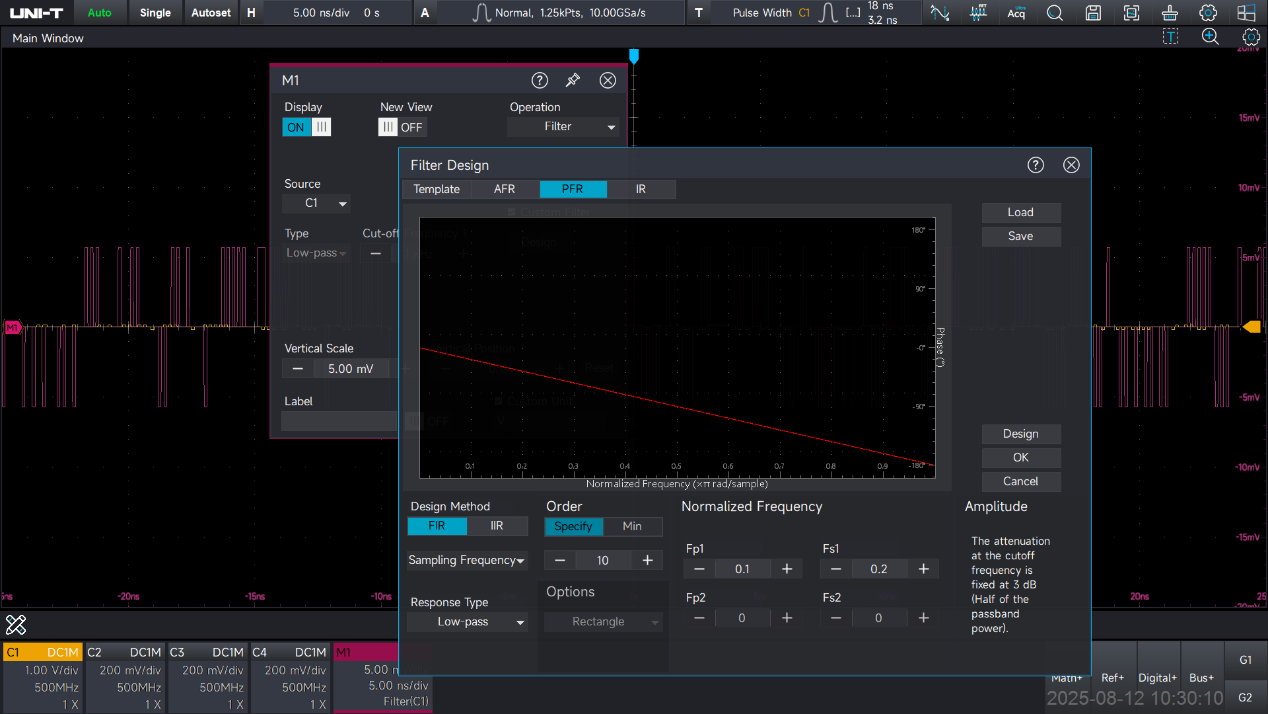

    Advanced Filter Designer

    • Supports filter types:
    • Butterworth
    • Chebyshev Type I
    • Chebyshev Type II
    • Elliptic
    • Sampling method
    • Remez
    • Window function

    MSO8000HD User Manual

     1 file(s) 6.29 MB

    MSO8000HD Datasheet

     1 file(s) 1.59 MB

    MODEL

    BANDWIDTH

    ANALOG CHANNELS

    REAL-TIME SAMPLE RATE

    MAX. MEMORY DEPTH

    WAVEFORM CAPTURE RATE

    DIGITAL CHANNELS

    MSO8804HD

    8 GHz

    4

    20 GSa/s

    2 Gpts(opt.)

    1,000,000 wfms/s

    16(opt.)

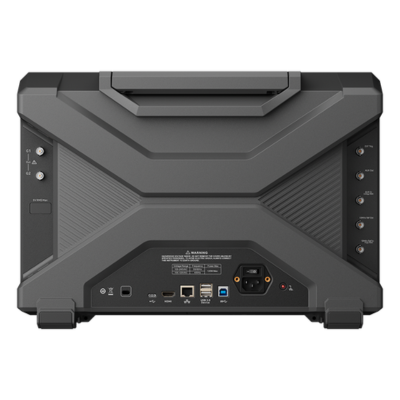

    MSO8604HD

    6 GHz

    4

    20 GSa/s

    2 Gpts(opt.)

    1,000,000 wfms/s

    16(opt.)

    MSO8504HD

    5 GHz

    4

    20 GSa/s

    2 Gpts(opt.)
    1,000,000 wfms/s

    16(opt.)

    Options

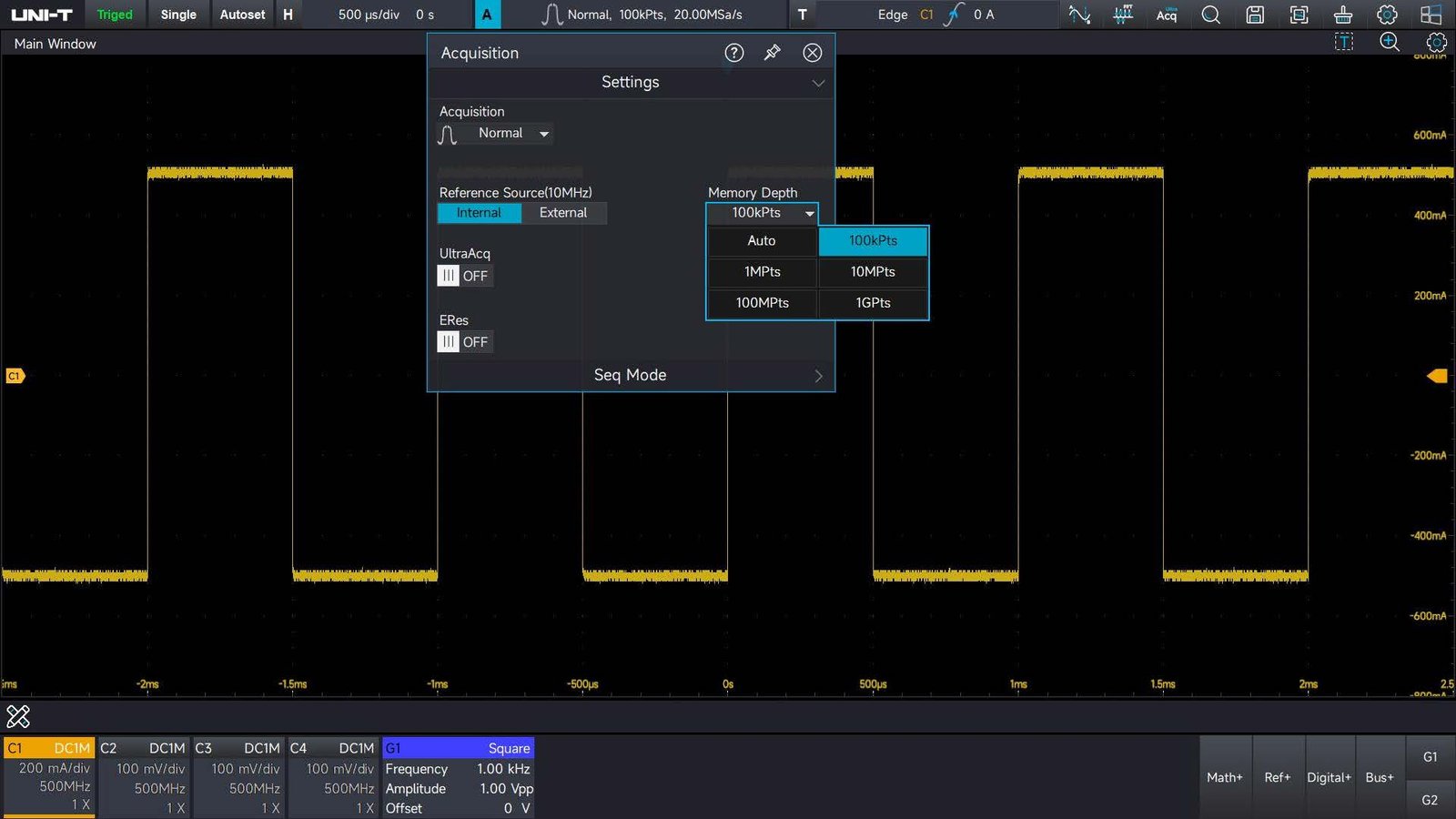

    MSO8000HD-MD2G

    Extend the oscilloscope's maximum memory depth to 1 Gpts/CH (full channel) and 2 Gpts/CH (half channel)

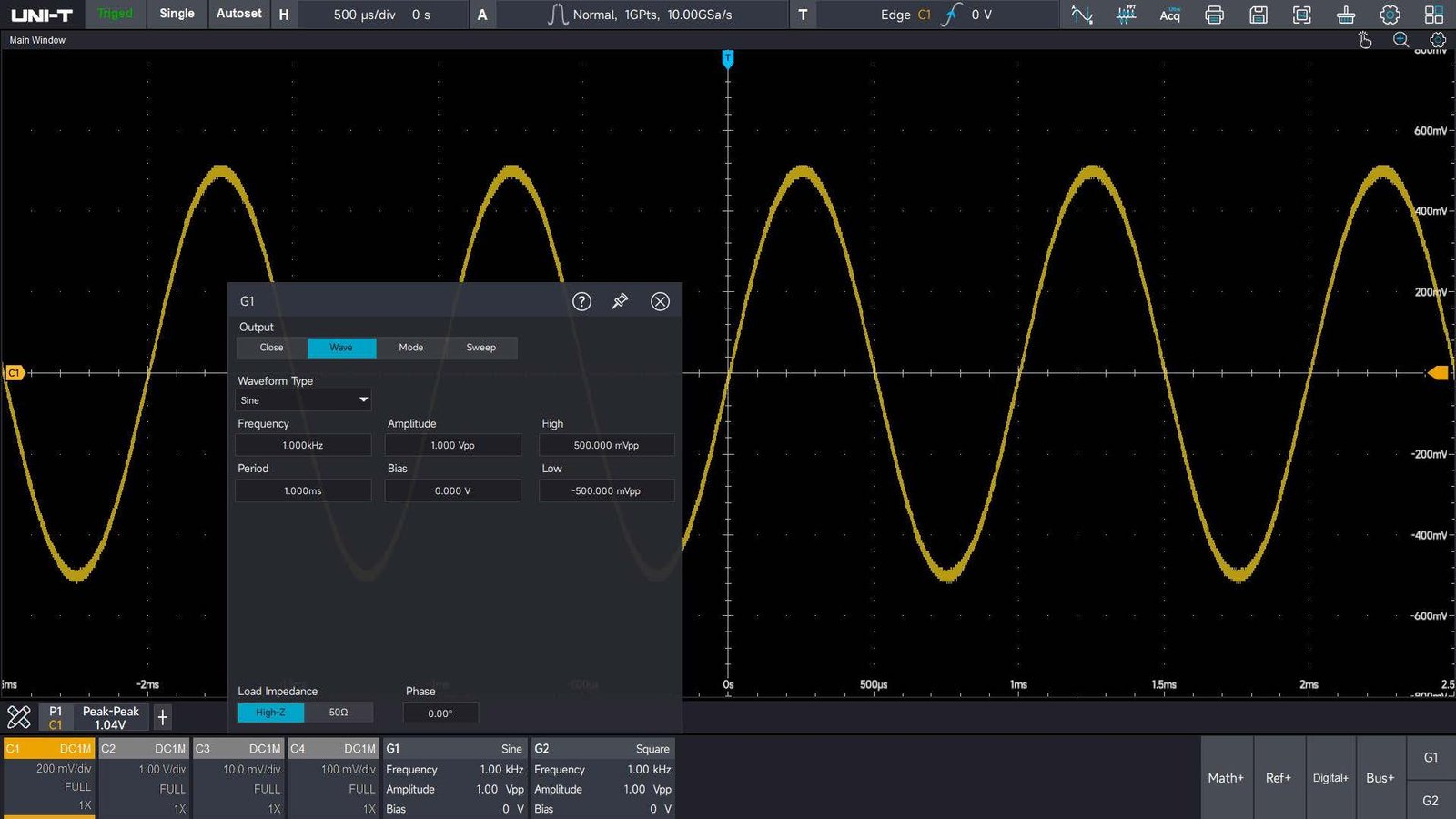

    MSO8000HD-AWG

    Dual channel 60 MHz function/arbitrary waveform generator

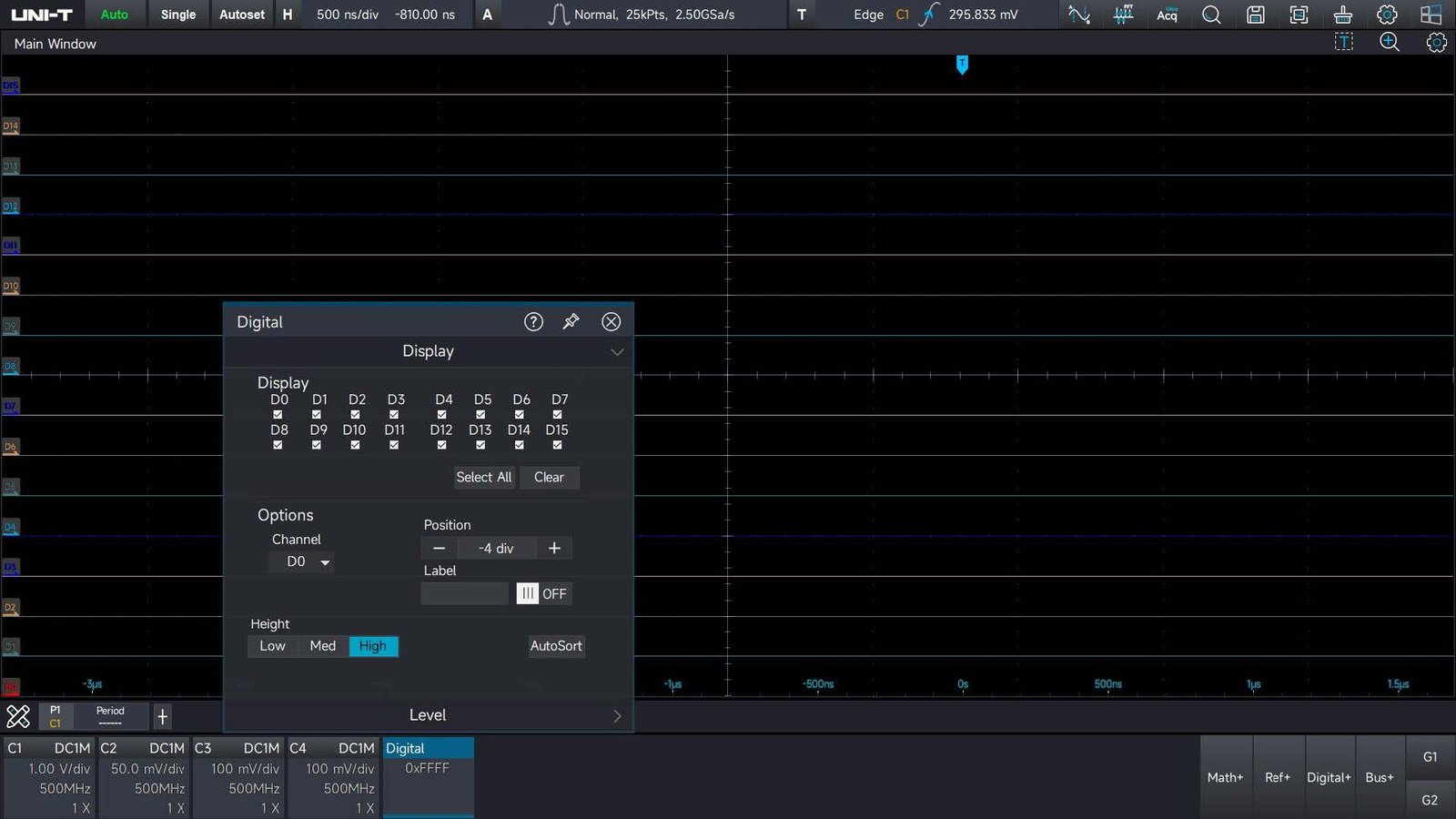

    MSO8000HD-LA

    16-channel logic analyzer option

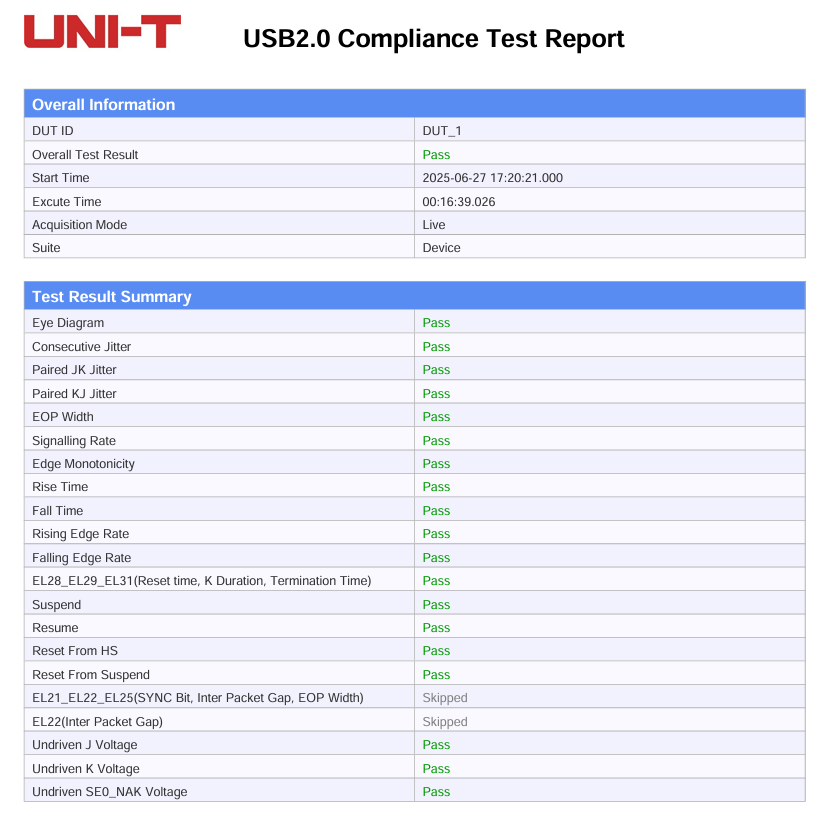

    MSO8000HD-CTSUSB20

    USB 2.0 Compliance Test Option

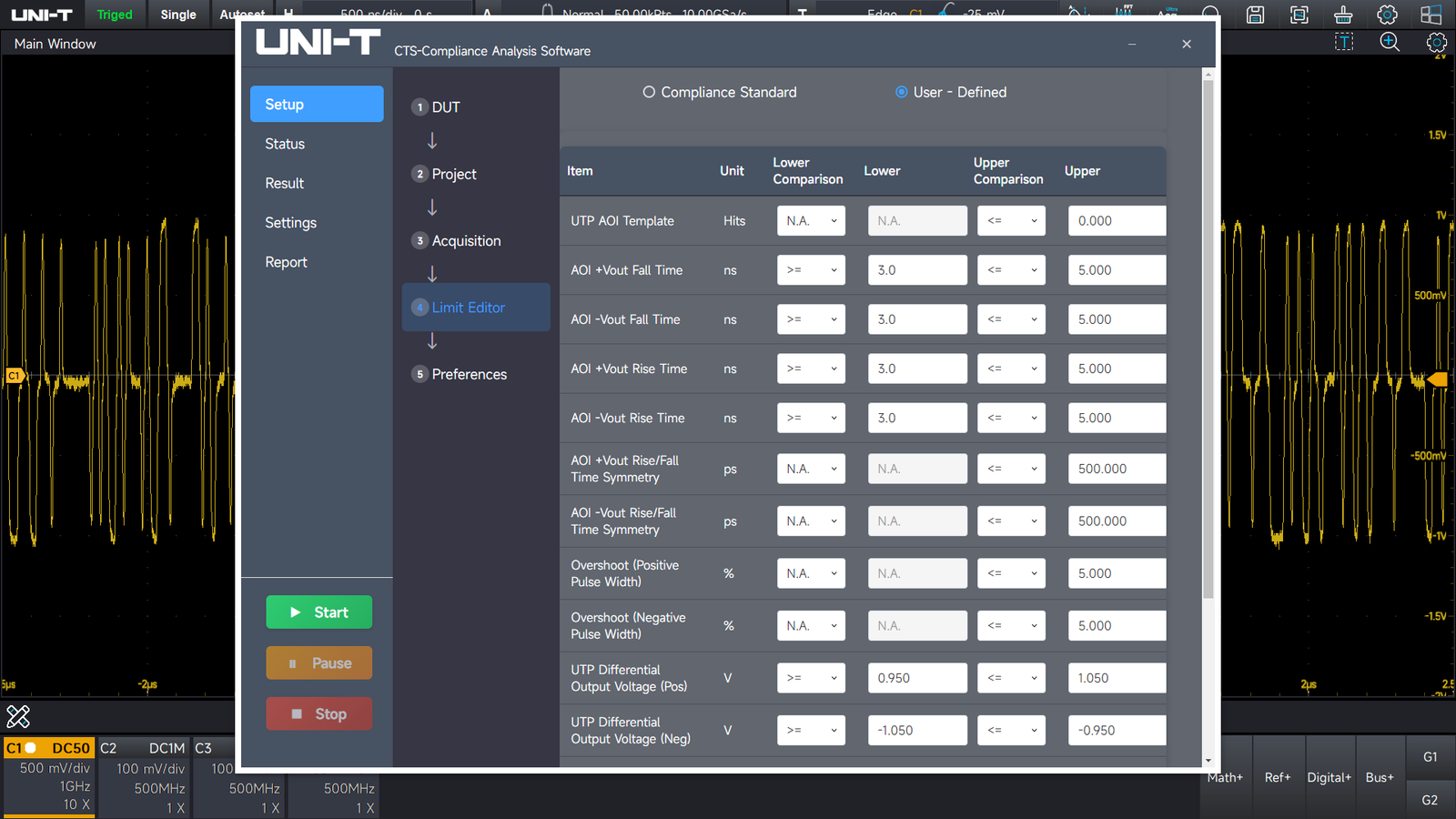

    MSO8000HD-CTS100

    100MBASE-Tx Ethernet Compliance Test Option

    MSO8000HD-JITTER

    Advanced Jitter analysis and Eye diagram

    MSO8000HD-MAT

    Matlab Embedded Programming Option

    MSO8000HD-FILTER

    Advanced Filter Designer Option

    MSO8000HD-PWR

    Advanced power analysis for MSO8504HD

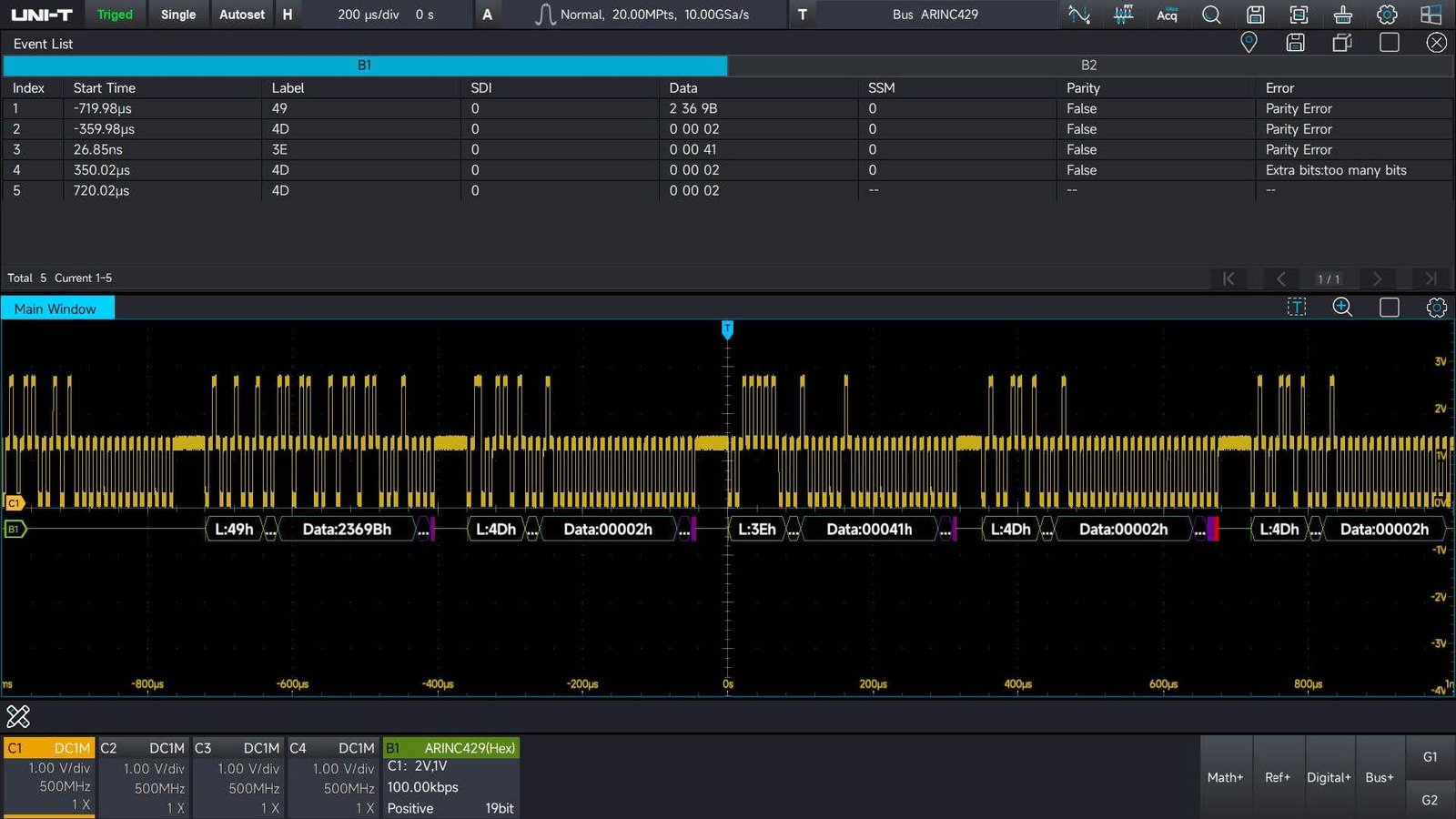

    MSO8000HD-BND

    Upgrade suit(including Advanced Jitter Analysis and Eye Diagram, Protocol Trigger and Analysis)

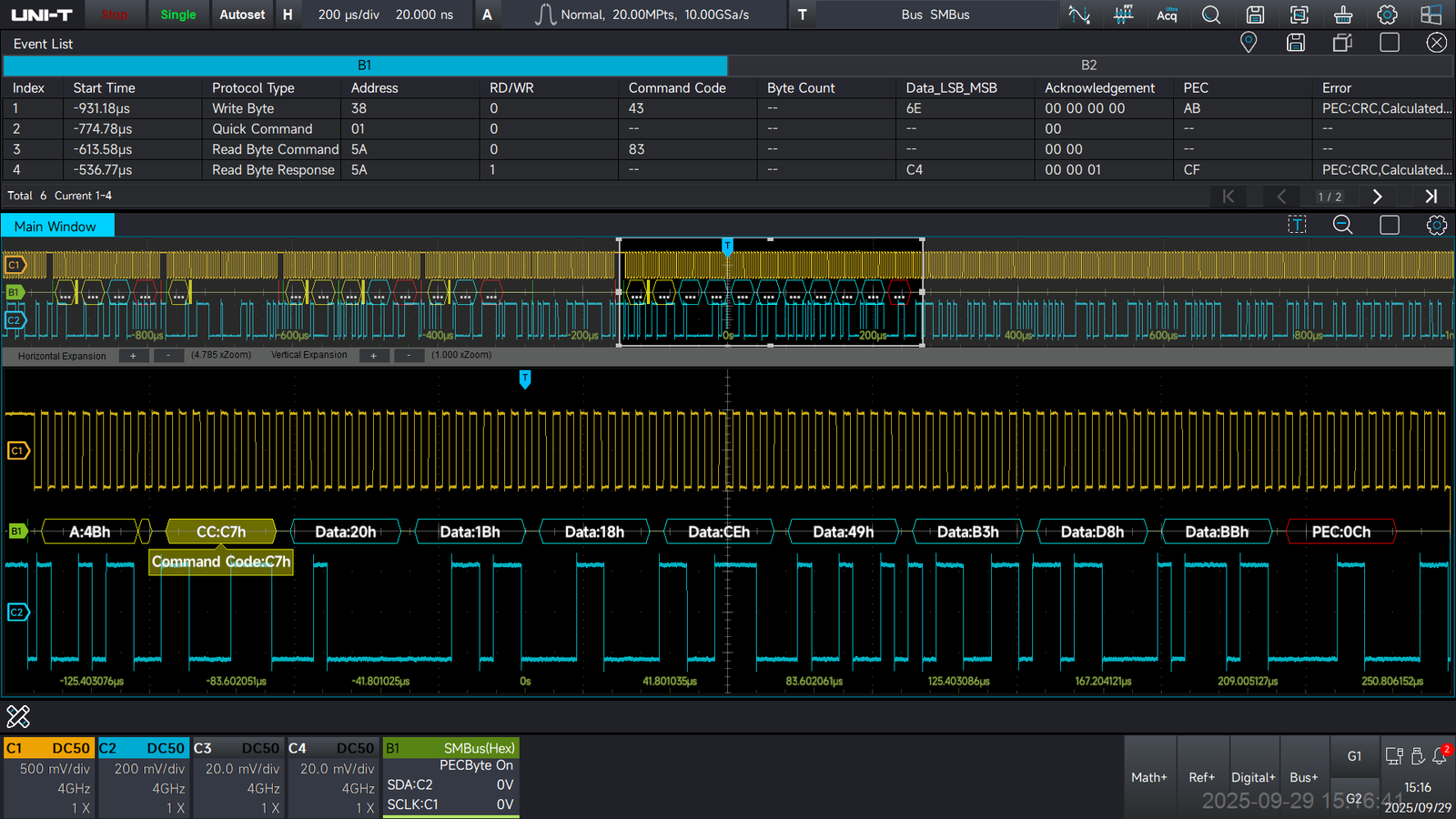

    MSO8000HD-SMBUS

    Embedded Serial Bus Trigger and Analysis Option (SMBus)

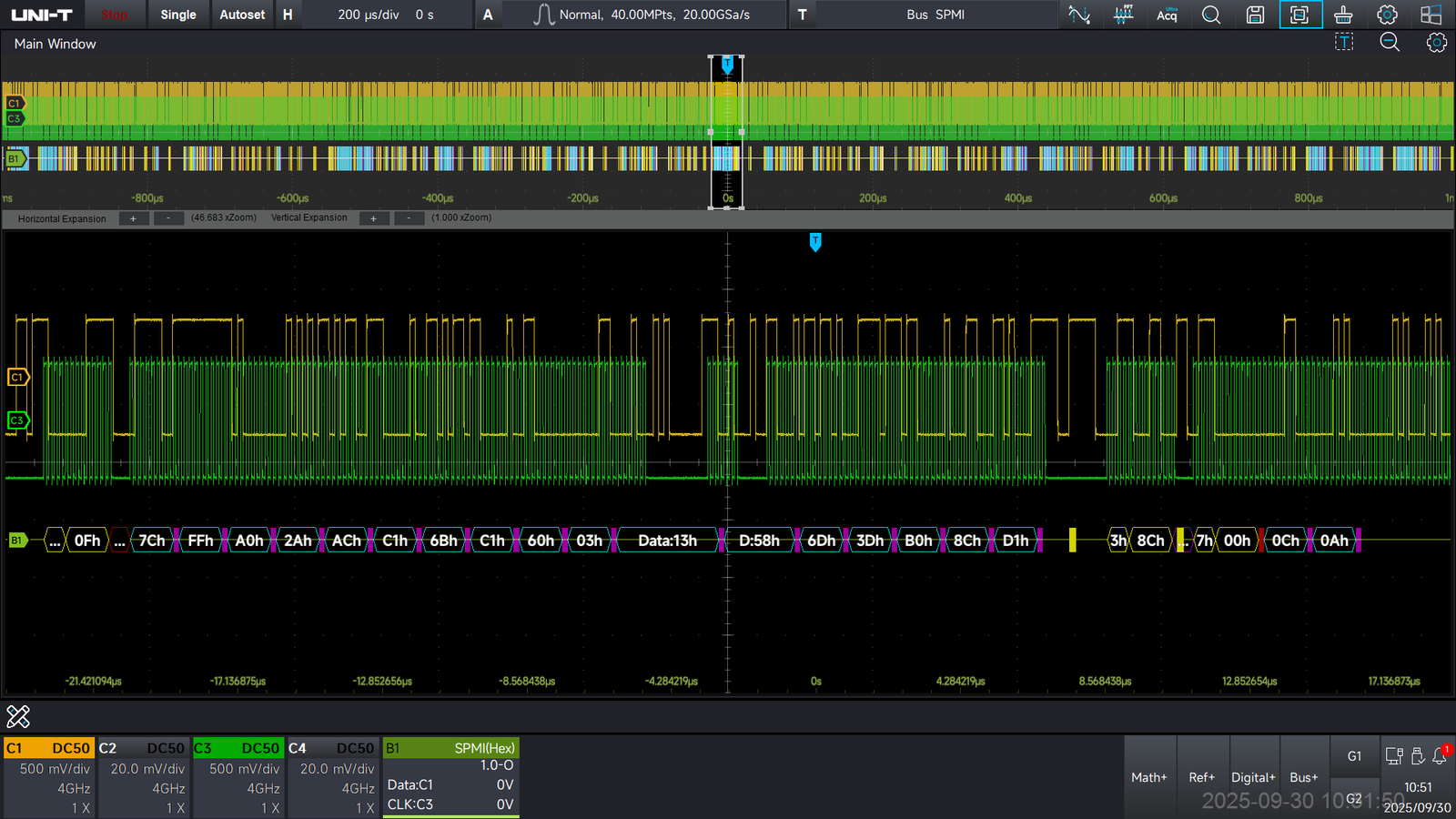

    MSO8000HD-SPMI

    Power Management Serial Bus Trigger and Analysis Option

    MSO8000HD-PCIe2

    PCIe Bus Trigger and Analysis Option(PCIe1.0,2.0)

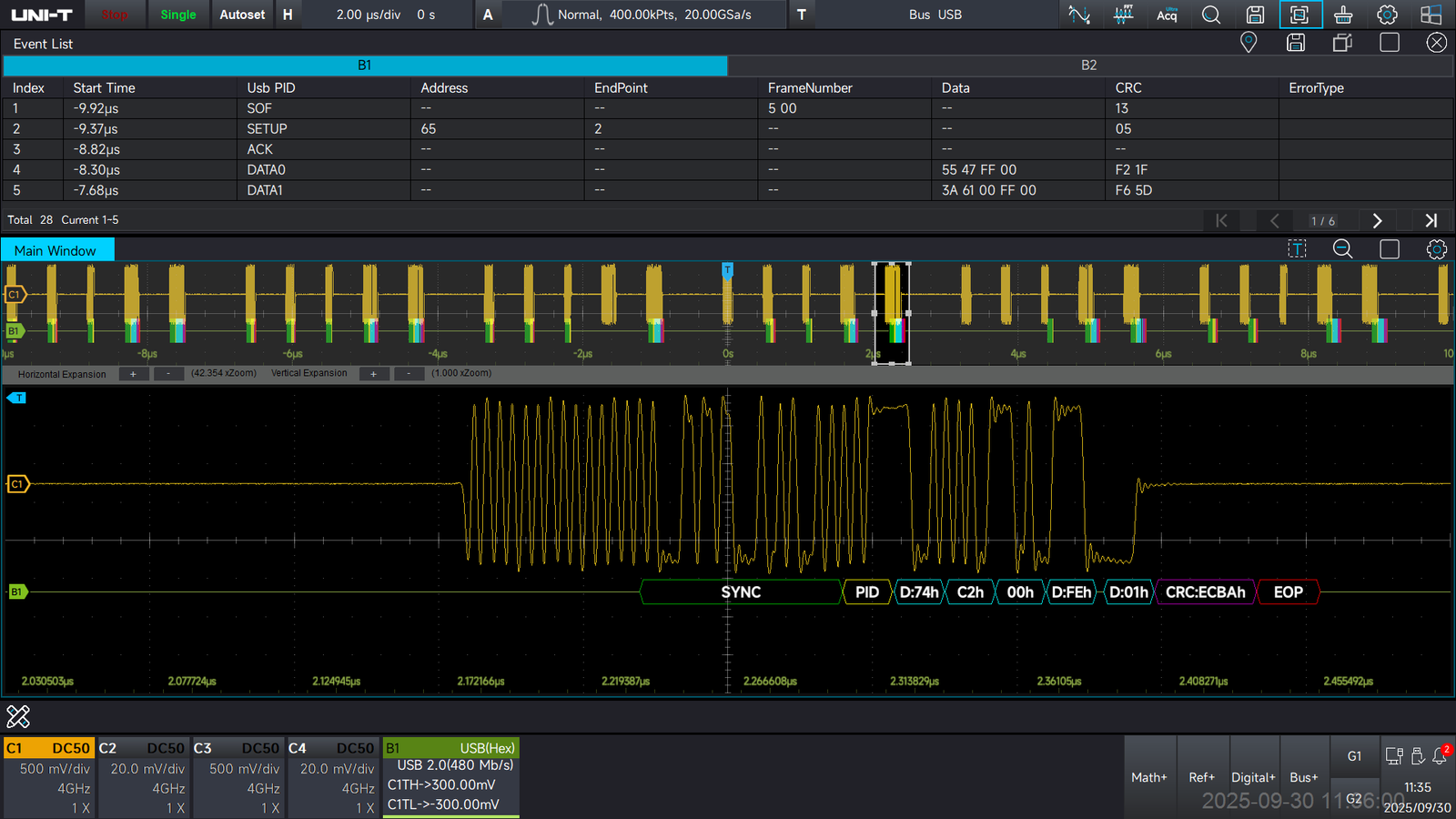

    MSO8000HD-USB2

    USB Bus Trigger and Analysis Option(USB2.0)

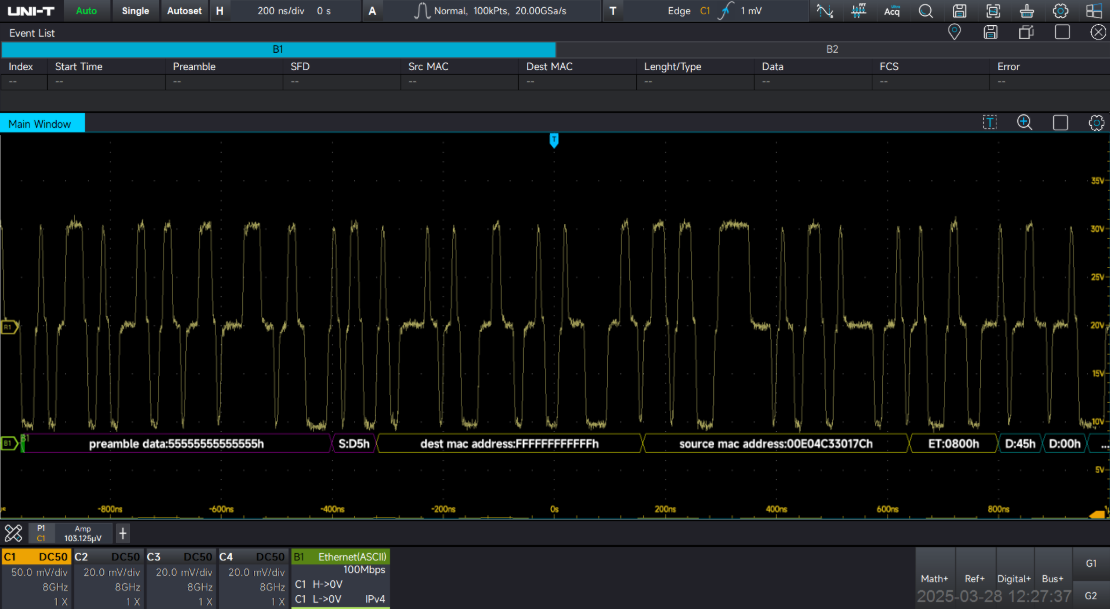

    MSO8000HD-NET

    Ethernet Bus Analysis Option(10BASE-T、100BASE-TX)

    MSO8000HD-I3C

    Embedded Trigger/Decode Option (I3C)

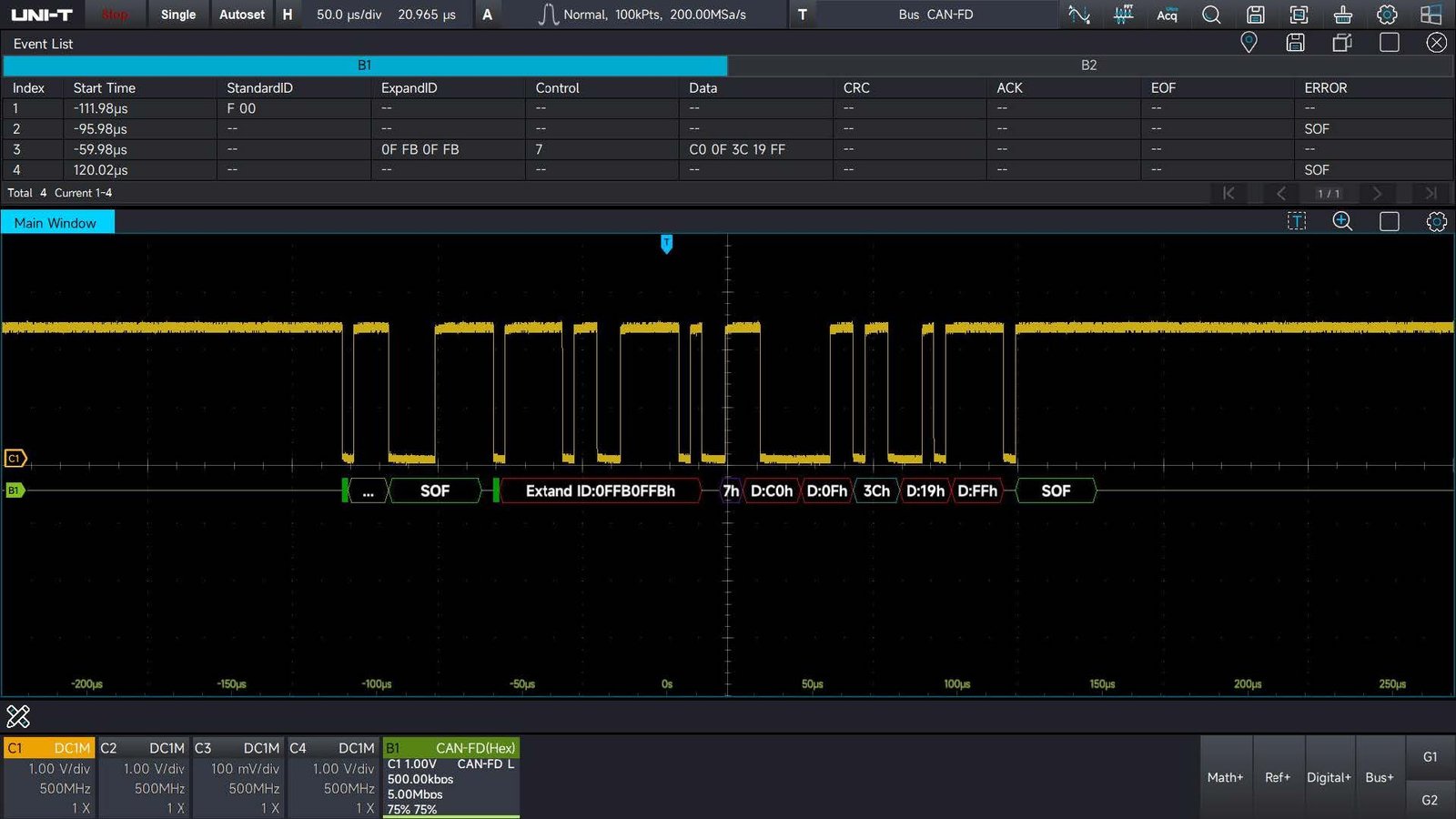

    MSO8000HD-CANFD

    Automotive serial bus trigger and analysis (CAN FD)

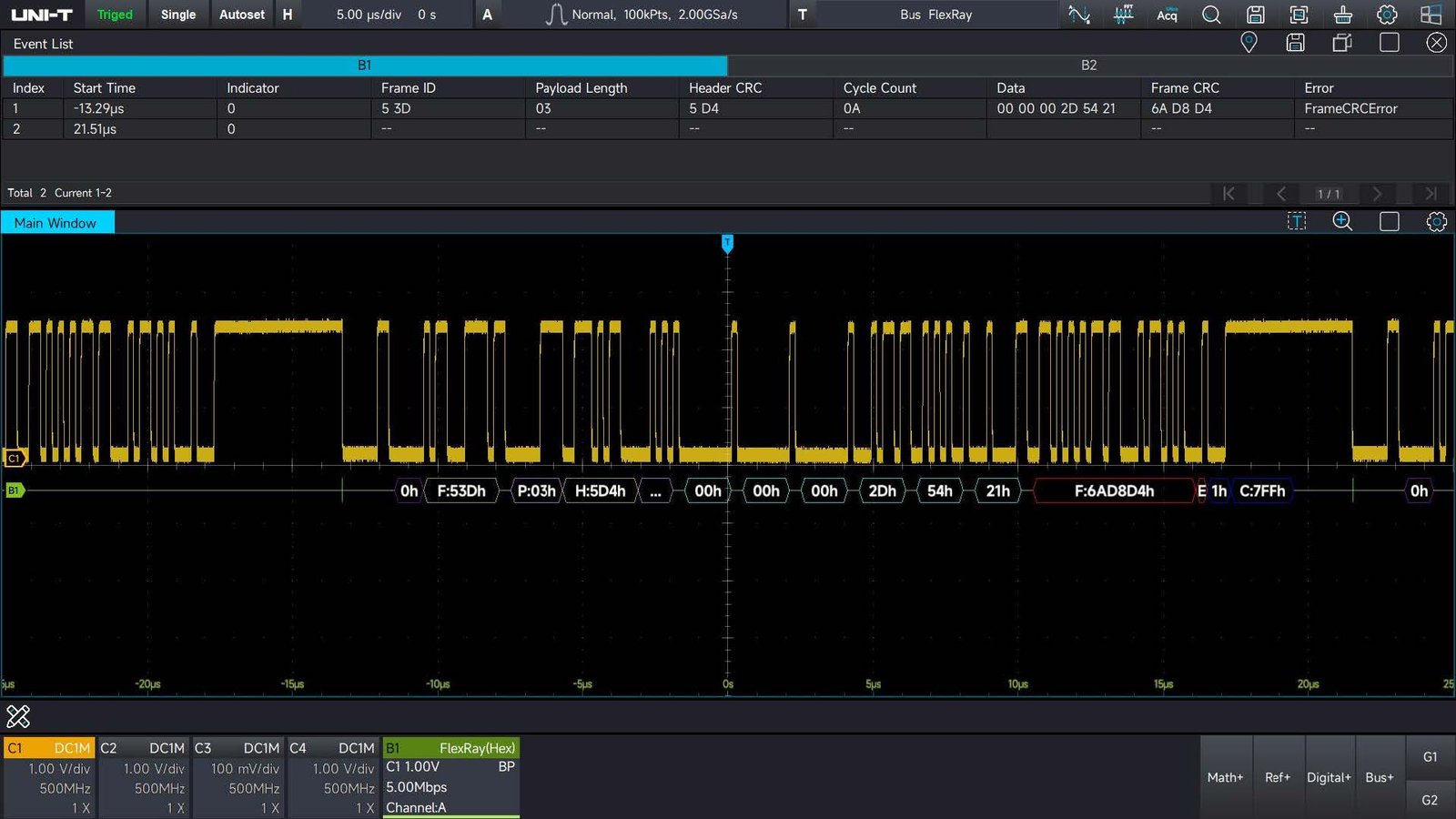

    MSO8000HD-FLEX

    Automotive serial bus trigger and analysis (FlexRay)

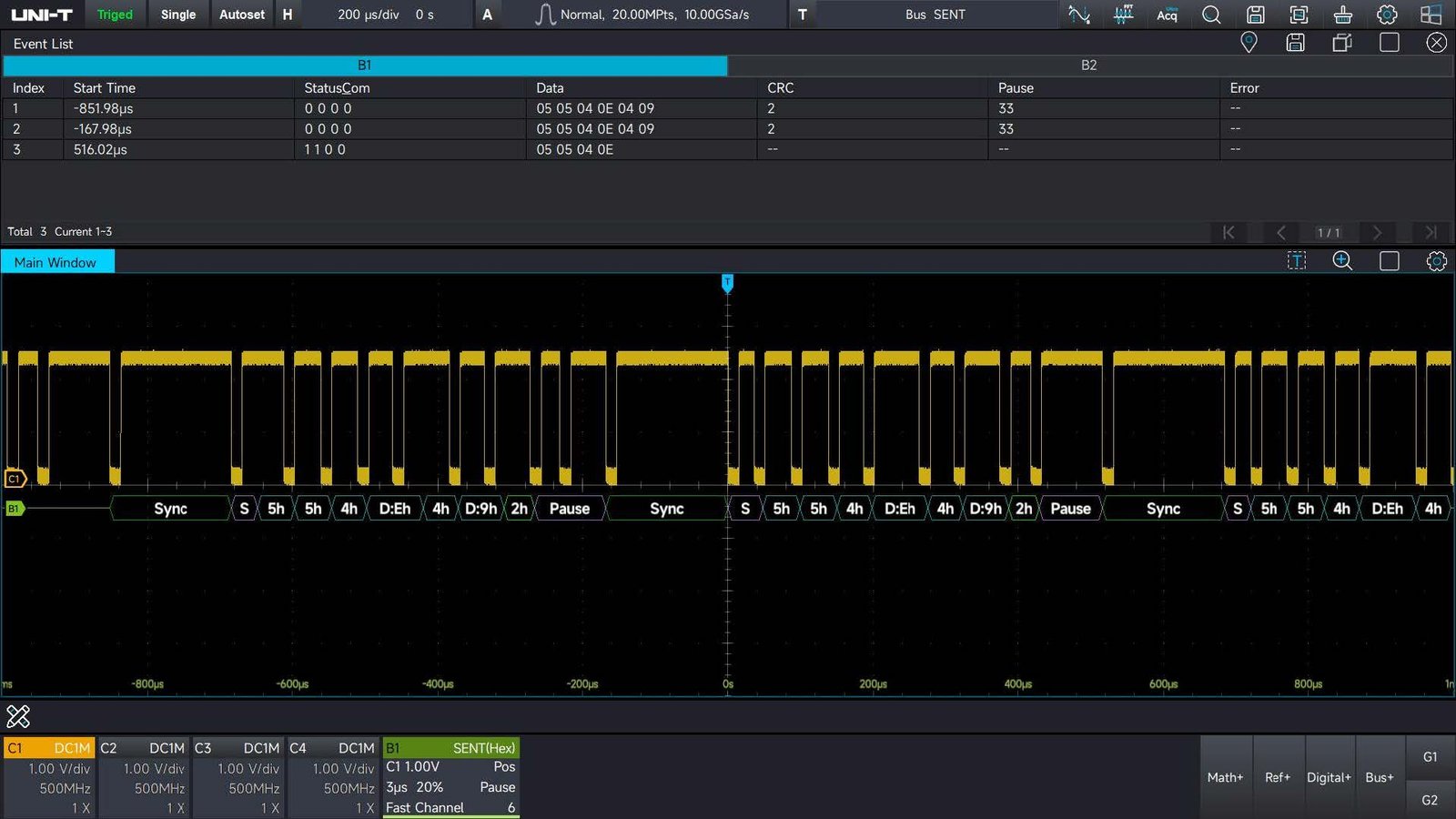

    MSO8000HD-SENT

    Automotive sensor trigger and analysis (SENT)

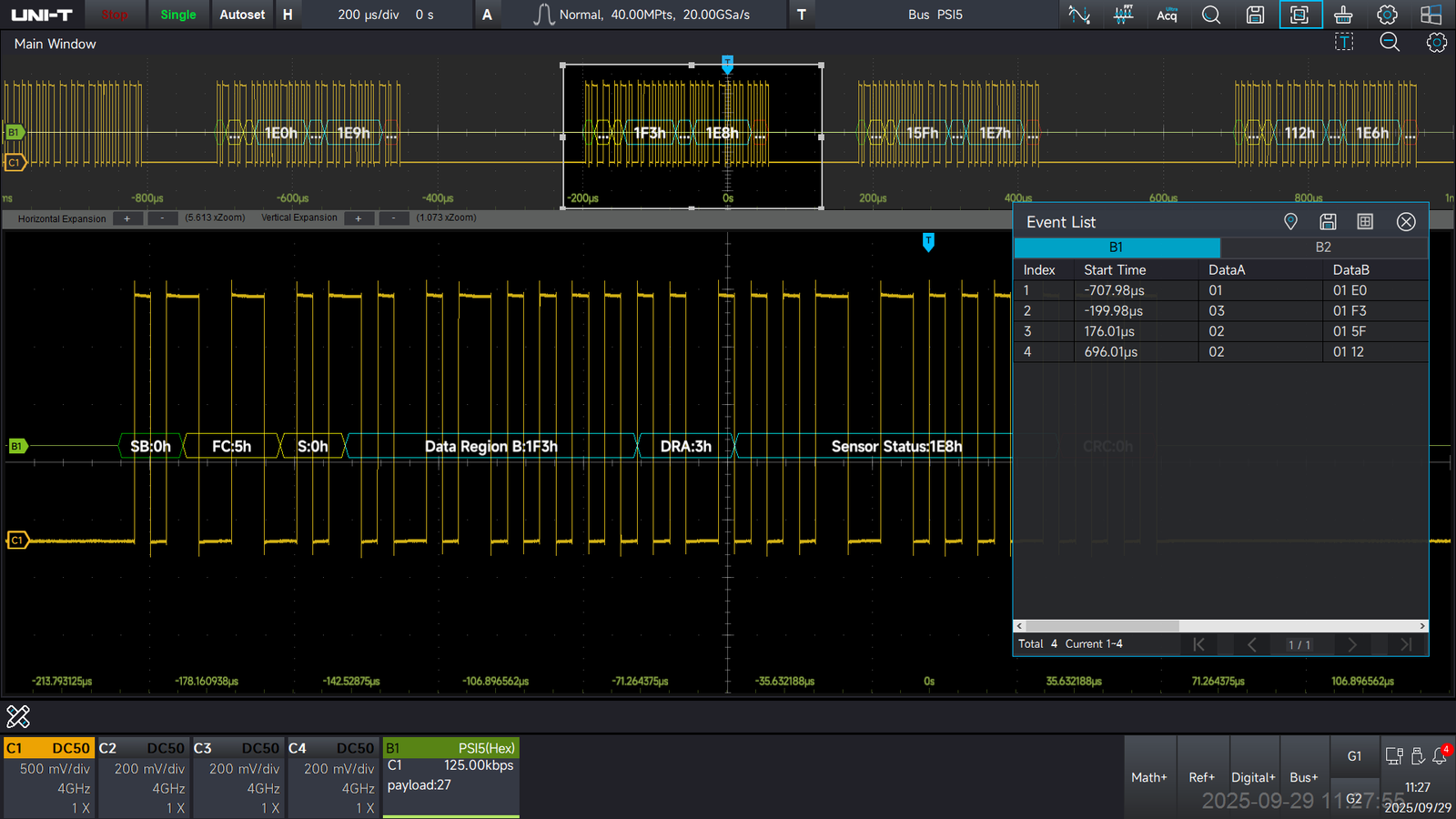

    MSO8000HD-PSI5

    Automotive Serial Bus Analysis Option (PSI5)

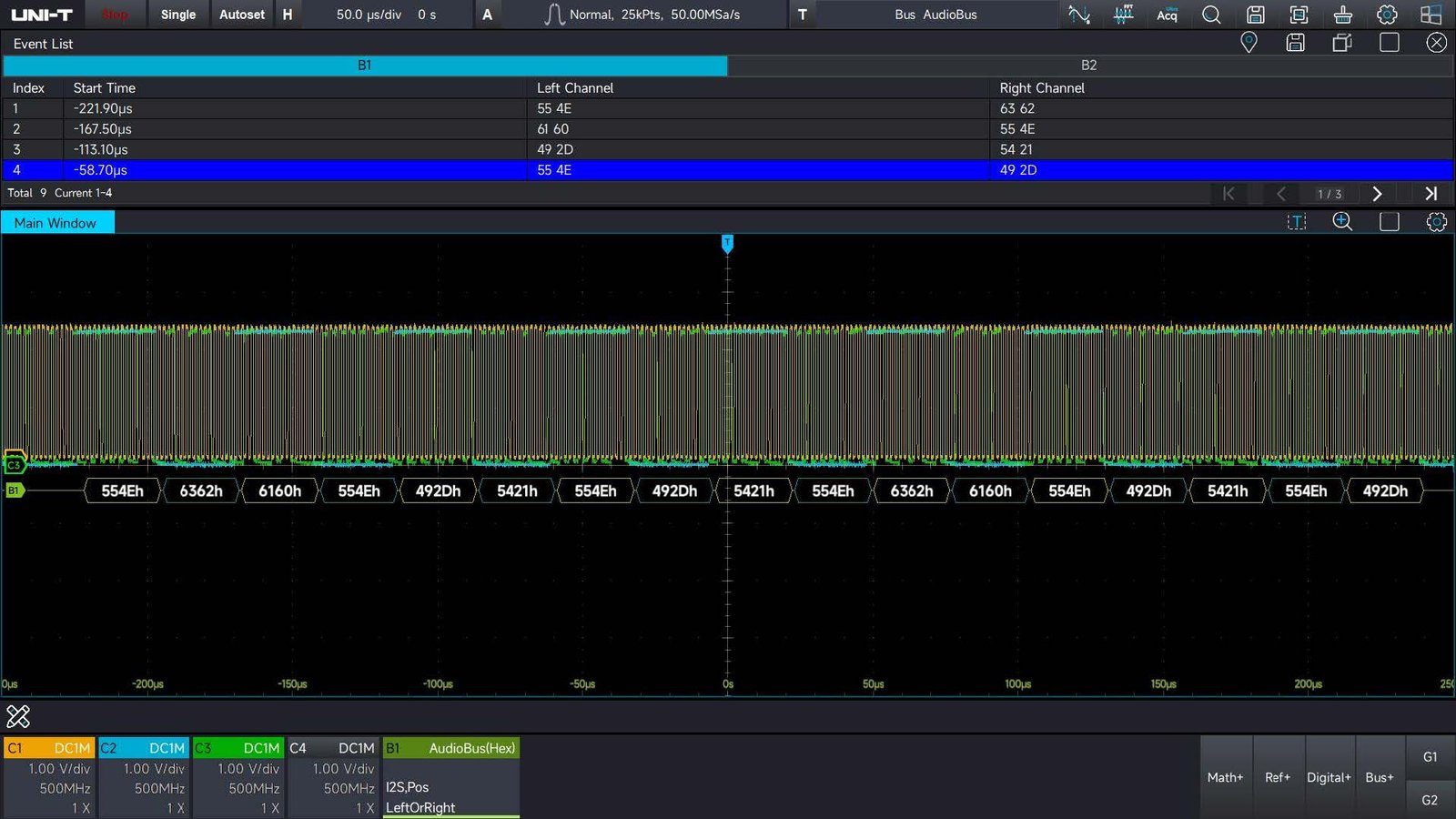

    MSO8000HD-AUDIO

    Audio serial bus trigger and analysis (I2S, LJ, RJ, TDM)

    MSO8000HD-AERO

    Aerospace serial bus trigger and analysis (including MIL-STD-1553, ARINC 429)

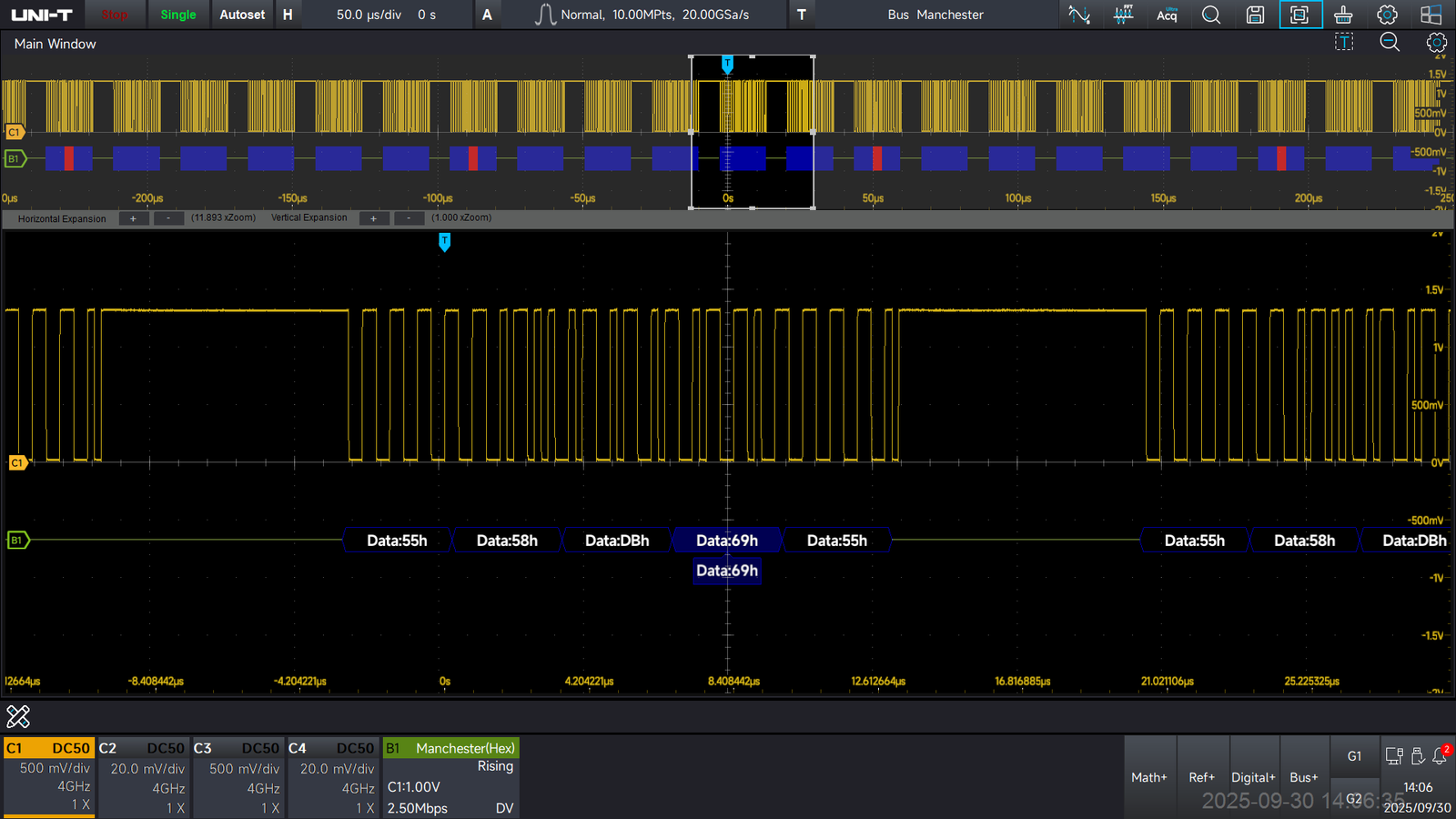

    MSO8000HD-MANCH

    Serial Bus Trigger and Analysis Option (Manchester)

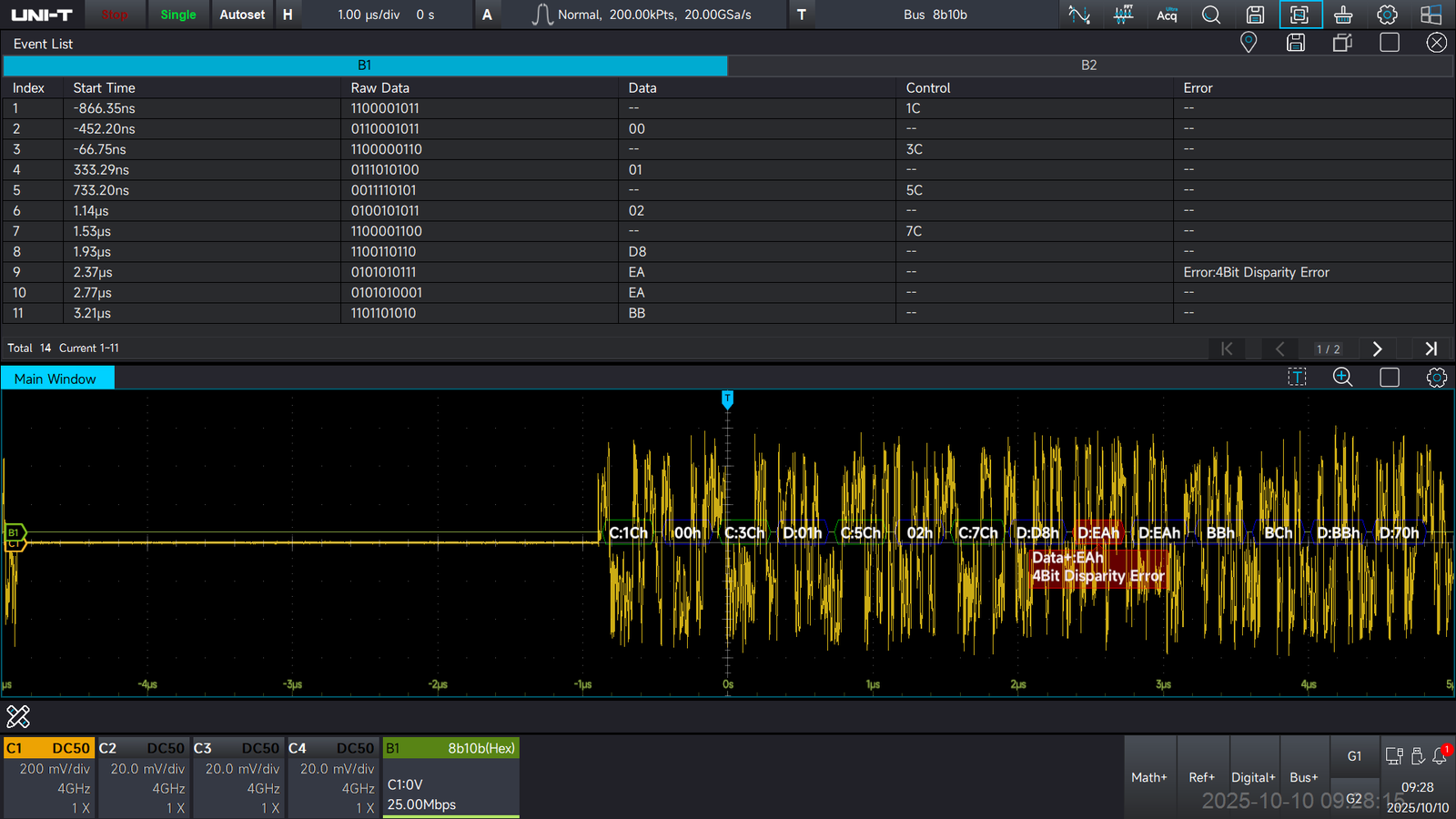

    MSO8000HD-8B10B

    8b/10b Signal Analysis Option

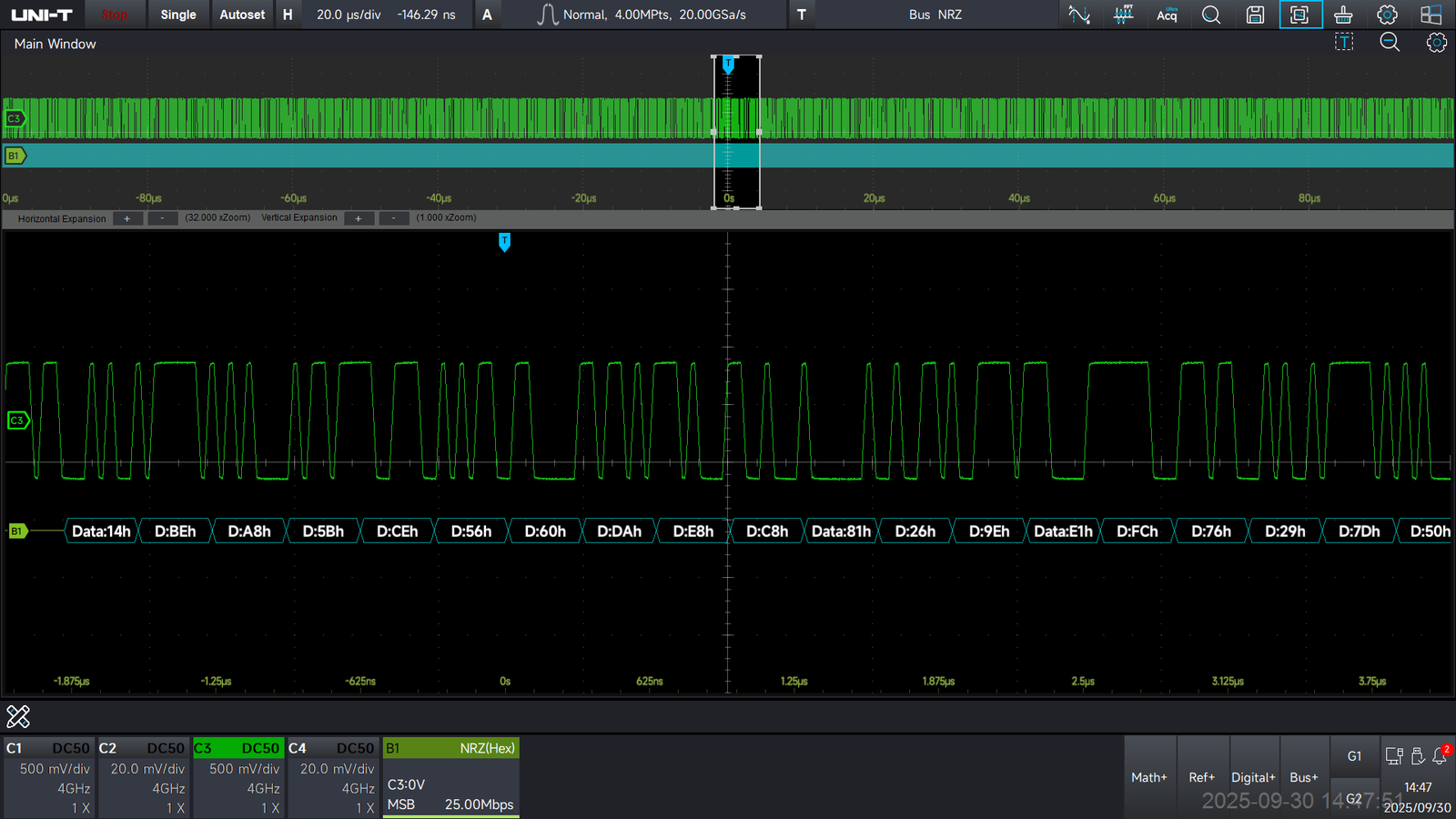

    MSO8000HD-NRZ

    NRZ Signal Analysis Option

    Options

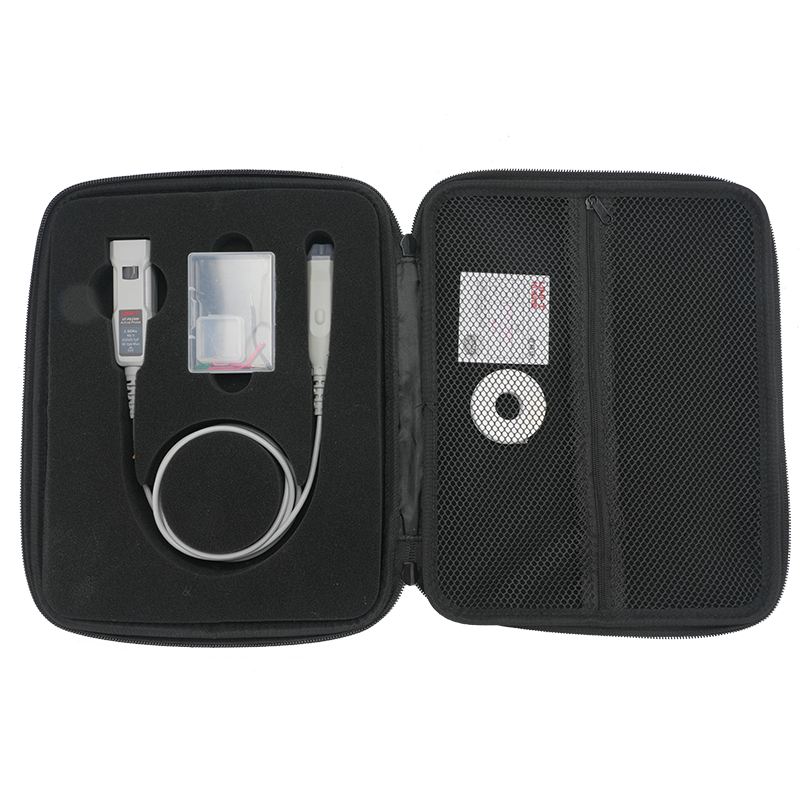

    UT-PD1500

    1.5GHz bandwidth, 10:1 attenuation ratio, ±4V dynamic range active differential probe

    UT-PD2500

    2.5GHz bandwidth, 10:1 attenuation ratio, ±4V dynamic range active differential probe

    UT-PA1000

    1GHz bandwidth, 10:1 attenuation ratio, ±4V dynamic range Single-ended active probe

    UT-PA2000

    2GHz bandwidth, 10:1 attenuation ratio, ±4V dynamic range Single-ended active probe

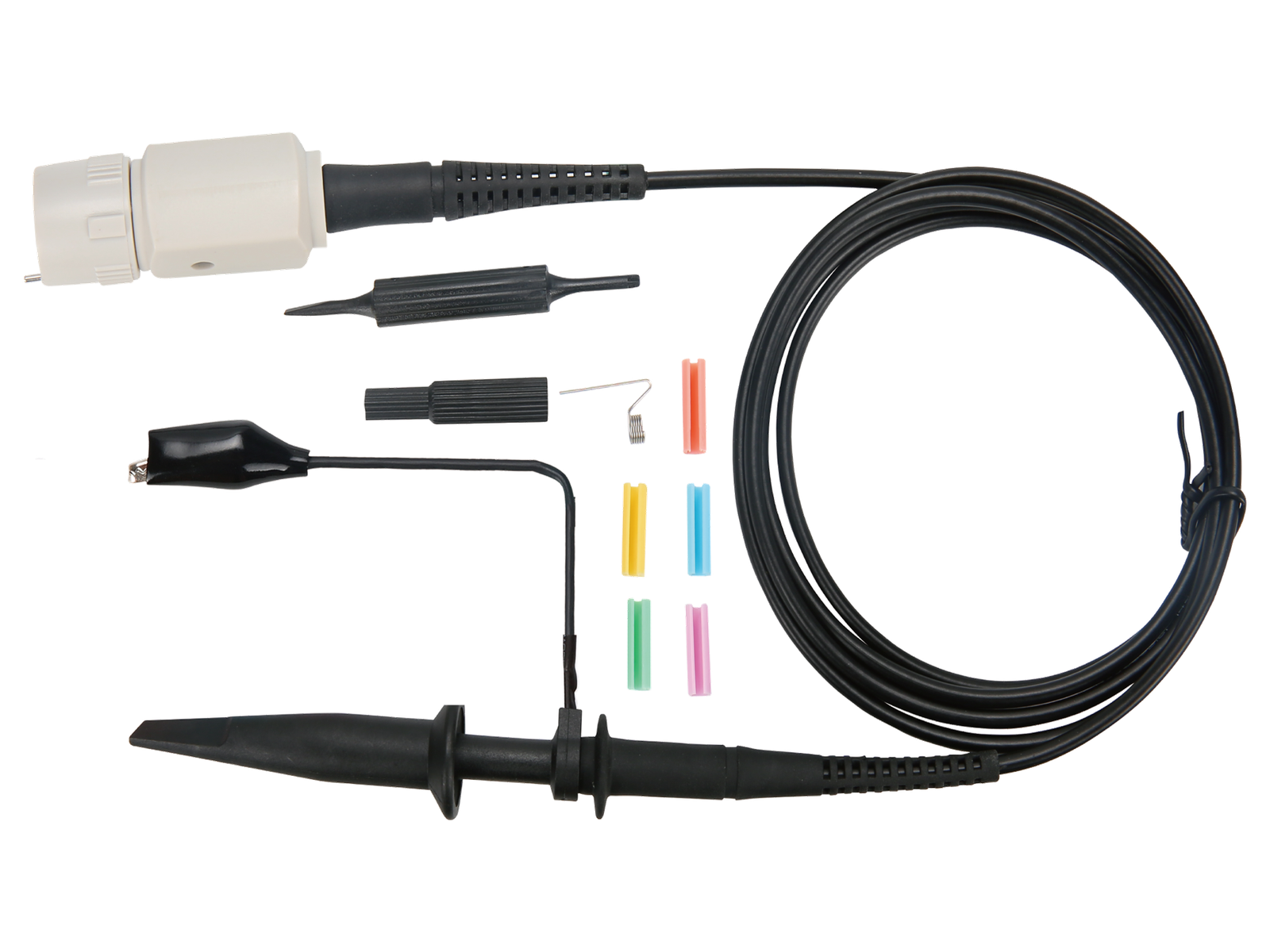

    UT-P07

    Probe factor:(10:1) Bandwidth: 500MHz.voltage:600Vpp
