UTE300 Series

UTE300 Series

The UTE300 series is a high-precision, high-performance digital power meter featuring a 4.3-inch full-color display, extensive interface options, and waveform display capabilities for an enhanced user experience. Its high accuracy and resolution deliver precise measurement results, while the 50A/1000V current and voltage measurement range, along with a 300kHz measurement bandwidth, make it suitable for a wide range of applications in production, testing, and research and development.

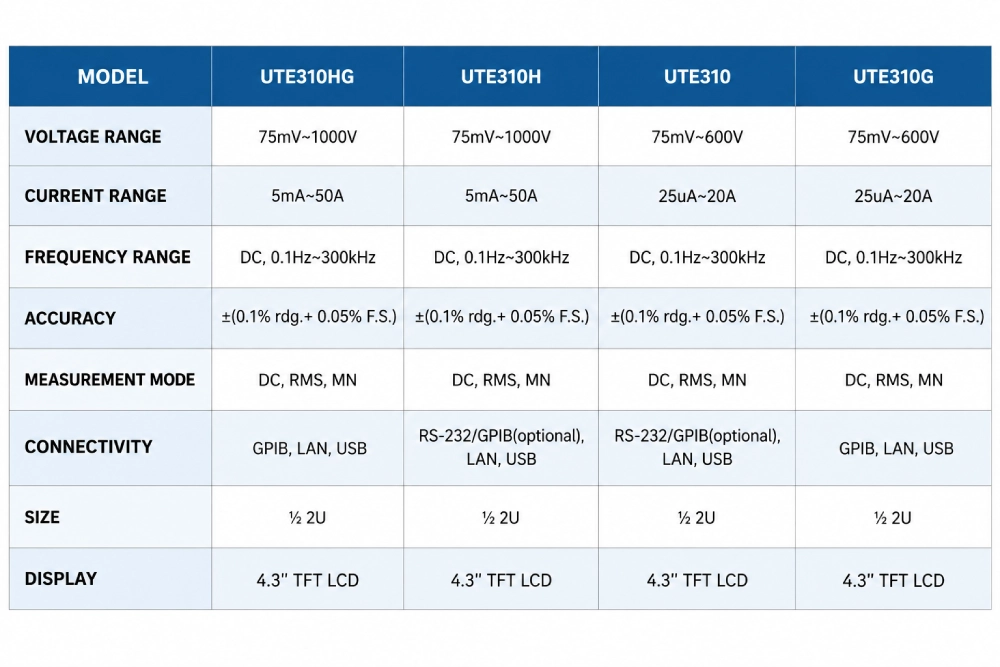

75mV~1000V

VOLTAGE RANGE

25uA~50A

CURRENT RANGE

DC, 0.1Hz~300kHz

FREQUENCY RANGE

±(0.1% rdg.+ 0.05% F.S.)

ACCURACY

DC, RMS, MN

MEASUREMENT MODE

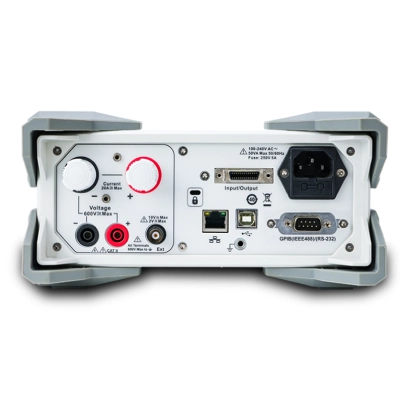

RS-232/GPIB(optional), LAN, USB

CONNECTIVITY

½ 2U

SIZE

4.3” TFT LCD

DISPLAY

REQUEST A QUOTE DOWNLOAD CATLOUGE

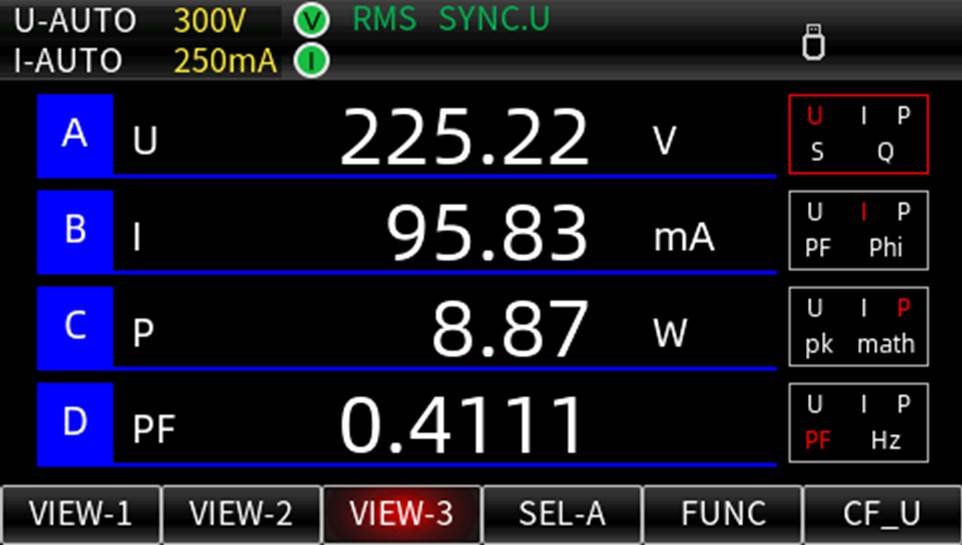

4.3 inch LCD

Three display modes provide access to a greater range of parameter information.

1MSa/s sampling rate

Enhance the accuracy of transient signal measurements and improve the ability to capture abnormal signals.

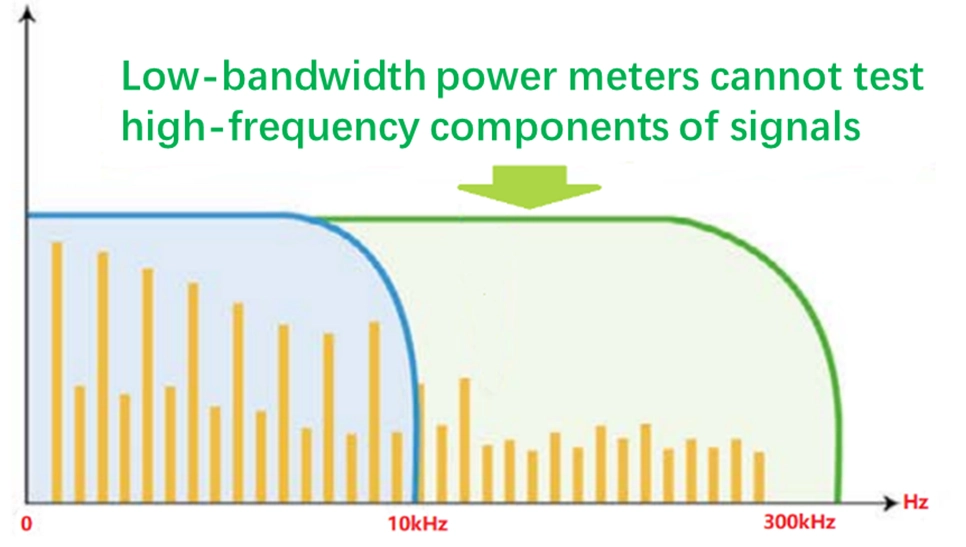

300kHz Bandwidth

Capture higher frequency signals for more comprehensive signal testing.

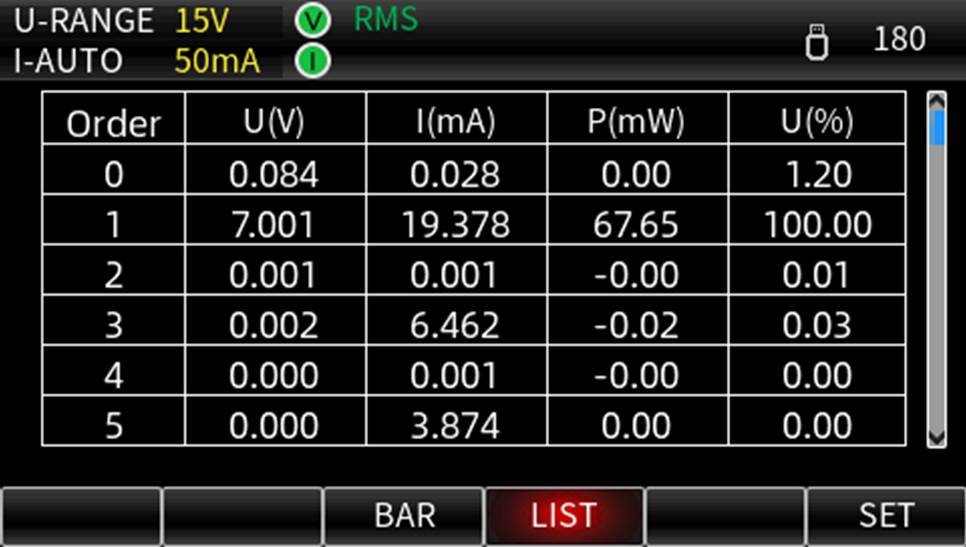

Harmonic analysis

Supports 50th harmonic analysis in compliance with the IEC61000-4-7 standard.

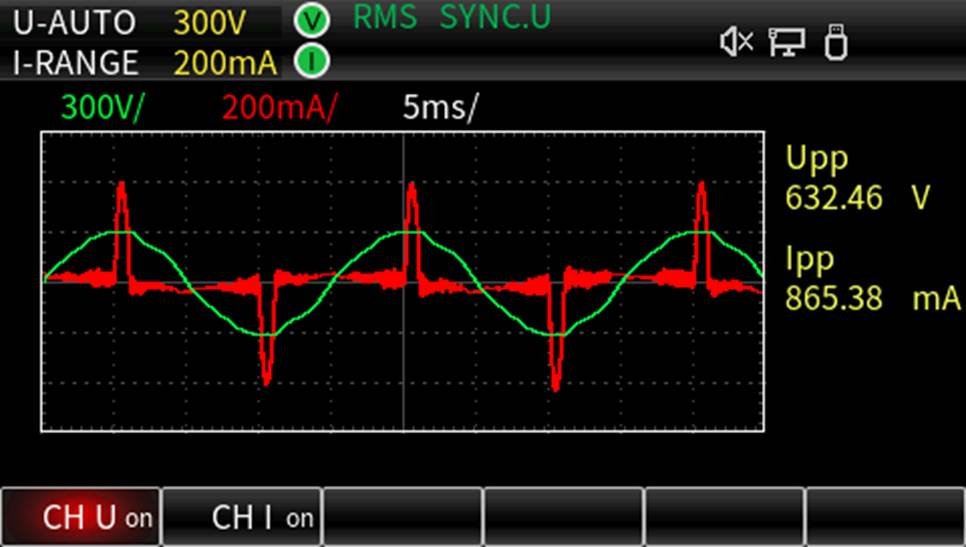

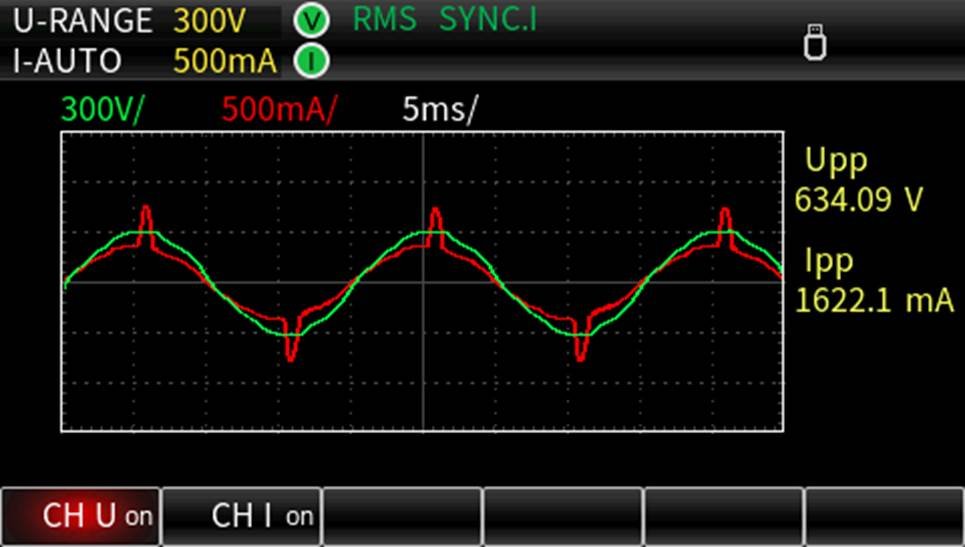

Waveform display function

Provides intuitive real-time voltage and current waveforms with automatic peak-to-peak measurement capabilities.

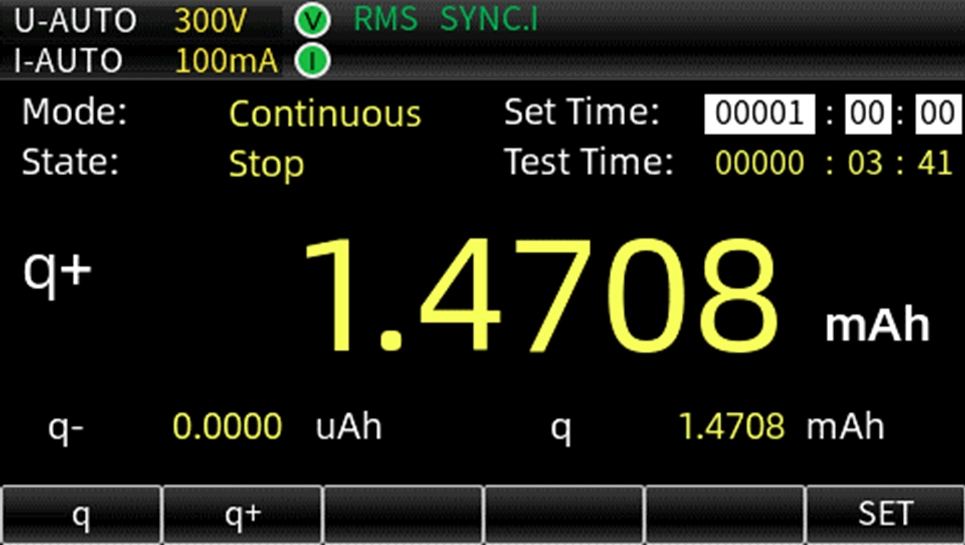

Integral function

Supports the integration of average active power and current, allowing it to be used for power consumption testing.

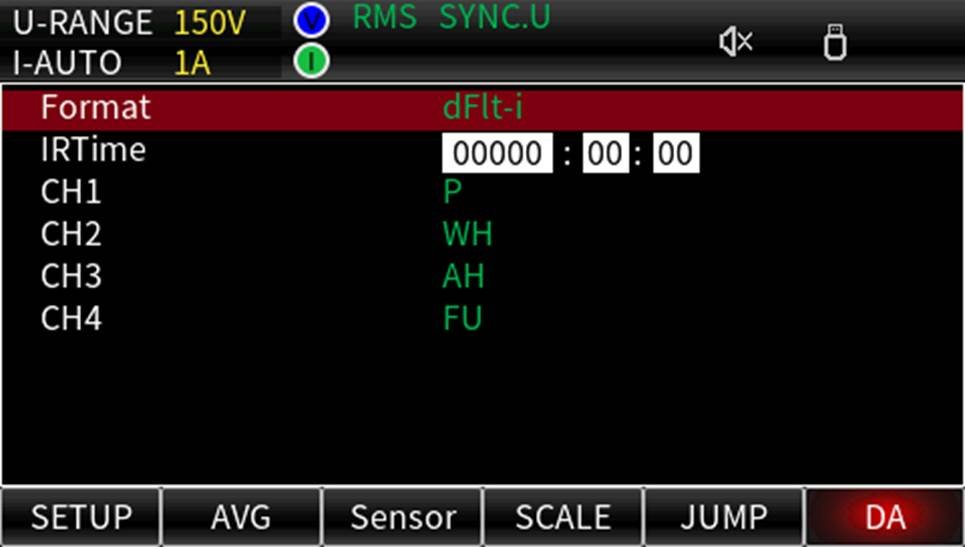

DA output

The measured values are transmitted to the controller for integration with industrial control systems.

Model	Description
UTE-M01-US	Power Meter Test Fixture（American three-pronged plug）
UTE-M01-EU	Power Meter Test Fixture（French elbow two-pronged round plug）

UTE300 Series Power Meters - Data Sheet

UTE300 Series Power Meters - User Manual

UTE300 Series Power Meters - QuickStart Guide

UTE300 Series Power Meters - Programming Manual
