UTS1000B Series

UTS1000B Series

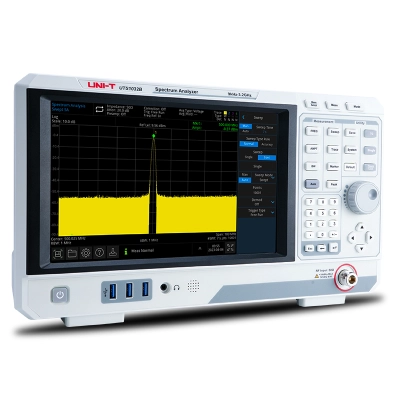

The UTS1000B series spectrum analyzer can measure frequencies up to 3.2GHz. It is a spectrum analyzer with wide frequency band coverage and superior performance. The series adopts mature all digital IF technology. It provides a variety of analysis functions, and up to 10001 scanning points , providing better help for your frequency domain analysis. This series of spectrum adopts a 10.1 inch large touch screen, which will bring you a better use experience. The UTS1000B series is ideal for communication, semiconductor, computer, instrumentation, industrial electronics, consumer electronics, automotive electronics, field maintenance, R & D / education and other fields.

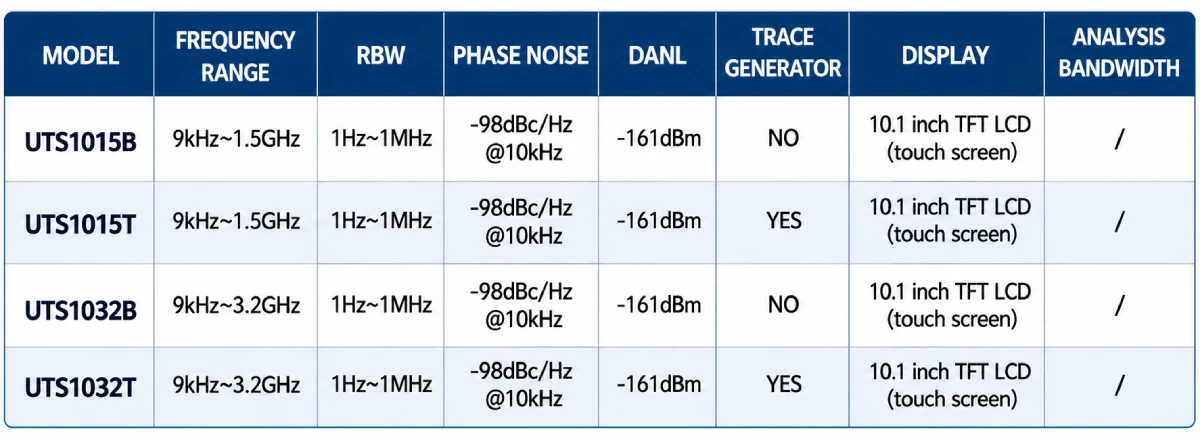

9kHz~3.2GHz

FREQUENCY RANGE

1Hz~1MHz

RBW

-98dBc/Hz @10kHz

PHASE NOISE

-161dBm

DANL

Yes

TRACE GENERATOR

10.1 inch TFT
LCD(touch screen)

DISPLAY

/

ANALYSIS BANDWIDTH

REQUEST A QUOTE

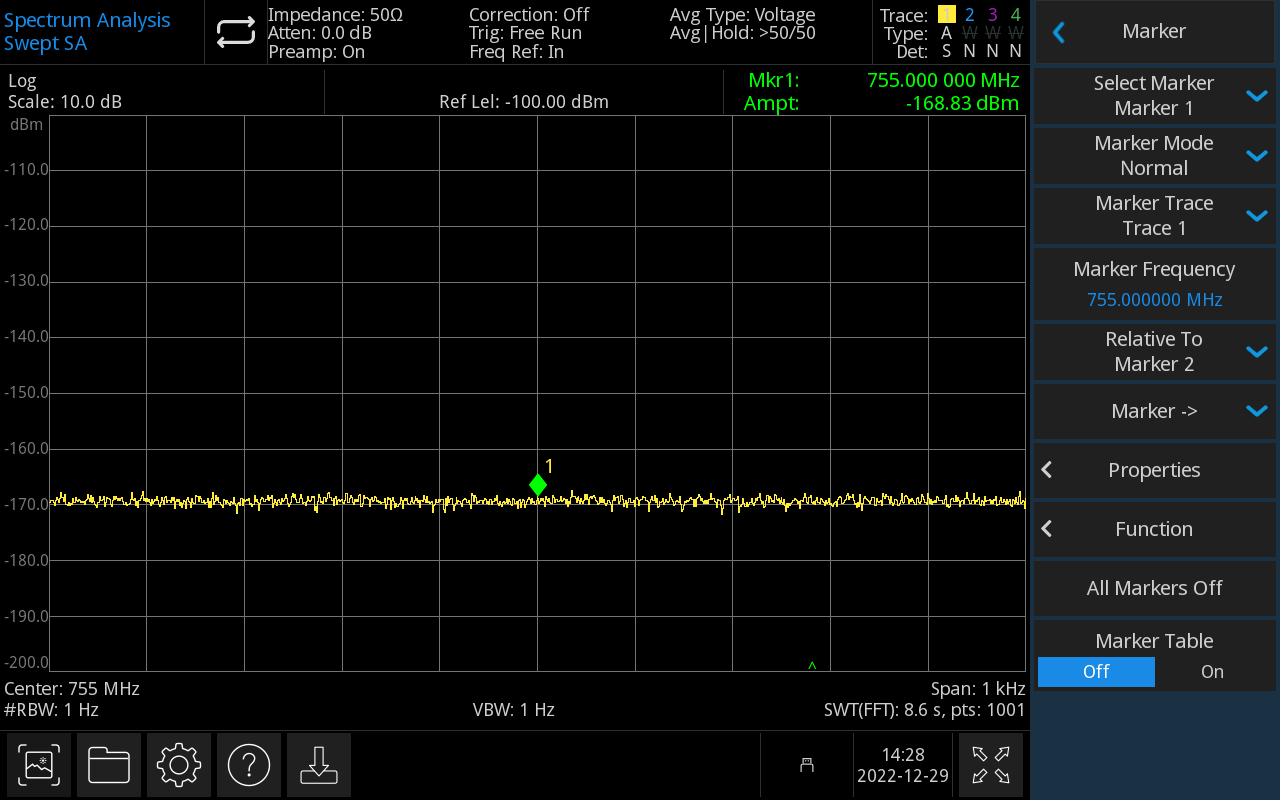

DANL <-161dBm

The spectrum analyzer has low bottom noise and more accurate measurement. Small signal can be accurately measured
The spectrum analyzer has low bottom noise and more accurate measurement. Small signal can be accurately measured

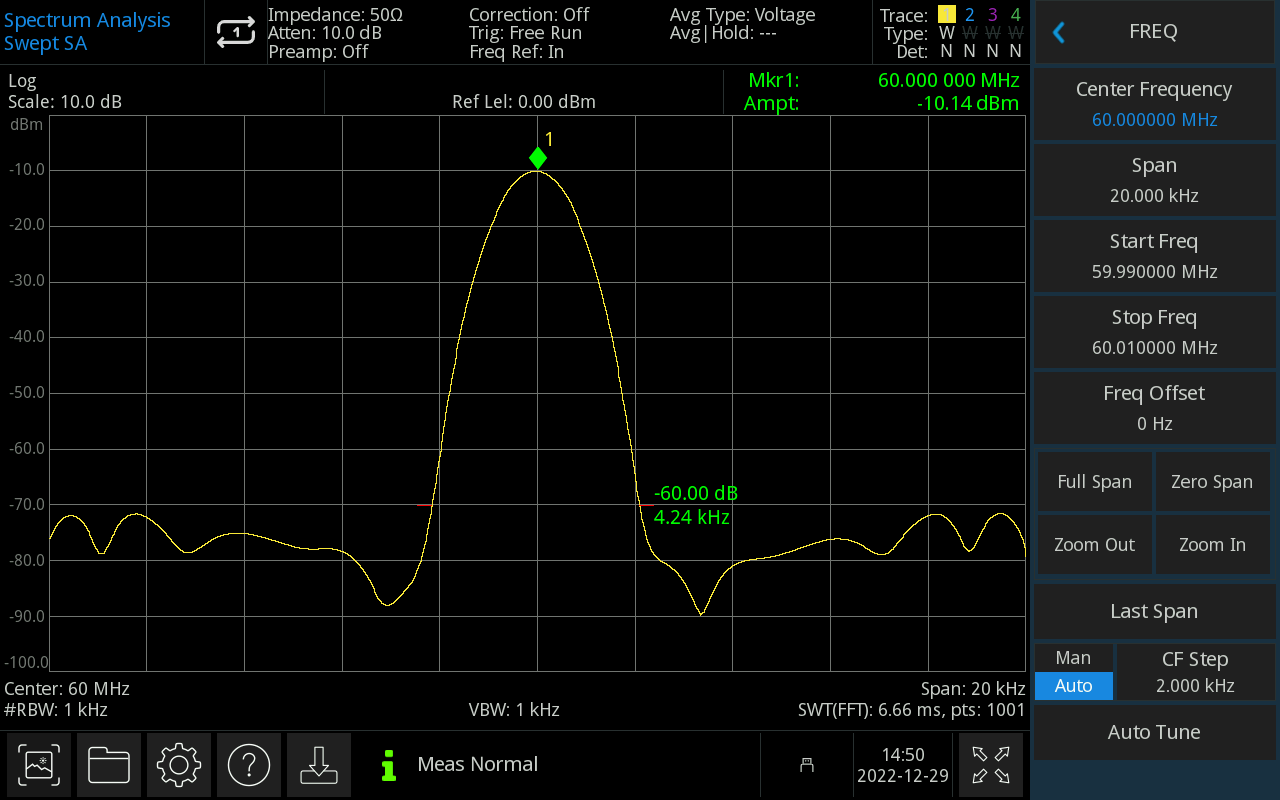

Excellent selectivity

It has stronger signal resolution capability of adjacent unequal amplitudes

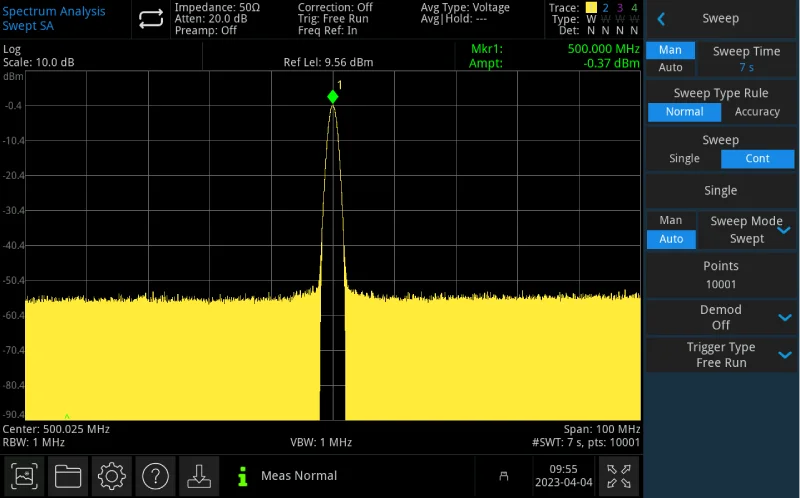

10001 scan points

Scan 10001 points to display details more clearly. Effectively capturing abnormal signals

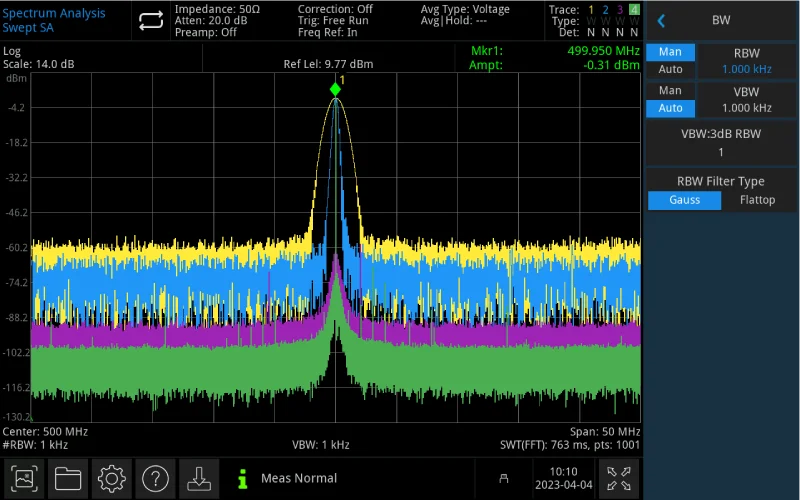

4 traces

4 traces are provided to facilitate comparative observation and find abnormal signals. Intuitive test and convenient operation

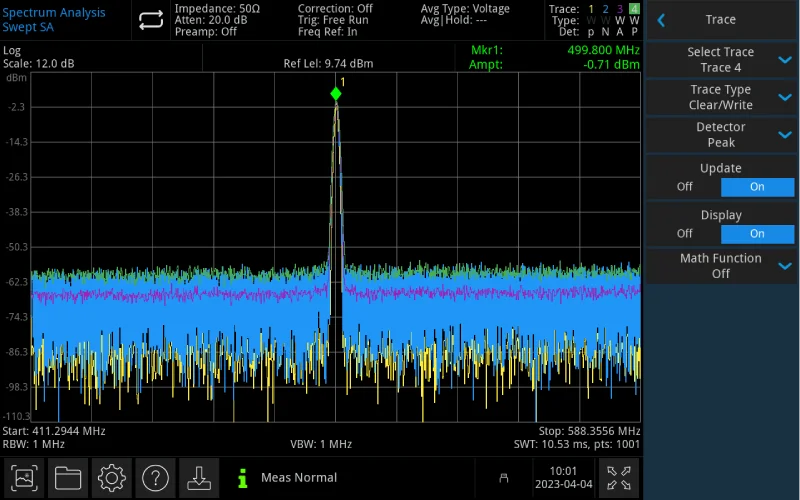

Rich detector functions

Positive peak, Negative peak , Sampling, Standard, Average, Quasi-peak

10.1 inch HD capacitive touch screen

The screen is large and high-definition. Multi touch, easy to operate

EMI Pre-compliance analysis

Optional components, together with near-field probes, help you find and improve EMI defects in advance

Advanced function

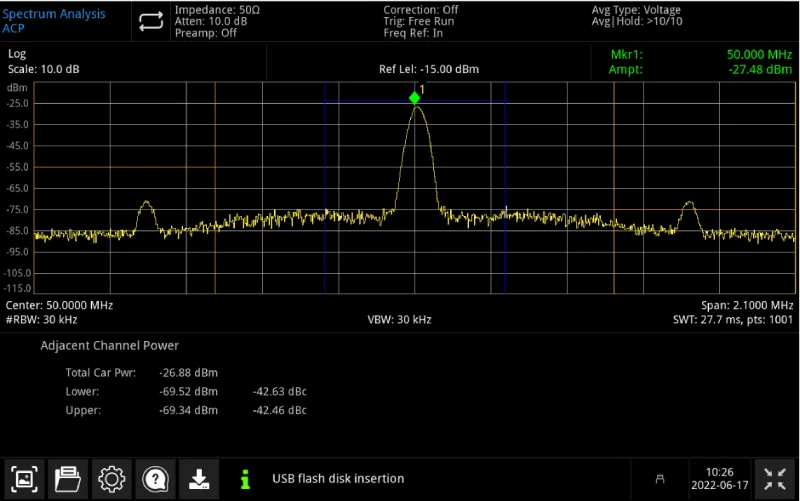

Channel power, Time domain power, Occupies bandwidth, Third order intermodulation, Adjacent channel power, Spectrum Monitoring, Carrier-to-noise ratio, Harmonic
