UDP4303S Series

UDP4303S Series

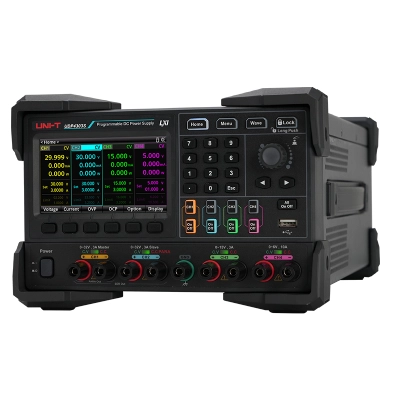

UDP4303S programmable linear DC power supply features two 32V/3A outputs, one 15V/3A output, and one 6V/10A output. It offers extremely low load regulation and low ripple noise output, with each channel isolated from the others. All four channels support remote sensing (4-wire) function. Channels 1 and 2 support internal series and parallel connections, making the device suitable for a wide range of applications. The product is equipped with an RS232 communication interface, supporting SCPI protocol, Ethernet, and multiple Digital I/O interfaces, which facilitate remote control. The 4.3” TFT LCD screen provides a rich functional interface, making it easy to use list/delay functions, trigger functions, monitoring functions, recorder functions, waveform display functions, output preset functions, system settings, language selection, and a web server.

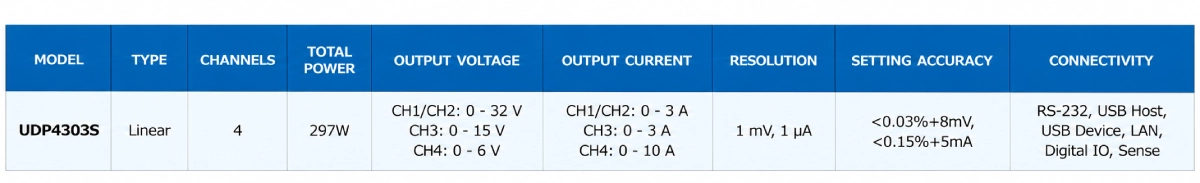

Linear

TYPE

4

CHANNELS

297W

TOTAL POWER

0 – 32V

OUTPUT VOLTAGE

0 – 3A

OUTPUT CURRENT

1mV,1μA

RESOLUTION

<0.03%+8mV <0.15%+5mA

SETTING ACCURACY

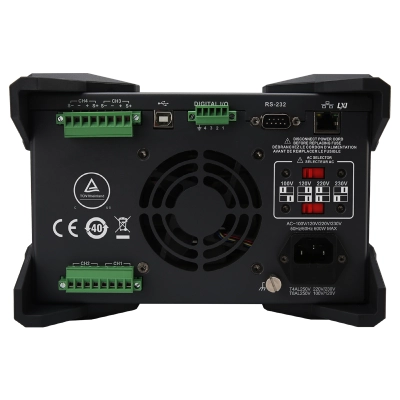

RS-232,USB Host,
USB Device, LAN,
Digital IO, Sense

CONNECTIVITY

REQUEST A QUOTE DOWNLOAD CATLOUGE

Higher resolution

Current resolution up to 1µA, small current mode supported on all four channels

Waveform analysis

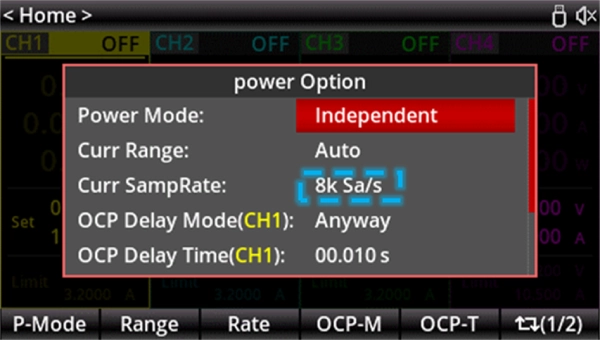

8kSa/s current sampling rate
Four-channel current high-speed sampling. Accurately captures and displays transient changes.

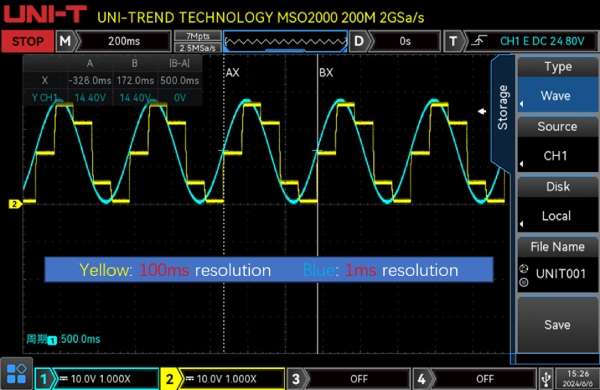

1ms programming time resolution

Programming time resolution up to 1ms, more refined output for diverse arbitrary waveforms
100 times the resolution of previous generation power supplies

Multiple display styles

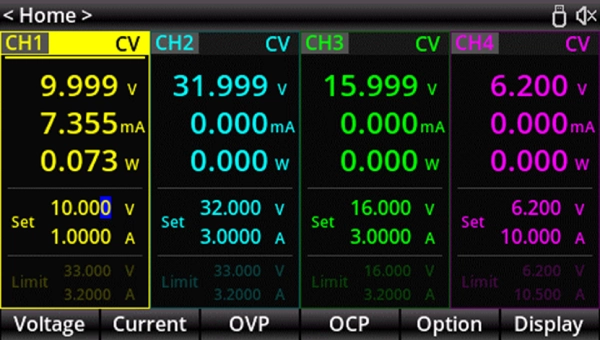

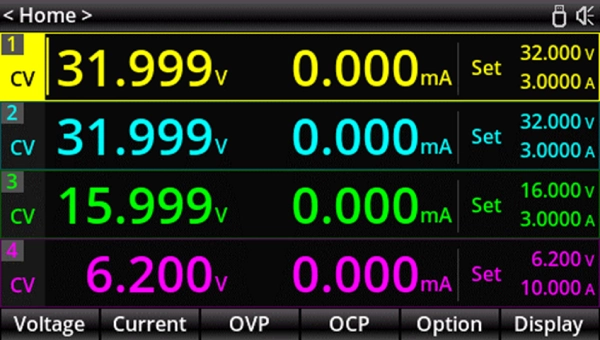

4.3 inch LCD clear display, 6 interface display styles to help you better view the measurement results

Various useful functions

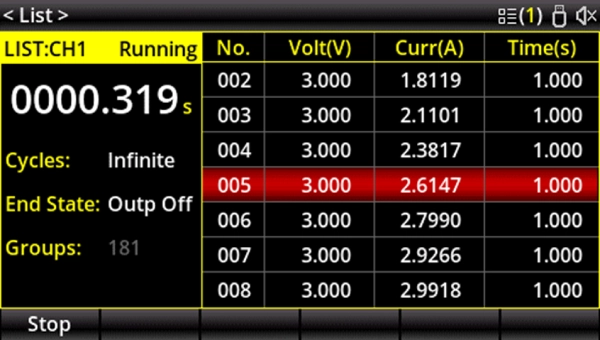

List, Delayer, Monitor, Trigger, Recorder
Help you automate tests, monitor and protect intelligently, and record the data you care about.

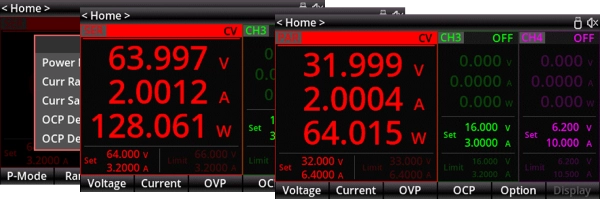

Series and parallel

Independent, series and Parallel operation can be easily realized through the menu. Strong performance even when connected in series and parallel

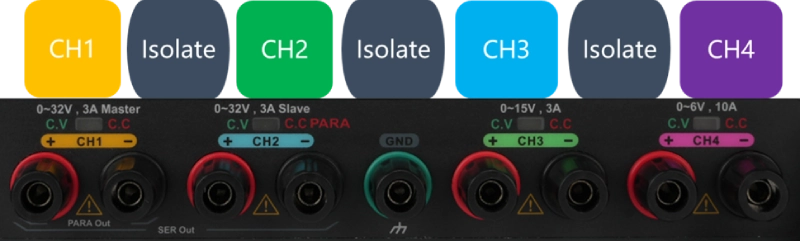

Full Channel Isolation

Four-channel full isolation
Isolation without crosstalk, comfort and safety

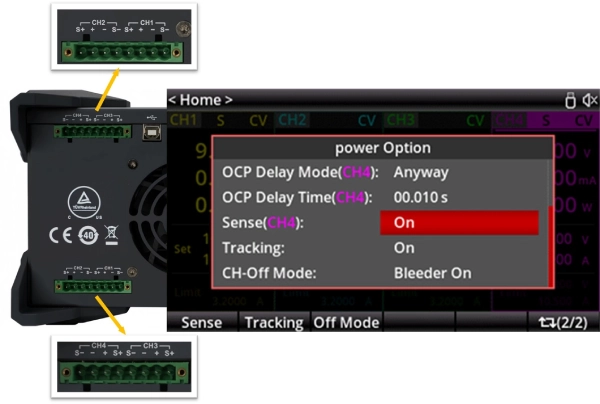

Full Channel remote compensation

All four channels support remote compensation, reverse connection and overvoltage protection.
Guarantee the accuracy and safety of the test

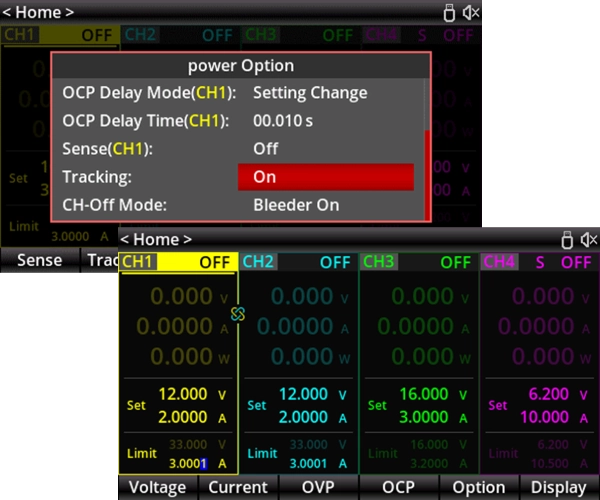

CH1 & CH2 channel tracking

Turn on the tracking function. Arbitrarily change the settings of one channel and the settings of the other channel will be changed accordingly
