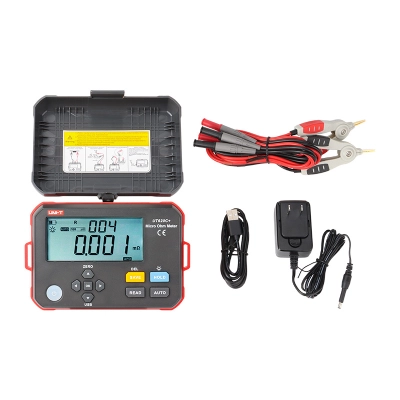

UT620C+ Micro-ohmmeter

UT620C+ can measure a wide range of resistance values with high precision. It is a highly accurate portable resistance meter capable of measuring resistance levels from micro-ohm to mega-ohm. It is ideal for testing and maintenance of large equipment, such as measuring winding and welding resistance of large motors and stators for hybrid and electric vehicles. Widely used in telecommunications, power distribution systems, new energy vehicles, petrochemicals, industrial plant grounding systems, etc.

REQUEST A QUOTE     DOWNLOAD CATLOUGE

Compare
Categories: , , ,
Description

Features of UT620C+ Micro-ohmmeter

Certifications: CE, RoHS

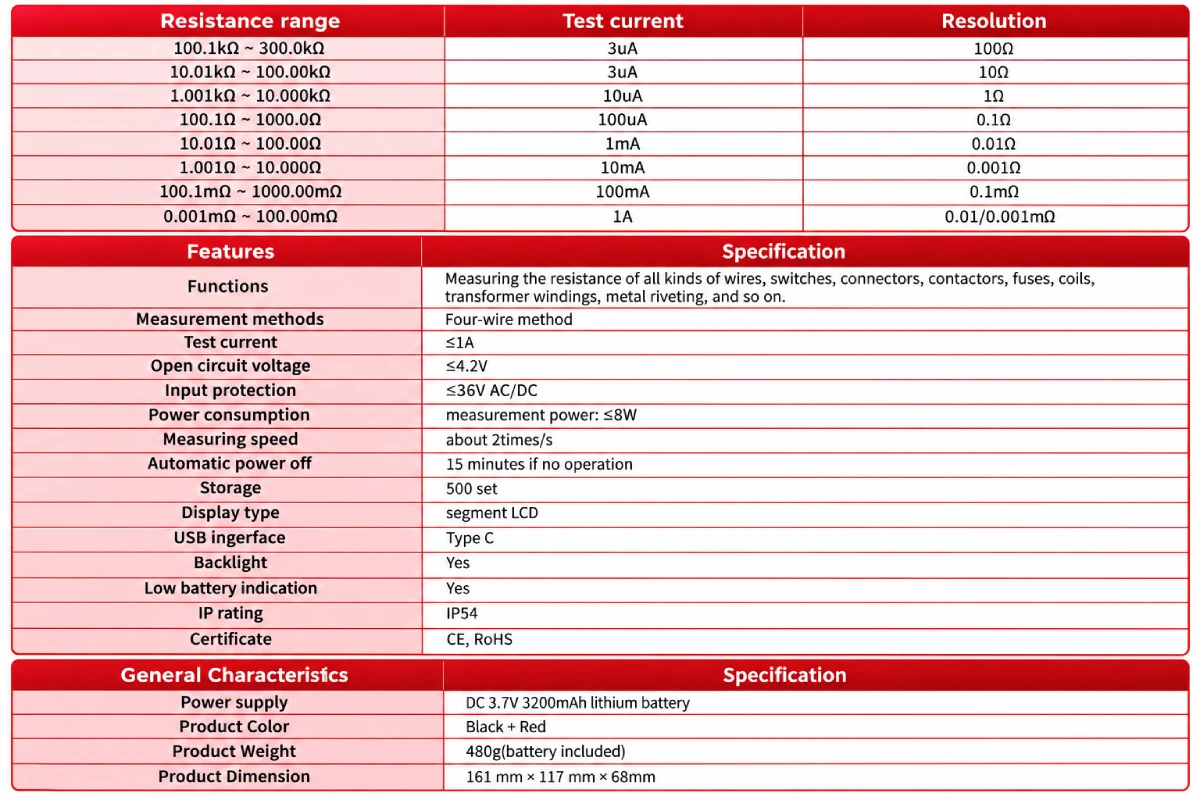

  • Micro-ohm level measurement, resistance measurement range: 0.001mΩ～300.0KΩ
  • Resolution up to 1μΩ
  • The accuracy can reach ±0.1%FS
  • The measurement current ≤ 1A
  • 500 groups of data storage
  • Large LCD display
  • Automatic shutdown, longer standby time
  • The lithium battery can be used repeatedly
  • Compact design, easy to carry and operate
