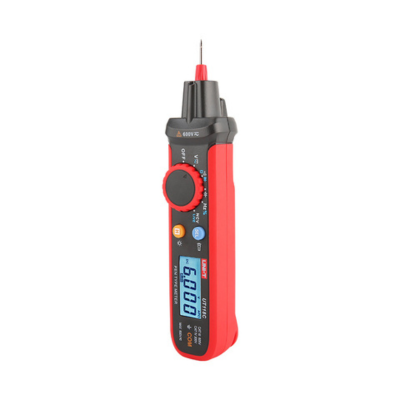

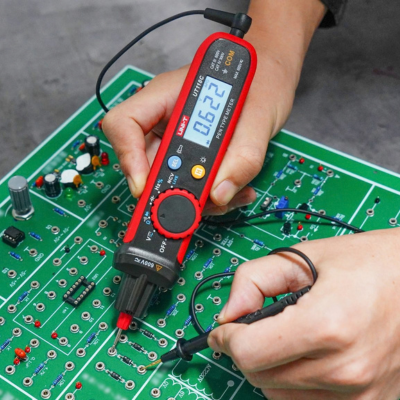

Features of UT118C Pen-type meter
|
Technical Specifications |
|||
|---|---|---|---|
|
Max power measurement |
6.000V/60.00V/600.0V |
±（1％＋3) |
|
|
AC voltage (V) |
6.000V/60.00V/600.0V |
±（1％＋4） |
|
|
Resistance |
600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ |
±(1%+3) |
|
|
6.000MΩ |
±(1.5%+5 |
||
|
60.00MΩ |
±(2.5%+5) |
||
|
Capacitance |
600.0nF/6.000uF/60.00uF/600.0uF |
±（3.5%+8) |
|
|
6.000mF |
±（5.0%+9) |
||
|
60.00mF |
±（10.0%+9) |
||
|
Frequency |
99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz |
±(0.01%+5) |
|
|
Features: |
Display count |
6000 |
|
|---|---|---|---|
|
Duty cycle |
0.1% to 99.9% |
||
|
NCV/LIVE test |
✔ |
||
|
True RMS |
✔ |
||
|
Diode |
✔ |
||
|
Continuity |
✔ |
||
|
Resistance |
✔ |
||
|
Auto range |
✔ |
||
|
Screen |
HTN LCD 36*15mm |
||
|
Auto power off |
✔ |
||
|
Flash light |
✔ |
||
|
Indicator |
Dual color |
||
|

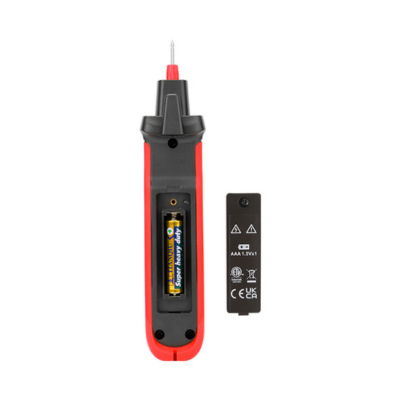

Battery |
AAA*1 |
||
|
Category rating |
CAT IV 300V; CAT III 600V |
||
|
Certificates |
CE/cETLus/ROHS |
||
|
General Characteristics |
Power supply |
AAA*1 |
|
|---|---|---|---|
|
Product dimension |
182.5mm x 38.0mm x 38.5mm |
||
|
Product color |
Gray + Red |
||
|
Accessories |
User manual 1pcs, 1.5V AAA battery 1pcs |
||
