Features
| Technical Data | |

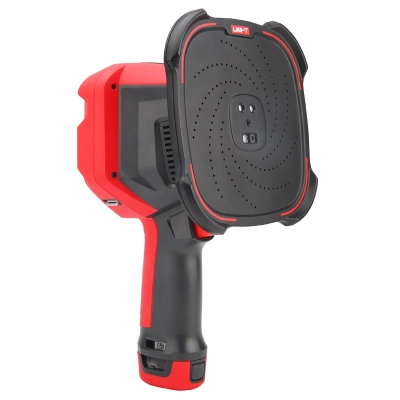

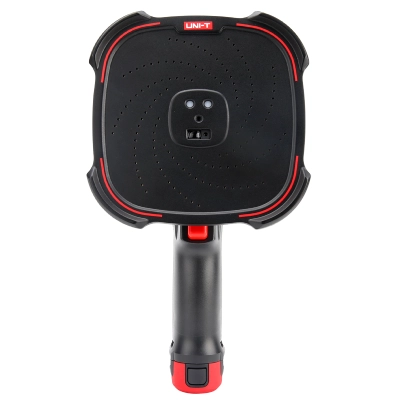

| Microphones channels | 138 |
| Microphones type | High sensitivity digital MEMS microphones |
| Array plane size | Approx. 150mm |
| Microphones sensitivity | -26dBFS@1kHz |
| Sound pressure sensitivity | Lower limit: <20dB Upper limit: >120dB |
| SNR(Signal to noise ratio) | 64dB@1kHz |
| Bandwidth | 2kHz~100kHz |
| Sound sampling rate | 200kHz |

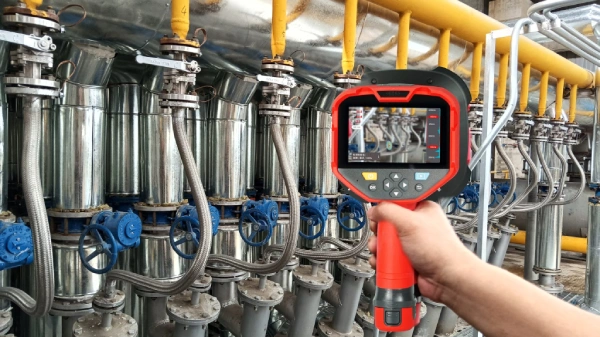

| Minimum leak rate | >0.15m/s (0.5MPa, 0.5m), >0.2m/s (0.5MPa, 1m) |
| Detection distance | 0.3~150m |
| Acoustic imaging frame rate | 25FPS |

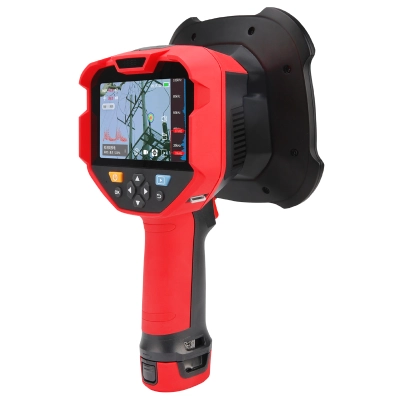

| Display | 4.3″ Touch display screen |
| FOV | 60°(H) x 40°(V) |
| Digital camera resolution(pixels) | 13MP |
| Working temperature | -20~50℃ |
| Functions | |

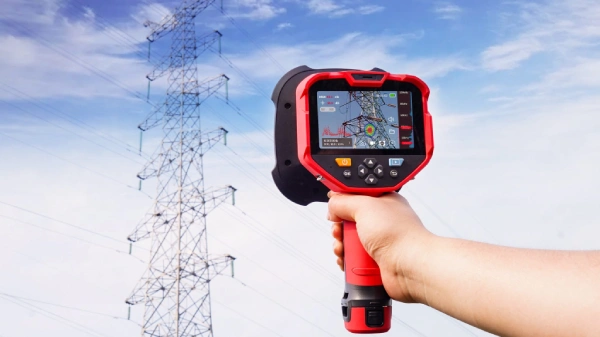

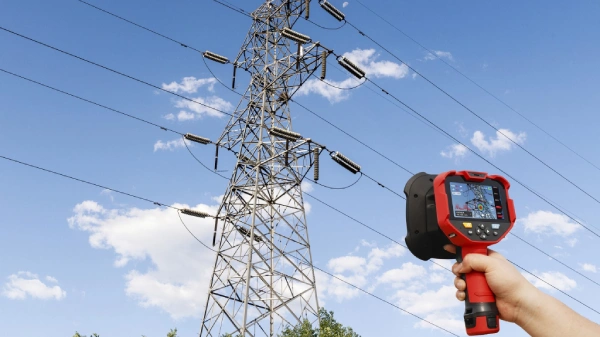

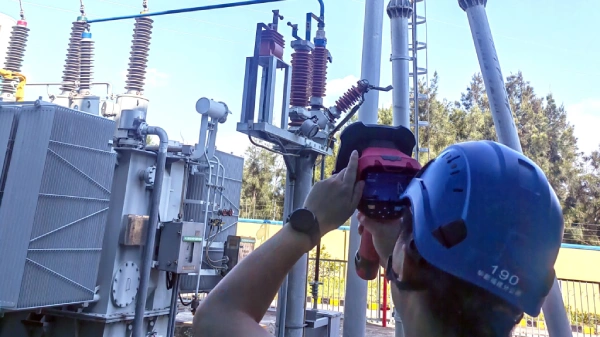

| Discharge detection type | Corona, Floating, Surface |
| Display mode | Single, Multi, Hologram |
| Threshold adjustment | Flitering background noise |
| LRF | 30m |
| Auto enhancement | √ |
| Photo capturing / video recording | √ |
| Wireless connection | Wi-Fi & Bluetooth |
| Annotation | Text & voice |
| General Characteristics | |
| USB | Type-C |
| Communication interface | Data transmission & report generating |
| Storage capacity | 128GB SD card |
| Image format | JPG |
| Video format | MP4 |
| Audio format | WAV |
| Languages | ZH,EN |
| Weight | 1.35kg |
| Dimension | 163mm×286mm×140mm |
