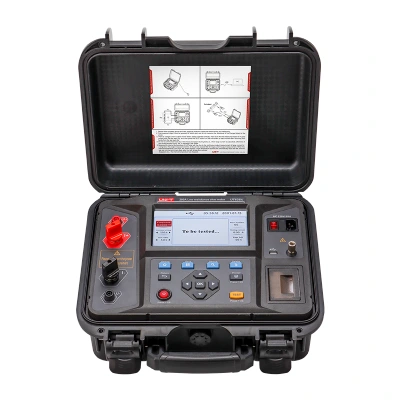

UT625A/UT625B 100A/200A Low Resistance Ohmmeter
UT625A/UT625B 100A/200A Low Resistance Ohmmeter

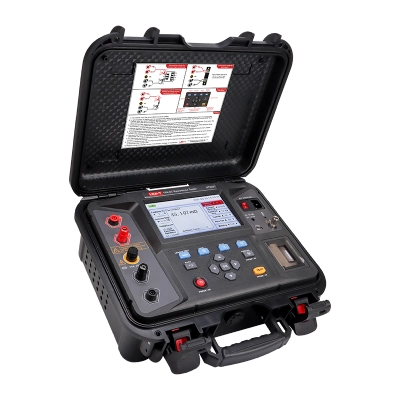

UT620T 10A DC Resistance Tester

The UT620T DC Resistance Tester, also known as the Transformer DC Resistance Tester or DC Resistance Fast Tester, adopts the four-wire measurement method, ensuring safety, precision, and reliability. It is widely applied in telecommunications, power systems, meteorology, data centers, oil fields, power distribution lines, transmission towers, gas stations, factory grounding networks, lightning rods, and other fields for DC resistance measurement.

REQUEST A QUOTE     DOWNLOAD CATLOUGE

Compare
Categories: , , ,
Description

Features of UT620T 10A DC Resistance Tester

Certifications: ROW

  • Test Currents: 12V/<5mA, 40mA, 200mA, 400mA, 1A, 5A, 10A
  • Step Adjustment:
    i. 1A steps for 1-10A range
    ii. 40mA steps for 40-400mA range
    iii. Total of 20 adjustable steps

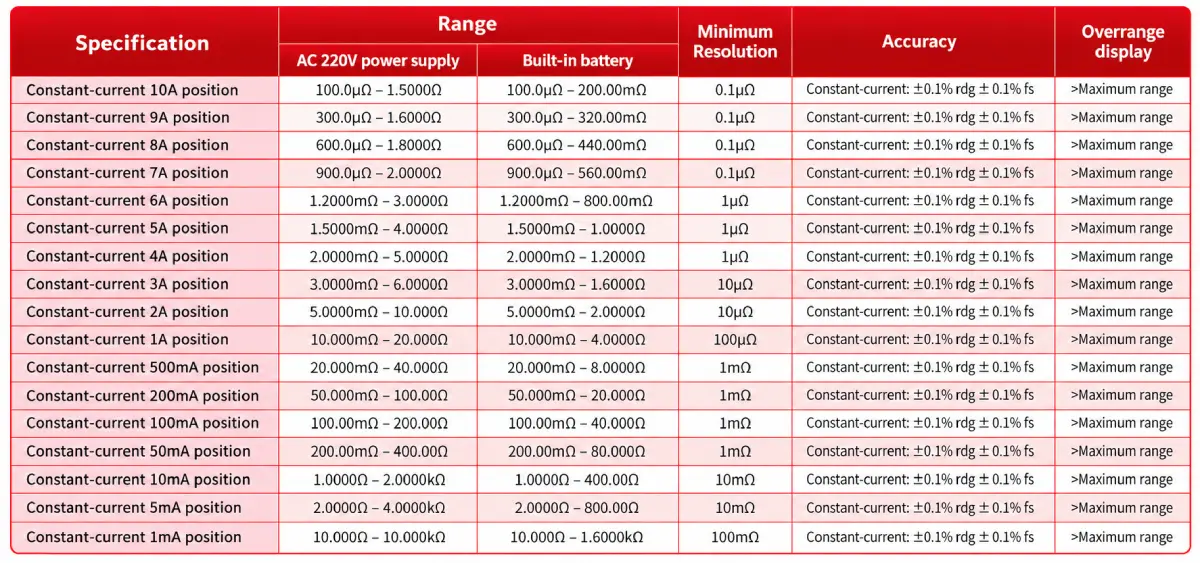

  • Measurement Range: 100.0μΩ – 1.0000MΩ
  • Temperature conversion based on conductor material (copper/aluminum)
  • 999 sets of data storage & 7-inch color LCD
  • Built-in printer & USB interface
  • Audible discharge & audible alarm (Beep)
  • Protection features: Reverse EMF/Discharge/Overheat protection
  • Auto power off (around 10 minutes)
  • Built-in lithium battery pack (14.8V/5000mAh)
  • Supports AC 180-240V/50Hz power input

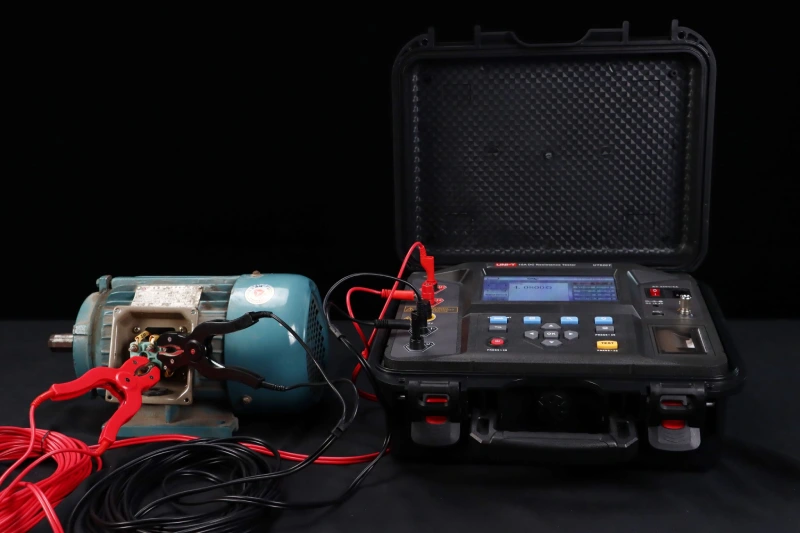

UT620-Application-1-2048x1365

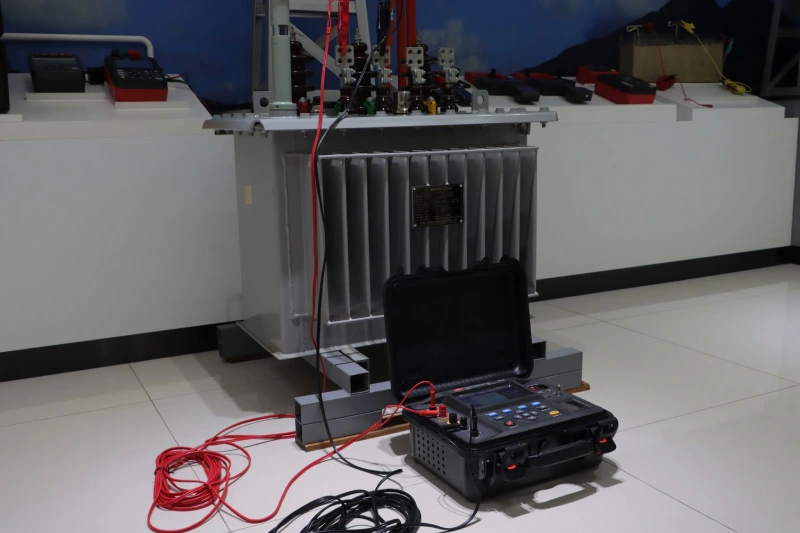

UT620-Application-2-2048x1365

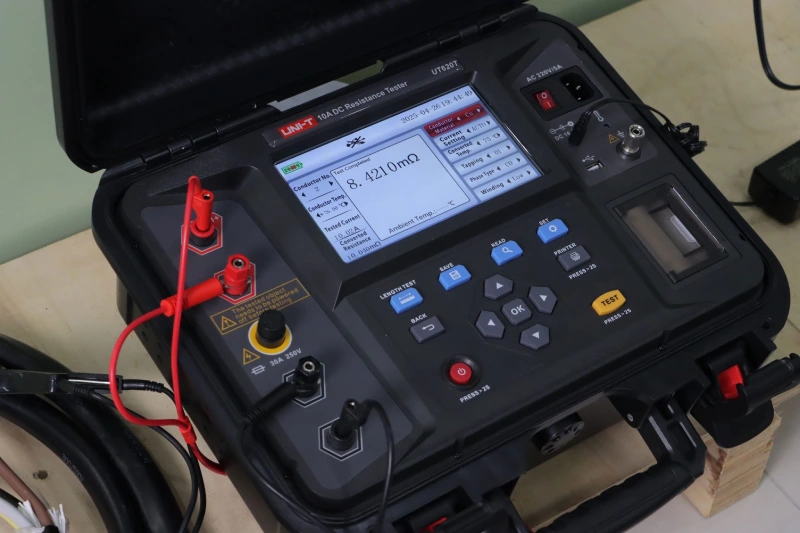

UT620-Application-3-2048x1365

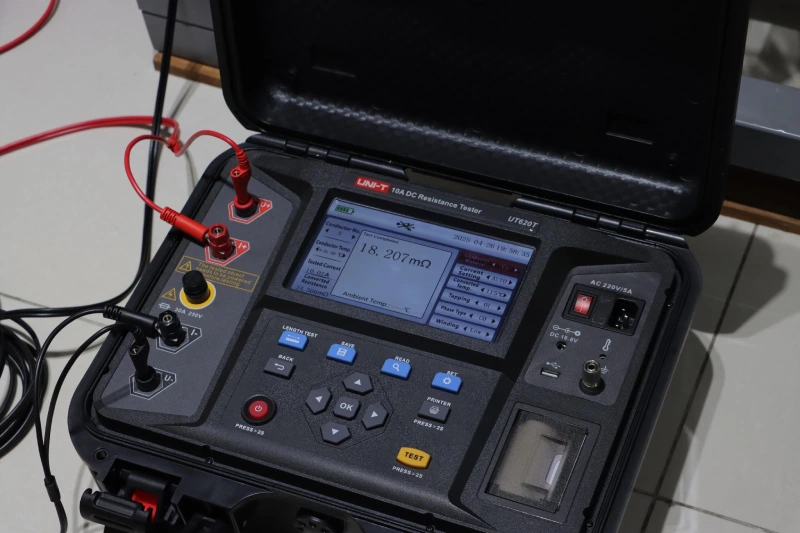

UT620-Application-4-2048x1365
