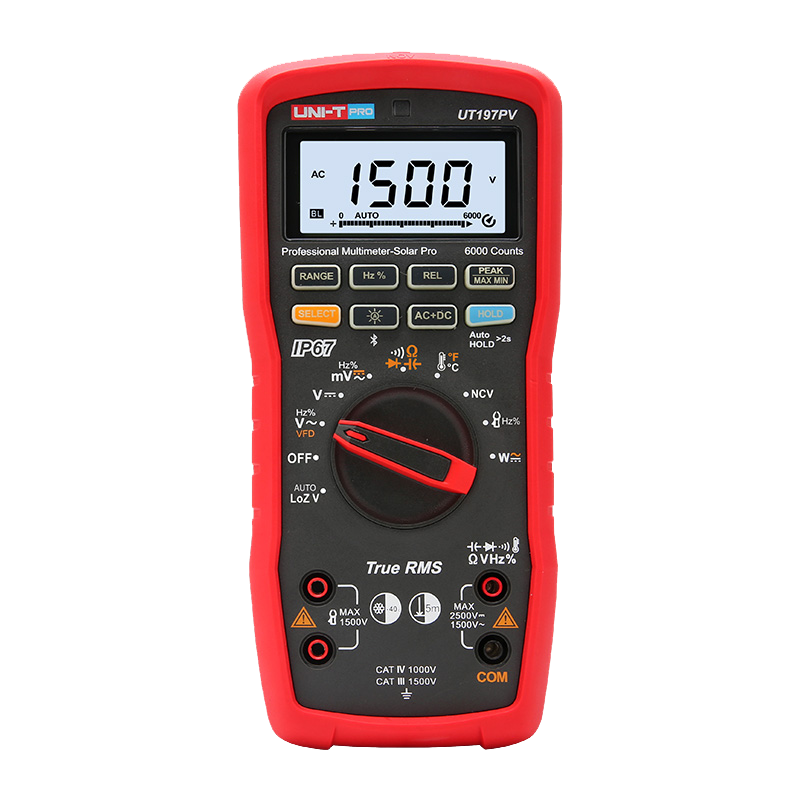

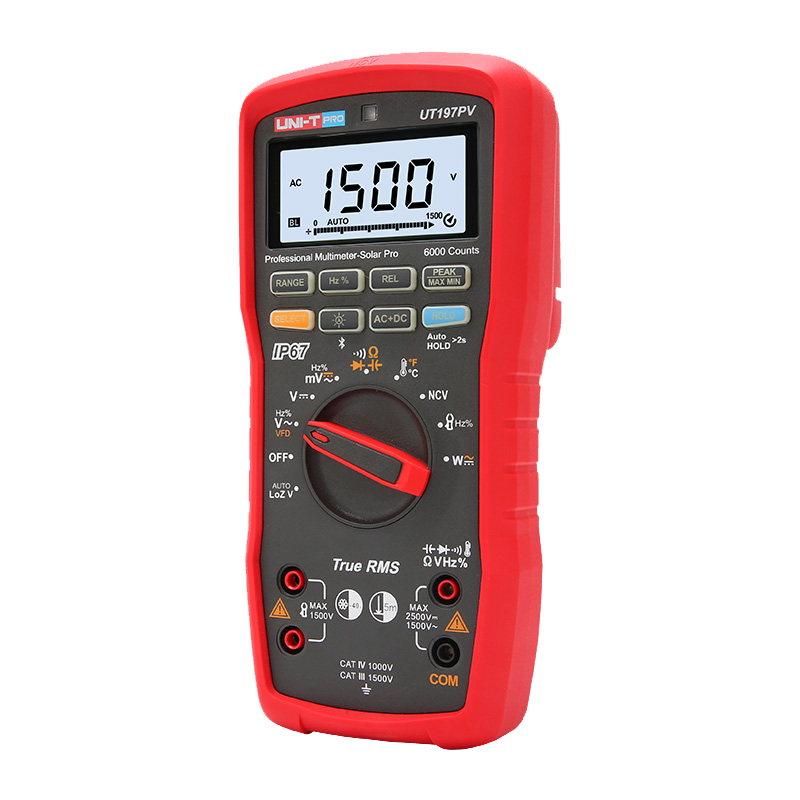

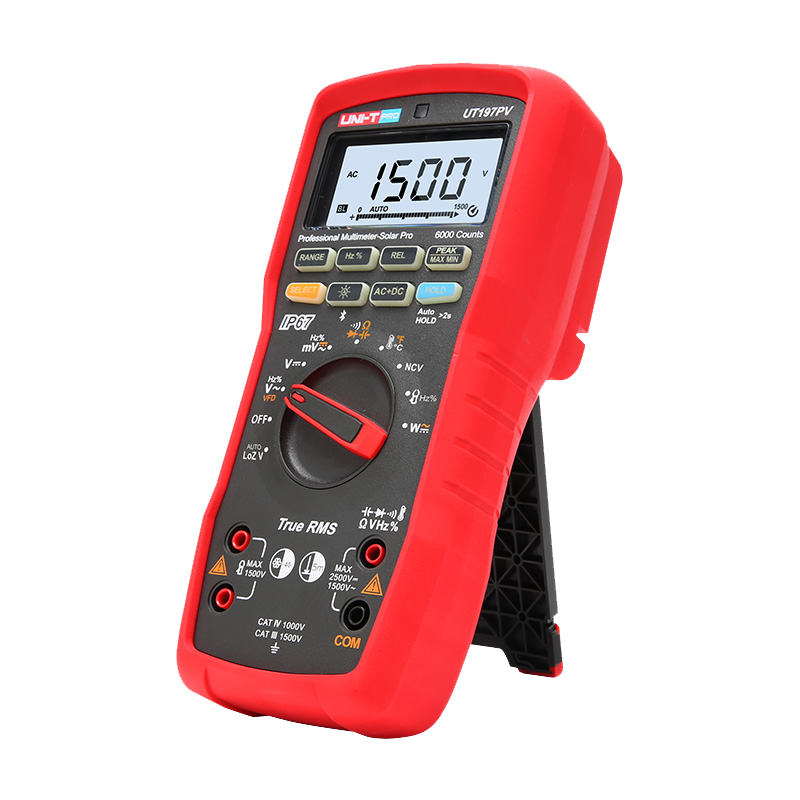

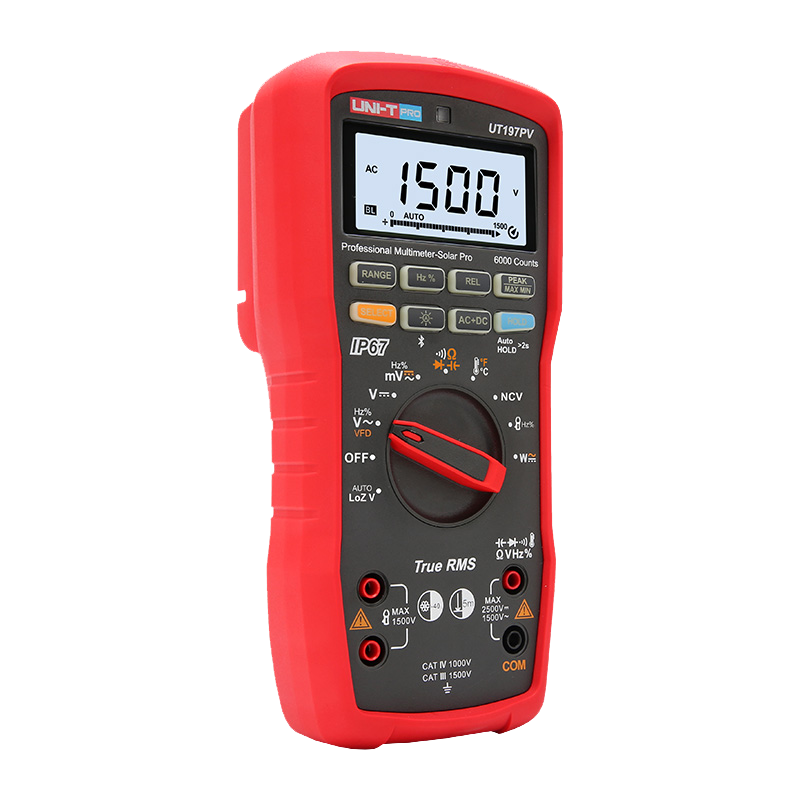

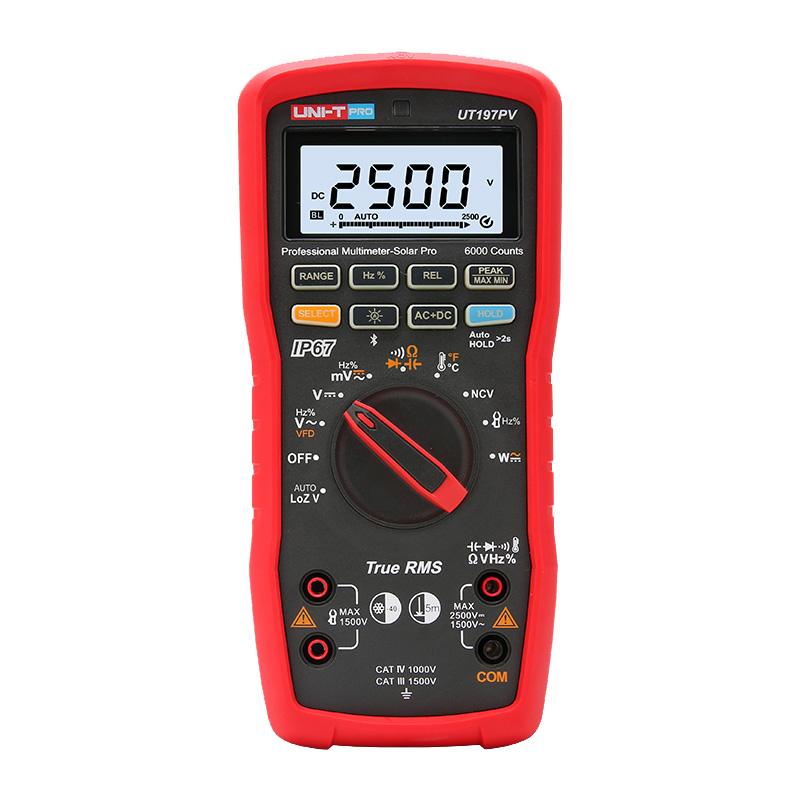

Features of UT197PV professional multimeter-solar pro
TECHNICAL SPECIFICATIONS
| Voltage (DCV) | 600.0mV | ±(0.3%+5) |
| 6.000V / 60.00V / 600.0V | ±(0.2%+5) | |
| 2500V | ±(1.0%+5) | |
| Voltage (ACV) |
45～1kHz 600.00mV / 6.000V / 60.00V / 600.0V / 1500V |
≥45Hz, <500Hz: ±(0.8%+3) ≥500Hz, <1KHz: ±(1.8%+3) |
| VFD (ACV) | 45～200Hz 600.0V / 1500V |
±(2.0%+5) |
| Auto Loz | 45～400Hz 600.0V |
±(1.5%+5) |
| 1500V | ±(1.8%+5) | |
| ACV + DCV | 600.00mV / 6.000V / 60.00V / 600.0V / 1500V |
≥45Hz, <500Hz: ±(1.5%+5) ≥500Hz, <1KHz: ±(2.5%+5) |
| Resistance | 600.0Ω | ±(0.8%+5) |
| 6.000kΩ / 60.00kΩ / 600.0kΩ / 6.000MΩ | ±(0.5%+5) | |
| 60.00MΩ | ±(2.5%+5) | |
| Capacitance | 60.00nF | ±3.0% |
| 600.0nF / 6.000μF / 60.00μF / 600.0μF | ±(3.0%+5) | |
| 6.000mF / 60.00mF | ±(10.0%+5) | |
| Continuity | 600.0Ω | ±(1.0%+5) |
| Diode | 3.2V | ±(1.0%+5) |
| Frequency | 99.99Hz / 999.9Hz / 9.999kHz / 99.99kHz / 999.9kHz | ±(0.02%+5) |
| Duty cycle | 10Hz～10KHz (10%～90%) | ±(2.0%+30) |
| Temperature | -40℃～1000℃ | ±(1.0%+30) |
| -40℉～1832℉ | ±(1.0%+60) | |

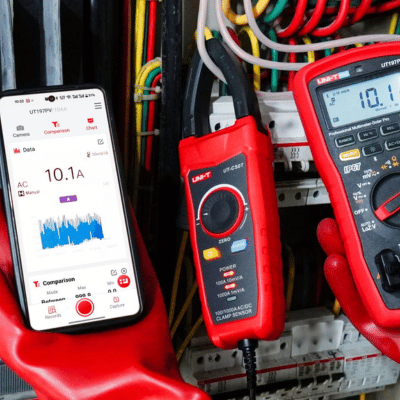

| External clamp (DCA) | UT-CS07 (optional) 100A (10mV/A) & 1000A (1mV/A) |
±(0.8%+5) |
| External clamp (ACA) | UT-CS07 (optional) 45～400Hz: 100A (10mV/A) & 1000A (1mV/A) |
±(1.0%+5) |
| AC Power 100A (10mV/A) | Active power 60.00kW / 150.0kW |
±(3.0%+5) |
| Apparent power 60.00kVA / 150.0kVA |
±(2.0%+5) | |
| Reactive power 60.00kVAr / 150.0kVAr |
±(5.0%+5) | |
| Factor -1～1 |
* | |
| AC Power 1000A (1mV/A) | Active power 600.0kW / 1500kW |
±(3.0%+5) |
| Apparent power 600.0kVA / 1500kVA |
±(2.0%+5) | |
| Reactive power 600.0kVAr / 1500kVAr |
±(5.0%+5) | |
| Factor -1～1 |
* | |
| DC Power 100A (10mV/A) | 60.00kVA / 250.0kVA | ±(3.0%+5) |
| DC Power 1000A (10mV/A) | 60.00kVA / 2500kVA | ±(3.0%+5) |
| Display count | 6000 | |
| Analog bar | 33 segment | |
| True RMS | ✔ | |
| NCV | ✔ | |
| Auto range | ✔ | |
| REL. | ✔ | |
| PEAK | ✔ | |
| MAX/MIN | ✔ | |
| Data hold | ✔ | |
| High voltage alarm | ✔ | |
| High voltage OL alarm | ✔ | |
| Low battery indication | ✔ | |
| Auto power off | ✔ | |
| Multifunctional protection | ✔ | |
| Bluetooth app | ✔ | |
| Backlight | Auto backlight | |
| Drop protection | 5m | |
| IP rating | IP67 | |
| Working temperature | -40～55℃ | |
| Overvoltage category | CATⅣ 1000V & CATⅢ 1500V |
| GENERAL CHARACTERISTICS | |
|---|---|
| Product dimension | 220*104*67mm |
| Power supply | AA 1.5V *3 |
