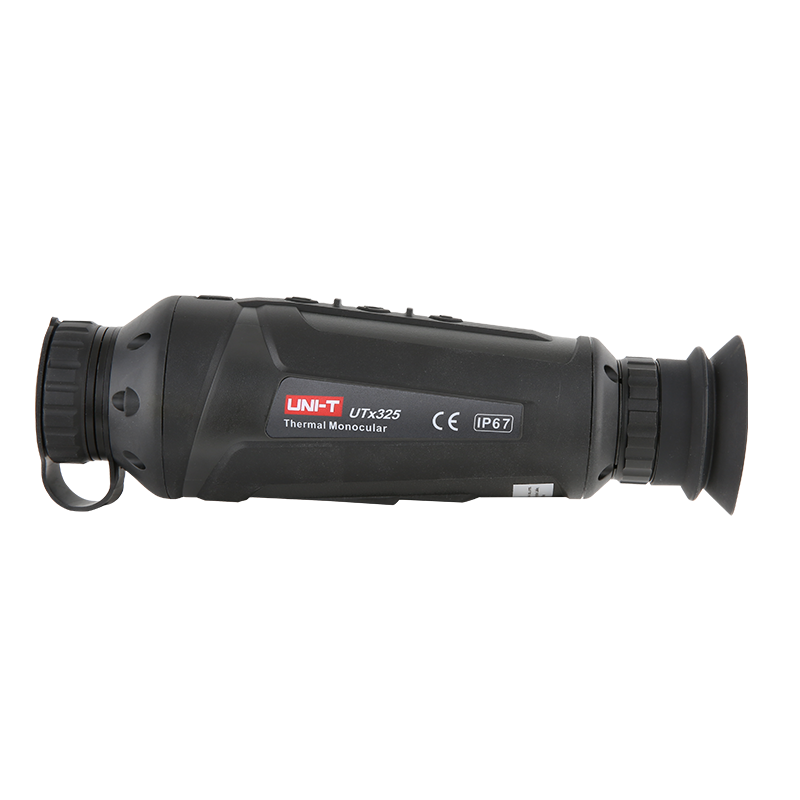

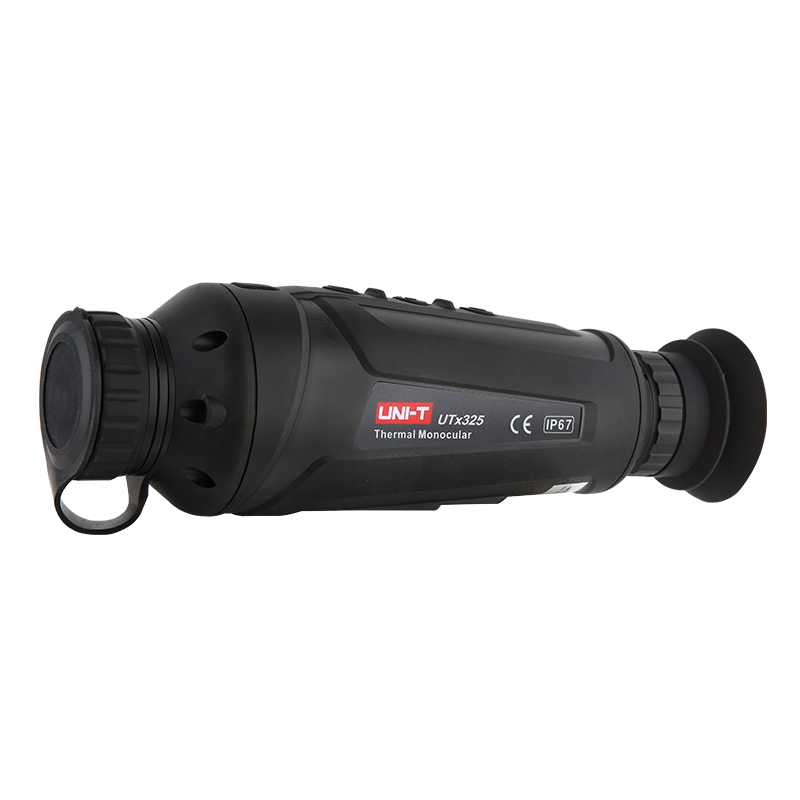

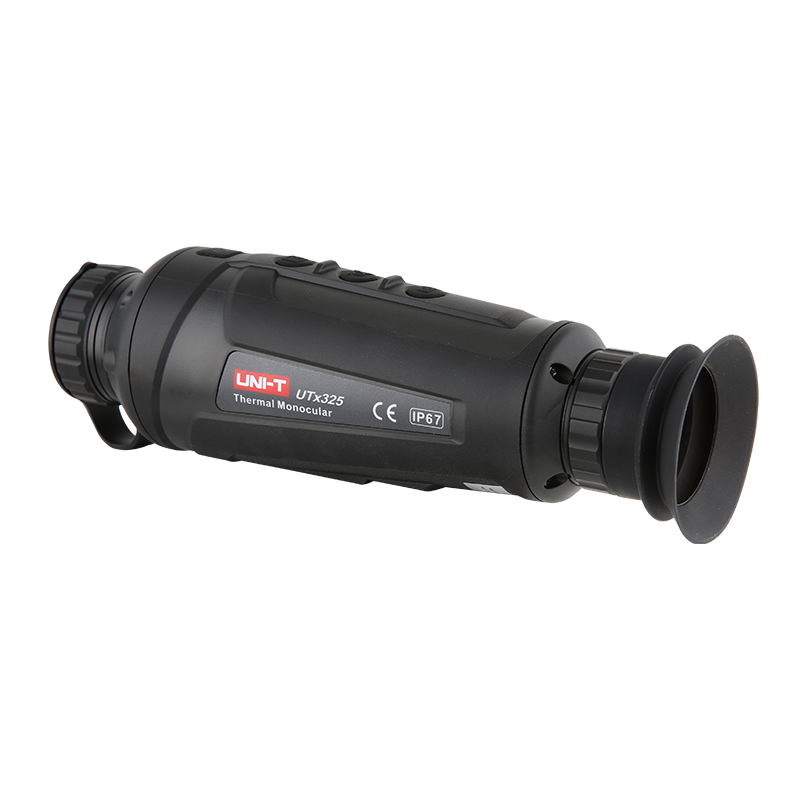

UTx325 Thermal Imaging Monocular

UTx325 is a lightweight and portable thermal imaging monocular that equipped with a 384×288 infrared detector and a 1280×960 0.4”LCOS display. This thermal imaging monocular can take photos, storage and connect to the external screen for viewing. The 50Hz frame frequency enables users to observe moving objects without delay. With hot spot tracking take accurately location and tracking; It can widely be widely used in many applications: outdoor observation, hunting, navigation, security, camping &search, law enforcement etc.

REQUEST A QUOTE DOWNLOAD CATLOGUE

Features

Lightweight and portable
IR resolution: 384×288
Display: 1280×960 0.4”LCOS
Hot trace
Color palettes: 5(Blackhot, Whitehot, Hottest, Ironbow, Rainbow)
IP67
2m drop proof

Specifications

Technical Data
Display	0.4” LCOS (1280×960)
Detector type	UFPA (Vanadium oxide)
IR resolution(Pixels)	384×288
Spectral range	8~14µm
Pixel size	12μm
Frame rate	≤50Hz
Thermal sensitivity(NETD)	≤40mK
Focus	Manual focus
Lens focal length	25mm
Field of view(FOV)	10.5°(H) x 7.9°(V)
Diopter adjustment	-5D~+3D

Functions

Color palettes	Black hot, White hot, Hottest, Ironbow, Rainbow
Digital zoom	2x, 4x / 1.0~4x continuous
Calibration modes	Auto, Manual, Background
DDE	Details & Edge
Hot trace	√
Photo viewing	PC & Device local
Video output	MCX interface

General Characteristics

Battery	4000mAh rechargeable Li-ion battery
Operating time	≥8 hours
USB	Type-C
Storage	16GB Internal
Protection	IP67 & 2m drop proof
Certificates	UL, CE, UKCA, RoHS
Languages	ZH, EN
Weight	428g
Dimension	207.6mm×62mm×62mm

Packing Details

Standard accessories	Type-C USB cable, English Manual, Tool Box
Standard individual packing	Gift box
Standard Qty per carton	1pcs
Standard carton size	370mm×140mm×275mm
Standard carton G.W.	1.9kg

UTx325 Datasheet

1 file(s) 320 KB

UTx325 Quick Start Guide

1 file(s) 7 MB
