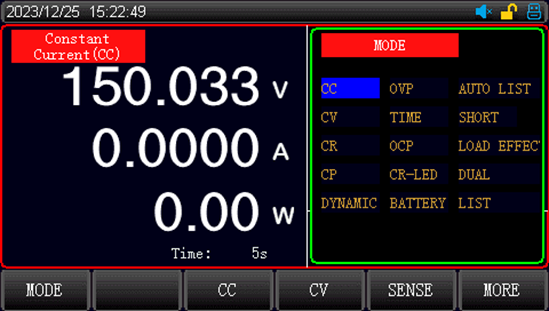

15 test modes
15 test modes to adapt to more application scenarios
Ripple measurement
Ripple measurement provides more thoughtful services for power supply testing.

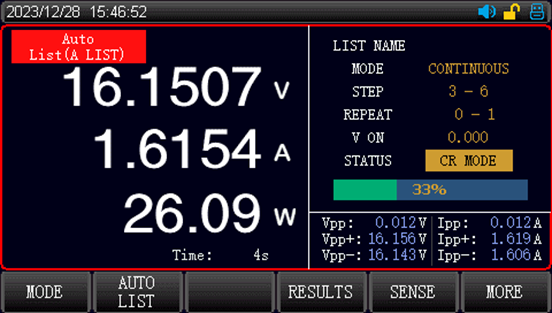

Auto list test
Auto list test, editable multi-mode test list, automated test process

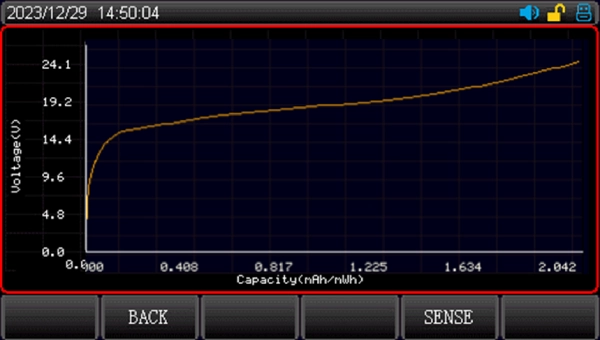

Battery mode
Battery testing not only enables battery measurement, but also records battery discharge and charging curves for you

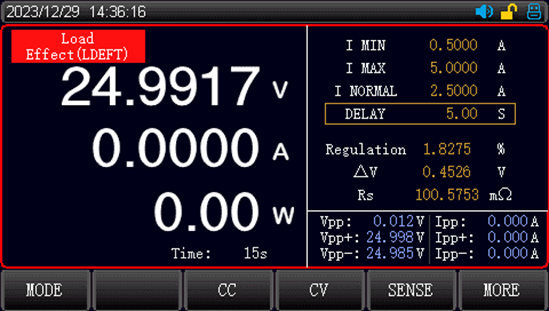

Load effect test
Load effect test, automatically measure and give test results according to the set value

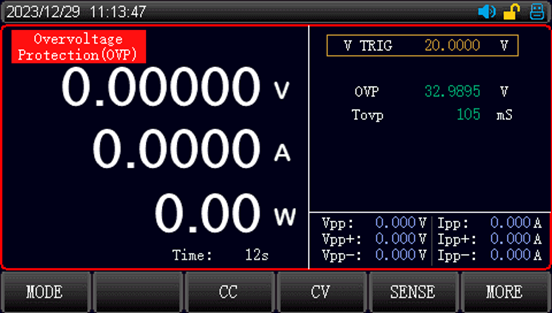

Protection test
Protection test, OCP, OVP measure the protection function and response time of the product under test
|
Model |
Description |
|---|---|
|
UT-L0615-oo
|
Double O type terminal 60A/1.5m power supply/electronic load test wire；Length: 1.5m；Wire diameter: 6.8mm；Max current: 60A；Terminal: O type-O type；Color: red and black |
|
UT-L0110-BU
|
Fold insert-U type terminal 10A/1m power supply/electronic load test wire；Length: 1m；Wire diameter: 3.6mm；Max current: 10A；Terminal: Fold insert-U type；Color: red and black |
|
UT-L0312-UU
|
Double U-type terminal 30A/1.2m power supply/electronic load test wire；Length: 1.2m；Wire diameter: 5.4mm；Max current: 30A；Terminal: double U-type；Color: red and black |
|
UT-L0110-BB
|
Double Fold insert 10A/1m power supply/electronic load test wire；Length: 1m；Wire diameter: 3.6mm；Max current: 10A；Terminal: Fold insert- Fold insert；Color: red and black |
|
UTE-L16C
|
1m/16A alligator clip test wire；Wire diameter: 3.6mm；Length:1m；Rated voltage:220V；Rated current:16A；Color: red and black |
