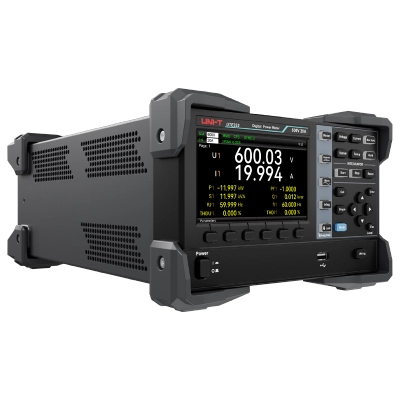

5-inch LCD

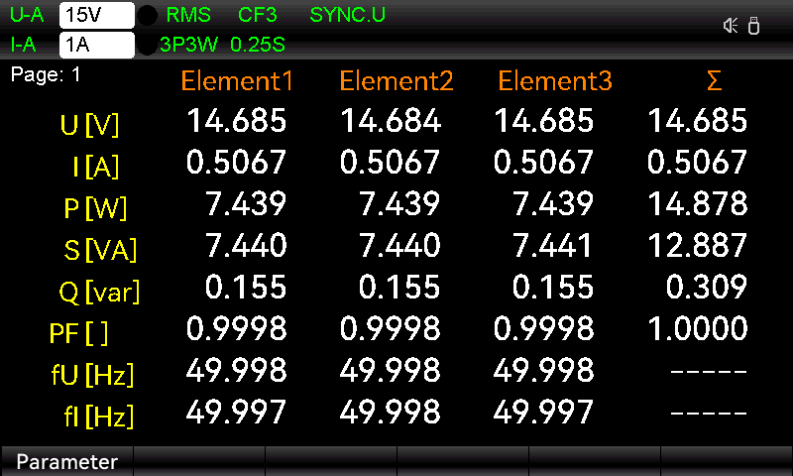

Equipped with an 800×480 display, this 5-inch TFT LCD (3-channel model) presents complex data through multiple on-screen parameters via its sharp, user-friendly interface—optimizing visibility and operational efficiency.

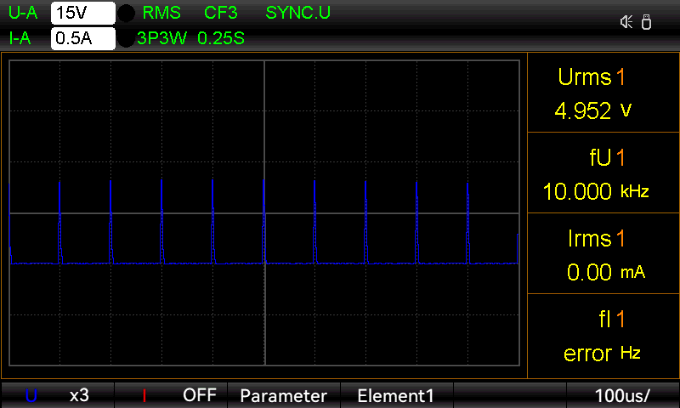

High sample rate
With a sample rate of 1MSa/s (1-channel model) and 300 kSa/s (3-channel model), the system acquires denser data points to faithfully reproduce fine signal nuances and ensure measurement fidelity during rapid transient events.

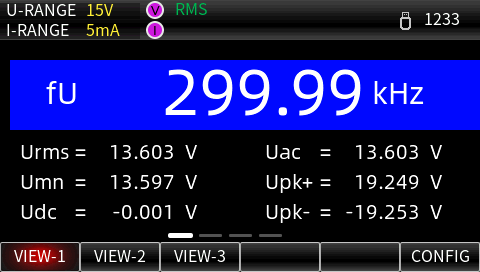

300kHz Analog Bandwidth
With an impressive 300 kHz analog bandwidth, the UTE300 series reliably acquires fast transient events and harmonics.

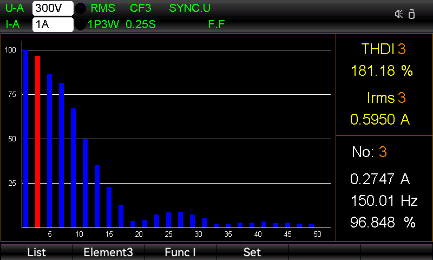

Harmonic analysis
Compliant with IEC61000-4-7 for harmonic measurement. Analyzes voltage/current/power/phase angle parameters and displays harmonic components up to the 50th order.

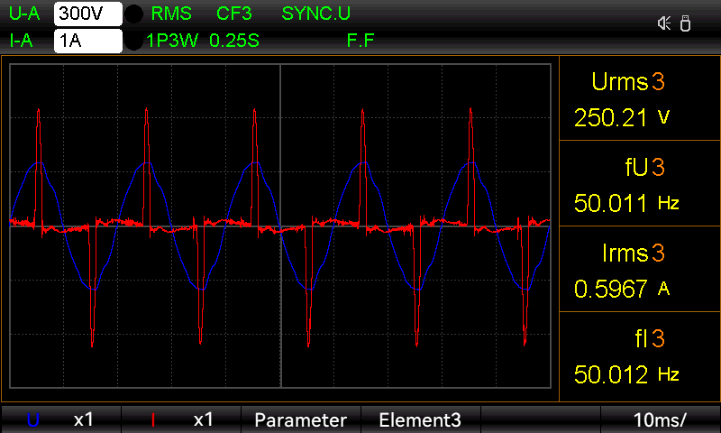

Display wave function
The power meter features comprehensive waveform visualization capabilities, simultaneously rendering voltage and current waveforms in real time. Within this display mode, key parameters are overlaid directly onto the graph for immediate reference.

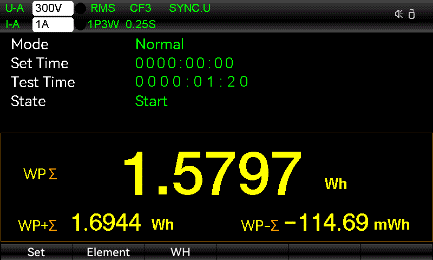

Integral function
The power meter supports integral function for parameters including WP, WP+, WP-, q, q+, q-. Integration applies to all measurement units. Its dedicated interface offers five distinct display pages: individual channels (CH1–CH3), combined totals, and a consolidated view showing all integrated parameters simultaneously.

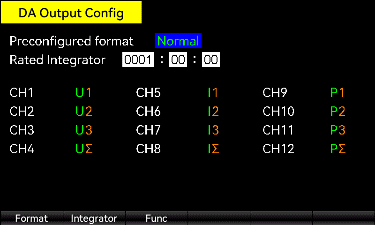

DA output
Configured with 12 D/A output channels, it can proportionally scale and output parameters such as voltage, current, and power from each unit.
