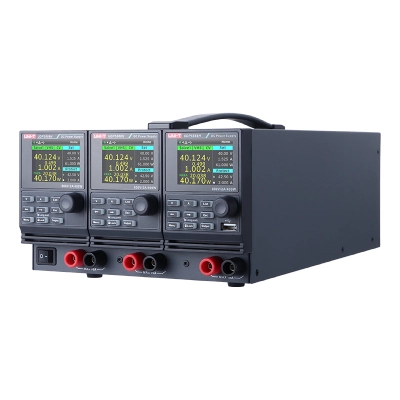

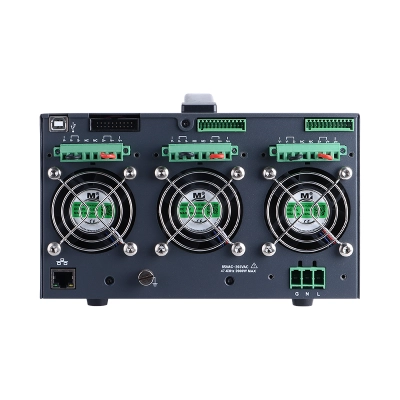

UDP5000 Multi-Channel Series

UDP5000 multi-channel series is a dual-output and triple-output programmable switched DC power supply. Each output channel is rated at 400 W. The series includes five rated output voltages (40 V, 80 V, 160 V, 250 V, 800 V) across two configurations (dual-output and triple-output), forming a total of 10 models. UDP5000 multi-channel series features an output delay of less than 0.1 ms between channels of the same voltage, adjustable output power-on/off sequencing, and independent or simultaneous control of each channel, combined with a compact design, high performance, versatile functionality, a wide output range, user-friendly operation, and application flexibility.

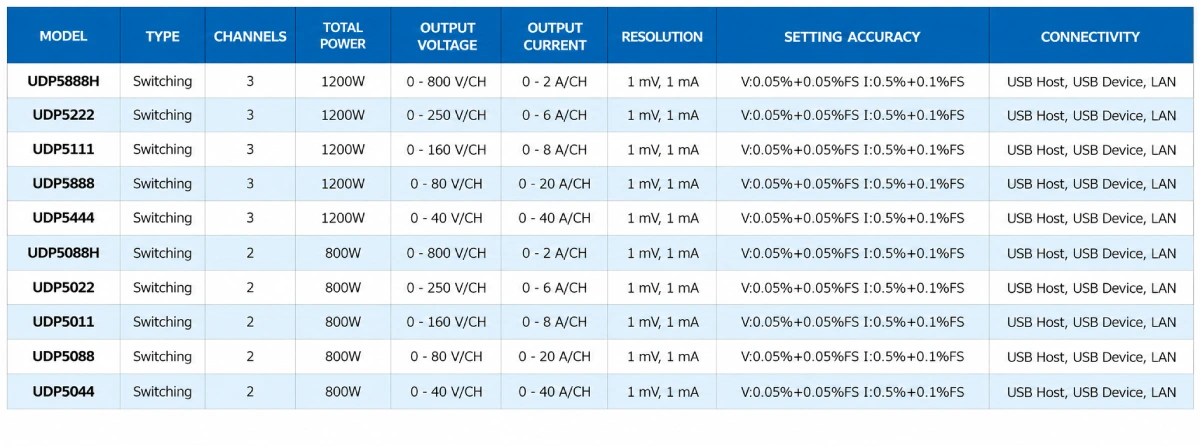

Switching

TYPE

2/3

CHANNELS

1200W

TOTAL POWER

0 – 800 V/CH

OUTPUT VOLTAGE

0 – 40 A/CH

OUTPUT CURRENT

1 mV,1 mA

RESOLUTION

V:0.05%+0.05%FS
I:0.5%+0.1%FS

SETTING ACCURACY

USB Host, USB
Device, LAN

CONNECTIVITY

REQUEST A QUOTE DOWNLOAD CATLOUGE

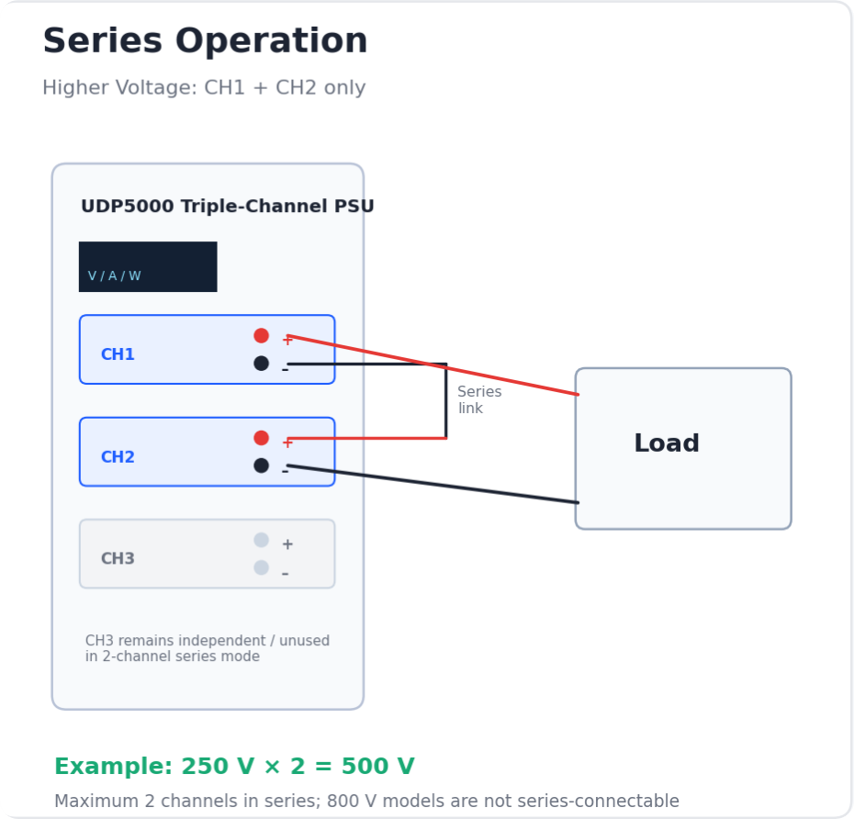

Flexible Series/Parallel Operation

Multi-channel expansion supports parallel operation across all channels and two-channel series operation. For higher system power, multiple units can also be connected in parallel or series, supporting up to four channels in parallel and two channels in series.

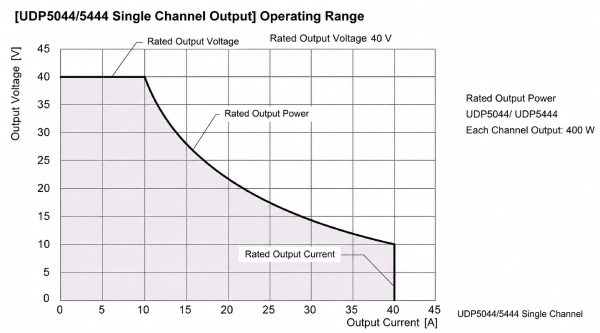

Auto Range Output

Auto Range operation delivers flexible voltage/current combinations under the rated power limit, reducing the need for multiple fixed-range supplies.

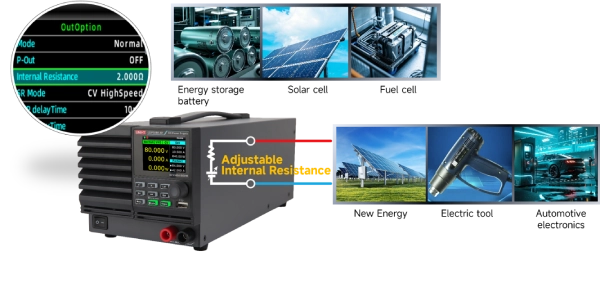

Adjustable Internal Resistance

Simulate the internal resistance of various batteries, real test application scenarios
Adjustable range: 0 to 300 Ω

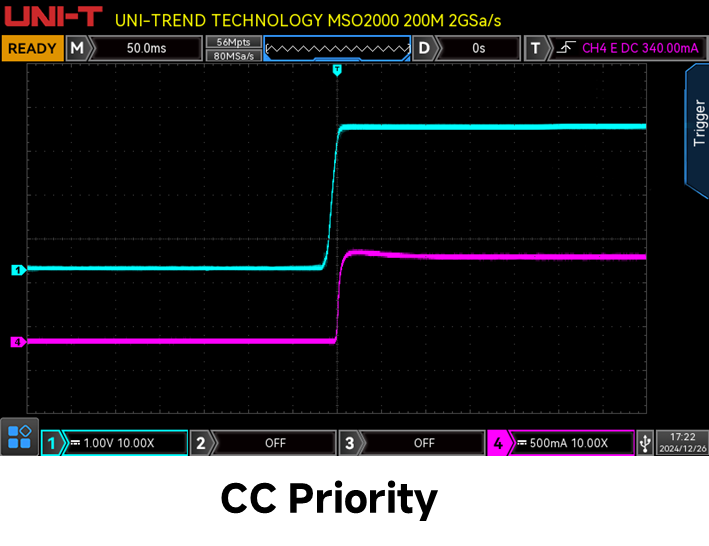

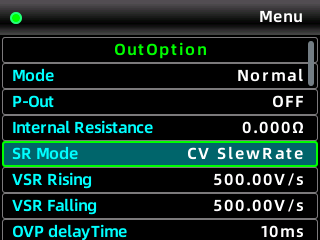

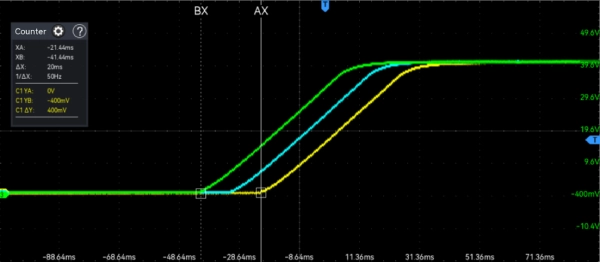

Adjustable Slew Rate

Configurable voltage and current rise/fall rates help reduce output overshoot and protect sensitive loads during power transitions.

CC/CV Priority Mode

CV priority mode for fast voltage rise
CC priority mode for improved current overshoot

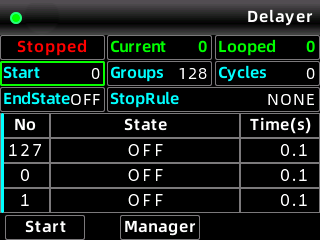

List And Delayer

Can measure external voltage, flexible application

Coordinated Multi-Channel Operation

Coordinated Operation enables centralized master-channel control of multiple outputs, allowing channels to start simultaneously or follow programmable power-on/off timing with less than 0.1 ms inter-channel delay.

Model	Description
UT-L0615-oo	Double O type terminal 60A/1.5m power supply/electronic load test wire；Length: 1.5m；Wire diameter: 6.8mm；Max current: 60A；Terminal: O type-O type；Color: red and black
UT-L0312-UU	Double U-type terminal 30A/1.2m power supply/electronic load test wire；Length: 1.2m；Wire diameter: 5.4mm；Max current: 30A；Terminal: double U-type；Color: red and black
UT-L0110-BU	Fold insert-U type terminal 10A/1m power supply/electronic load test wire；Length: 1m；Wire diameter: 3.6mm；Max current: 10A；Terminal: Fold insert-U type；Color: red and black
UT-L0320-UU	Double U-type terminal 30A/2m power supply/electronic load test wire；Length: 2m；Wire diameter: 5.4mm；Max current: 30A；Terminal: double U-type；Color: red and black
UT-L0110-BB	Double Fold insert 10A/1m power supply/electronic load test wire；Length: 1m；Wire diameter: 3.6mm；Max current: 10A；Terminal: Fold insert- Fold insert；Color: red and black
UTE-L16C	1m/16A alligator clip test wire；Wire diameter: 3.6mm；Length:1m；Rated voltage:220V；Rated current:16A；Color: red and black
