    Home UNI-T Measurement Meters Electrical Power Testers Earth Resistance Testers UT526 Multifunction Electrical Meter
    UT520 Series Digital Earth Testers
    UT520 Series Digital Earth Testers
    Back to products
    UT572 Advanced Earth Resistance Tester
    UT572 Advanced Earth Resistance Tester

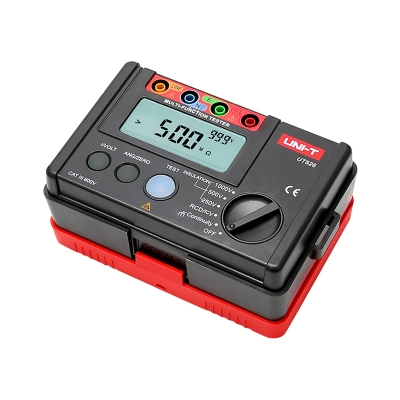

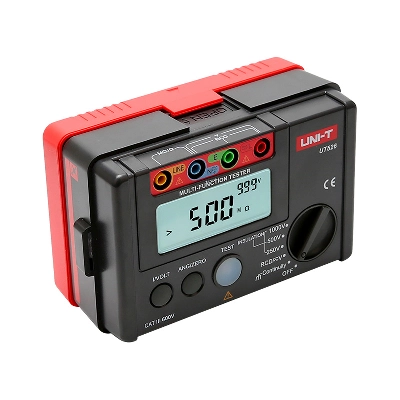

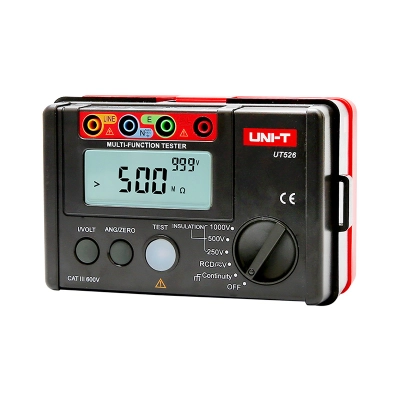

    UT526 Multifunction Electrical Meter

    UT526 is a multifunctional electrical installation tester. It can be used to test insulation resistance, RCD status, low resistance continuity, and voltage measurements. UT526 can be used to test power distribution system, lightning protection system and wiring systems to ensure safe operations.

    REQUEST A QUOTE

    Compare
    Categories: Earth Resistance Testers, Electrical Power Testers, Measurement Meters, UNI-T
    Share:
    • Description
    Description

    Features of UT526 Multifunction Electrical Meter

    Certificates: CE, UKCA

    • Display count: 10000
    • Manual range

    • Phase switch (RCD): 0°and 180°

    • Low battery indication
    • Auto AC/DC voltage identification
    • Red warning lights

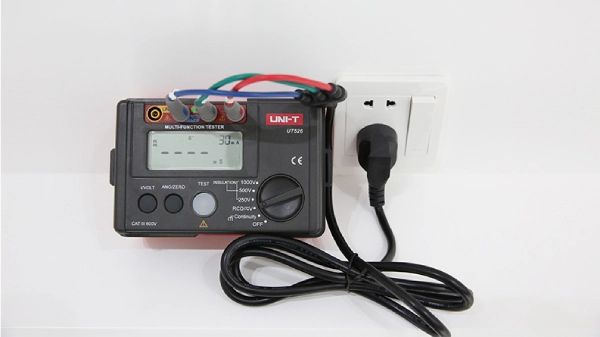

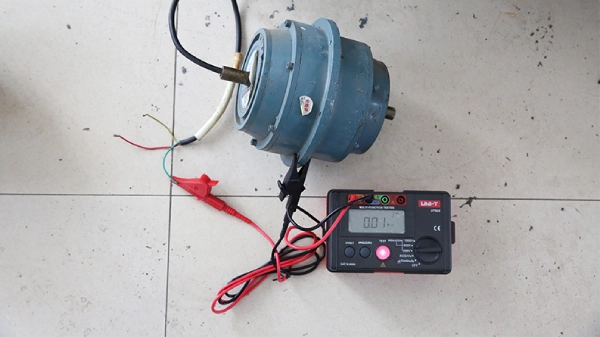

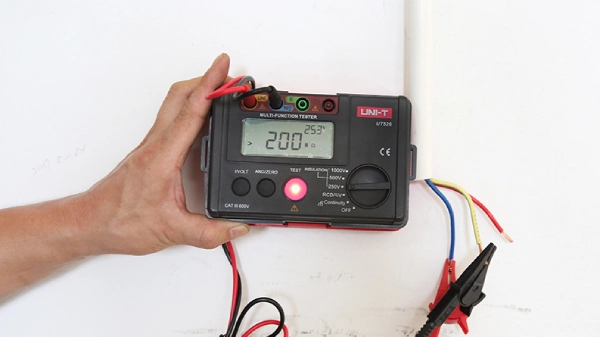

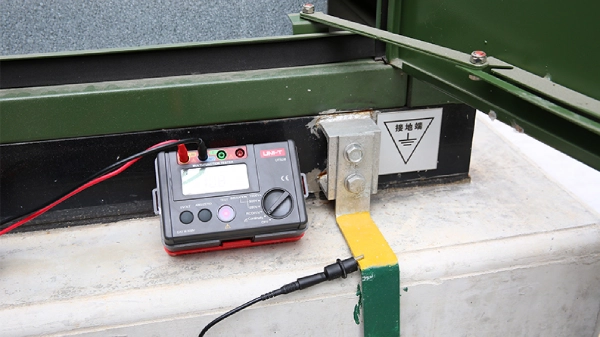

    UT526-application-1
    UT526-application-2
    UT526-application-3
    UT526-application-4

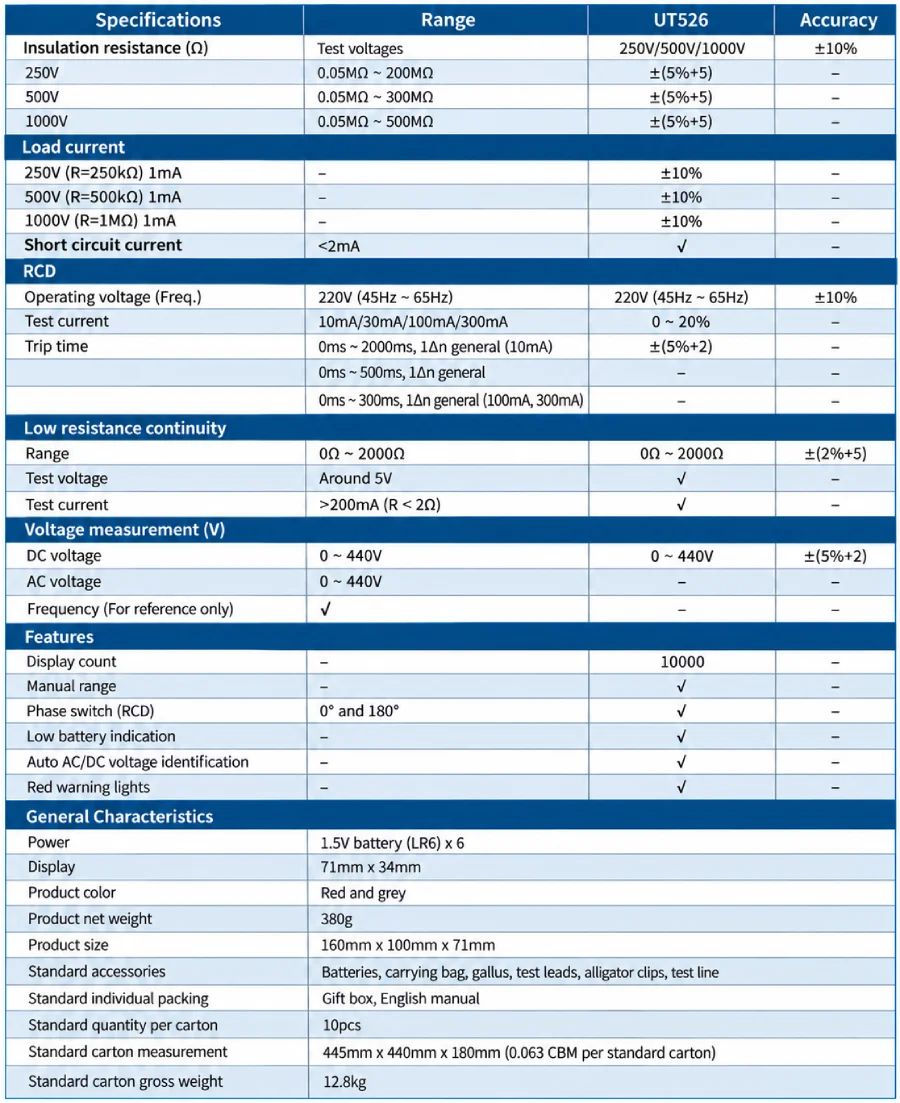

      UT526 | Datasheet

      UT525/UT526 | User Manual
