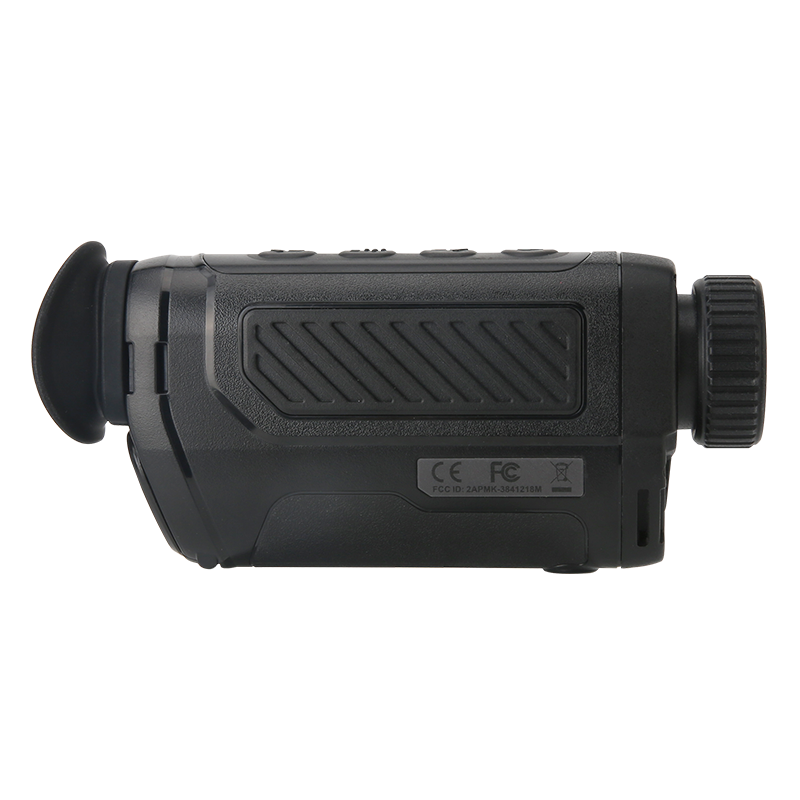

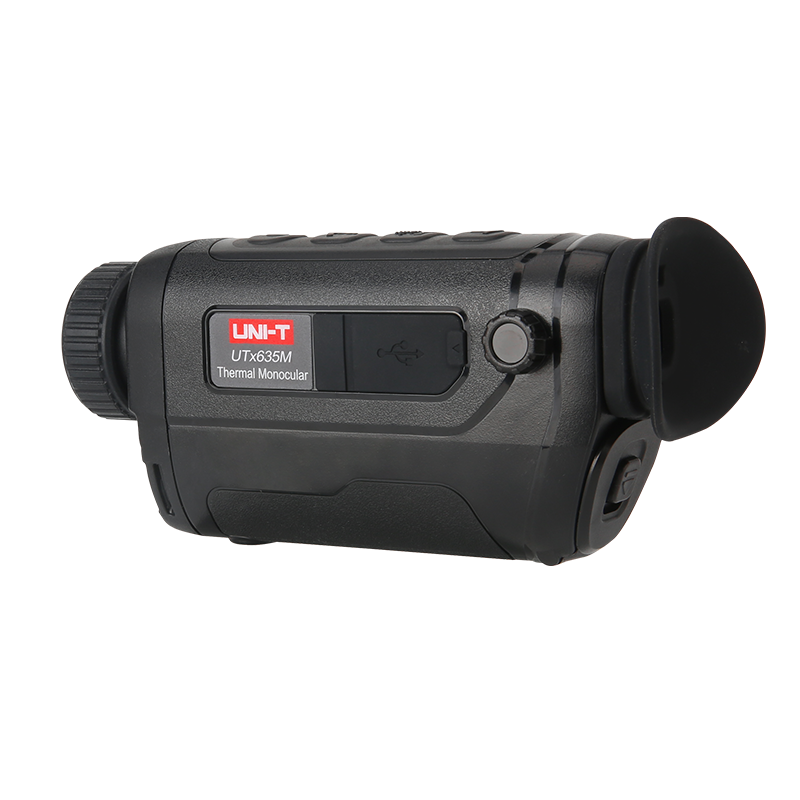

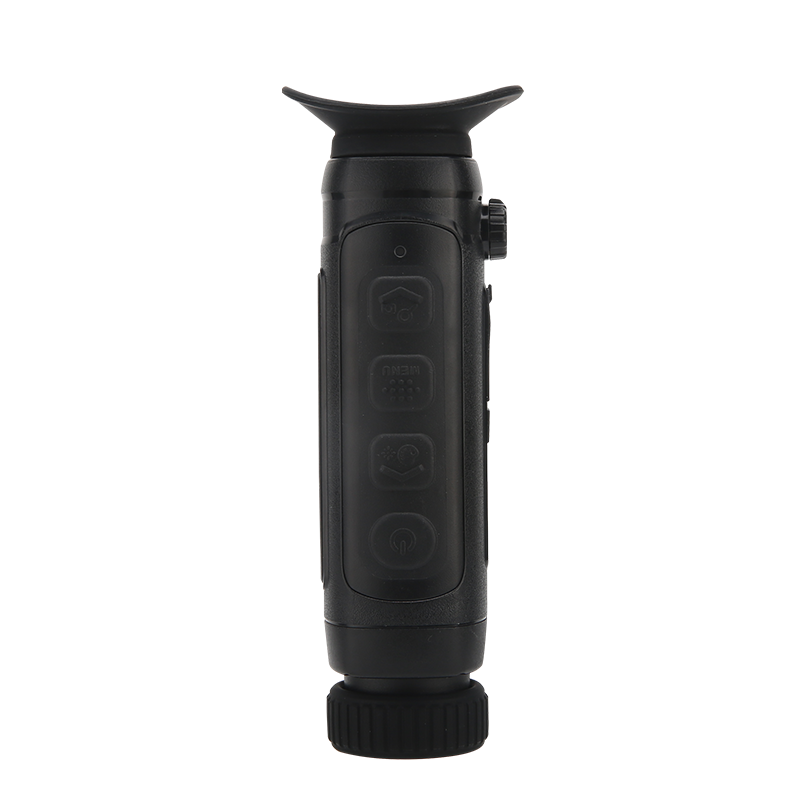

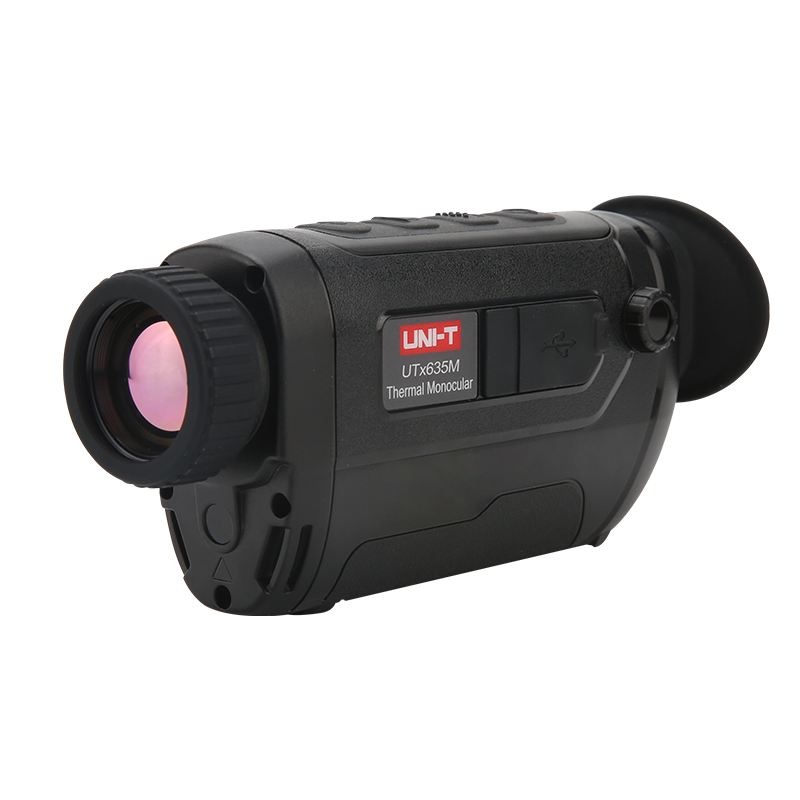

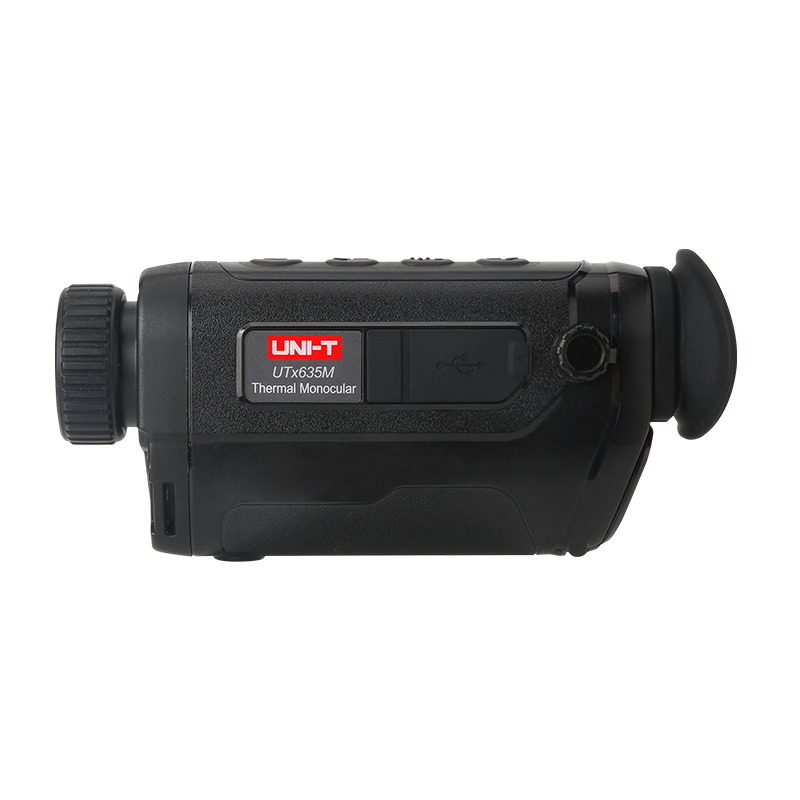

UTx635M Thermal Monocular

UTx635M is a lighter weight thermal monocular that equipped with 640×512 IR detector and 0.39″ OLED display screen. Fits human’s palm better. The detachable battery pack design ensures the duration performance. Connecting “Thermal Xplorer” mobile app via Wi-Fi to realize real-time images projection, share the fun with other hunters. UTx635M is a pretty good choice for outdoor lovers.

REQUEST A QUOTE DOWNLOAD CATLOGUE

Features

Light-weight & compact design
0.39″ OLED display screen
Detachable battery pack (UT-M20)
Stadiametric ranging
Smart standby
E-Compass
Video recording
Wi-Fi live streaming

Specifications

Technical Data
Display	0.39″ OLED (1024×768)
IR resolution(Pixels)	640×512
Spectral range	8~14µm
Pixel size	12μm
Frame rate	≤50Hz
Thermal sensitivity(NETD)	≤25mK
Focus	Manual focus

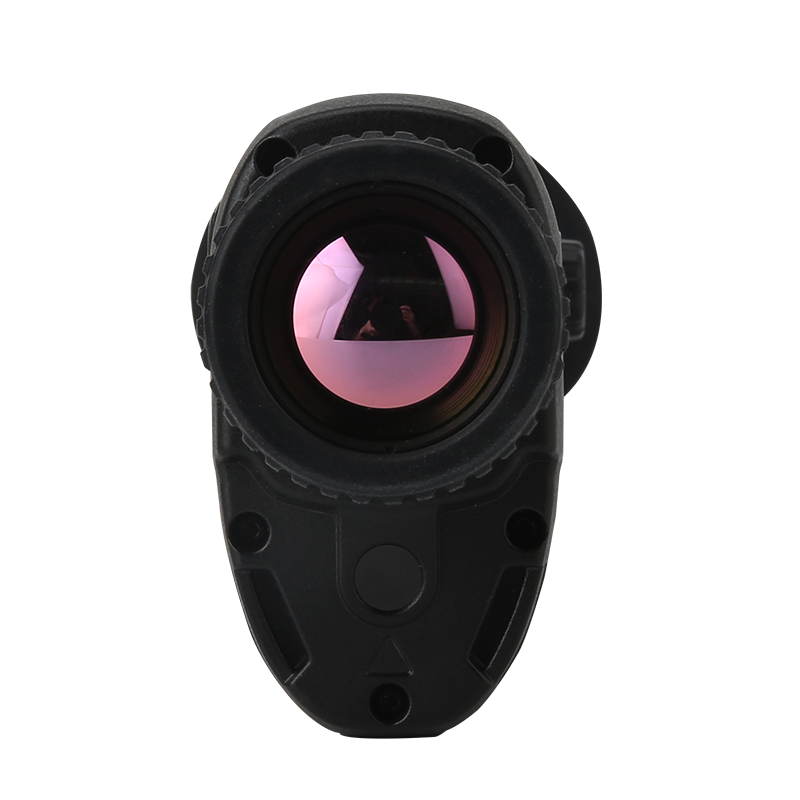

Lens focal length	35mm
Field of view(FOV)	12.5°(H) x 10°(V)
Diopter adjustment	-4D~+5D

Functions

Color palettes	Black hot, White hot, Hottest, Ironbow, Rainbow
Digital zoom	2x, 4x, 8x / 1.0~8x continuous
Scene modes	Bird, Forest, Rock
Calibration modes	Auto, Manual, Background
Stadiametric ranging	√
Smart standby	√
Hot trace	√
E-Compass	√
PIP	√
Video recording	√
Photo viewing	Device Local, PC, APP
Wi-Fi download photo	√
Wi-Fi live streaming	√
Video output	Type-C interface
Analysis software	APP (Android & iOS)

General Characteristics

Battery	3200mAh detachable Li-ion battery (UT-M20)
Operating time	≥3.5 hours
USB	Type-C
Storage	16GB Internal
Image storage format	PNG
Video storage format	MP4
Protection	IP67 & 2m drop proof
Certificates	EAC, CE, FCC, RoHS, FDA
Languages	EN, FR, DE, ES, IT, RU, UA
Weight	364g (Inc. battery)
Dimension	160mmx71.5mmX38.5mm
