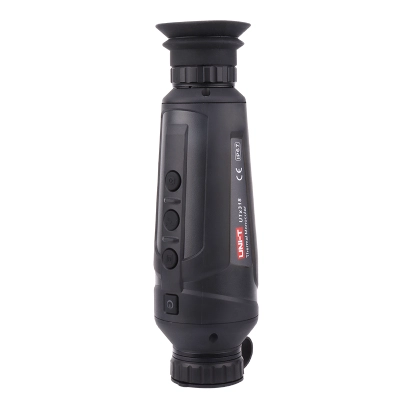

Thermal Imaging Monocular
UTx318 is a lightweight and portable thermal imaging monocular that equipped with a 384×288 infrared detector and a 1280×960 0.4”LCOS display. This thermal imaging monocular can take photos, storage and connect to the external screen for viewing. The 50Hz frame frequency enables users to observe moving objects without delay. With hot spot tracking take accurately location and tracking; It can be widely used in many applications: outdoor observation, hunting, navigation, security, camping &search, law enforcement, etc.
Features
| Technical Data | |
| Display | 0.4” LCOS (1280×960) |
| Detector type | UFPA (Vanadium oxide) |
| IR resolution(Pixels) | 384×288 |
| Spectral range | 8~14µm |
| Pixel size | 12μm |
| Frame rate | ≤50Hz |
| Thermal sensitivity(NETD) | ≤40mK |
| Focus | Manual focus |
| Lens focal length | 18mm |
| Field of view(FOV) | 14.6°(H) × 11°(V) |
| Diopter adjustment | -4D~+5D |
| Functions | |
| Color palettes | Black hot, White hot, Hottest, Ironbow, Rainbow |
| Digital zoom | 2x, 4x / 1.0~4x continuous |
| Calibration modes | Auto, Manual, Background |
| DDE | Details & Edge |
| Hot trace | √ |
| Photo viewing | PC & Device local |
| Video output | MCX interface |
| General Characteristics | |
| Battery | 4000mAh rechargeable Li-ion battery |
| Operating time | ≥8 hours |
| USB | Type-C |
| Storage | 16GB Internal |
| Protection | IP67 & 2m drop proof |
| Certificates | UL, CE, UKCA, RoHS |
| Languages | ZH, EN |
| Weight | 428g |
| Dimension | 207.6mm×62mm×62mm |
| Packing Details | |
| Standard accessories | Type-C USB cable, English Manual, Tool Box |
| Standard individual packing | Gift box |
| Standard Qty per carton | 1pcs |
| Standard carton size | 370mm×140mm×275mm |
| Standard carton G.W. | 1.9kg |
Applications of UTx318
Animal observation, hunting, navigation, security, camping &search, law enforcement etc.
Animal observation
Security
