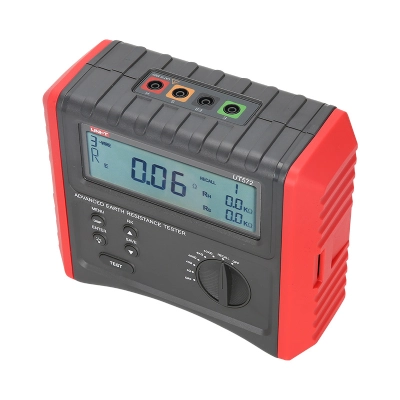

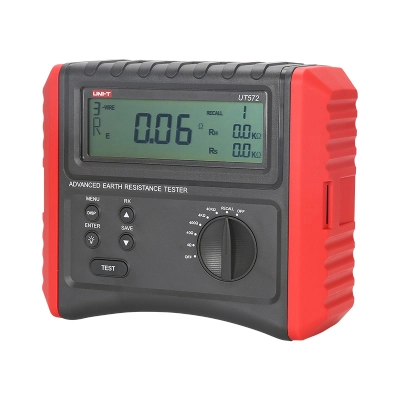

UT572 Advanced Earth Resistance Tester

UT572 is for measuring earth resistance and soil resistivity. It can automatically check interface connection and detect interference voltage/frequency, with data hold and indication functions. It can perform 2/3/4-wire measurements for different on-site applications, such as power equipment wiring and lightning protection equipment.

REQUEST A QUOTE

Compare
Categories: , , ,
Description

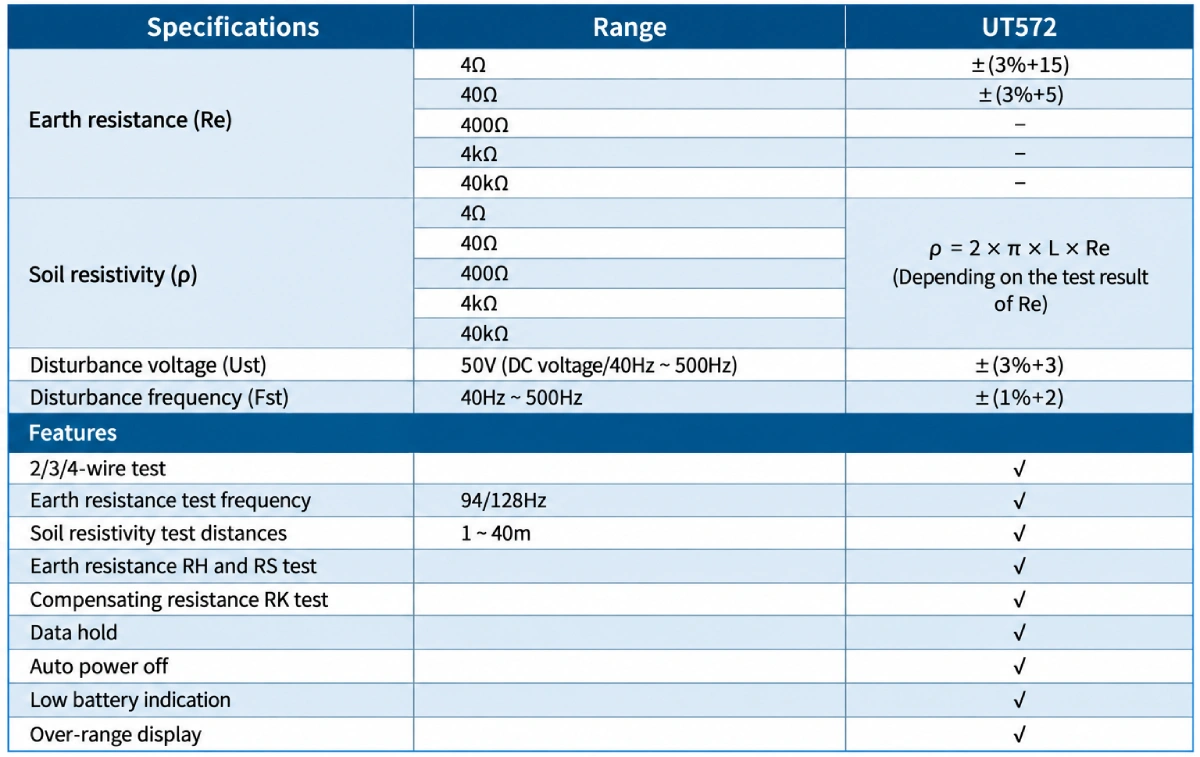

Features of UT572 Advanced Earth Resistance Tester

Certifications: CE, UKCA

  • Large 4-digit LCD Display, 5s sampling time
  • 2/3/4-wire earth resistance and soil resistivity measurements
  • Selectable test frequencies (94Hz/128Hz)
  • Disturbance voltage (Ust) and frequency (Fst) measurement
  • Earth resistance, RH and RS measurements
  • LCD backlight; auto power off
  • Data hold
  • 20 sets of data storage
  • Double insulation
  • Compensating resistance RK measurement

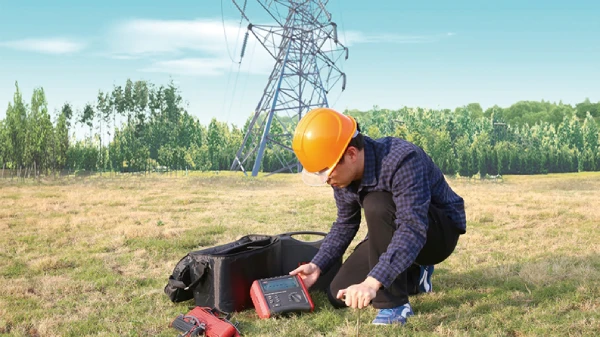

UT572-application

    UT572 | Datasheet

    UT572 | User Manual
