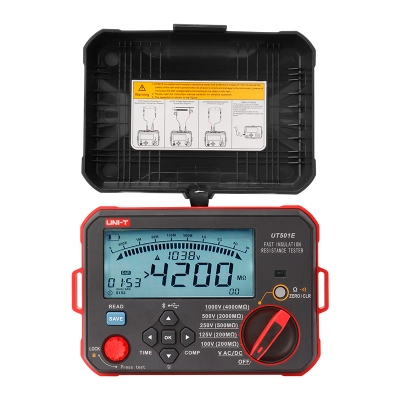

UT501E Fast Insulation tester

UT501E can verify the quality of the electrical equipment produced, confirm the change of the insulation of the electrical equipment over time, troubleshoot and determine the cause of the fault.
It features 2.5 times fast measurement, comparison test function and alarm function, and the “safety lock function” prevent false and effectively improve the work efficiency of electrical engineers. It is a convenient and practical tool.

REQUEST A QUOTE

Compare
Categories: , , ,
Description

Features of UT501E Fast Insulation tester

Certifications: ROW

  • Output voltage:100V, 125V, 250V, 500V, 1000V
  • Insulation resistance: 0~4G
  • 2.5 times faster measurement
  • Comparison test function
  • PI & DAR function
  • Auto discharge
  • Alarm function (Audible & Visible alarm)
  • Data storage: 99 groups
  • PC software analysis (via USB cable)
  • Remote control test lead
  • Lock function: to prevent false triggering
  • Rechargeable lithium battery (12V, 2600mAh)
  • IP54
  • Category rating: CAT III 600V

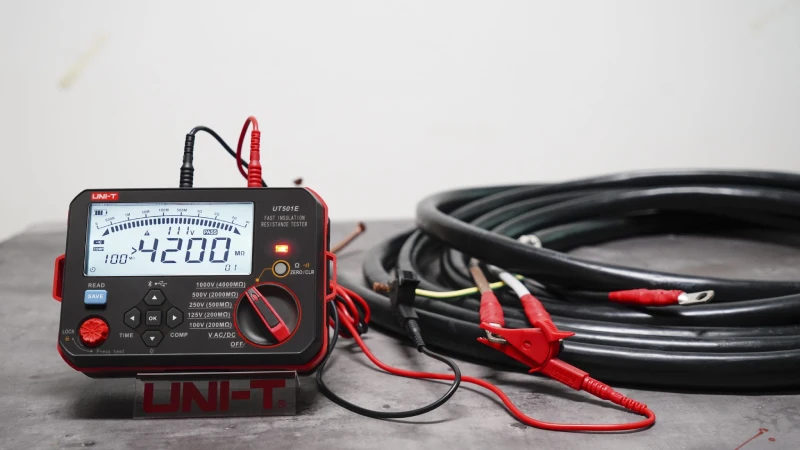

DSC08058-1-2048x1153
DSC07673-1-2048x1153
DSC07672-1-2048x1153
DSC07670-1-2048x1153

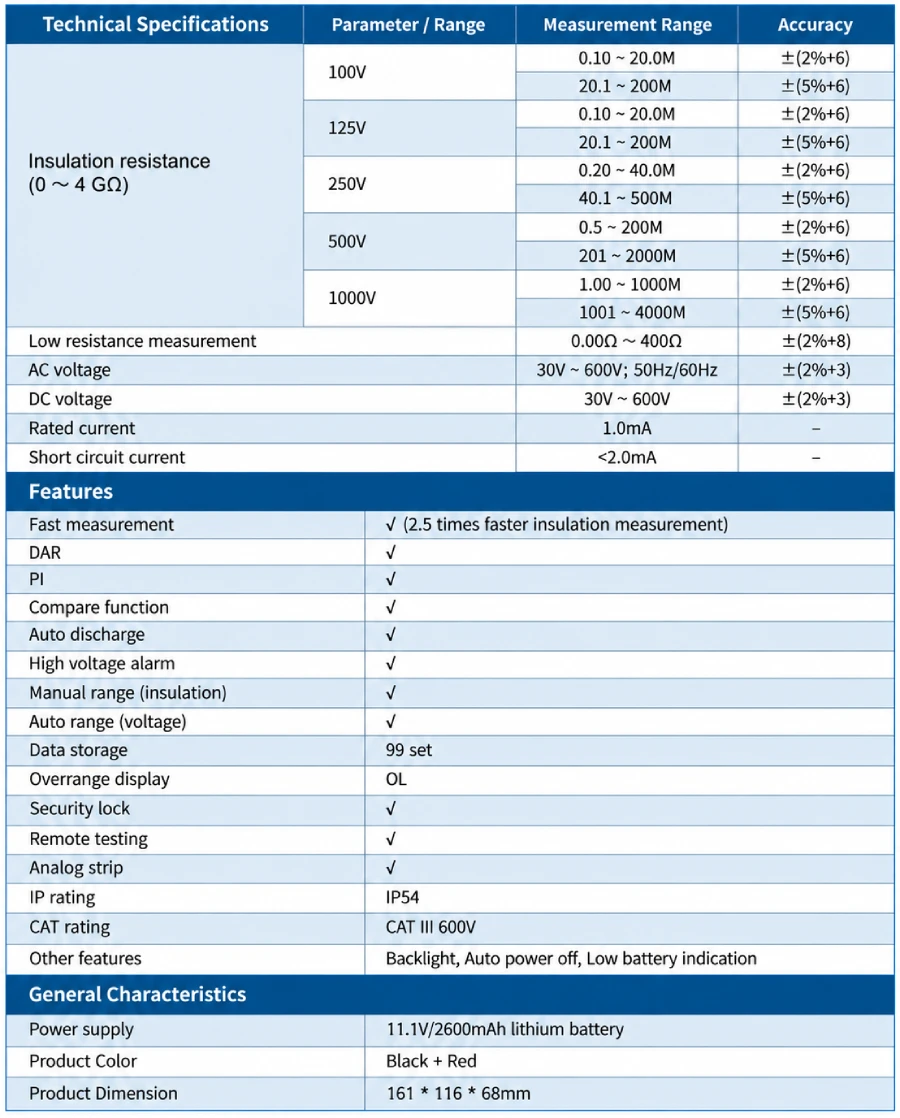

    UT501E | Datasheet

    UT501E | User Manual
