UT503PV PV Insulation tester

UT503PV PV insulation resistance tester has the function of measuring photovoltaic live insulation resistance, ordinary insulation resistance function (non-live), AC and DC voltage automatic recognition measurement and so on

REQUEST A QUOTE

Compare
Categories: , , ,
Description

Features of UT503PV PV Insulation tester

Certifications (UT503PV series only): CE, cETLus

  • High output voltage: DC 1000V
  • Energized device test: DC 1000V
  • Insulation resistance (PV+IR): 4000MΩ
  • Voltage measurement: 1000V DC & 600V AC
  • Auto discharge
  • Stepping voltage
  • Time measurement
  • Compare function (IR)
  • High voltage alarm
  • Data communication: USB cable + Bluetooth app
  • LR6 AA alkaline Batteries: 6 pc
  • Portable & Convenient
2560x1441px-4-2048x1153
2560x1441px-3-2048x1153
2560x1441px-2-2048x1153
2560x1441px-1-2048x1153

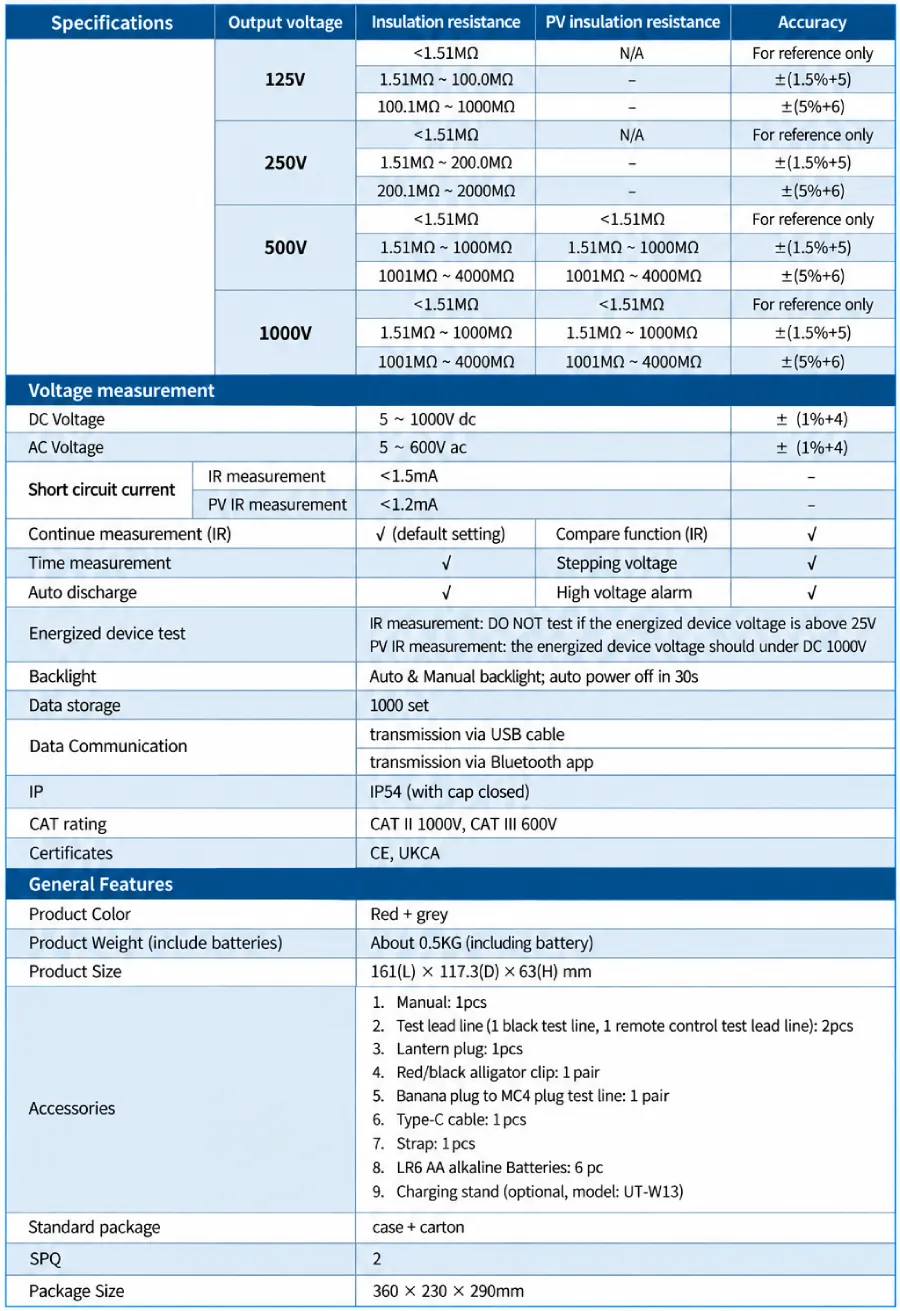

    UT503PV | Datasheet

    UT503PV User manual | English
