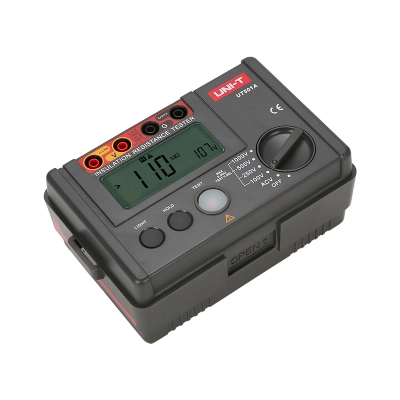

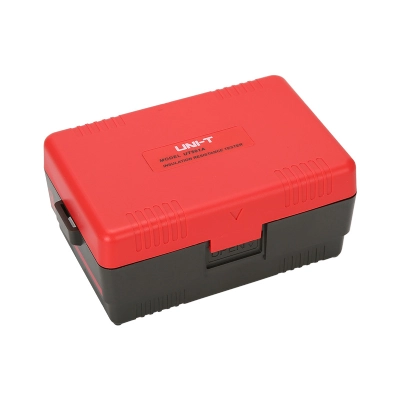

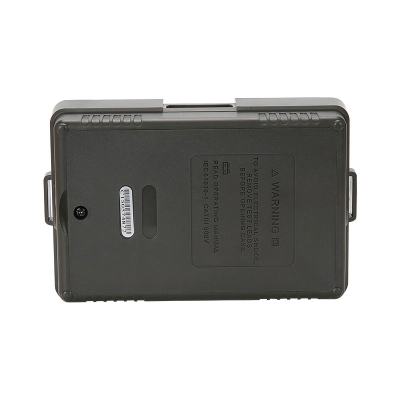

UT500 Series Insulation Resistance Testers

UT500 series insulation testers are used to measure the insulation resistance of electrical equipment and household appliances. This is done by measuring the insulation resistance between electrical circuits or between circuits and ground. UT500 series can measure insulation resistance, AC Voltage, low resistance, PI (Polarization Index) and DAR (Dielectric Absorption). These are dieal tools for ensuring transformers, genera-tors, high voltage motors, capacitors, cables, arresters and other electrical equipment that can oprate in a safe and accurate manner.

Models in UT500 series: UT501A, UT501B, UT502A

REQUEST A QUOTE

Compare
Categories: , , ,
Description

Features of UT500 Series Insulation Resistance Testers

Certifications: CE, UKCA

  • 2000 count LCD display, overload indication, backlight
  • AC voltage measurement, auto power off
  • Auto discharge
  • Continuous low resistance measurement
  • Continuous measurements mode, red warning light and buzzer function
  • PI and DAR measurement, auto resistivity calculation
  • Low resistance returning to zero function to improve accuracy
SpecificationsRangeUT501AUT501BUT502A
Insulation resistance (Ω)Test voltages100V/250V/500V/1000V0%~10%
250V/500V/1000V 0%~10%
500V/1000V/2500V  0%~10%
100V0MΩ~100MΩ±(3%+5)
250V0MΩ~99.9MΩ±(3%+5)±(3%+5)
100MΩ~5GΩ±(5%+5)±(5%+5)
500V0MΩ~99.9MΩ±(3%+5)±(3%+5)±(3%+5)
100MΩ~5GΩ±(5%+5)±(5%+5)±(5%+5)
1000V0MΩ~99.9MΩ±(3%+5)±(3%+5)±(3%+5)
100MΩ~5GΩ±(5%+5)±(5%+5)±(5%+5)
2500V0MΩ~99.9MΩ  ±(3%+5)
100MΩ~9.9GΩ  ±(5%+5)
10GΩ~20GΩ  ±(10%+5)
Load current50V (R=50kΩ) 1mA0%~10%0%~10%0%~10%
100V (R=100kΩ) 1mA0%~10%0%~10%0%~10%
250V (R=250kΩ) 1mA0%~10%0%~10%0%~10%
500V (R=500kΩ) 1mA0%~10%0%~10%0%~10%
1000V (R=1MΩ) 1mA0%~10%0%~10%0%~10%
2500V (R=1MΩ) 1mA  0%~10%
Short-circuit current <2mA<2mA<2mA
Low resistance (Ω)0.01Ω~200Ω (about 5.0V/>200mA） ±(2%+3)±(2%+3)
AC voltage (V)30V~750V±(2%+3)
30V~600V ±(2%+3)±(2%+3)
Features
Display count 200020002000
DAR60s/15s and 60s/30s ✔✔
PI  ✔✔
Auto range/Low battery indication ✔✔✔
LCD backlight/Light alarm ✔✔✔
Buzzer alarm/High voltage indication ✔✔✔
Overload indication/Auto discharge ✔✔✔
Test voltage secondary display ✔✔✔
10MΩ internal resistance test ✔✔✔
Meets IEC 6155761557-1:2007; 61557-2:2007; 61557-4:2007 (UT502A only)
General Characteristics
Power1.5V battery (LR6) x 6
Display70.6mm x 34mm
Product colorRed and grey
Product net weight500g
Product size150mm x 100mm x 71mm
Standard accessoriesBatteries, test leads, alligator clips, gallus, test probes (UT502A)
Standard individual packingGift box, carrying bag, English manual
Standard quantity per carton20pcs
Standard carton measurement500mm x 380mm x 330mm (0.063 CBM per standard carton)
Standard carton gross weightUT501A: 17.7kg; UT501B: 20.9kg; UT502A: 18.9kg

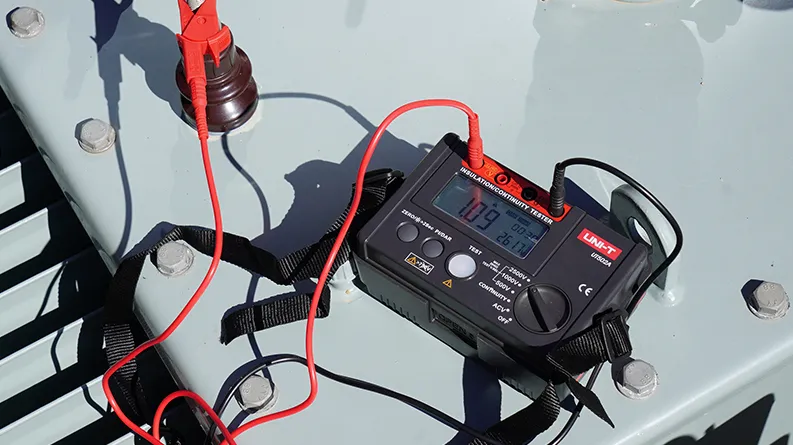

UT502A-application-4

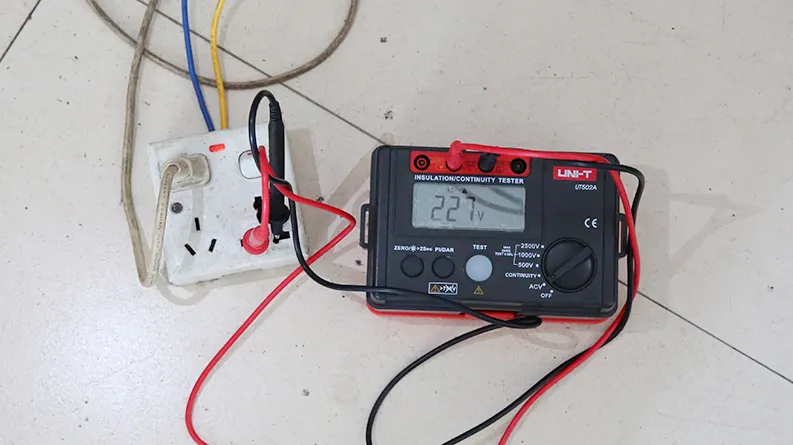

UT502A-application-3

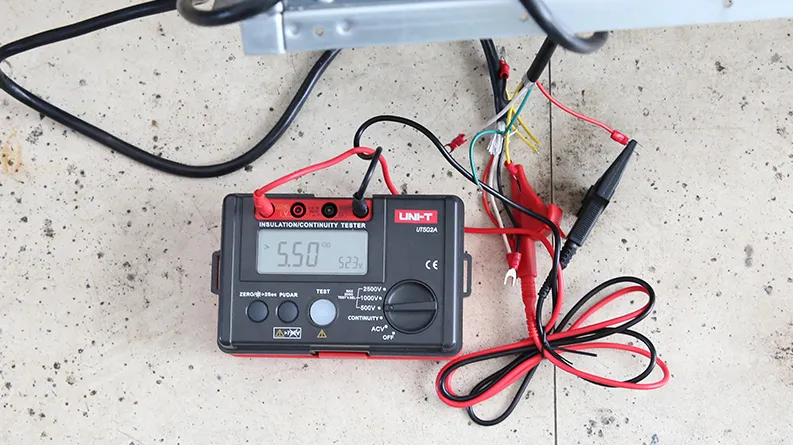

UT502A-application-2

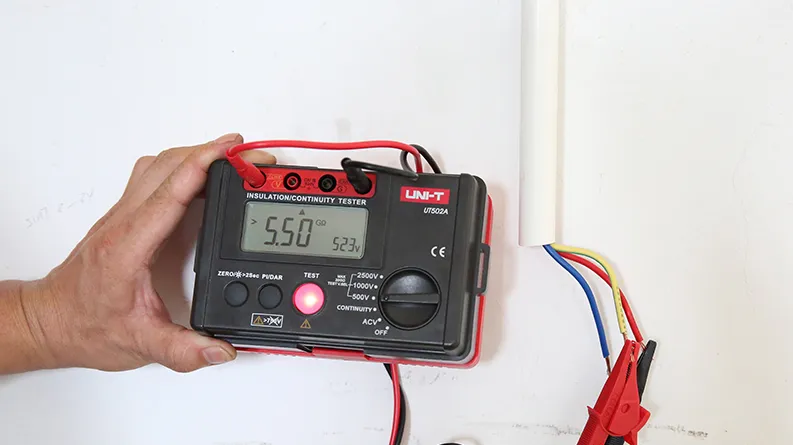

UT502A-application-1
