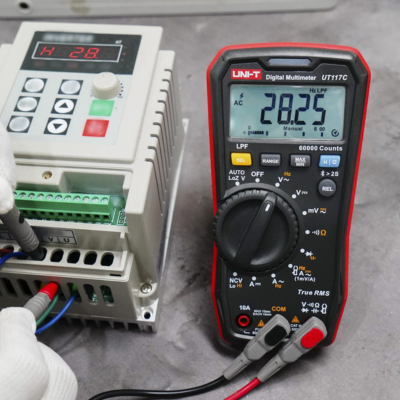

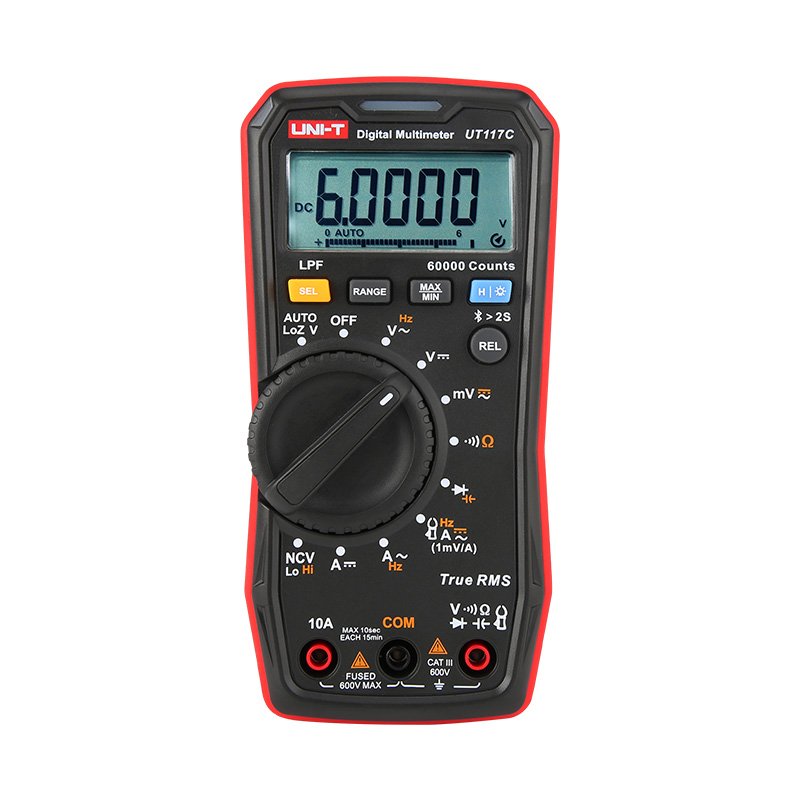

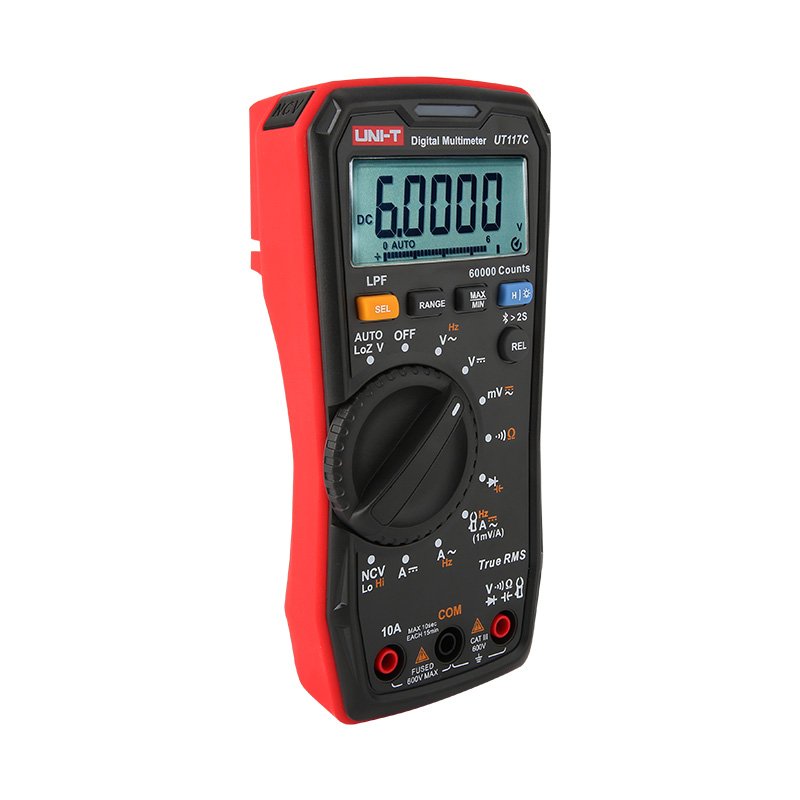

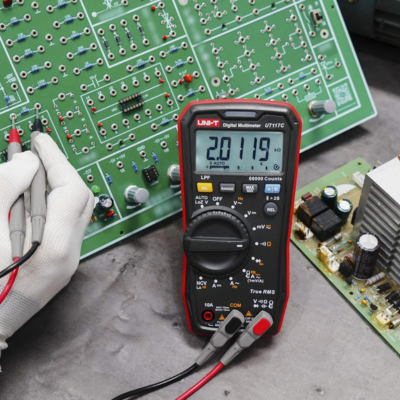

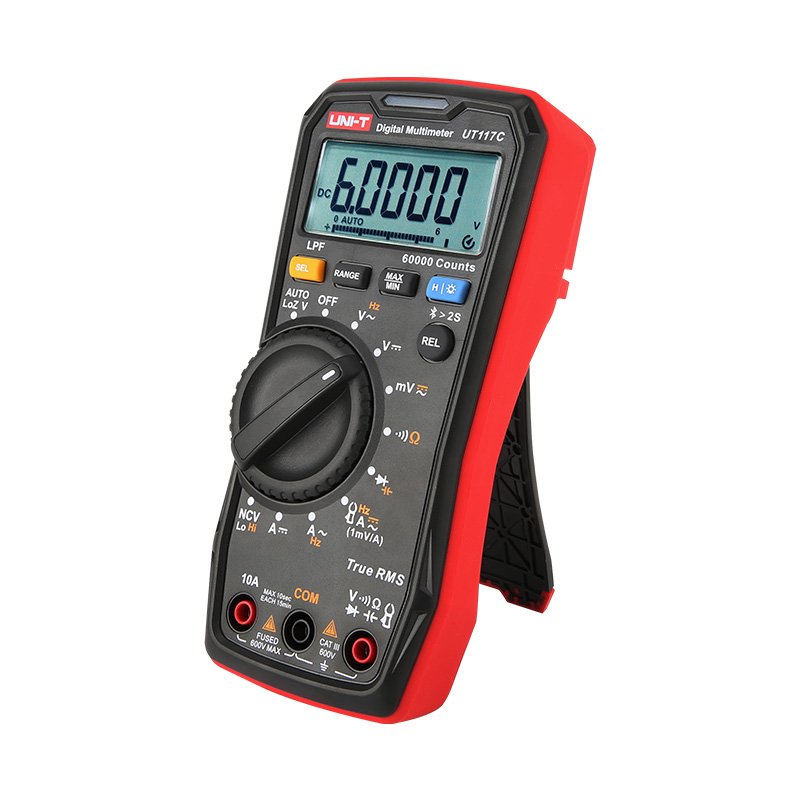

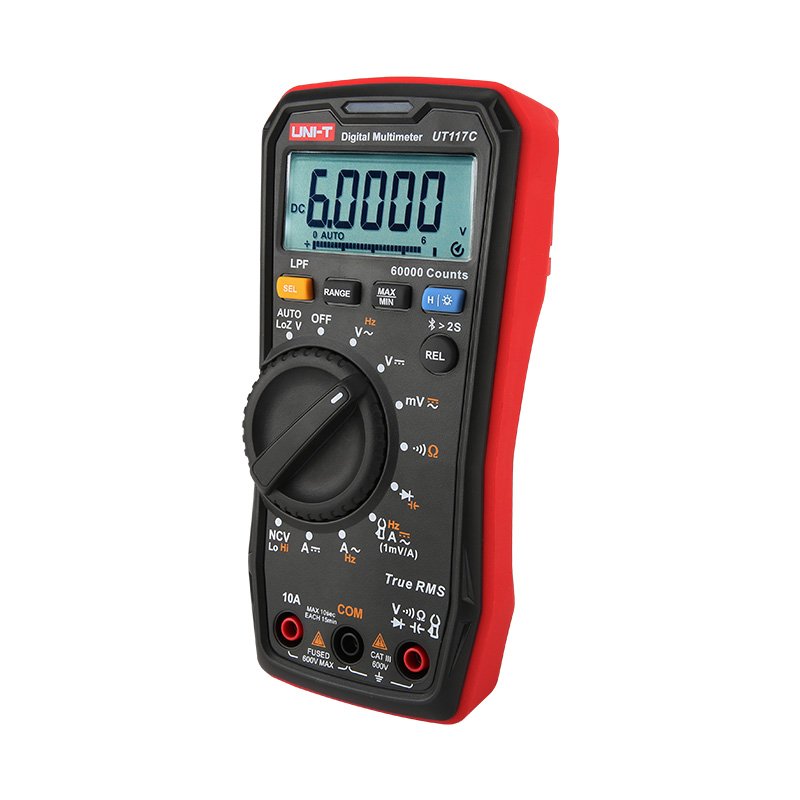

    UT117C High-precision True RMS Digital Multimeter

    UT117C is a high-precision true RMS multimeter, which has AC/DC 600V voltage measurement, 10A AC/DC current measurement, LPF measurement, Bluetooth function, etc. The main features are fast response, high precision, small size, and easy operation, and product accuracy can still be guaranteed after a 2-meter drop. It is a good tool for electronic electricians.

    REQUEST A QUOTE

    Compare
    Add to wishlist
    Categories: Digital Multimeters, UNI-T
    Share:
    • Description
    Description

    Features of UT117C High-precision True RMS Digital Multimeter

    • High-precision: 60000 counts
    • True RMS measurement
    • AC/DC current: 10A
    • AC/DC voltage: 600V
    • LoZ, LPF & Auto Volt function
    • Audible & Visual Warning
    • Bluetooth app supported

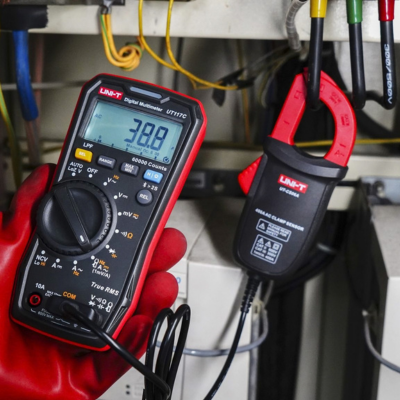

    • External current clamp supported

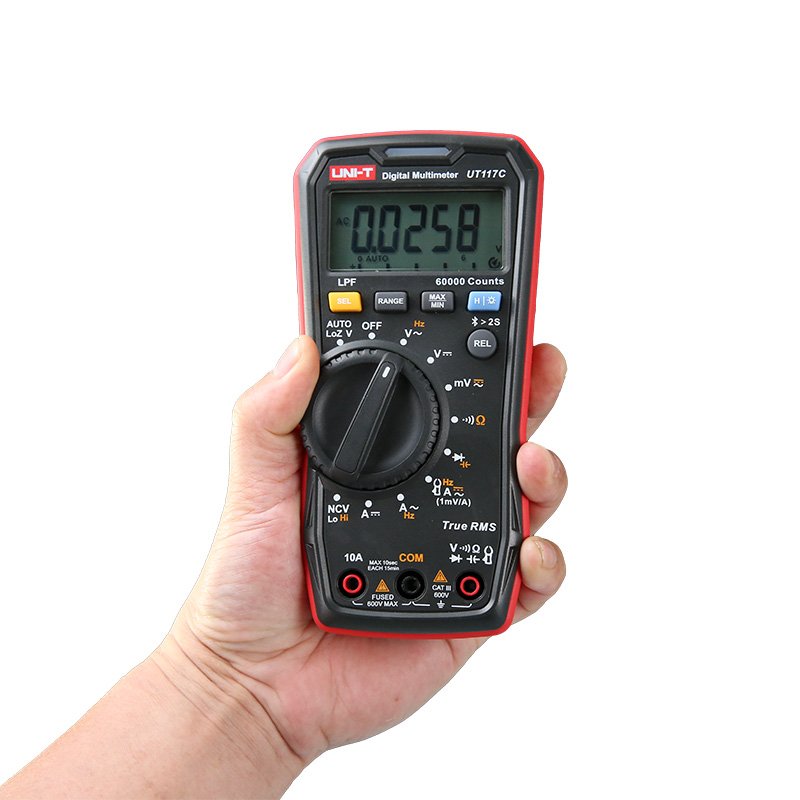

    • Compact design, easy & convenient operation
    • Drop test: 2m

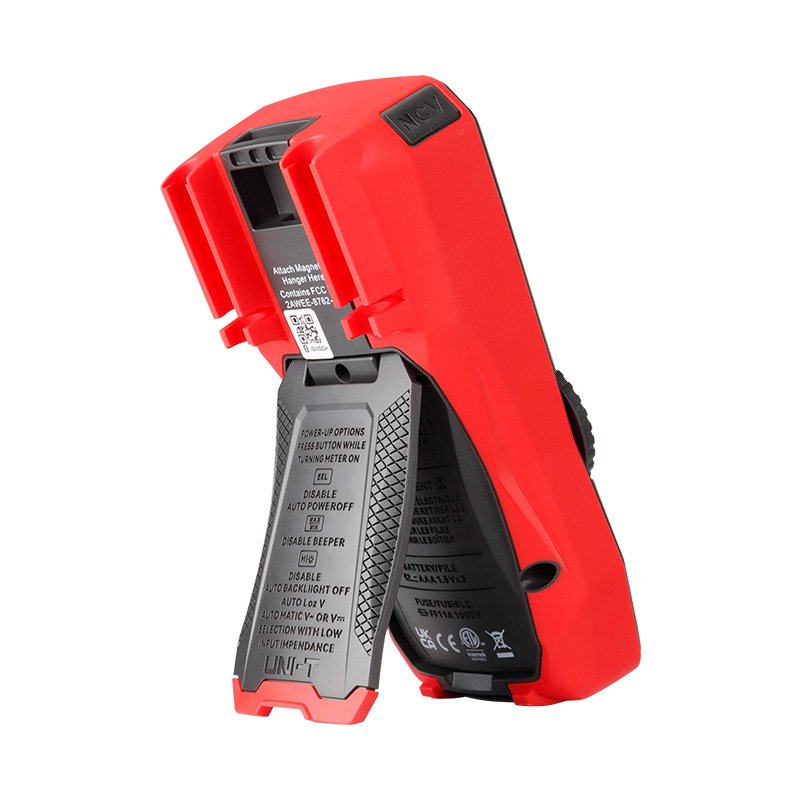

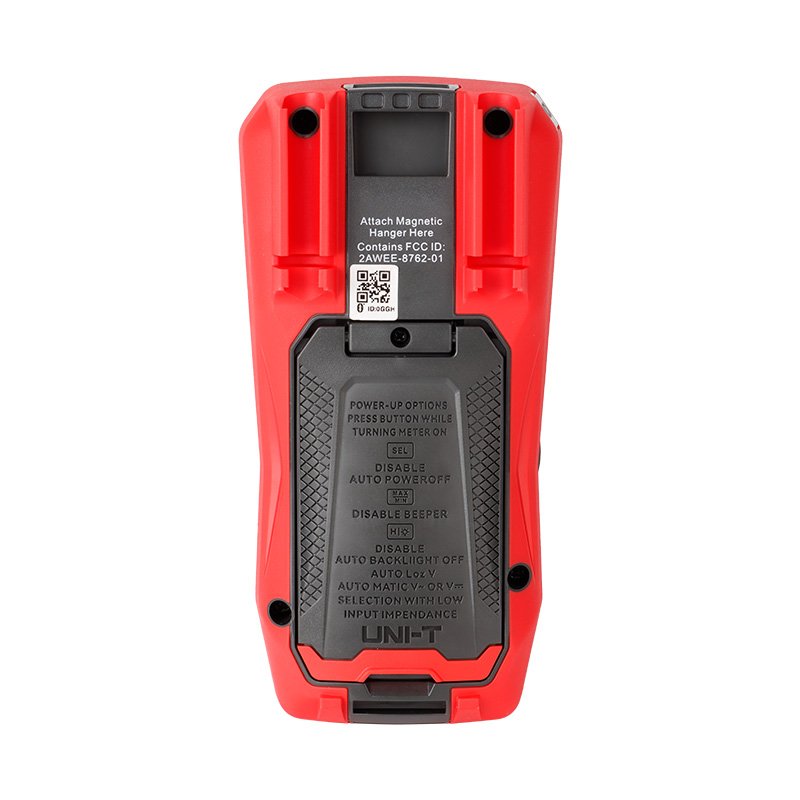

    • Magnetic hanger supported (optional)
    • Overvoltage category: CAT III 600 V
    TECHNICAL SPECIFICATIONS
    Model UT117C
    AC voltage 600.00mV / 6.0000V / 60.000V / 600.00V ±(1%+30)
    AC 6.0000A / 10.000A ±(1.5%+30)
    DC voltage 600.00mV / 6.0000V / 60.000V / 600.00V ±(0.3%+10)
    DC 6.0000A / 10.000A ±(0.5%+10)
    Auto-V loz 600.0V ±(1%+3)
    LPF voltage (ACV) 600.0V ±(2%+3)
    Frequency 99.99Hz / 999.9Hz / 9.999KHz / 50.00KHz ±(0.01%+3)
    Resistance 600.00Ω ~ 6.0000MΩ ±(0.5%+5)
    40.000MΩ ±(3%+5)
    Capacitance 1000nF / 10.00uF / 100.0uF ±(1.9%+5)
    1000uF / 10000uF ±(2.5%+5)
    MAIN FEATURES
    Display count 60000
    External current clamp Ratio: 1mV/A ✔
    Continuity & Diode ✔
    NCV ✔
    Data Hold ✔
    Manual/Auto range ✔
    Max/Min ✔
    Relative mode ✔
    High voltage warning ✔
    Audible & Visible indication ✔
    Low battery indication ✔
    Auto Power Off Around 15 minutes ✔
    LCD backlight Auto power off after 5 minutes ✔
    Bluetooth ✔
    Drop Test 2m ✔
    Overvoltage category CATIII 600V
    GENERAL CHARACTERISTICS
    Power supply 1.5V AAA * 3
    Product Color Red + Grey
    Product Weight Around 346g
    Product Dimension 169x 84x 48.8mm
    Accessories Test probe*1 pair, Battery, Magnetic strap*1 pcs, User manual*1 pcs
    Package quantity 10 pcs / package
    Package Size TBD
    Gross Weight TBD

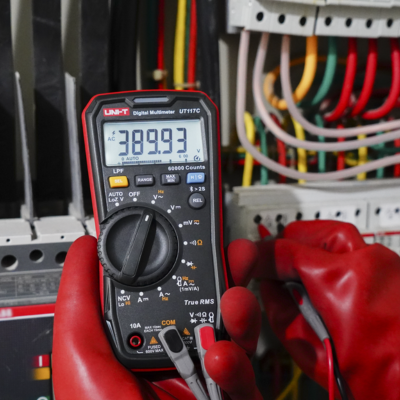

    Untitled design (6)
    2
    3
    4

    UT117C | User Manual

     1 file(s) 2.20 MB

    UT117C Datasheet

     1 file(s) 1.52 MB
