UT516B Insulation Resistance Tester

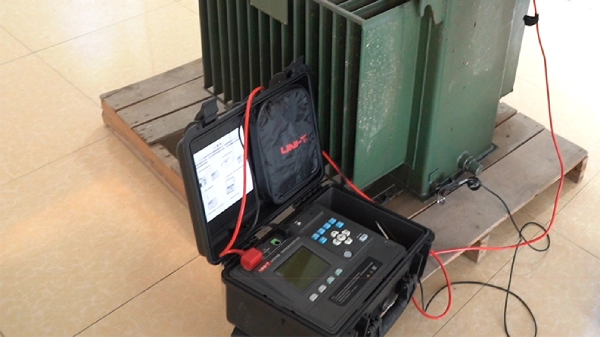

The UT516B is a digital high voltage insulation resistance tester with 6 ranges: 500V, 1000V, 2500V, 5000V, 10000V and 12000V. Fine adjustment of voltage with 10% step at each range (except 12000V) is available. Test data can be saved in the tester memory and transferred to a PC via the dedicated USB cable, or be transferred to a PC in real time. The tester, with high performance and easy operation, is widely used in the measurement and maintenance of power equipment and power supply circuits.

REQUEST A QUOTE

Compare
Categories: , , ,
Description

Features of UT516B Insulation Resistance Tester

  • AC/DC voltage
  • USB data transfer
  • Low battery indication
  • Data storage
  • LCD backlight
  • Polarization Index
  • Over-range alarm
  • 9999 Max display
  • Comparative measurement
  • Measurement time selection
SpecificationsRangeUT516B
Insulation Resistance Measurement500V0.50MΩ~4.99G±(5%+5)
5.00G-49.9GΩ±(10%+10)
50.0GΩ-500GΩfor reference only
1000V1.00MΩ-9.99GΩ±(5%+5)
10.0G-99.9GΩ±(15%+10)
100GΩ-1000GΩfor reference only
2500V2.50MΩ-24.9GΩ±(5%+5)
25.0G-249GΩ±(15%+10)
250GΩ-2.5TΩfor reference only
5000V5.00MΩ-49.9GΩ±(5%+5)
50G-499GΩ±(15%+20)
500GΩ-5.0TΩfor reference only
10000V10.0MΩ-99.9GΩ±(10%+10)
100G-999GΩ±(20%+20)
1000GΩ-10TΩfor reference only
12000V12.0MΩ-99.9GΩ±(10%+10)
100G-999GΩ±(20%+20)
1000GΩ-10TΩfor reference only
Output voltage500V0~+10%
1000V0~+10%
2500V0~+10%
5000V0~+10%
10000V-5~+10%
12000V-5~+10%
Load current500V (R=500KΩ) 1mA0%—+20%
1000V (R=1MΩ) 1mA0%—+20%
2500V (R=2.5MΩ) 1mA0%—+20%
5000V (R=5MΩ) 1mA0%—+20%
10000V (R=10MΩ) 0.15~1.2mA0%—+20%
12000V (R=12MΩ) 0.15~1.2mA0%—+20%
DC voltage measurement30V~1000V±(3%+5)
AC voltage measurement30V~750V (50~60Hz)±(3%+5)
Features
PC software for data analysis √
Backlight Function √
Date storage999 sets of date√
Dielectric Absorption Ratio (DAR)0.00~999√
Polarization Index (PI)0.00~999√
General Characteristics
Power1.5V alkaline batteries (LR14)  X 10, power adapter
Product colorRed and grey
Product net weight6.6kg
Product size410*342*204mm

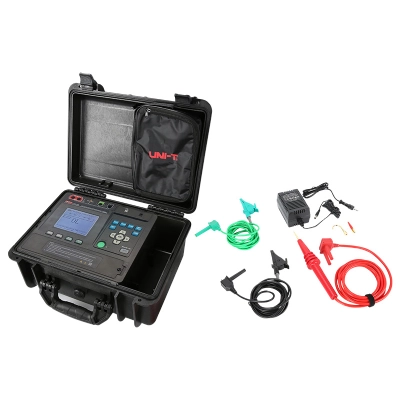

Standard accessoriesUser manual, Test leads (red/black/green 1 each),  USB cable, power adaptor, 1.5V alkaline batteries,
Standard individual packingGift box, tool box
Standard quantity per carton1pc
Standard carton measurement510*320*420mm
Standard carton gross weight10.2kg
