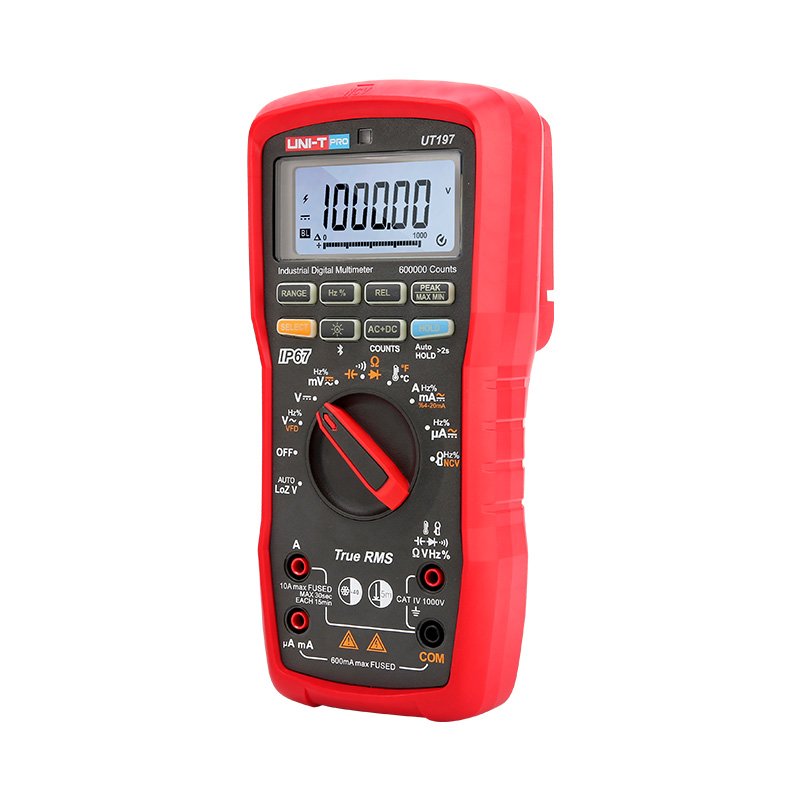

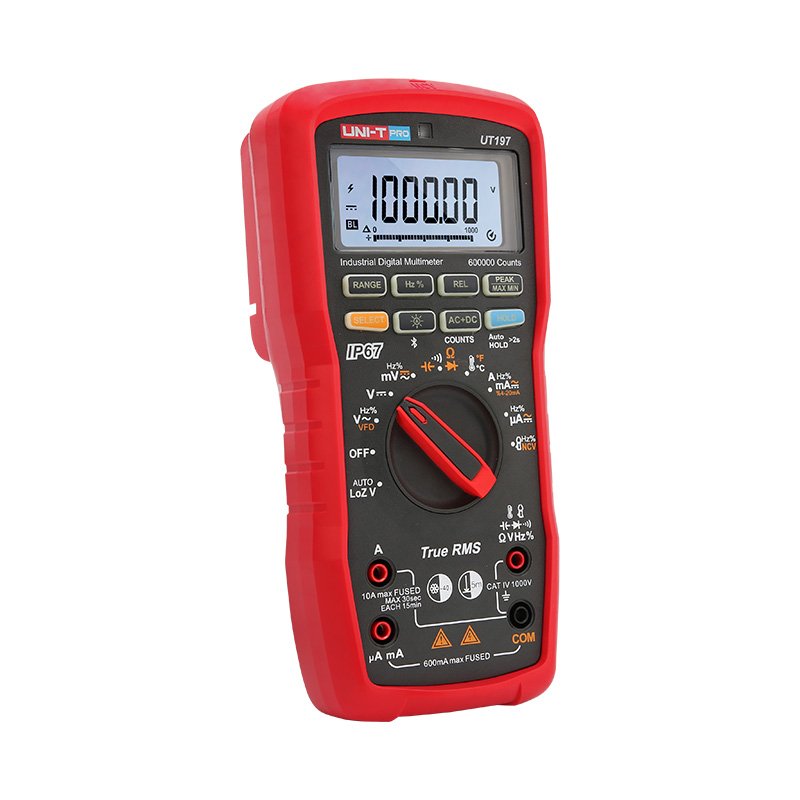

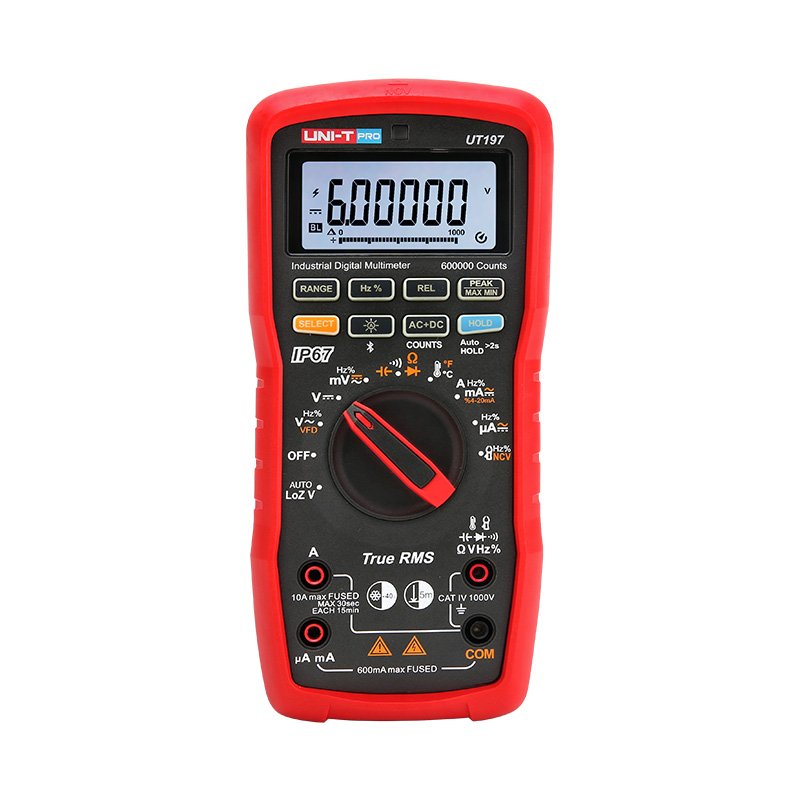

Features of UT197 Industrial Digital Multimeter
|
Specifications |
|||
|---|---|---|---|
|
Specification |
Range |
Accuracy |
|
|
AC Current (A) |
600.00uA/6000.0uA/60.000mA/600.00mA/6.0000A/10.000A |
±(0.5%+50) |
|
|
DC Current (A) |
600.00uA/6000.0uA/60.000mA/600.00mA/6.0000A/10.000A |
±(0.1%+20) |
|
|
AC+DC Current (A) |
600.0uA/6000uA/60.00mA/600.0mA/6.000A/10.00A |
±(1.0%+5) |
|
|
AC Voltage (V) |
600.00mV/6.0000V/60.000V/600.00V/1000.0V |
±(0.3%+20) |
|
|
Voltage (DCV) (60000 count) |
600.00mV/6.0000V/60.000V/600.00V/1000.0V |
±(0.03%+5) |
|
|
Voltage (DCV) (600000 count) |
600.000mV/6.00000V/60.0000V/600.000V/1000.00V |
±(0.015%+10) |
|
|
Auto AC/DC Voltage |
600.0V |
±（0.8％＋5 |
|
|
Voltage Range (ACV+DCV) |
600.0mV/6.000V/60.00V/600.0V/1000V |
±（0.8％＋5) |
|
|
Externalcurrent (AC) (Optional: UT-CS07) |
100.0A（(10mV/A)/1000A(1V/A)Content |
±(1.5%+5) |
|
|
Frequency (Hz) |
10Hz～1MHz |
±(0.002%+5) |
|
|
Resistance (Ω) |
600.00Ω/6.0000kΩ/60.000kΩ/600.00kΩ/6.0000MΩ/60.00MΩ |
±(0.07％+2） |
|
|
Capacitance (F) |
60.00nF/600.0nF/6.000μF/60.00μF/600.0μF/6.000mF/60.00mF |
±(0.8％+3） |
|
|
Temperature (℃) |
-40℃~1000℃ |
±(1.0%+15) |
|
|
Temperature (℉) |
-40℉~1832℉ |
±(1.0%+30) |
|
|
Duty Cycle (%) |
10Hz～10kHz (10%~90%) |
±(1.2%+5) |
|
| Features | ||
|---|---|---|
| True RMS Value | ✔ | |
| Display count | 600000 (DCV); 9999 (frequency) | ✔ |
| Diode Test | 3.0V | ✔ |
| Non-Contact Voltage | ✔ | |
| Continuity Buzzer | ✔ | |
| Data Hold (Manual/Auto) | ✔ | |
| Peak Capture | ✔ | |
| Maximum/Minimum Value | ✔ | |
| High Voltage Alarm | ✔ | |
| Low Battery Indicator | ✔ | |
| Miswired Probe Alarm | ✔ | |
| Overrange Indicator | ✔ | |
| Auto Power Off | Around 15 minutes | ✔ |
| Auto Backlight | ✔ | |
| Bluetooth Communication | ✔ | |
| Drop Test | 5m | |
| IP Protection Level | IP67 | |
| Safety Standard Level | CAT IV 1000V | |
| Certification | CE，cETLus， ROHS | |
| General Characteritics | |
|---|---|

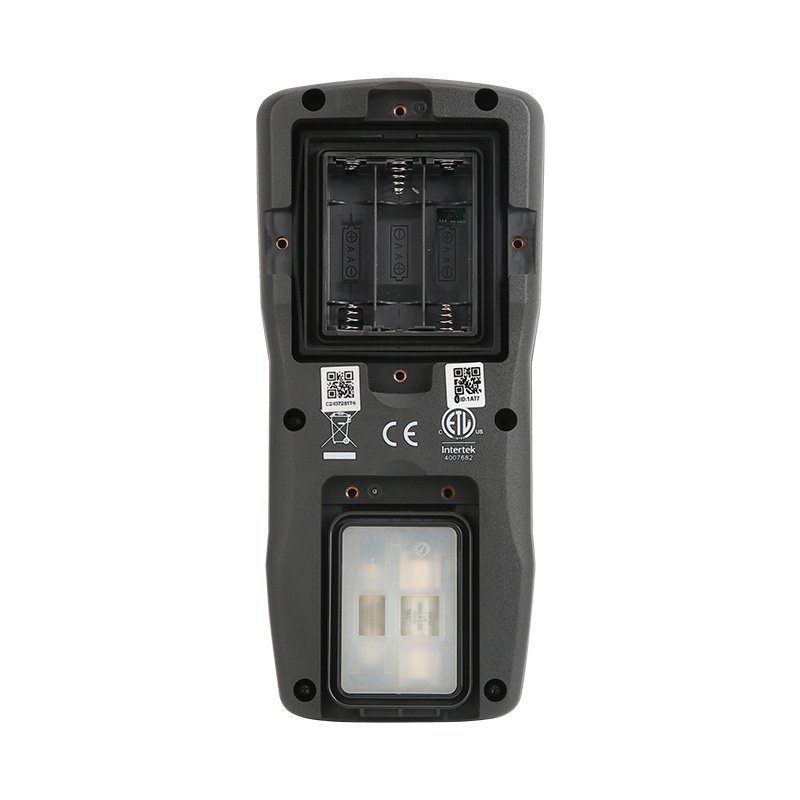

| Power supply | 1.5V AA * 2pcs |
| Product Color | Black + Red |
| Product Dimension | 220mm x 104mm x 67mm |
| Product weight | Around 835g (batteries included) |
| Accessories | Test lead, temperature probe, Clips, batteries. |
| SPQ | 5pcs |
