UT3200+ Series

UT3200+ Series

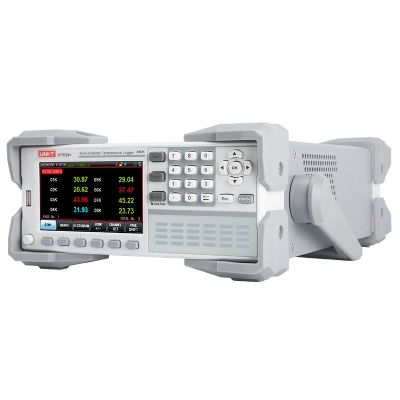

UT3200+ series multi-channel temperature tester has 6 models of 8, 16, 24, 32, 40, 48 channels. 4.3-inch LCD color screen display, beautiful interface. Multiple channels of temperature data can be collected at the same time. The response speed is fast and the data is stable. It is suitable for multi-point temperature monitoring by manufacturers and quality inspection departments in industries such as home appliances, motors, electric heating appliances, thermostats, transformers, ovens, thermal protectors, power supplies, lighting, electric power, and LEDs.

8/16/24/32/40/48

CHANNELS

4.3” TFT LCD

DISPLAY

-200~1800℃

TEMPERATURE RANGE

0.01℃

RESOLUTION

10rdgs/s

SCANNING SPEED

J,K,T,E,S,N,B,R

THERMOCOUPLE

RS-232,LAN

CONNECTIVITY

½ 2U

SIZE

REQUEST A QUOTE DOWNLOAD CATLOUGE

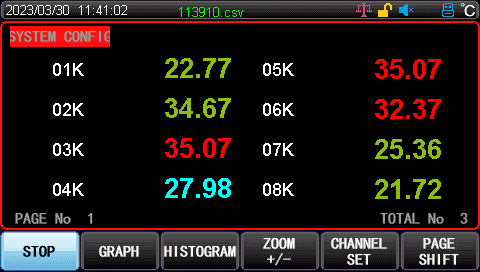

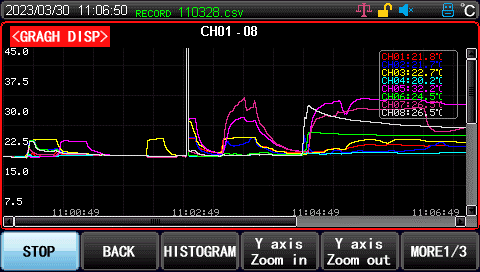

Digital and graphical display

Graph, histogram, and number display modes provide a better representation of temperature trends

Comparator function

Color differentiation and alarm tone prompt. The upper and lower limits can be set for each channel, and the abnormal temperature area can be found in time

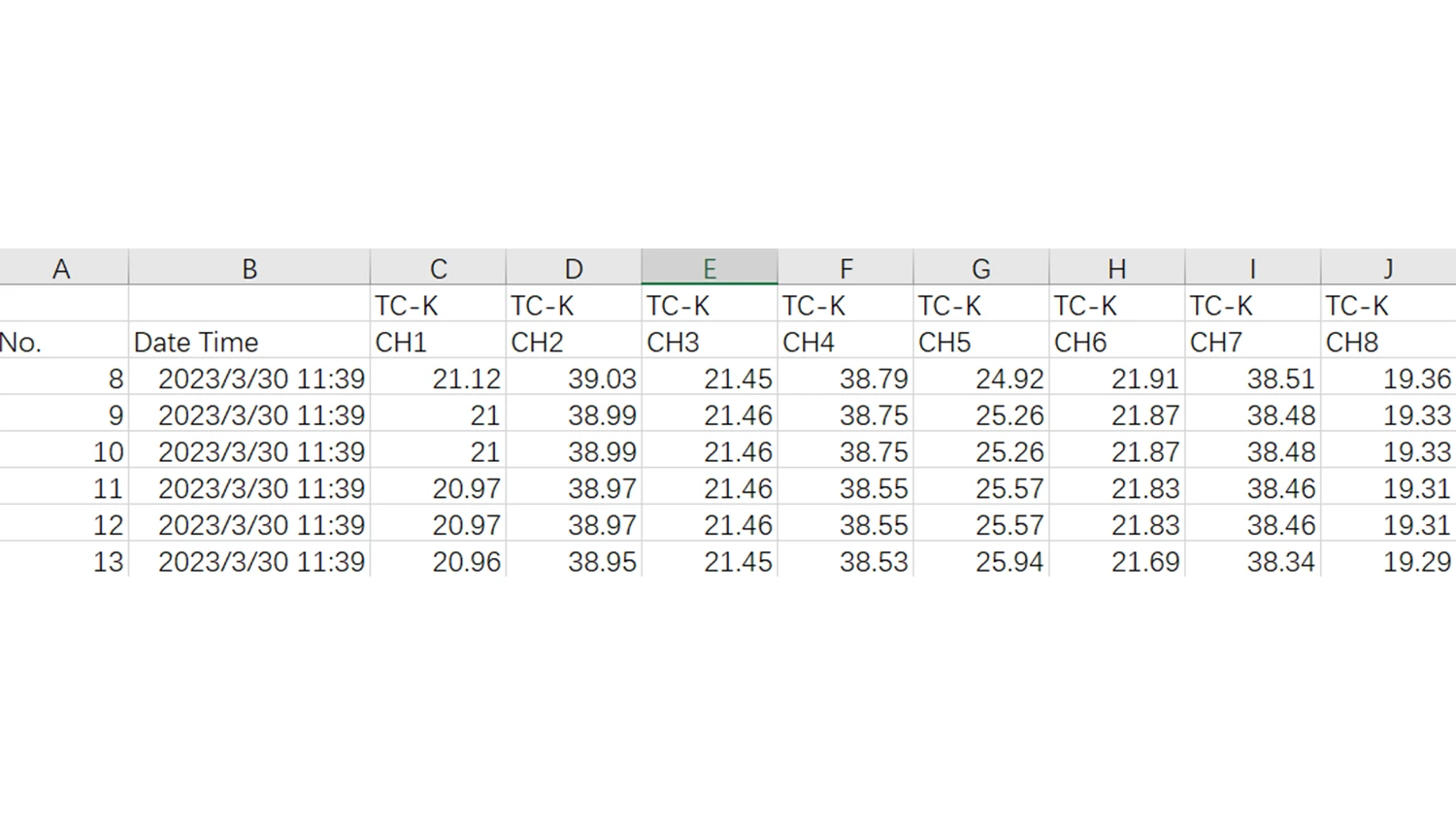

Data storage

Standard 8G U disk, during the test, real-time storage of measurement data for later analysis

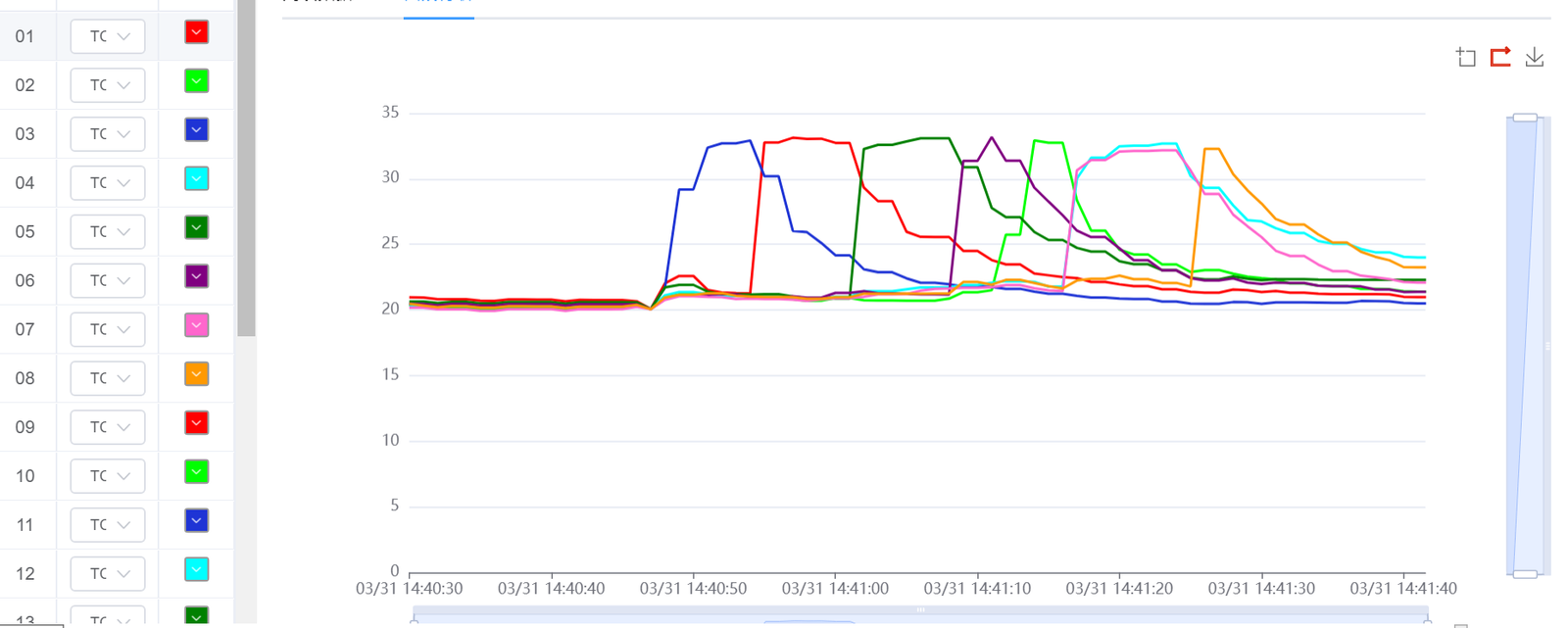

Data collection software

Standard data acquisition software to realize remote control, data storage and data analysis

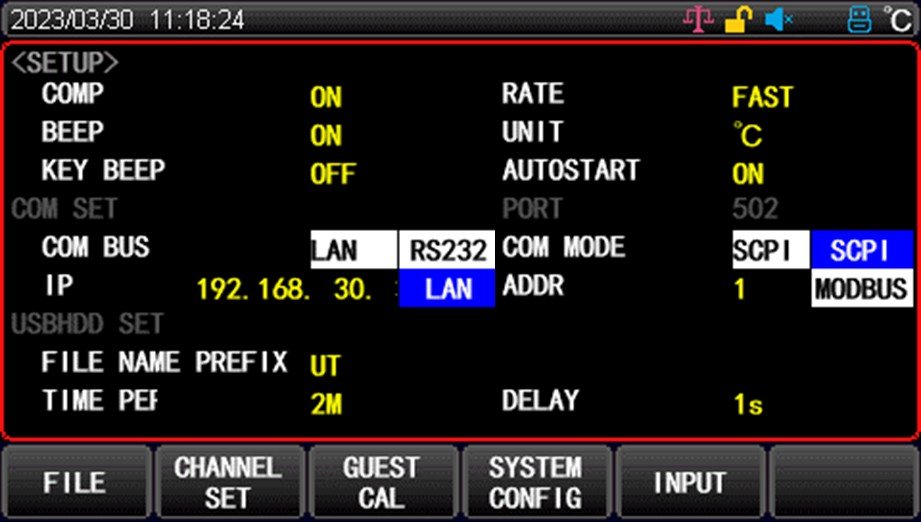

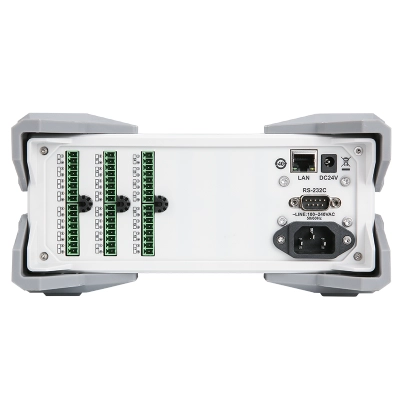

Man-machine separation

Configure RS232 and LAN ports, support SCPI and MODBUS dual protocols

UT3200+ Series Multi-channel Temperature Loggers - Data Sheet

UT3200+ Series Multi-channel Temperature Loggers - Programming Manual

UT3200+ Series Multi-channel Temperature Loggers - User Manual

Specifications	UT3248+	UT3240+	UT3232+	UT3224+	UT3216+	UT3208+
Channels	48	40	32	24	16	8
Display	4.3" TFT LCD	4.3" TFT LCD	4.3" TFT LCD	4.3" TFT LCD	4.3" TFT LCD	4.3" TFT LCD
Temperature Range	-200~1800℃	-200~1800℃	-200~1800℃	-200~1800℃	-200~1800℃	-200~1800℃
Resolution	0.01℃	0.01℃	0.01℃	0.01℃	0.01℃	0.01℃
Scanning Speed	10 rdgs/s	10 rdgs/s	10 rdgs/s	10 rdgs/s	10 rdgs/s	10 rdgs/s
Thermocouple	J,K,T,E,S,N,B,R	J,K,T,E,S,N,B,R	J,K,T,E,S,N,B,R	J,K,T,E,S,N,B,R	J,K,T,E,S,N,B,R	J,K,T,E,S,N,B,R
Connectivity	RS-232, LAN	RS-232, LAN	RS-232, LAN	RS-232, LAN	RS-232, LAN	RS-232, LAN
Size	½ 2U	½ 2U	½ 2U	½ 2U	½ 2U	½ 2U

How to connect to a computer using a LAN interface?

Install the driver and open the UT3200+ software. Set the device’s IP address to be on the same local area network as the computer’s IP address. The default IP address is 192.168.30.36. To avoid conflicts or software issues, you can change the last segment to a different number, such as 192.168.30.139.

How to connect to a computer using a RS232 interface?

Install the driver and open the UT3200+ software. Ensure that the baud rate on the device matches the baud rate set in the software. Also, select the appropriate SCPI mode for the communication (COM) mode.
