UT3560+ Series

UT3560+ Series

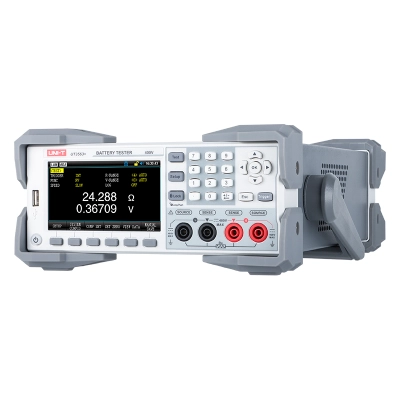

The UT3560+ Series Battery Tester is a high-accuracy and high-speed instrument for battery evaluation. It measures resistance from 0.0001 mΩ to 3.3 kΩ and DC voltage up to 400 V, with 0.5% resistance accuracy and 0.01% voltage accuracy. Its fast measurement rate reaches 100 readings per second, improving testing efficiency. The tester supports RS-232C, RS-485, USB, LAN, and Handler interfaces, and is compatible with SCPI and Modbus-RTU protocols for automation and remote control. It is widely used for lithium, NiMH, NiCd, button, cylindrical, and pouch batteries in production and testing environments.

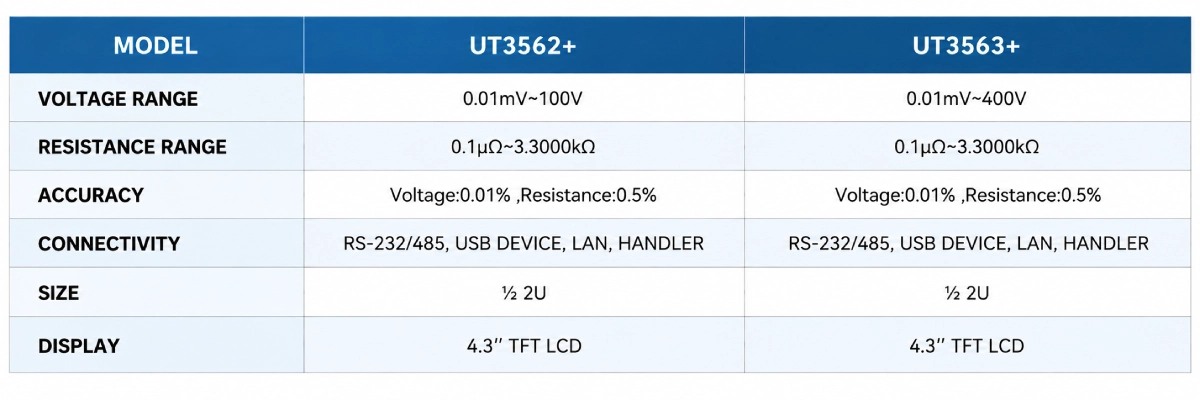

0.01mV~400V

VOLTAGE RANGE

0.1μΩ~3.3000kΩ

RESISTANCE RANGE

Voltage:0.01% ,Resistance:0.5%

ACCURACY

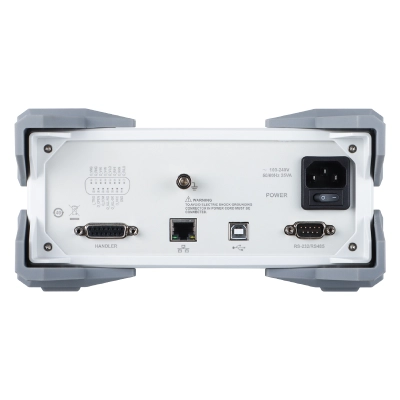

RS-232/485, USB DEVICE, LAN, HANDLER

CONNECTIVITY

½ 2U

SIZE

4.3” TFT LCD

DISPLAY

REQUEST A QUOTE DOWNLOAD CATLOUGE

High Accuracy & High Resolution Measurement

0.5% resistance accuracy, 0.01% voltage accuracy, and ultra-fine resolution down to 0.1 μΩ / 10 μV.

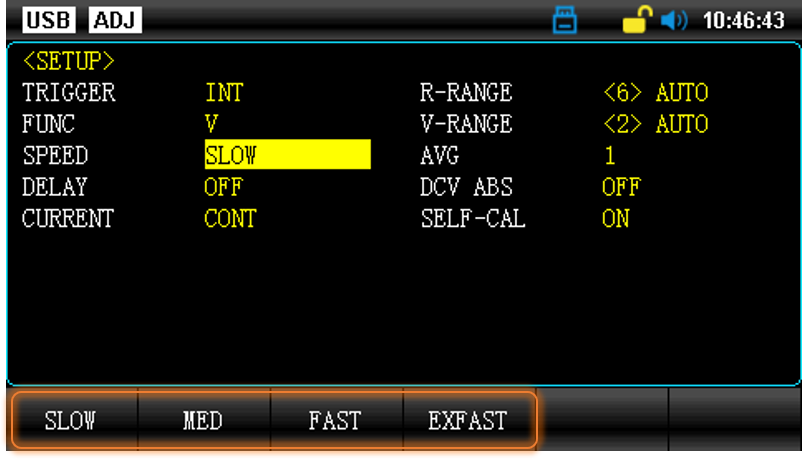

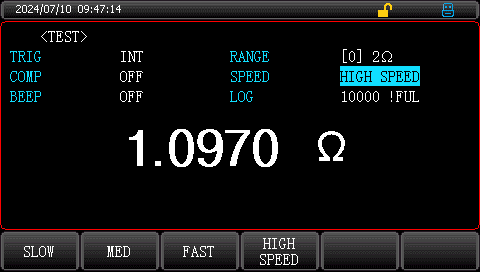

Fast Measurement up to 100 Readings/s

Ultra-fast test speed up to 100 measurements per second for high-throughput production.

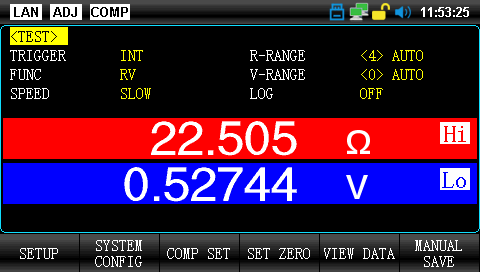

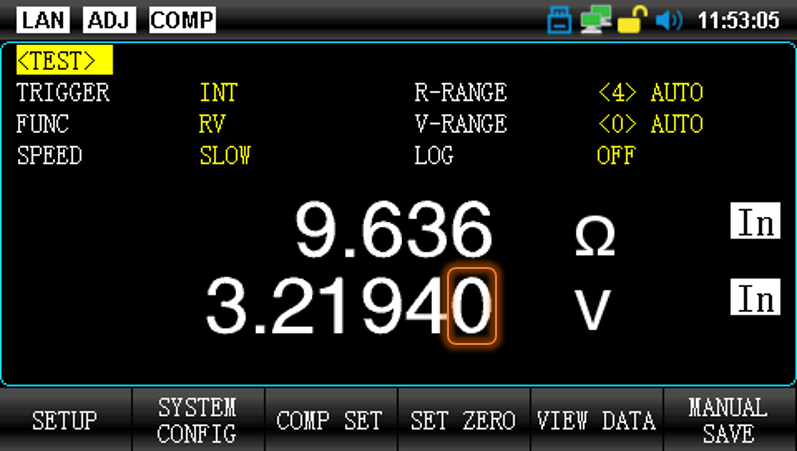

4.3-inch LCD Display

Measure resistance and voltage simultaneously with real-time display.

Advanced Comparator & Sorting Function

Built-in comparator supports multi-mode sorting (Hi/Lo/In) with buzzer and handler output.

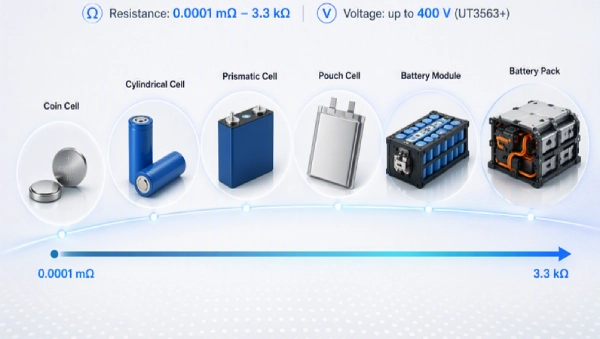

Wide Range for More Battery Types

Resistance: 0.0001 mΩ – 3.3 kΩ
Voltage: up to 400 V (UT3563+)

UT3560+ Series Battery Testers - Data Sheet

UT3560+ Series Battery Testers - User Manual

Model	Description
UT-L80	Crown probe test lines(Four terminal connection type)
UT-L81	Alligator clip test leads
UT-L86	Crown test lead
UT-L87	Kalvin Clips Test Wire (four-terminal wiring type)
