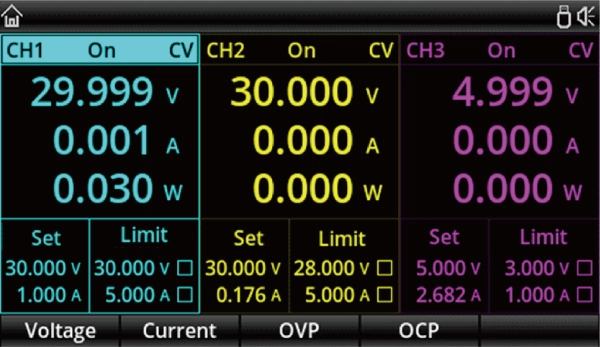

LCD interactive interface
Using a 4.3-inch high-definition display screen, it provides users with a man-machine interface with rich functions and simple operation, which can display the current set output voltage/current, actual output voltage/current and protection output voltage/current value of the power supply in real time. The functional interface is simple and comprehensive, easy to operate.
List/Delayer function
With list and delay setting functions, it can set up to 2048 sets of data according to test requirements, and the number of cycles can reach 99999. It is used with waveform templates, which is very convenient for cycle testing and aging testing.
One-key setting for series and parallel
The series-parallel connection between CH1 and CH2 of the main channel can be realized without external connection, which simplifies the connection and makes the test easier.

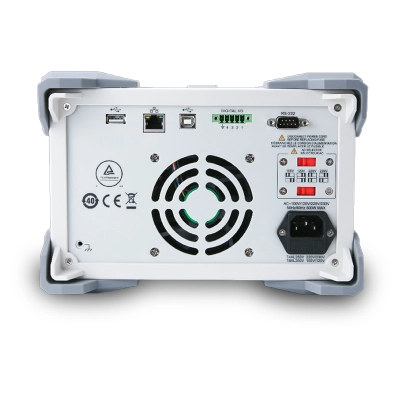

Rich remote control interface
Standard RS232 communication interface, Ethernet interface, Digital I/O and master and slave USB interfaces, can be controlled by remote connection to Ethernet, or through RS232 and USB, with the host computer software to achieve software control.
|
Model |
Description |
|---|---|
|
UT-L0615-oo
|
Double O type terminal 60A/1.5m power supply/electronic load test wire；Length: 1.5m；Wire diameter: 6.8mm；Max current: 60A；Terminal: O type-O type；Color: red and black |
|
UT-L0312-UU
|
Double U-type terminal 30A/1.2m power supply/electronic load test wire；Length: 1.2m；Wire diameter: 5.4mm；Max current: 30A；Terminal: double U-type；Color: red and black |
|
UT-L0110-BU
|
Fold insert-U type terminal 10A/1m power supply/electronic load test wire；Length: 1m；Wire diameter: 3.6mm；Max current: 10A；Terminal: Fold insert-U type；Color: red and black |
|
UT-L0320-UU
|
Double U-type terminal 30A/2m power supply/electronic load test wire；Length: 2m；Wire diameter: 5.4mm；Max current: 30A；Terminal: double U-type；Color: red and black |
|
UT-L0110-BB
|
Double Fold insert 10A/1m power supply/electronic load test wire；Length: 1m；Wire diameter: 3.6mm；Max current: 10A；Terminal: Fold insert- Fold insert；Color: red and black |
|
UTE-L16C
|
1m/16A alligator clip test wire；Wire diameter: 3.6mm；Length:1m；Rated voltage:220V；Rated current:16A；Color: red and black |
What is PPM？
2.5V±10ppm/℃X1℃=2.5V±0.000025V
2.5V±10ppm/℃X10℃=2.5V±0.00025V
What is the difference between the line regulation and the load regulation?
Load regulation refers to the effect of load changes on the output voltage
What is the meaning of display resolution, programming resoultion and readback resolution of programmable DC power supply?
Programming resolution refers to the minimum settable voltage and current.
Readback resolution refers to the minimum voltage and current readback inside the machine.
How to set the constant voltage/current output mode?
Constant voltage mode： When the current value set by the power supply is greater than the current value consumed by the load, the power supply is operating in constant voltage mode. Ithe setting current value＞Ithe load consuming current value
How does UDP3000C/S output positive and negative voltage ± 12 V?
