USG3000M Series

USG3000M Series

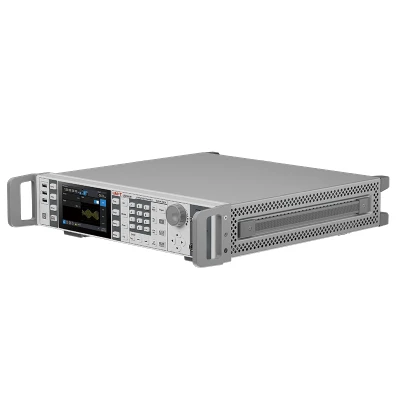

USG3000M Series product features DDS (Direct Digital Synthesis) technology, enabling it to generate high-precision, stable waveform output with a frequency range from 9 kHz to 6.5 GHz. This product is equipped with analog demodulation capabilities for AM, FM, and ΦM, as well as pulse modulation, impulse train generation, and power meter function. USG3000M series offers convenient operation, superior technical specifications, and an intuitive graphical display, making it a versatile tool for learning, testing, and enhancing work efficiency.

9 kHz- 6.5 GHz

FREQUENCY RANGE

0.001 Hz

FREQUENCY RESOLUTION

-135 dBm – +25 dBm

LEVEL RANGE

＜-122 dBc/Hz
(1GHz@20kHz)

PHASE NOISE

Yes

MECHANICAL ATTENUATOR

5 inch TFT
LCD (touch screen)

DISPLAY

REQUEST A QUOTE

Low phase noise performance

Phase noise as low as -122 dBc/Hz (1 GHz, 20 kHz offset, Typ.)

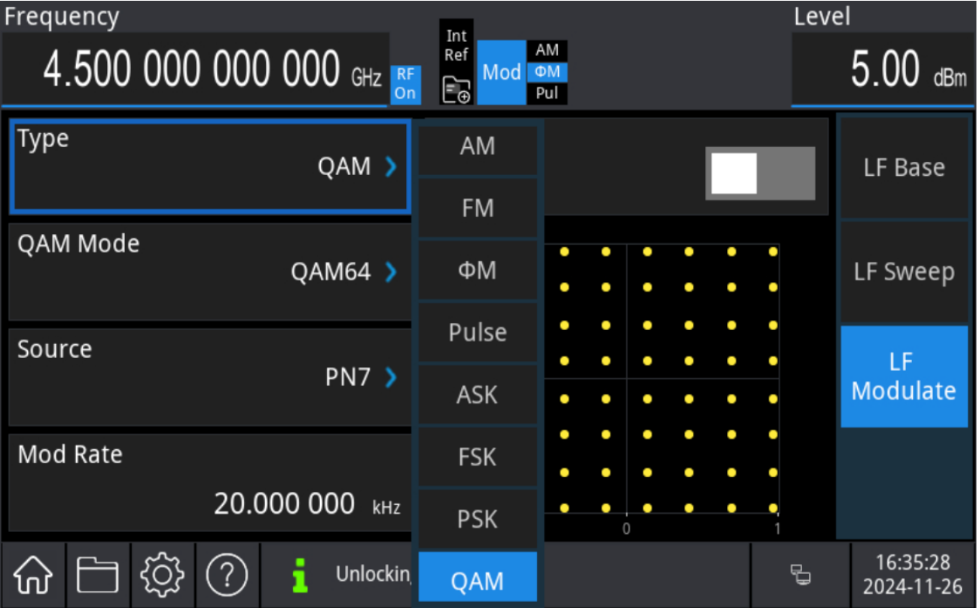

Analog Modulation

AM，FM，ΦM and Pulse modulation
Supports pulse trains triggering and user-defined pulse trains

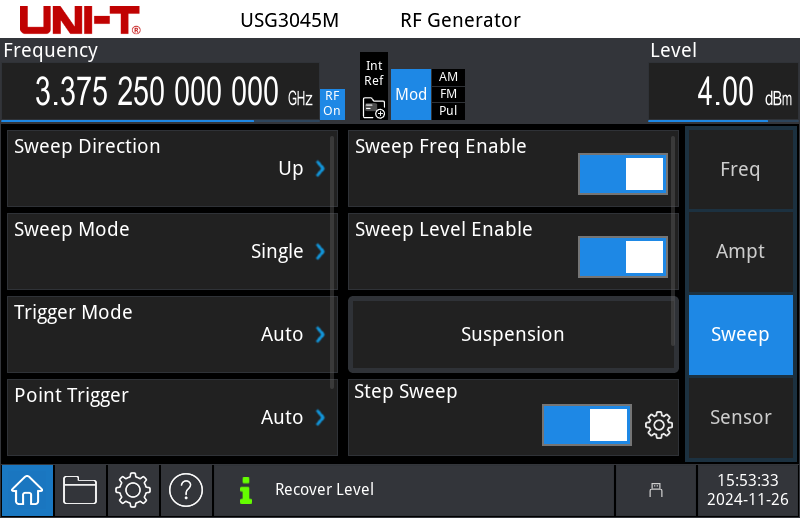

Sweep

Support frequency and amplitude sweep;
Support step sweep, list sweep, user can customize the sweep list

Function/ Arbitrary Waveform Generator

Max. output frequency 50 MHz
Supports standard waves, sweep and modulation

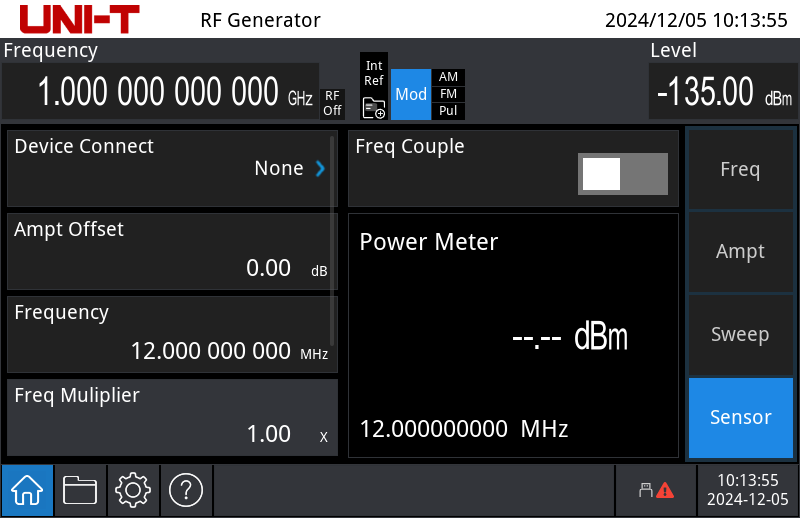

Power Meter Option

The power meter option connects to the instrument via the front panel USB port, enabling power measurement, power output control, and line loss calibration.

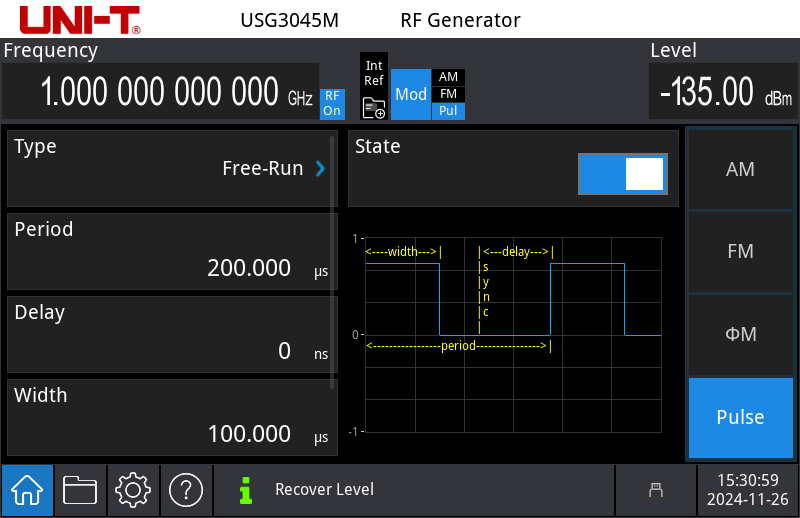

High-precision Pulse Generator

Features a stable clock source, optional pulse modulation and a narrow pulse generator. It has a minimum pulse width of up to 40 ns and a resolution of 10 ns

Flat display interface

With flat design, the human-machine interface is simple and easy to use. Waveforms can be visualized and switched between time domain and frequency domain waveforms on demand
