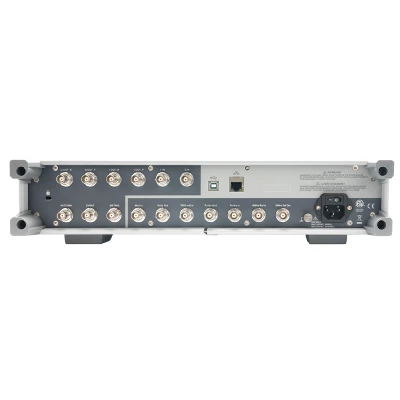

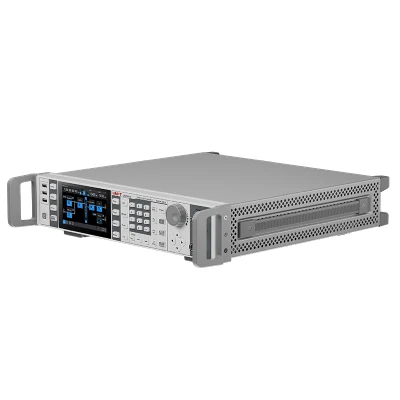

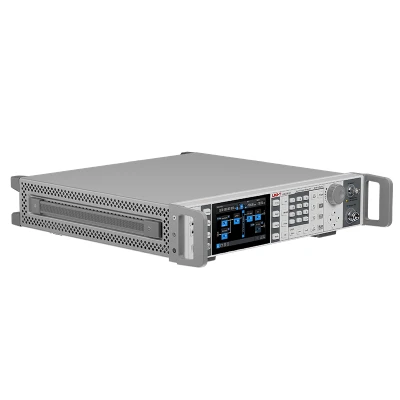

USG3000V Series

USG3000V Series

USG3000V Series adopts Direct Digital Synthesis (DDS) technology, enabling the generation of high-precision, stable waveforms across a frequency range of 9 kHz to 6.5 GHz. It supports analog demodulation functions such as AM, FM, ΦM, and I/Q modulation, and is also equipped with pulse modulation, pulse train generation, and a power meter function. With its user-friendly operation, superior technical specifications, and intuitive graphical display, the USG3000V Series serves as a versatile tool for learning, testing, and improving work efficiency.

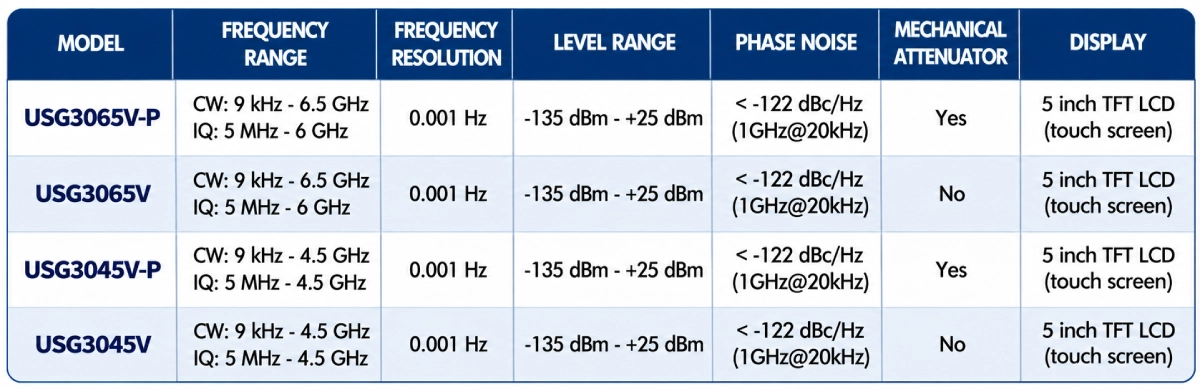

CW: 9 kHz – 6.5 GHz
IQ: 5 MHz – 6 GHz

FREQUENCY RANGE

0.001 Hz

FREQUENCY RESOLUTION

-135 dBm – +25 dBm

LEVEL RANGE

＜-122 dBc/Hz
(1GHz@20kHz)

PHASE NOISE

Yes

MECHANICAL ATTENUATOR

5 inch TFT
LCD (touch screen)

DISPLAY

REQUEST A QUOTE

Low phase noise performance

Phase noise as low as -122 dBc/Hz (1 GHz, 20 kHz offset, Typ.). High spectral purity ensures that advanced testing can be conducted with greater precision and reliability

Large Dynamic Range, High-Accuracy Power Output

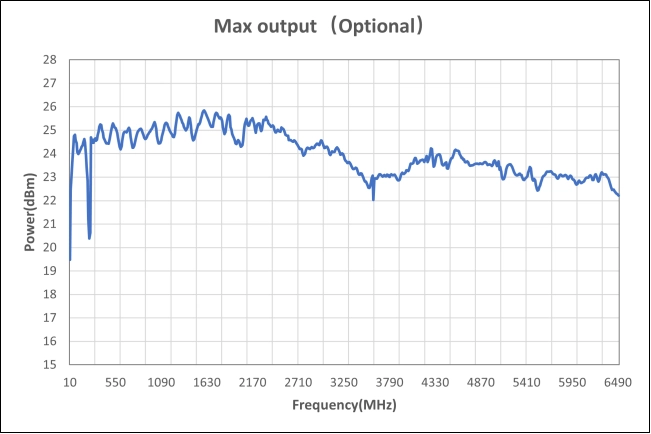

Maximum output power (Typ.): +25 dBm at 1.6 GHz
Minimum output power: -135 dBm
Dynamic range: up to 160 dB
Excellent power accuracy with a typical value of < 0.7 dB (Typ.)

Complete Standard Vector Modulation Formats

Generates real-time digital standard modulated signals including PSK, FSK, QAM, and ASK, while also supporting custom modulation types and filling settings, covering all critical frequency bands and digital communication formats.

Multi-Type Noise Injection

Provides output of pure noise and additive white Gaussian noise (AWGN), supporting flexible noise simulation in diverse testing scenarios.

Comprehensive Analog Modulation

Supports AM, FM, and ΦM, with optional pulse and narrow pulse modulation capable of outputting pulses as short as 40 ns with 10 ns resolution, meeting the testing requirements of applications such as automotive millimeter-wave radar systems.

Power Meter option

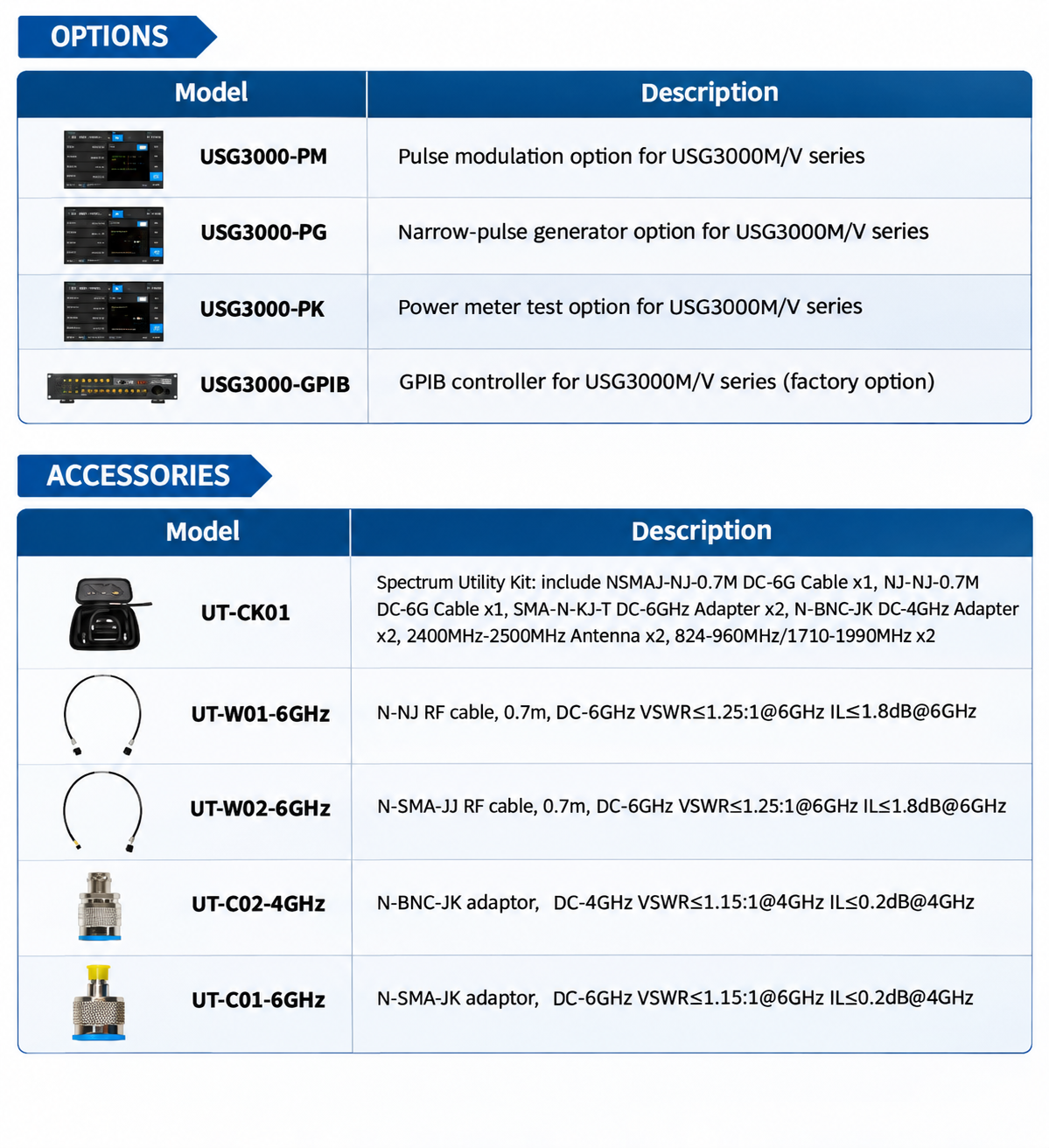

The power meter option connects to the instrument via the front panel USB port, enabling power measurement, power output control, and line loss calibration.

Touch-Controlled Graphical Guided Interaction

Equipped with a 5-inch high-resolution touch screen, it provides a clear view of key parameters and instrument status. The signal flow diagram-guided interface delivers an intuitive display and user-friendly operation.

Function/ Arbitrary Waveform Generator

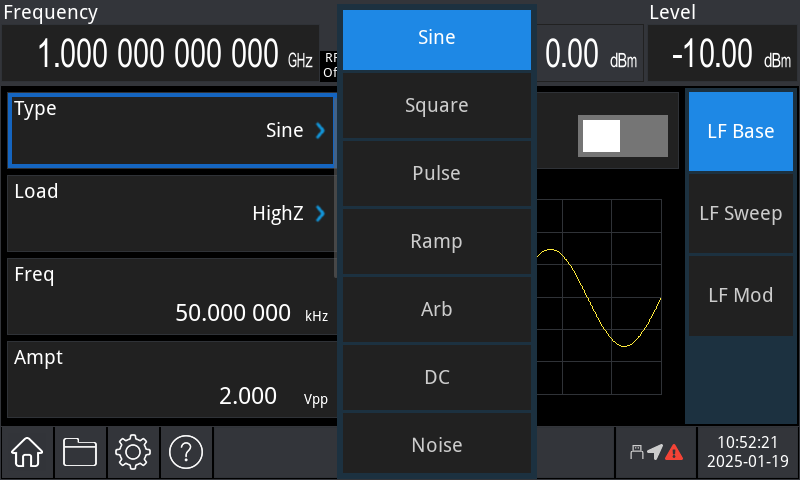

Built-in 50 MHz function signal generator supports: standard waveform output, sweep functions, and modulation functions.

ARB Modulation

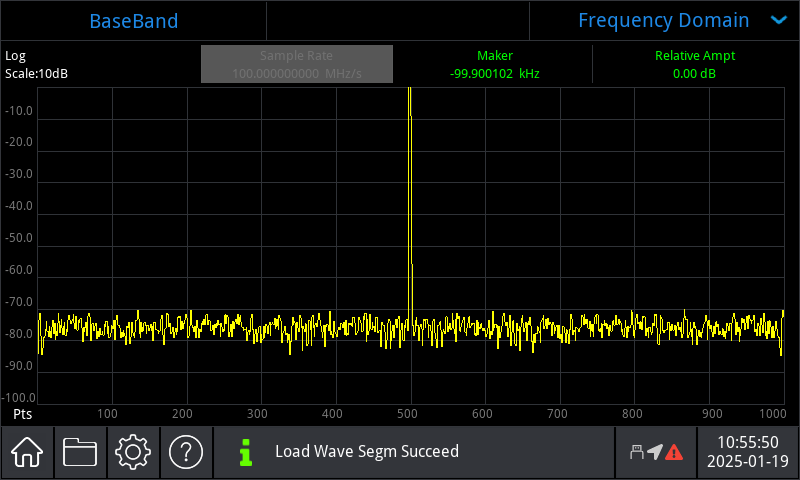

Allows playback of user-defined arbitrary waveforms at variable sampling rates with real-time baseband preview.
Supports ARB multi-carrier mode, with each subcarrier capable of independent modulation and data transmission.

Multi-Tone Modulation

Generates multiple frequency components simultaneously to simulate complex signals. It can reproduce multi-frequency scenarios in frame-based testing, allowing effective verification of device performance under challenging spectrum conditions.

IoT Modulation

Offers support for IoT-specific configurations
Protocol types: ZigBee, Z-Wave
Modulation parameters: Flexible settings such as modulation count and modulation methods.
