UT3515-Sx Series

UT3515-Sx Series

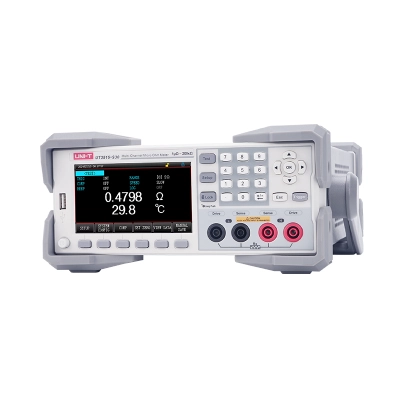

UT3515-Sx series benchtop Micro Ohm Meters includes the UT3515-S10, UT3515-S20, and UT3515-S30 models. They feature a 4.3-inch TFT LCD display and offer high precision, high resolution, and high-speed measurement capabilities, with a maximum accuracy of 0.05% and a minimum resolution of 1 μΩ. UT3515-Sx series comes standard with RS-232C, RS485, LAN port, and HANDLER communication interfaces, and supports SCPI and MODBUS RTU protocols. These models can communicate with computers, PLCs, or WINCE devices, enabling efficient remote control and data acquisition.

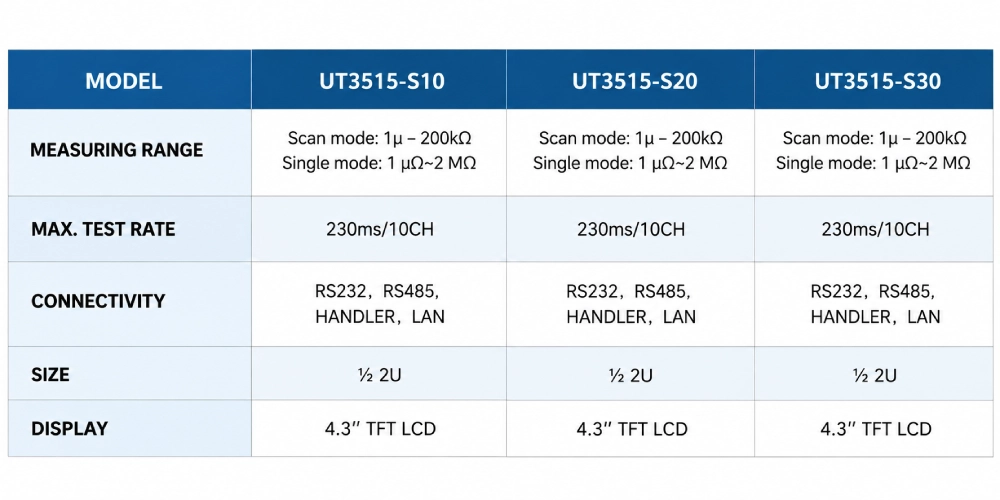

Scan mode: 1μ – 200kΩ
Single mode: 1 μΩ~2 MΩ

MEASURING RANGE

230ms/10CH

MAX. TEST RATE

RS232，RS485，HANDLER，LAN

CONNECTIVITY

½ 2U

SIZE

4.3” TFT LCD

DISPLAY

REQUEST A QUOTE DOWNLOAD CATLOUGE

Flexible switching between single and scan modes

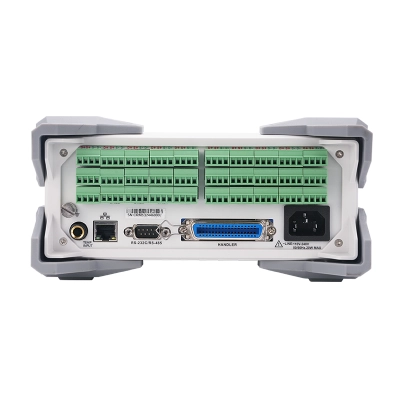

One-touch switching in the setup menu, flexible application of front-end single mode testing or rear-panel multi-channel scanning

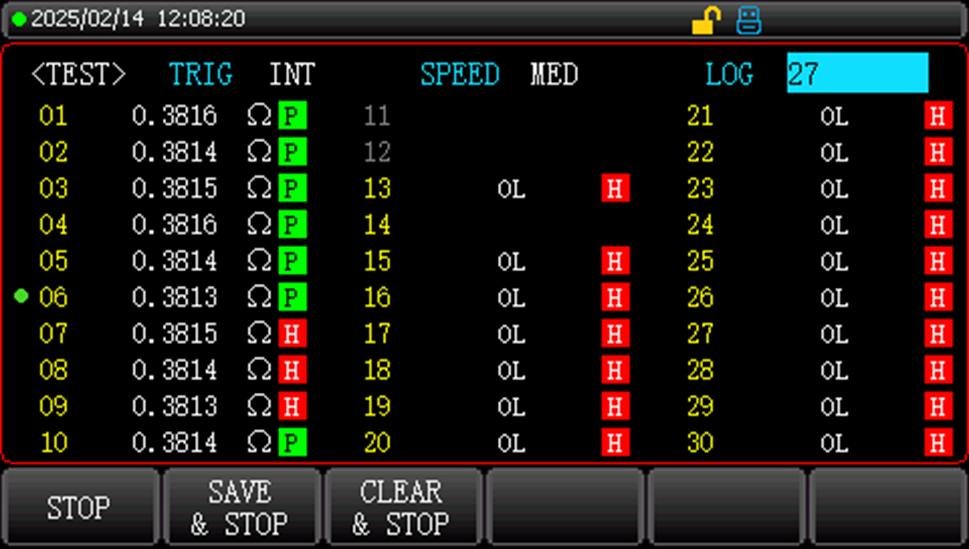

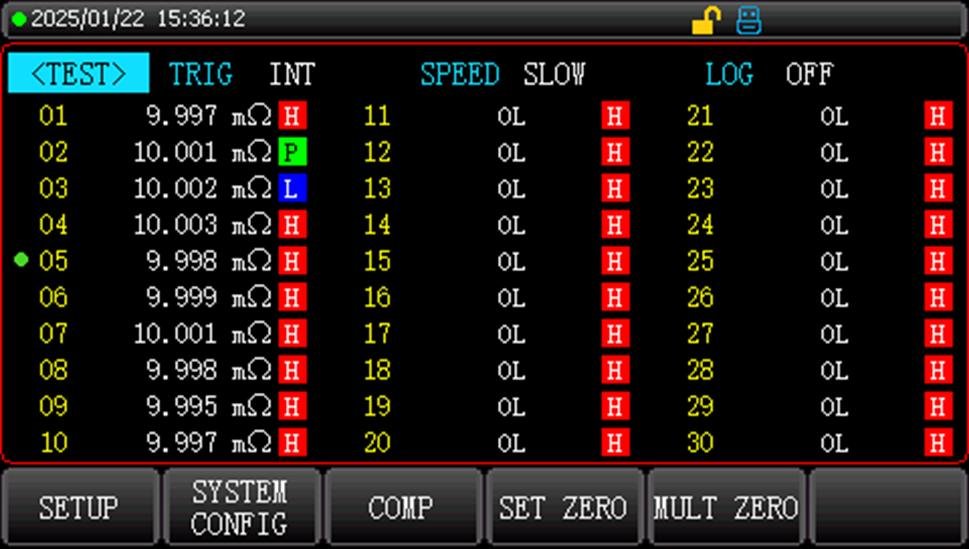

Multi-channel measurement

30-channel high-speed scanning measurement. Synchronized display.
Measurement results can be sorted in three levels.

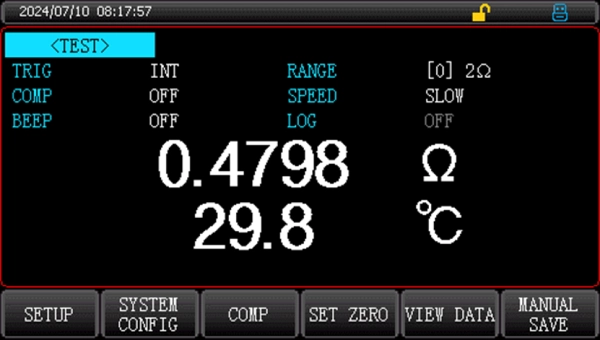

Multiple test modes (Single mode)

Five test modes are available: R, R-T, T, LPR, and LPR-T. LPR is a low-voltage test mode designed to effectively protect the DUT

Logging (Multi-channel)

Logging: : Supports recording data up to 10,000 groups of data.

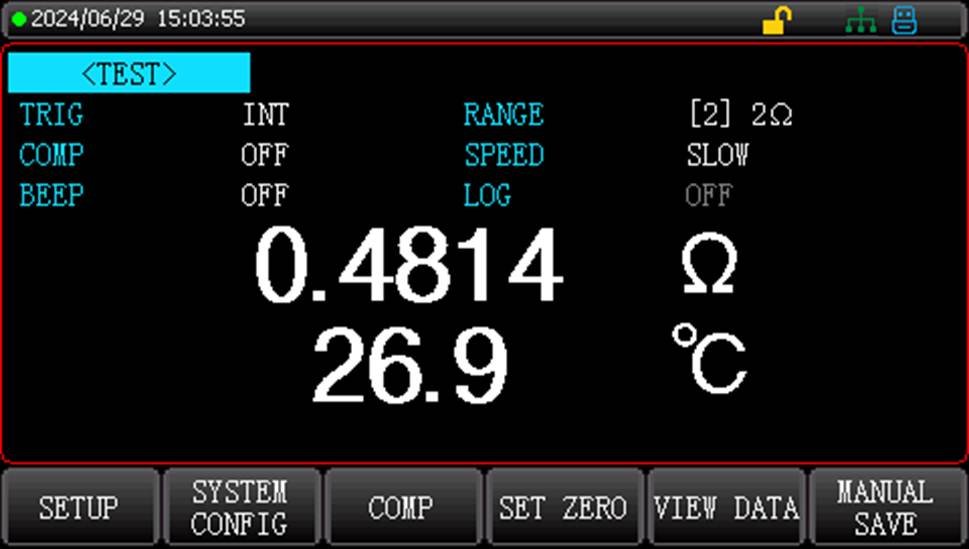

Temperature correction and conversion

Temperature correction: Compensates for measurement deviations caused by temperature fluctuations.
Temperature conversion: Calculates the difference between the DUT’s internal temperature and the ambient temperature using the thermal characteristics of the resistor.

UT3510+ & UT3515-Sx Series Micro Ohm Meters - Data Sheet

UT3510+ & UT3515-Sx Series Micro Ohm Meters - User Manual

UT3510+ & UT3515-Sx Series Micro Ohm Meters - QuickStart Guide

UT3510+ & UT3515-Sx Series Micro Ohm Meters - Programming Manual

How to switch the testing function on the front and rear panels?

Enter System Settings-Measurement Mode-Scan (Enable Multi-channel Rear Panel Test Function)
