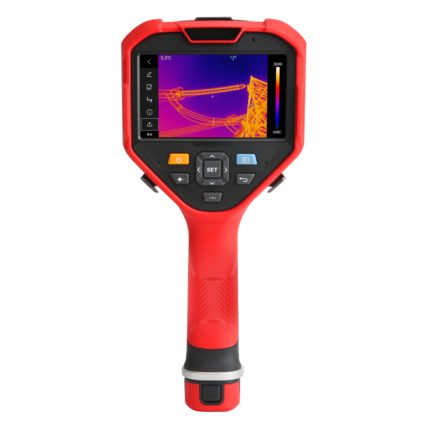

UTi740E Professional Enhanced Thermal Imager

A new addition to the E-series hammer thermal imagers—UTi740E, which is integrated with a 12μm infrared sensor of 384×288 resolution, complemented by a 30Hz refresh rate and 40mK thermal sensitivity for enhanced performance. It delivers an extended temperature measurement range of up to 650℃ with ±1.5℃/±1.5% accuracy, accurately meeting the refined measurement requirements of various industrial scenarios. Equipped with newly added video recording and WiFi live projection functions, it enables real-time synchronous viewing of the detection situation and convenient retrospective tracking of object temperature change trends throughout the measurement process. It is tailored for refined industrial measurement applications.

REQUEST A QUOTE DOWNLOAD CATLOGUE

Features

384×288 High-definition infrared resolution (upscales to 768×576 pixels when super resolution is on)
3.5″ IPS display (640×480)
30Hz frame rate
Temperature measurement range from -20℃ to 650℃
High-accuracy measurement (up to ±1.5℃/±1.5% whicherver is greater)
T-Mix image fusion algorithm
5MP digital camera
Video record
WiFi live streaming
Multilingual operating system

Specifications

Technical Data
Display	3.5″ IPS (640×480)
Detector type	UFPA (Vanadium oxide)
IR resolution(Pixels)	384×288
Super resolution(Pixels)	768×576
Spectral range	8~14µm
Pixel size	12µm
Frame rate	≤30Hz
Thermal sensitivity(NETD)	≤40mK
Focus	Focus Free
Lens focal length	9.1mm
Field of view(FOV)	28.9°(H) × 21.7°(V)
Spatial resolution(IFOV)	1.3mrad
Focusing distance	1m (Optimum)
Temperature measurement range	-20℃~650℃
Accuracy	0~650℃, ±1.5℃ or ±1.5% whichever is greater -10~0℃, ±2℃

Functions

Color palettes	White Hot, Black Hot, Red Hot, Ironbow, Rainbow HC, Rainbow, Lava
Image modes	Thermal, Visual image, T-Mix fusion, PIP
On-screen analyzer	5 Points/1 Line/3 Rectangles/3 Circles
Isotherm	Auto/Ratio/Below/Above/Section/Manual
HI/LO temperature alarm	LCD animation & LED flashlight
HI/LO temperature tracking	✔
Digital camera resolution	5MP
Digital zoom	2x, 4x
Video recording	✔
Wi-Fi / Wi-Fi live streaming	✔
LED lighting	✔
Analysis software	PC+APP

General Characteristics

Battery	5200mAh detachable Li-ion battery pack (UT-M17)
Operating time	≥4 hours (with Wi-Fi off)
USB	Type-C
Storage	32GB SD card
Image storage format	Radiometric JPEG
Video storage format	MP4
Protection	IP54 & 2m drop proof
Certificates	CE, FCC, RoHS
Languages	EN, FR, DE, IT, ES, SV, PL, CS
Weight	700g
Dimension	260mm×97mm×99mm

Packing Details

Standard accessories	Type-C USB cable, SD card, Li-ion battery pack×2, Quick Start Guide, Documents Download Operation Guide
Standard individual packing	Toolbox & Gift box
Standard Qty per carton	1pcs
Standard carton size	400mm×185mm×345mm
Standard carton G.W.	4kg
