Features
Specifications

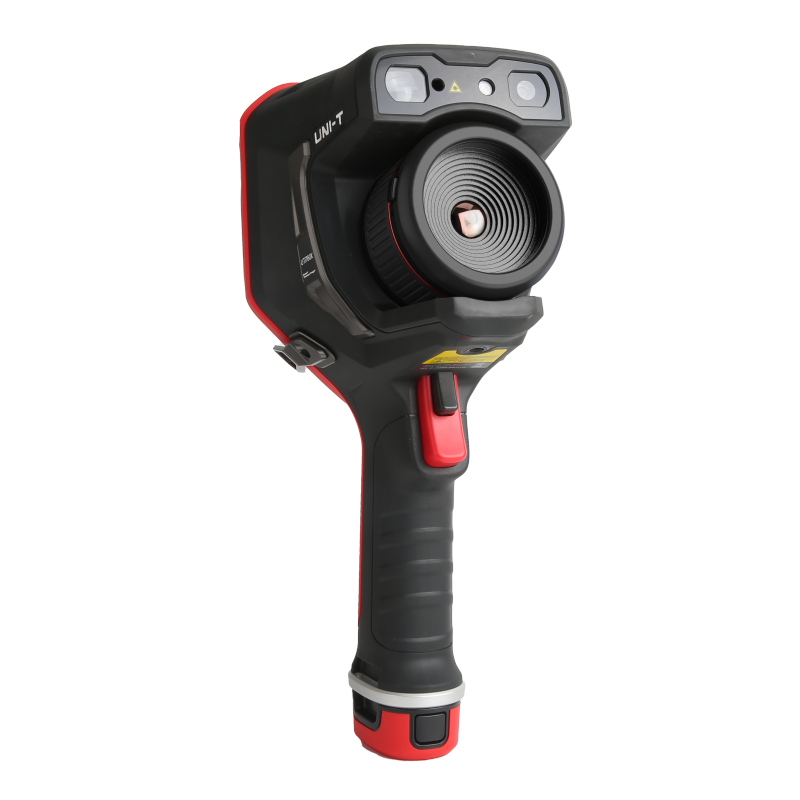

| Model No. | UTi740X | ||||
| Technical Data | |||||

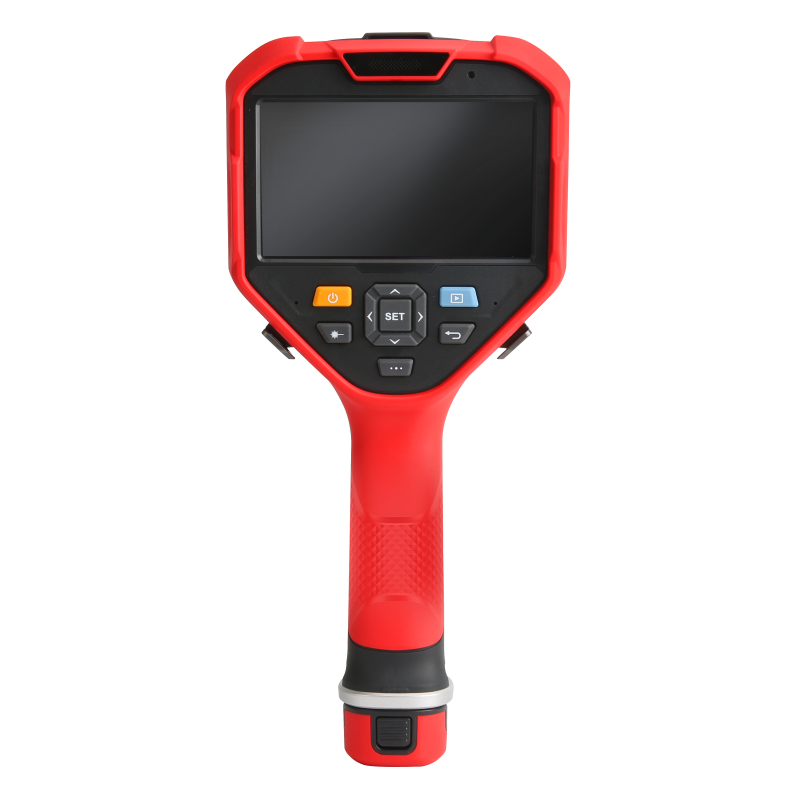

| Display | 5′ IPS Touch (1280×720) | ||||
| IR resolution(Pixels) | 400×300 | ||||
| Super resolution(Pixels) | 800×600 | ||||
| Spectral range | 7.5～14μm | ||||
| Pixel size | 12μm | ||||
| Frame rate | 30Hz | ||||
| Thermal sensitivity(NETD) | 35mK | ||||
| Focus mode | Continuous AF/Semi-auto Focus/Laser Assisted Focus/Touch AF/Manual Focus | ||||
| Focusing time | <2s | ||||
| Lens recognition | ✔ | ||||
| Lens calibration | Automatic | ||||
| Lens model | UT-Z048 | UT-Z049 | UT-Z050 | UT-Z051 | UT-Z053 |
| Lens | Standard | Wide-Angle | Telephoto | Ultra Telephoto | Macro |
| Lens focal length | 9.6mm | 6mm | 18mm | 36mm | 18mm |
| Aperture | F1.0 | F1.0 | F1.0 | F1.0 | F1.1 |
| Field of view(FOV) | 27.7°(H)×20.6°(V) | 46°(H)×34°(V) | 14.6°(H)×10.9°(V) | 7.2°(H)×5.5°(V) | — |
| Spatial resolution(IFOV) | 1.28mrad | 2.1mrad | 0.66mrad | 0.33mrad | — |
| Imaging distance | 0.1m (Min) | 0.1m (Min) | 0.15m (Min) | 1m (Min) | 24~42mm |
| Temperature measurement & Accuracy | Scope of application | Type of lens | Temperature range | Measurement range | Accuracy |
| Lens calibrated with the device before delivery | Standard Wide-angle Telephoto Ultra telephoto | -20℃~1200℃ | -20℃~120℃ | ±1.0℃/±1.0% (0℃~120℃) ±2.0℃ (-10℃~0℃) | |
| 0℃~600℃ | ±1.5℃/±1.5% (20℃~600℃) | ||||
| 500℃~1200℃ | ±1.5% | ||||
| Macro | -20℃~100℃ | -20℃~100℃ | ±2.0℃ (-10℃~100℃) | ||
| Lens delivered separately | Standard Wide-angle Telephoto Ultra telephoto | -20℃~1200℃ | -20℃~120℃ | ±1.5℃/±1.5% (0℃~120℃) ±2.0℃ (-10℃~0℃) | |
| 0℃~600℃ | ±1.5℃/±1.5% (20℃~600℃) | ||||
| 500℃~1200℃ | ±1.5% | ||||
| Macro | -20℃~100℃ | -20℃~100℃ | ±2.0℃ (-10℃~100℃) | ||
Functions
| Color palettes | White Hot, Black Hot, Red Hot, Ironbow, Rainbow, Rainbow HC, Lava. Customized palette & color inversion are supported | ||||
| Image modes | Thermal, Visual image, Fusion, T-Mix, PIP, dual-channel image | ||||
| On-screen analyzer | 16 Points/16 Lines/16 Rectangles/16 Circles. T-select is supported | ||||
| Level & span | Auto/Manual/Touch | ||||
| HI/LO temperature alarm | LCD animation, LED flashlight, Buzzer | ||||
| HI/LO temperature tracking | ✔ | ||||
| ROI correction | Supports regional emissivity correction | ||||
| Digital camera resolution | 13MP | ||||
| Digital zoom | ✔ | ||||
| Photo capturing / Video recording | ✔ | ||||
| Full-screen thermal radiometric video stream | ✔ | ||||
| T-Contrast | ✔ | ||||
| T-Sharp | ✔ | ||||
| Smart meter | ✔ | ||||
| AI voice | ✔ | ||||
| OTA upgrade | ✔ | ||||
| QR code scanning | ✔ | ||||
| Text/Voice annotation | ✔ | ||||
| HDMI display extension | ✔ | ||||
| WiFi / Wi-Fi live streaming | ✔ | ||||
| Bluetooth | ✔ | ||||
| Laser pointer | ✔ | ||||
| LRF | 0.1～50m (Class 2, red) | ||||
| LED lighting | ✔ | ||||
| Analysis software | PC+APP | ||||
General Characteristics
| Battery | 7.2V/5000mAh rechargeable & detachable Li-ion battery pack | ||||
| Operating time | ≥5 hours | ||||
| Charging system | Type-C direct charging / Independent charging of the battery pack | ||||
| Charging time | Charging to 90% in 2.5 hours (Power off charging or independent charging of the battery pack) | ||||
| USB | Type-C USB, Micro HDMI | ||||
| Storage | Built-in 128G, supports SD expansion | ||||
| Image storage format | JPG | ||||
| Video storage format | MP4/UIR | ||||
| Working temperature | -20℃～55℃ | ||||
| Storage temperature | -40℃～60℃ | ||||
| Working humidity | 10%～95%RH，noncondensing | ||||
| Protection | IP54 & 2m drop-proof | ||||
| Certificates | CE, FCC, RoHS | ||||
| Languages | EN, FR, DE, IT, ES, SV, PL, CS | ||||
