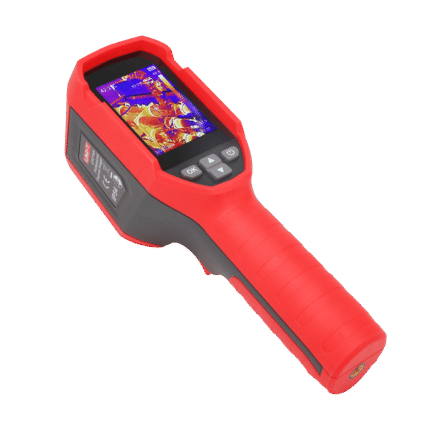

    UTi716S Cost-effective Thermal Camera
    UTi716S Cost-effective Thermal Camera

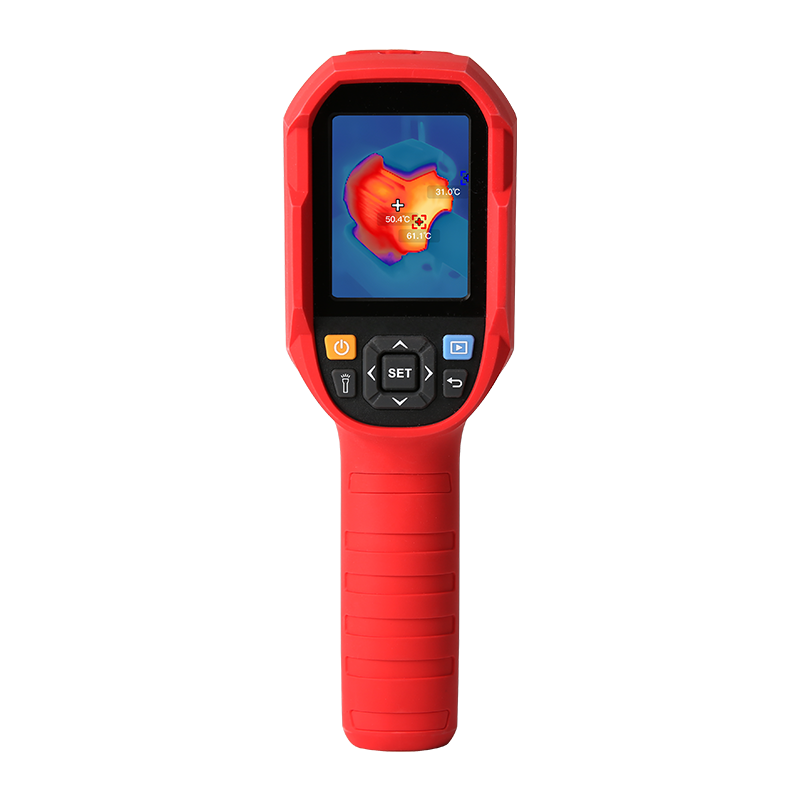

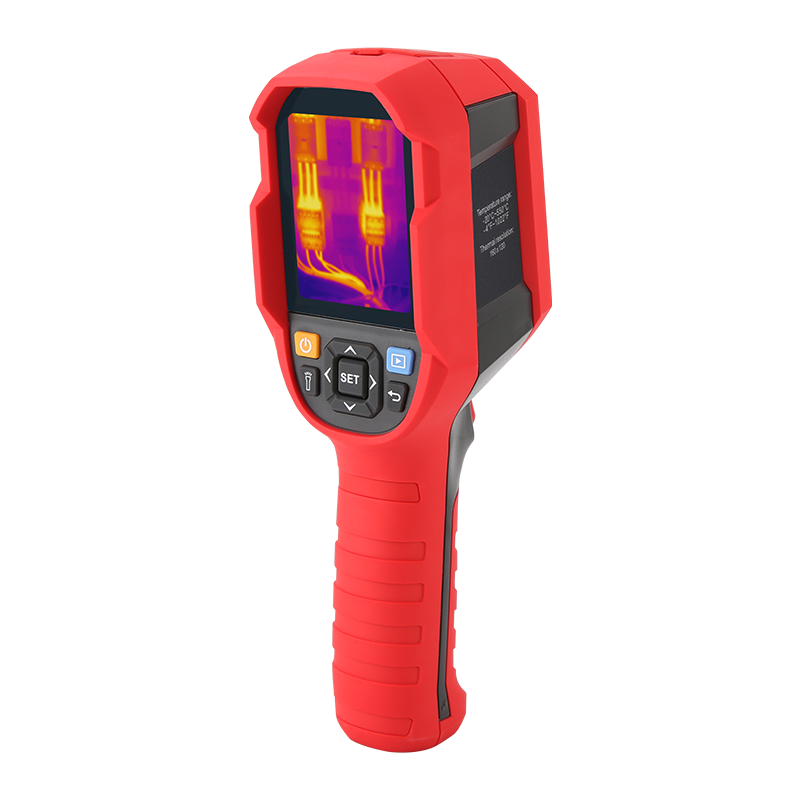

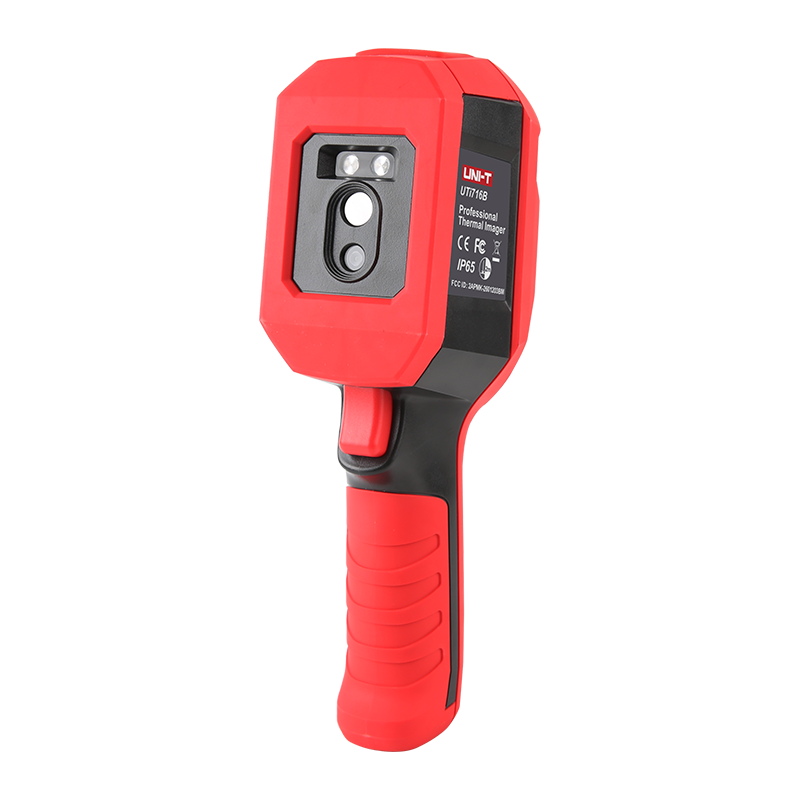

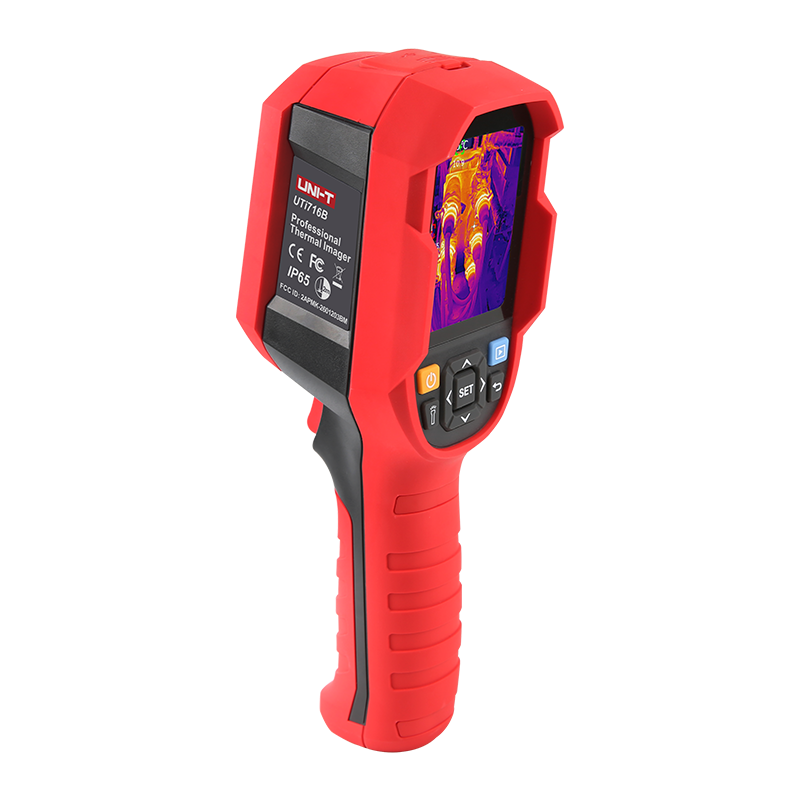

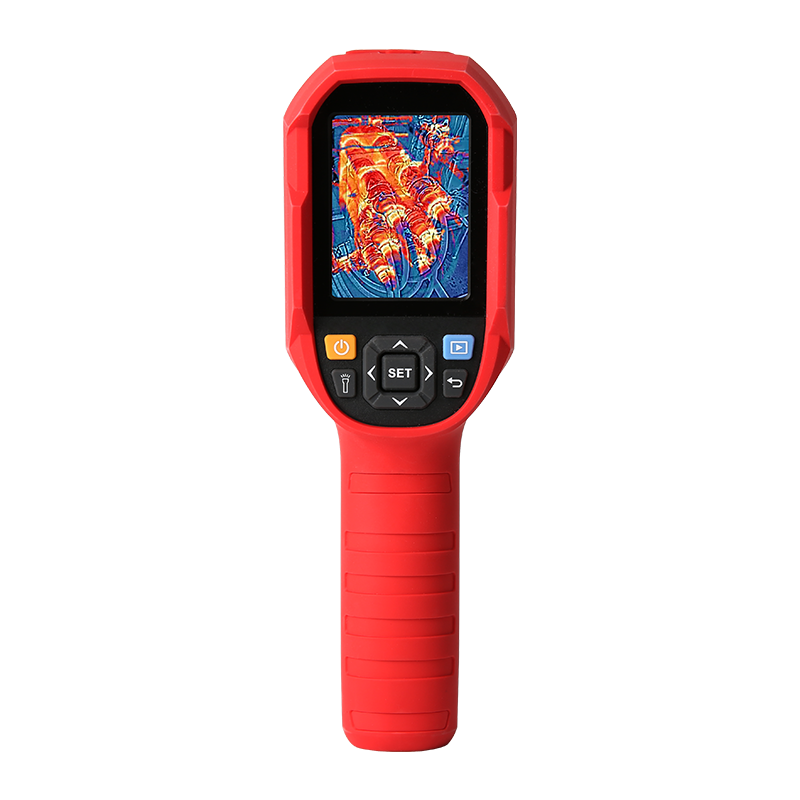

    UTi716B Heavy Duty Thermal Camera

    While continuing the sturdy & durable advantages of the last generation product, the performance of UTi716B has significant improvement. Super resolution & T-Mix algorithm are added for better imaging effect. Support to real-time monitor the temperature changes trend via video recording function. Complete one-stop functionality operation through connecting mobile APP via Wi-Fi.

    REQUEST A QUOTE     DOWNLOAD CATLOGUE

    Compare
    Categories: Handheld Thermal Cameras, Thermal, UNI-T
    Share:
    • Description
    Description

    Features

    • 160×120 infrared resolution (upgrades to 320×240 when super resolution is on)
    • Temperature measurement range from -20℃ to 550℃
    • Features T-Mix image fusion algorithm technology
    • Video recording
    • With a 2MP digital camera
    • Wi-Fi connection
    • Multi-language OS
    • IP65 & 2m drop proof

    Specifications

    Technical Data
    Display2.8” TFT (320×240)
    IR resolution(Pixels)160×120
    Super resolution(Pixels)√ (320×240)
    Spectral range8~14µm
    Pixel size12µm
    Frame rate≤25Hz
    Thermal sensitivity(NETD)≤50mK
    FocusFocus Free
    Field of view(FOV)40°(H) × 30°(V)
    Spatial resolution(IFOV)4.62mrad
    Temperature measurement range -20℃~550℃
    Accuracy±2℃ or ±2% whichever is greater

    Functions

    Color paletteWhite Hot, Black Hot, Red Hot, Ironbow, Lava, Rainbow, Rainbow HC
    Image modeThermal, Visual image, T-Mix fusion, PIP
    On screen analyzer5 Points/3 Rectangles
    HI/LO temperature alarmLCD animation, LED flashlight, Buzzer
    HI/LO temperature tracking√
    Digital camera resolution2MP
    Video recording√
    Wi-Fi/Wi-Fi live streaming√
    LED lighting√
    Analysis softwarePC+APP

    General Characteristics

    Battery5000mAh rechargeable Li-ion battery
    Operating time≥8 hours
    USBType-C
    StorageBuilt-in 32GB
    Image/video storage formatJPG/MP4
    ProtectionIP65 & 2m drop proof
    CertificatesCE, FCC, RoHS
    LanguagesEN, FR, DE, IT, ES, SV, PL, CZ
    Weight600g
    Dimension236mm×75.5mm×86mm

    Packing Details

    Standard accessoriesType-C USB cable, Quick Start Guide, Download Operation Guide
    Standard individual packingGift box
    Standard Qty per carton10pcs
    Standard carton size500mm×315mm×295mm
    Standard carton G.W.11.2kg

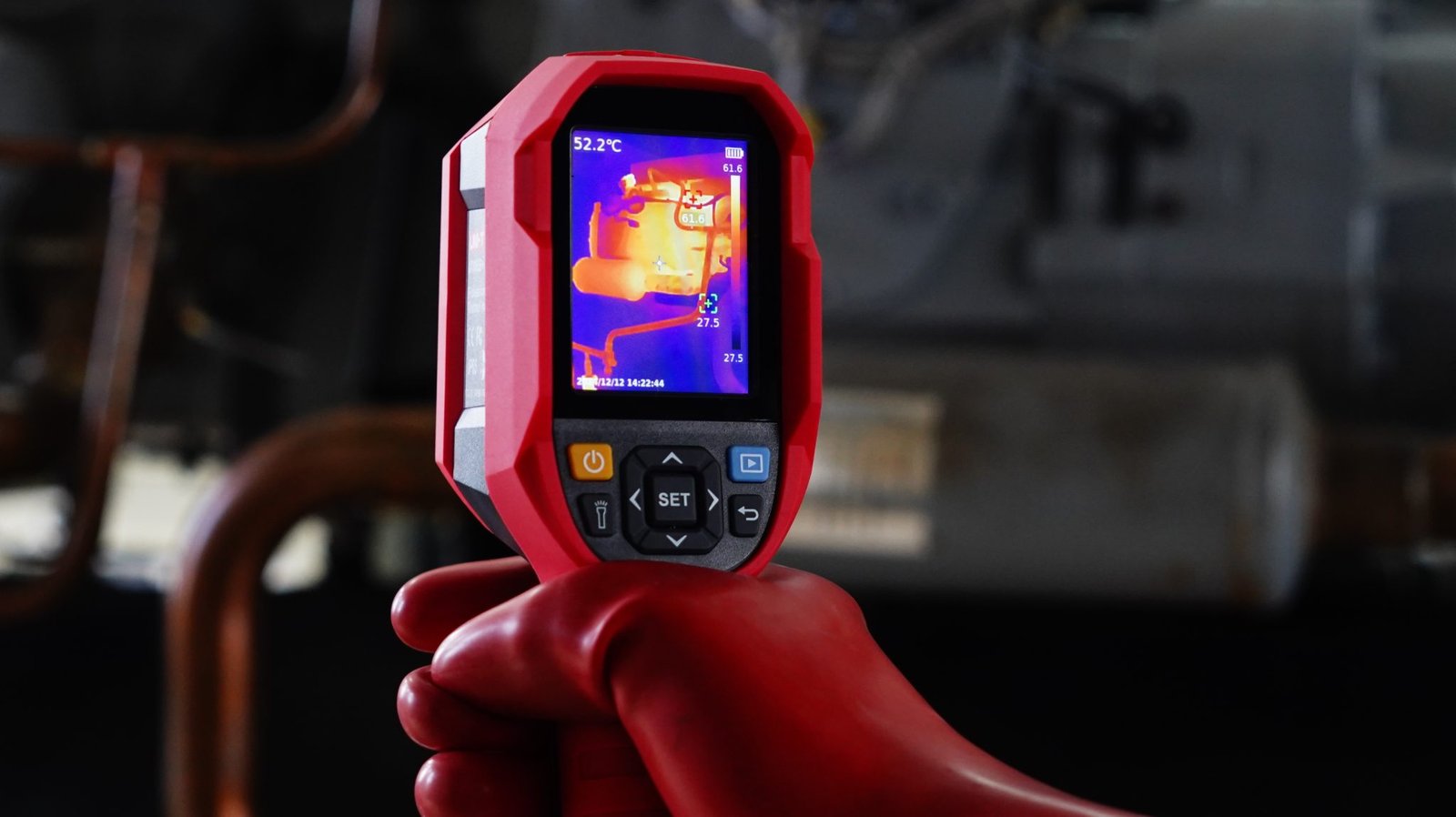

    UTi716B-Application-1-2048x1149

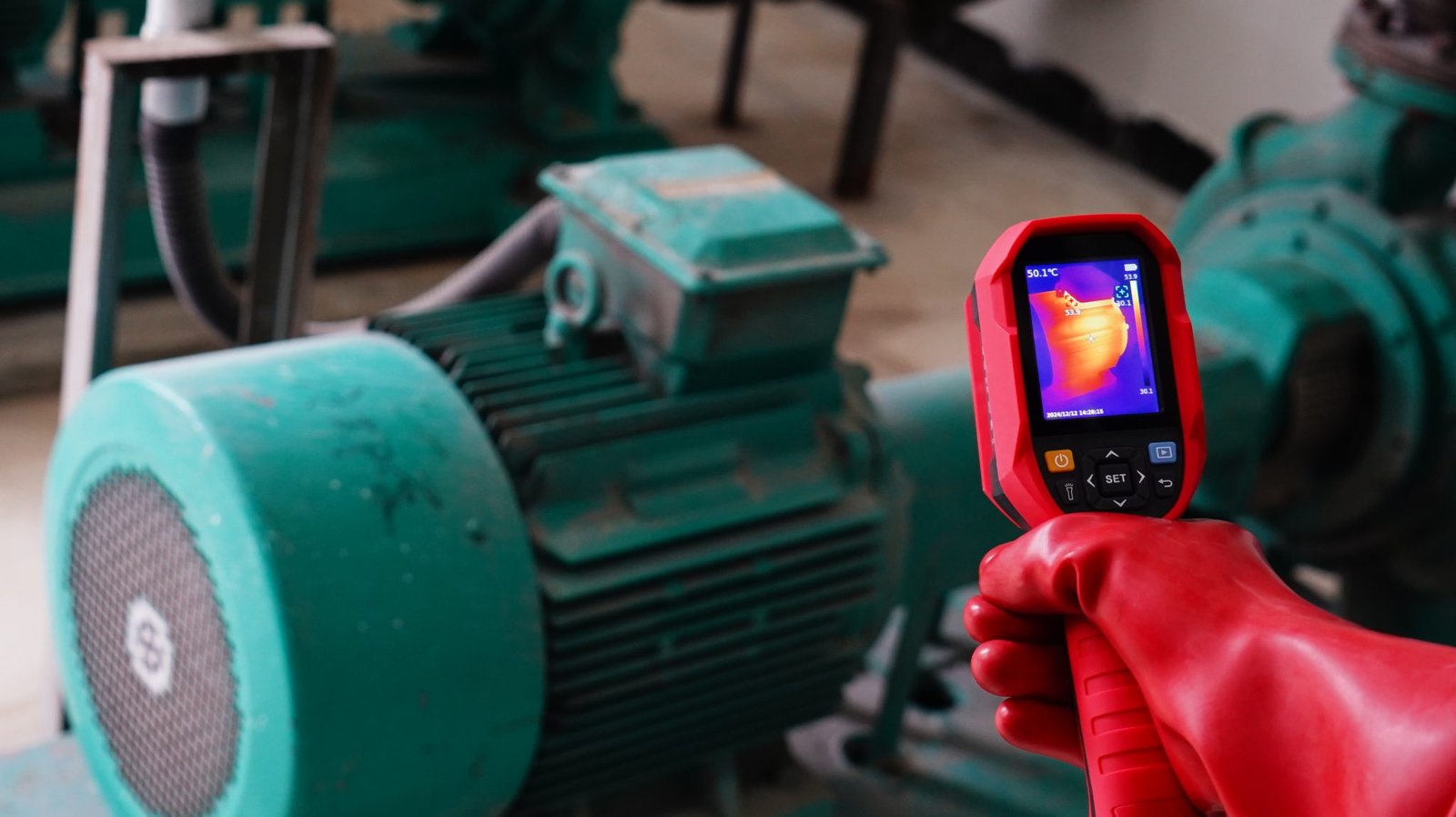

    UTi716B-Application-2-2048x1149

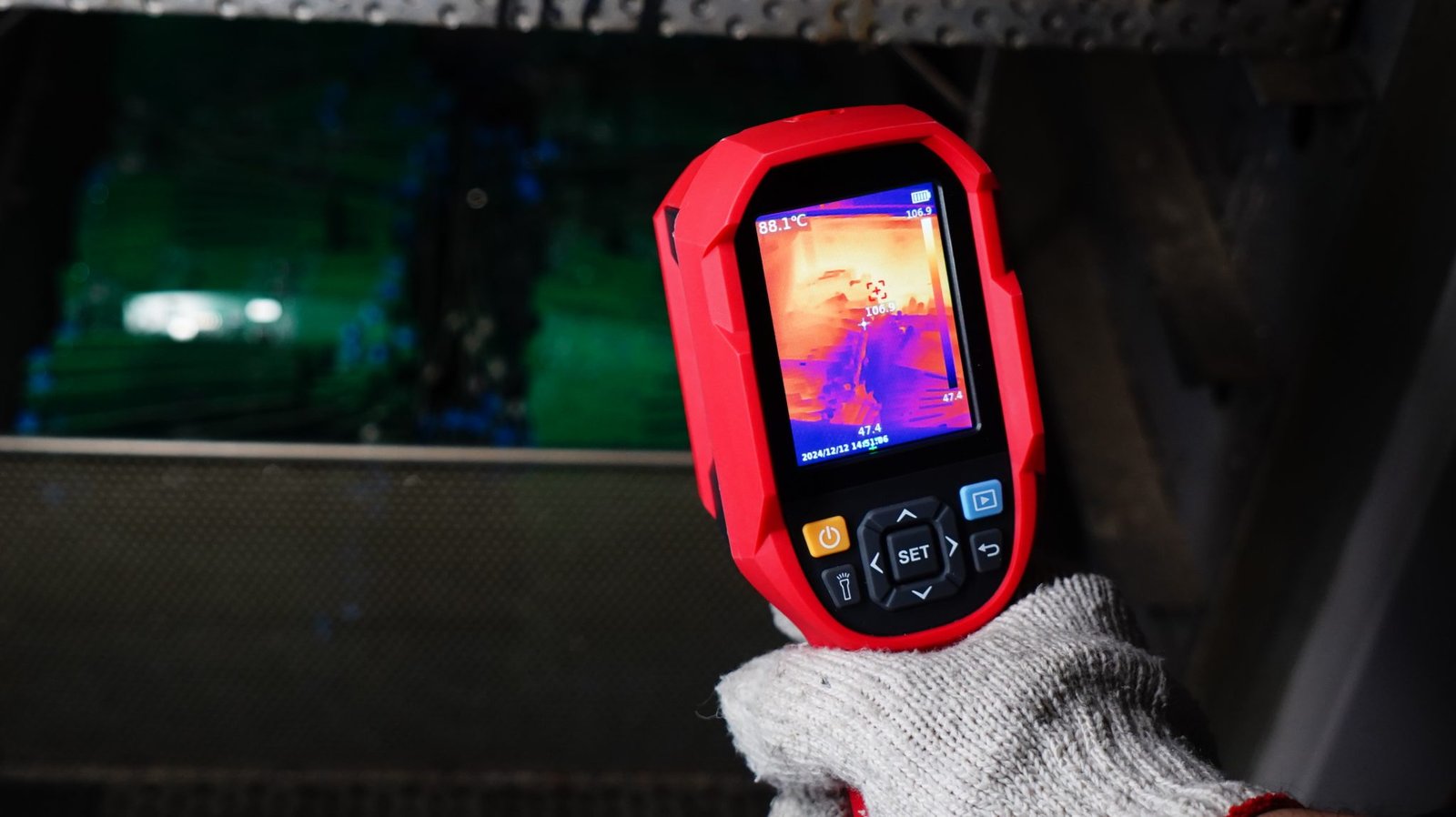

    UTi716B-Application-3-2048x1149

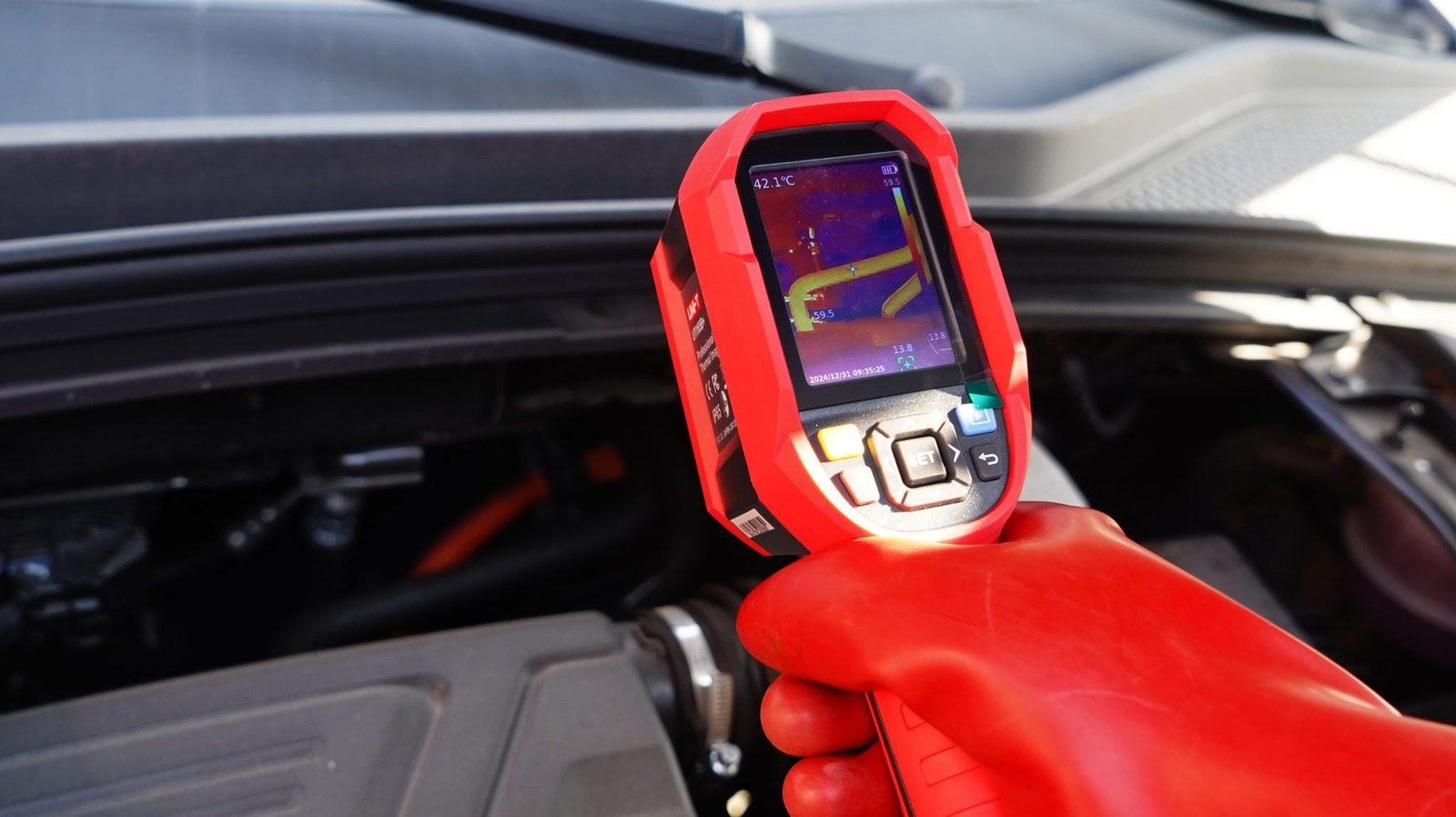

    UTi716B-Application-4-2048x1149

    UTi716B Datasheet

     1 file(s) 1.35 MB

    UTi716B User Manual

     1 file(s)  17.7 MB
