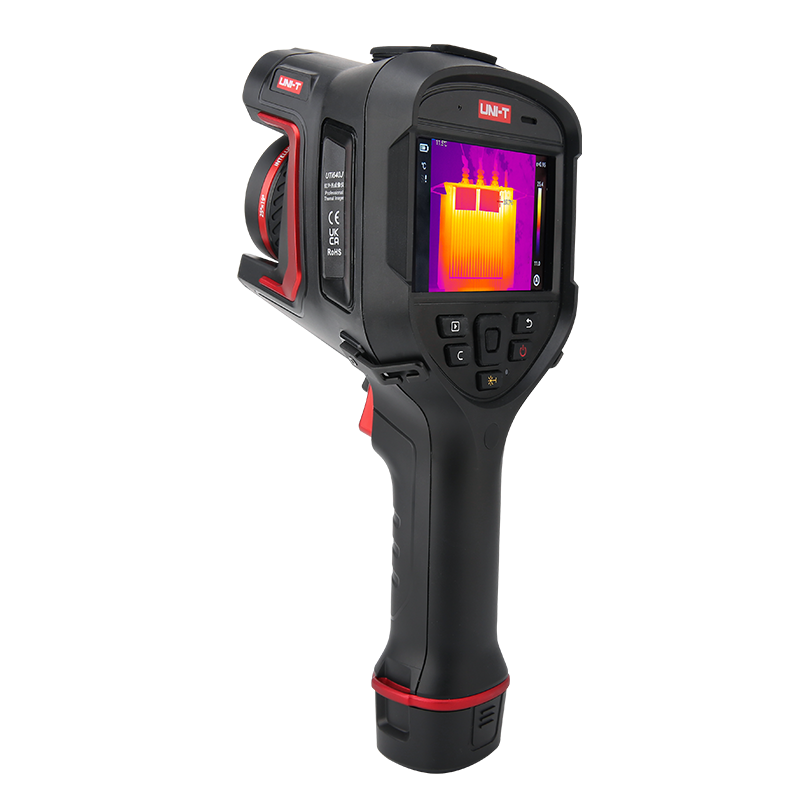

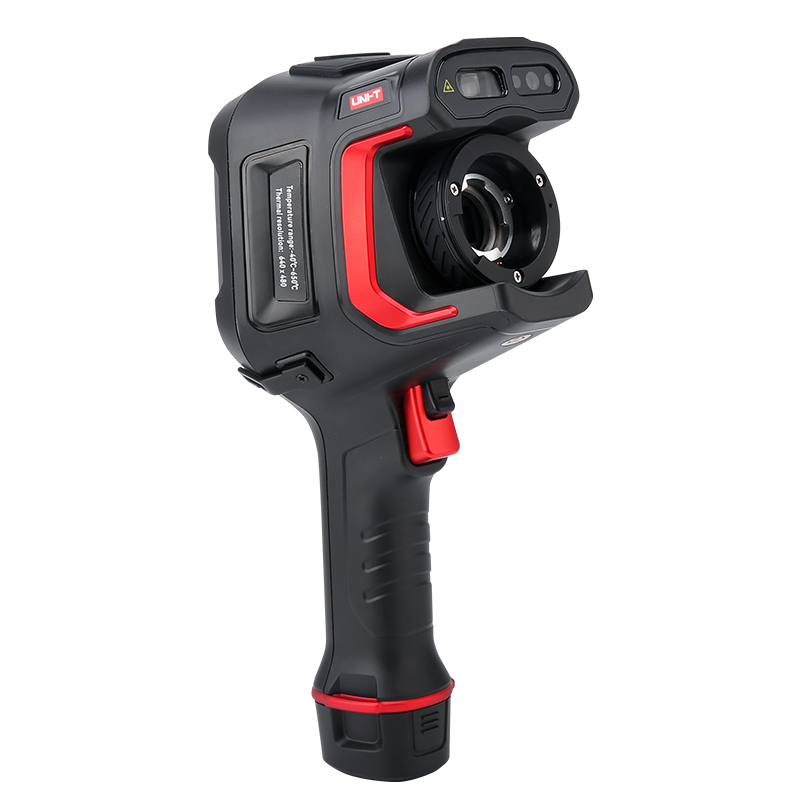

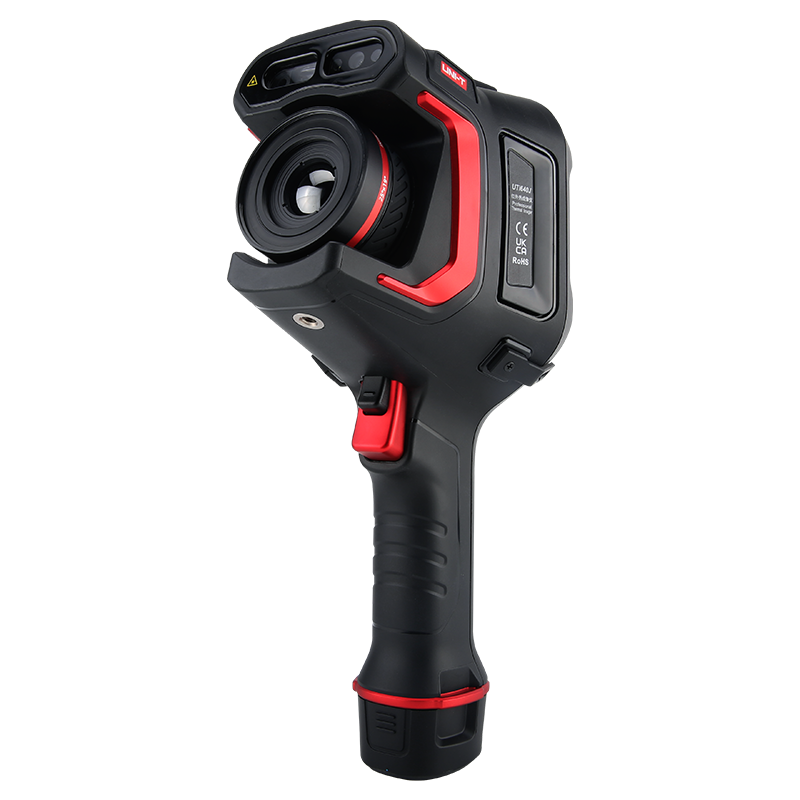

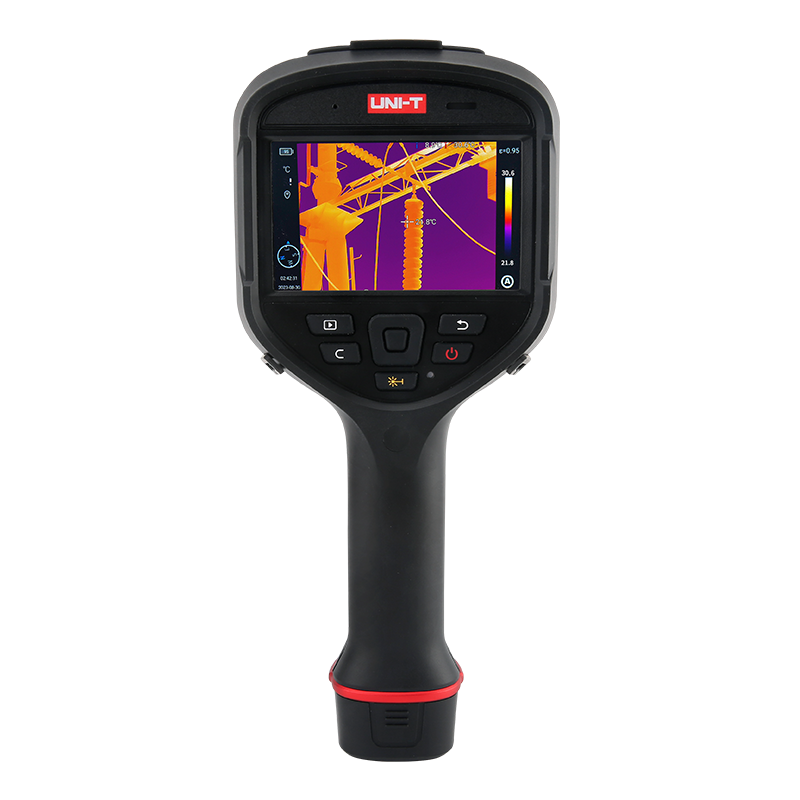

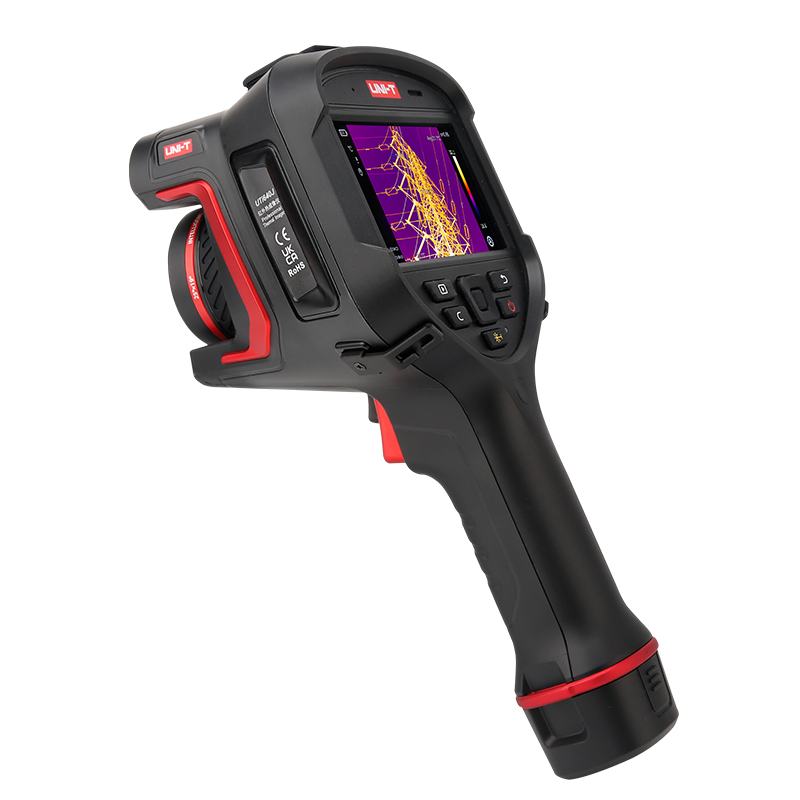

UTi640J Intelligent Thermal Camera

With a built-in high-sensitivity infrared detector with 640×480 pixels, a 13MP digital camera, and 5 focusing modes. The high-precision thermal camera designed specifically for the industrial field helps users intuitively view high-definition images and temperature details of the target, with the classic “hammer” design. 30Hz infrared frame rate for fast and accurate access to more temperature data of moving targets.

REQUEST A QUOTE DOWNLOAD CATLOGUE

Features

640×480 pixels IR resolution
Super resolution (upgraded to 1280×960)
13MP digital camera
Multiple focusing modes (Manual / Automatic / Touch autofocus / Continuous autofocus)
Interchangeable camera lens (Macro lens/ Wide-angle lens/Medium tele lens/Tele lens/High-temp lens)
20x magnification
Rich color palettes (Customized palette is supported)
Level & Span mode
Image outline
Panoramic stitching
Dual-light video recording
LRF
Image/Text/Voice annotations
Wi-Fi live streaming

Specifications

Technical Data
Display	4.3” LCD Touch (800×480)
IR resolution(Pixels)	640×480
Super resolution	✔(1280×960)
Spectral range	7.5~14μm
Pixel size	12μm
Frame rate	30Hz
Thermal sensitivity(NETD)	≤40mK
Focus	Manual / Automatic / Touch autofocus / Continuous autofocus
Lens recognition	Automatic

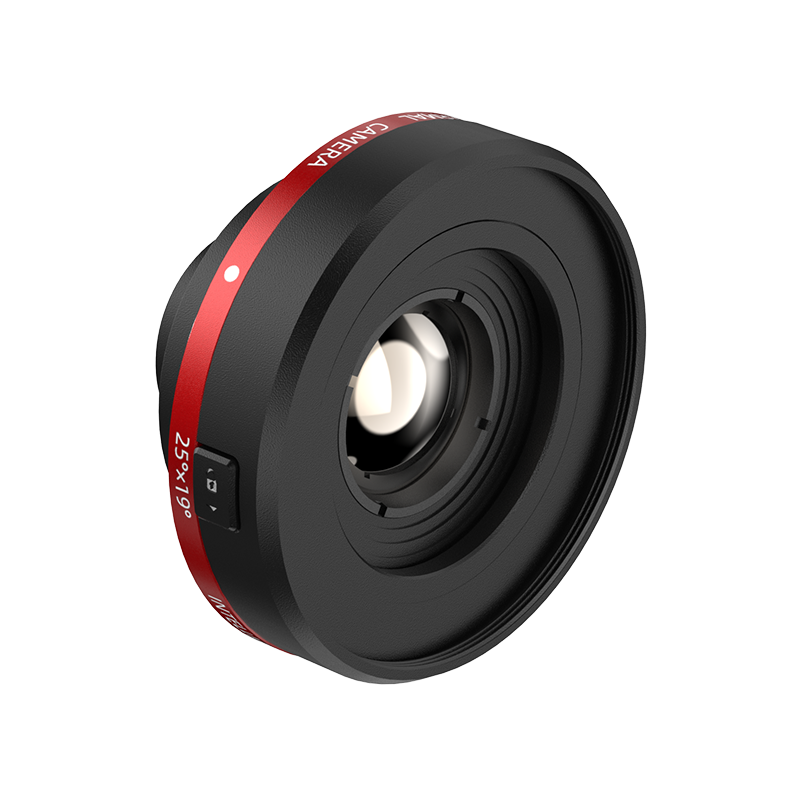

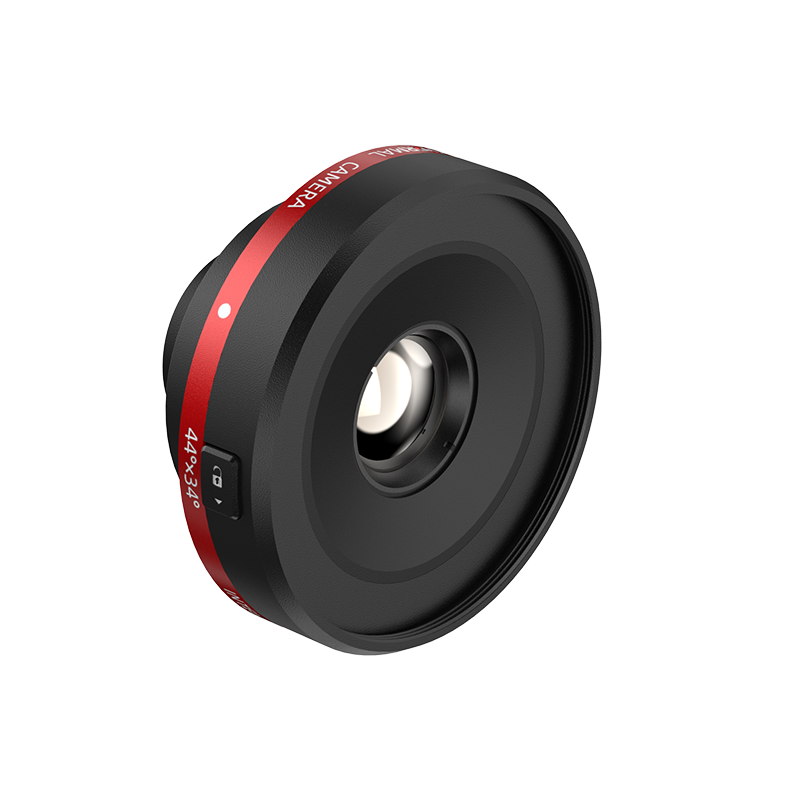

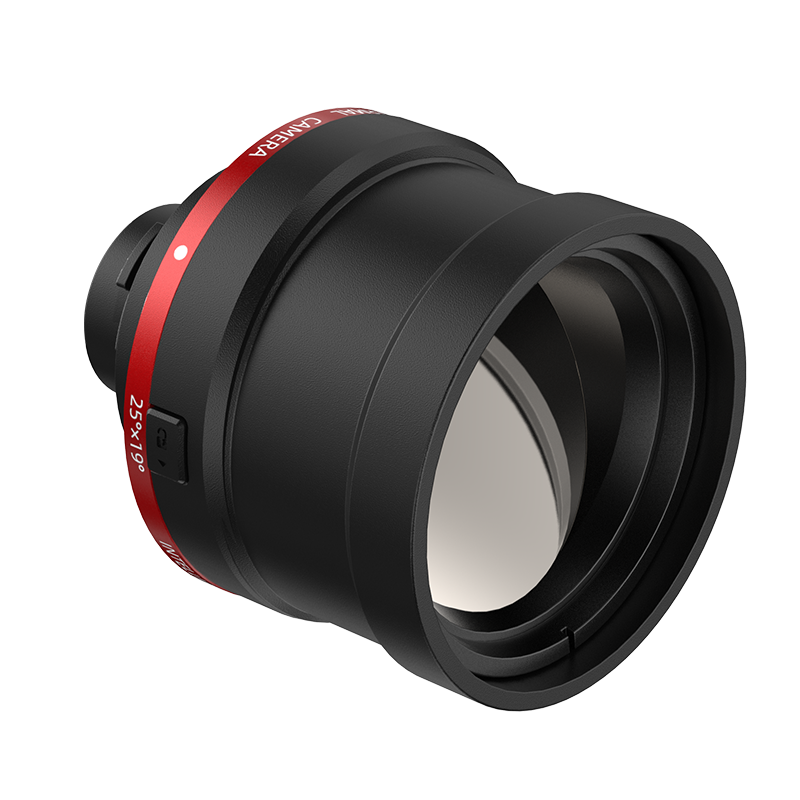

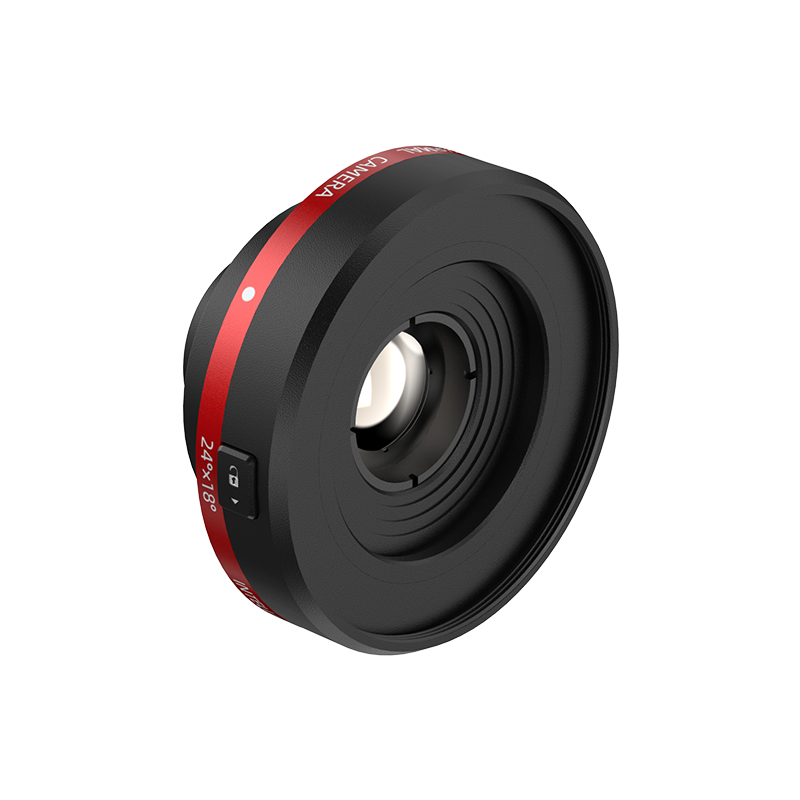

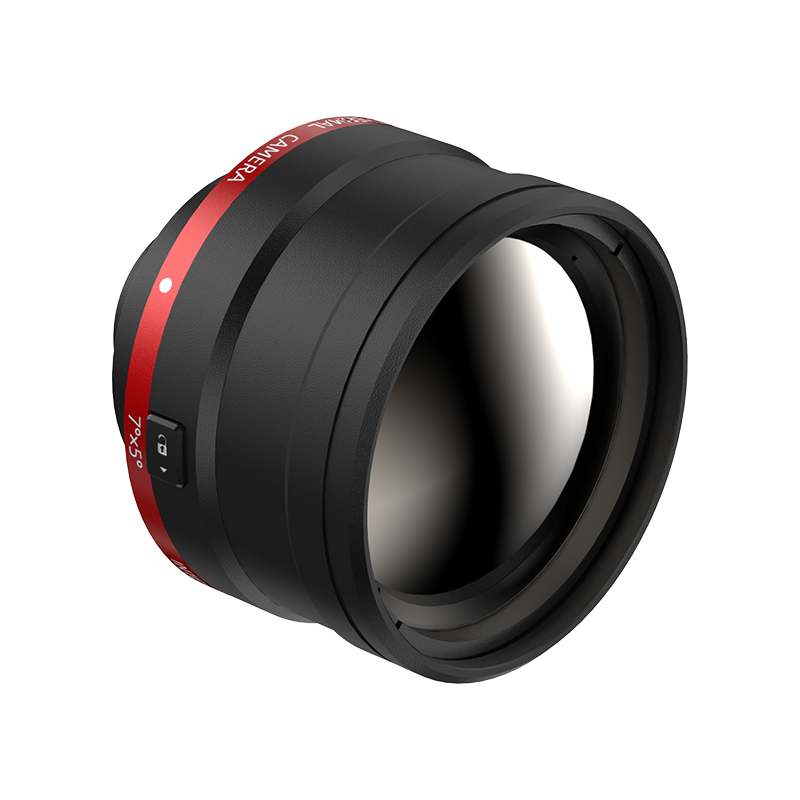

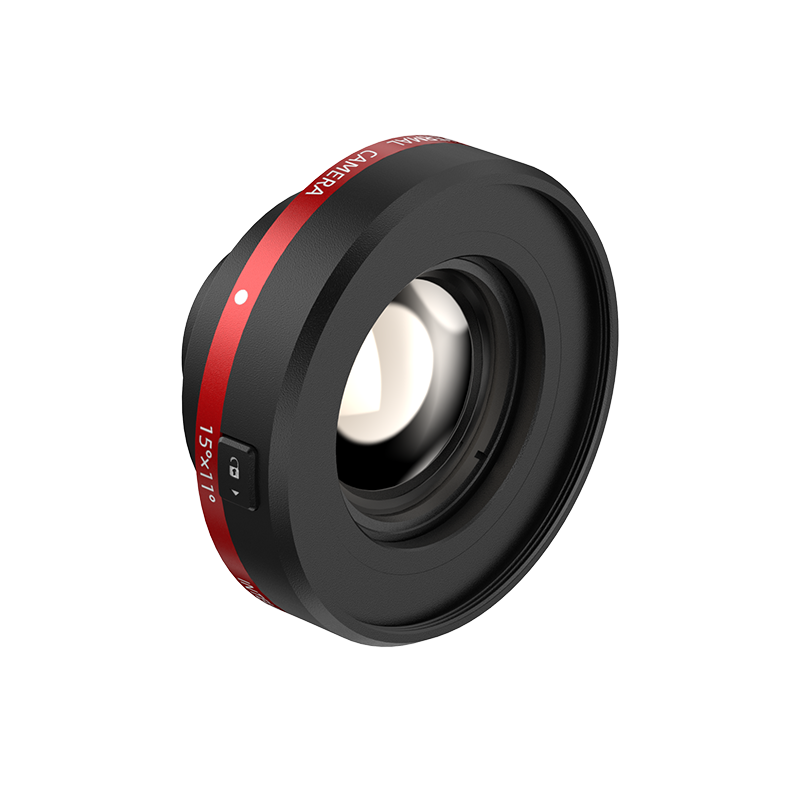

Infrared lens	Standard lens	Marco lens (Optional)	Wide-angle lens (Optional)	Medium tele lens (Optional)	Tele lens (Optional)	High-temp lens (optional)
Lens focal length	17.7mm	16.2mm	10.0mm	29.0mm	62.9mm	/
Field of view(FOV)	25°×19°	/	44°×34°	15°×11°	7°×5°	25°×19°
Temperature measurement range	Support auto-switching: -40°C~150°C, 0°C ~650°C 500°C ~2000°C (Optional Hi-temp. Lens)
Accuracy	±2℃ or ±2% whichever is greater

Functions

Color palettes	White Hot, Iron Red, Arctic, Rainbow 2, Hot Iron, Rainbow 1, Fulgurite, Medical, Tint, Black Hot, Blue Hot, Sepia, Green Hot, Ice and Fire, Amber, Customized
Image modes	Thermal, Visual image, Fusion, PIP
On screen analyzer	16 Points/16 Lines/16 Rectangles/16 Circles
Isotherm	Automatic, Semi-automatic, Manual
Level & Span	✔
Image outline	✔
Panoramic stitching	✔
Hi/Lo temperature alarm	LCD animation, LED flashlight, Buzzer
Hi/Lo temperature tracking	✔
All-around voice assistant	✔
Annotation	Text, Voice, Image
Digital camera resolution	13MP
Digital zoom	1.1x~20x
Video recording	✔
Voice recording	✔
Wi-Fi / Wi-Fi live streaming	✔
Bluetooth	✔
GPS	✔
Laser pointer / LRF	✔
LED lighting	✔
Analysis software	PC+APP

General Characteristics

Battery	3030mAh detachable Li-ion battery pack
Operating time	≥4 hours (with Wi-Fi off)
USB	Type-C
Storage	64GB Internal & 64GB Micro SD card
Image storage format	Jpg
Video storage format	MP4 & Irgd
Protection	IP54 & 2m
Languages	ZH_hans, ZH_hant, EN, FR, DE, ES, IT, RU, PL, KR, PT, TR, TH, NO, CZ, HU, JP, AR
Weight	≤1.15KG (included standard lens & battery)
Dimension	292mm×125mm×125mm
