UTG4000A Series

UTG4000A Series

The UTG4000A Series waveform generators are applied to a wide range of application domain,integrating multiple waveforms for Function Generation, Arbitrary Waveform Generation,Pulse Generation,Harmonic Generation,Analog/Digital Modulation source. The UTG4000A Series is a waveform generator with high sampling rate up to 500 MSa/s, MAX waveform length up to 32 Mpt. To generate stable, precise, low distortion signals The UTG4000A Series adopts Direct Digital Synthesizer (DDS) technology. User-friendly interface design with high resolution 8 inches display screen and rational panel layout to improve operational efficiency.

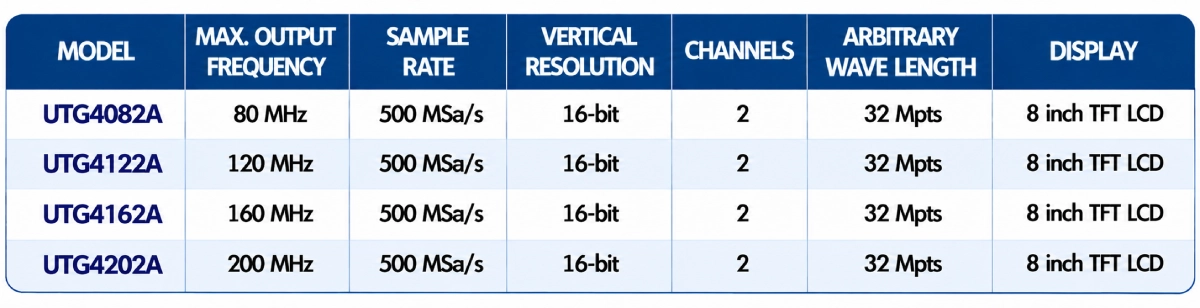

200 MHz

MAX. OUTPUT FREQUENCY

500 MSa/s

SAMPLE RATE

16 bits

VERTICAL RESOLUTION

2

CHANNELS

32Mpts

ARBITRARY WAVE LENGTH

8 inch TFT LCD

DISPLAY

REQUEST A QUOTE

Rich modulation modes

The UTG4000A series provides a wide range of analog and digital modulation types, including AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, PWM, SUM, and QAM. These modulation types offer rich options for signal modulation.

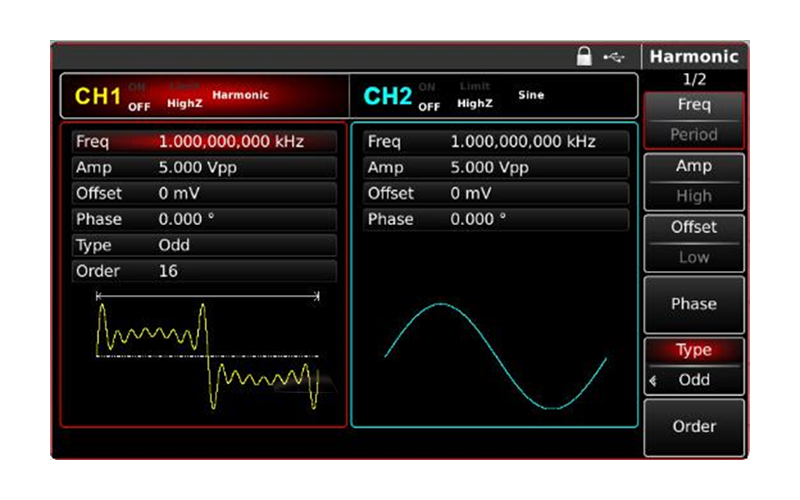

Harmonic output

The UTG4000A series also features a harmonic output function, which allows for up to 16 harmonic outputs. Users can specify the order, amplitude, and phase of the harmonics according to their requirements. This flexibility allows for precise control and customization of harmonic signals.

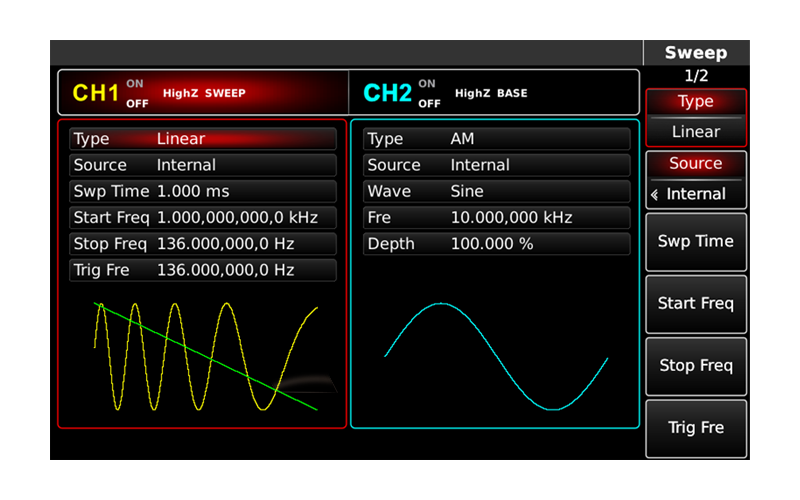

Sweep function

Support 2 sweep modes include linear and logarithmic.
