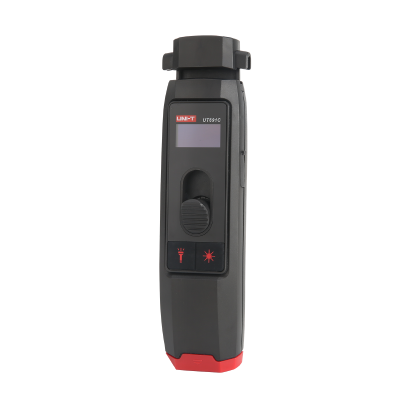

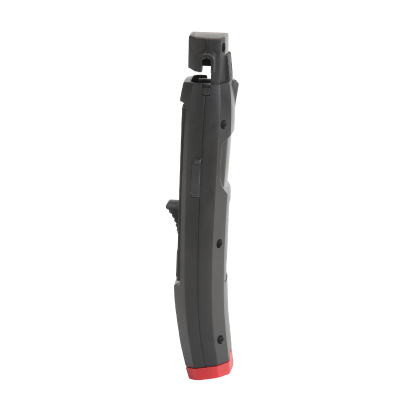

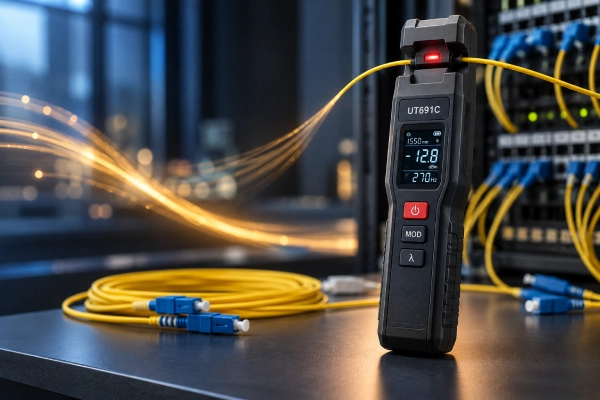

Features of UT691C Fiber Optic Identifier
- Non-Destructive Micro-bend Online Testing
- Auto-identifies 3 signal frequencies
- Easy Breakpoint Detection
- Built-in High-Power LED Flashlight
- 4-in-1 universal Fixture
- Mini and Compact
- Lithium battery USB Direct Charging
|
Model |
UT691C |
||
|
Live Fiber Identifier Parameters |
|||
|
Fiber Types |
250μm/900μm/2mm/3mm fiber |
||
|
Wavelength Range |
700 to 1700nm |
||
|
Direction Identification Range |
-40 to +10dBm (Optical Source Wavelength: 1550nm) |
||
|
Frequency Identification Lower Limit |
-40dBm |
||
|
Insertion Loss |
< 3dB @ 1310nm; < 3dB @ 1550nm |
||
|
Fiber Fixture |
4-in-1 universal fixture |
||
|
Detected Frequencies |
270Hz, 1kHz, 2kHz |
||
|
Backlight |
|||
|
VFL Wavelength |
650nm ± 20nm |
||
|
VFL Port |
2.5mm Universal port |
||
|
VFL Output Power |
10mW (solid light/2±0.5Hz flashing) |
||
|
Other Parameters |
|||
|
Charging Port |
Type-C port |
||
|
LED Flashlight |
✔ |
||
|
Buzzer Prompt |
✔ |
||
|
Operating Temperature |
|
||
|
Characteristics |
|||
|
Power Supply |
3.7V 400mAh Lithium battery |
||
|
Size |
152mm*41mm*32mm |
||
|
Weight |
About 80g |
||
|
Standard Accessories |
Optical Fiber Identifier*1 Gift Box*1 PE Bag*1 User Manual*1 Type-C Charging Cable*1 |
||
|
Standard Quantity Per Carton |
10pcs |
||
