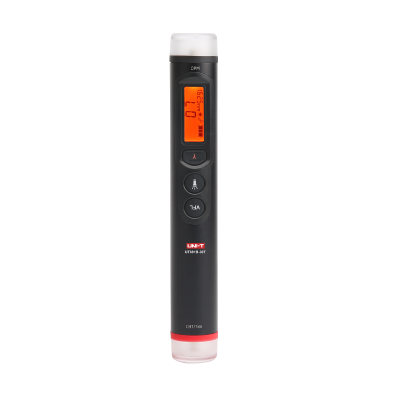

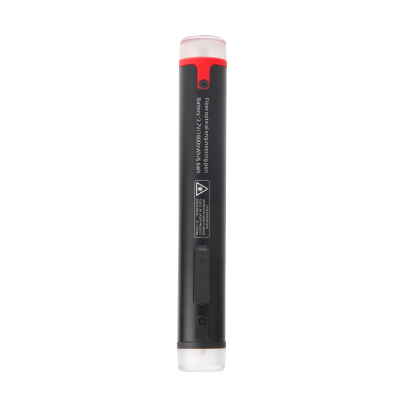

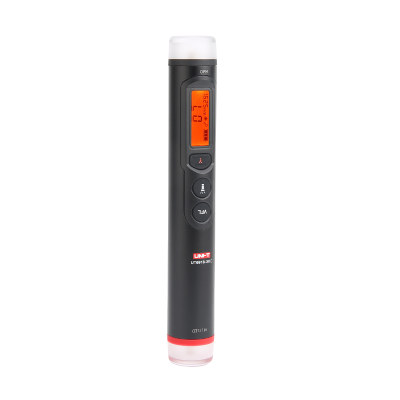

Features of UT691B-30C UT691B-30T Fiber Optic Engineering Pen
|
Model |
UT691B-30C |
UT691A-30T |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Measurement Range |
C-type (-50~+30dBm) |
T-type (-70~+10dBm) |
|||||||||
|
Response Wavelength |
700~1700nm |
||||||||||
|
Calibration Wavelength |
850nm/980nm/1270nm/1300nm/1310nm/1490nm/1550nm/1577nm/1625nm/1650nm |
||||||||||
|
Accuracy |
|
||||||||||
|
Power Meter Detector Type |
InGaAs |
||||||||||
|
Resolution |
0.01dBm |
||||||||||
|
Wavelength Memory Function |
✔ |
||||||||||
|
LED Flashlight |
✔ |
||||||||||
|
Backlight |
✔ |
||||||||||
|
Red Light Source Interface |
2.5mm Universal connector |
||||||||||
|
Red Light Source Output Power |
30mW |
||||||||||
|
Red Light Wavelength |
650nm±20nm |
||||||||||
|
Red Light Mode |
CW/2±1Hz Flash |
||||||||||
|
Charging Interface |
Type-C Interface |
||||||||||
|
Operating Environment |
0-50℃@Use; 0-45℃@Charge; <90%RH No Condensation |
||||||||||
|
Storage Environment |
-20℃-45℃ |
||||||||||
|
General Characteristics |
|||
|---|---|---|---|
|
Standard Accessories |
Fiber Optic Engineering Pen*1 Gift Box*1 Cloth Bag*1 PE Bag*1 Type-C Charging Cable*1 User Manual*1 |
||
|
Product Weight |
About 125g |
||
|
Product Size |
170mm×25mm×25mm |
||
|
Power Supply |
1800mAh Built-in Lithium Battery |
||
|
Standard Quantity Per Carton |
20pcs |
||
