Features of UT691C Fiber Optic Identifier
|

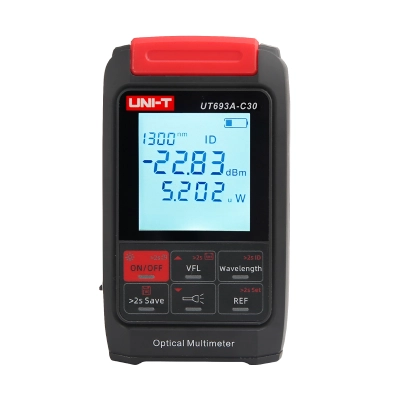

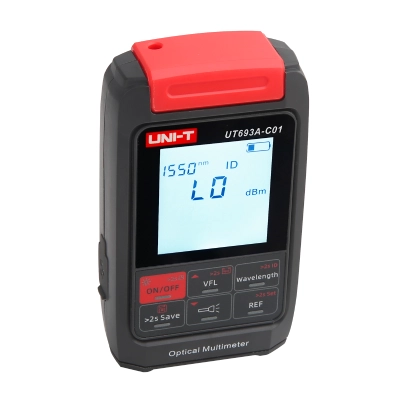

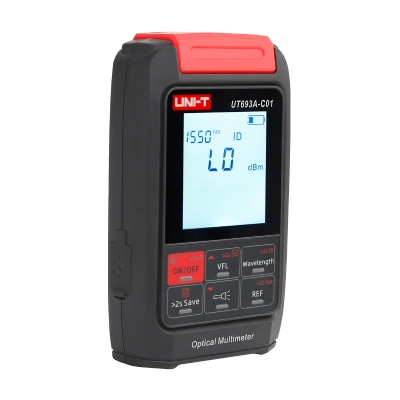

Model |
UT693A-C01 |
UT693A-C30 |
UT693A-T01 |
UT693A-T30 |
|---|---|---|---|---|
|
Power Measurement Range |
C Type (-50 ~ +30 dBm) |
T Type (-70 ~+10 dBm) |
||
|
Calibration Wavelength |
850nm/980nm/1270nm/1300nm/1310nm/1490nm/1550nm/1577nm/1625nm/1650nm |
|||
|
Interface |
2.5mm Universal connector (Power Meter, Red Light Source) |
|||
|
Detector Type |
InGaAs |
|||
|
Resolution |
0.01 dBm |
|||
| Optical Fiber Transmission Frequency |
270Hz/330Hz/1kHz/2kHz |
|||
|
Wavelength Memory Function |
✔ |
|||
|
Self-Calibration |
✔ |
|||
|
LED Flashlight |
✔ |
|||
|
Backlight |
✔ |
|||
|
Red Light Source Output Power |
1mW |
30mW |
30mW |
1mW |
|
Red Light Wavelength |
650nm±20nm |
|||
|
Red Light Mode |
CW/2±1Hz flashing |
|||
|
Network Cable Sequence Test |
RJ45 Interface |
|||
|
Charging Interface |
Type-C Interface |
|||
|
Data Storage |
500 Sets |
|||
|
Operating Environment |
-10~50℃, <90%RH |
|||
|
Storage Environment |
-20~45℃, 65±20%RH |
|||
|
General Characteristics |
||||
|---|---|---|---|---|
|
Standard Accessories |
Optical Power Meter*1 Gift Box*1 User Manual *1 PE Bag*1 Type-C Charging Cable*1 |
|||
|
Product Dimensions |
100mm*59mm*28mm |
|||
|
Power Supply |
3.7V 450 mAh Lithium Battery |
|||
|
Product Weight |
About 95g |
|||
|
Standard Quantity Per Carton |
20pcs |
|||
