UT625A/UT625B 100A/200A Low Resistance Ohmmeter

The UT625A/UT625B Low Resistance Tester measures contact and loop resistance of switchgear with 100A/200A DC test currents. It directly reads resistance values, stores up to 200 test records, and uploads data to PC for storage/printing.
Featuring high accuracy and stable performance, it’s widely used in power systems, rail transit, new energy, etc., for loop resistance testing of high-voltage switches, transformers, busbars, cable joints, grounding devices, combiner boxes, and inverters.

REQUEST A QUOTE     DOWNLOAD CATLOUGE

Compare
Categories: , , ,
Description

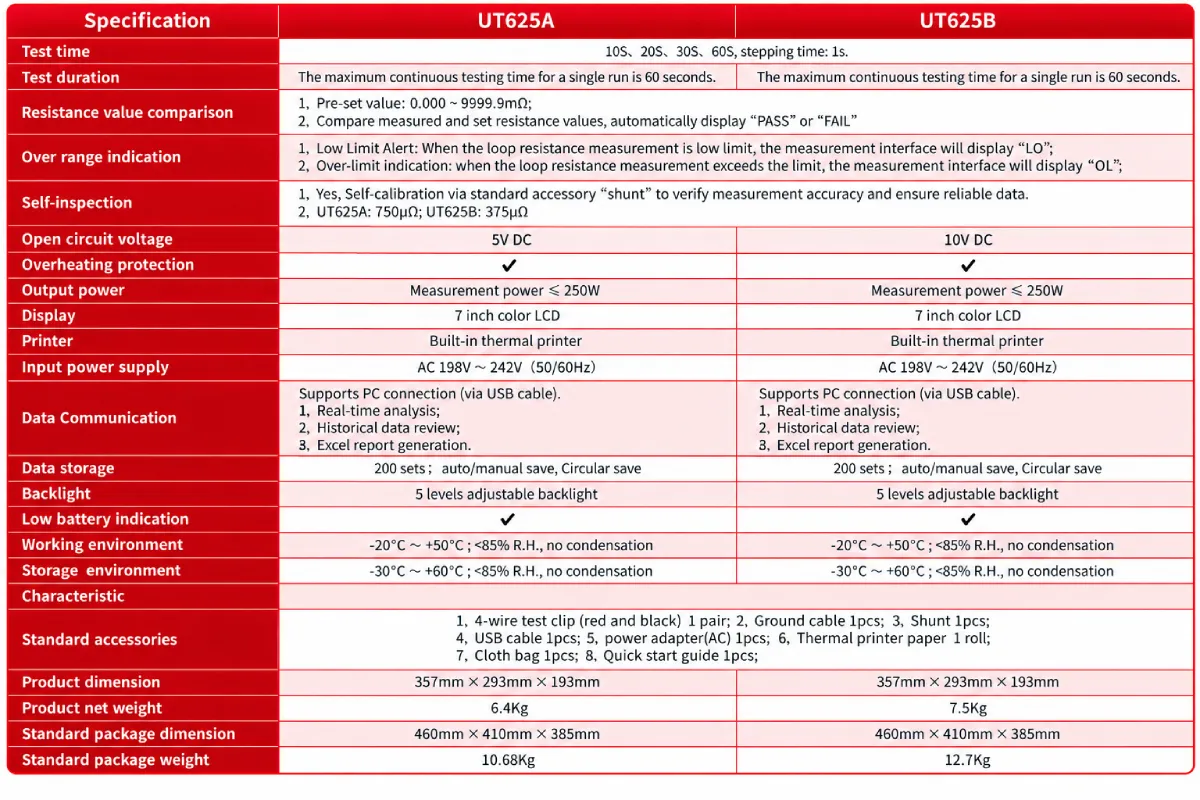

Features of UT625A/UT625B 100A/200A Loop Resistance Ohmmeter

Certifications: ROW

  • Resistance:
    i. UT625A: 0.1uΩ~1000mΩ
    ii. UT625B: 0.1uΩ~2000mΩ
  • Test current:
    i. UT625A: 5A~100A, stepping current: 5A/10A
    ii. UT625B: 5A~200A, stepping current: 5A/10A
  • Four-wire accuracy measurement
  • Data transmit (via USB cable): PC software analysis
  • Built-in thermal printer: to print the testing data, recordings
  • Comparison test: arbitrary setting of comparison values
  • Test time: 10s~60s, 1s stepping time
  • OL indication: if the reading <0.1uΩ，it displays 0.0uΩ; if the reading >Max range, it displays OL
  • 200 set data storage
  • Data storage: auto save/manual save/ Circular save
  • Adjustable backlight: 5 levels
