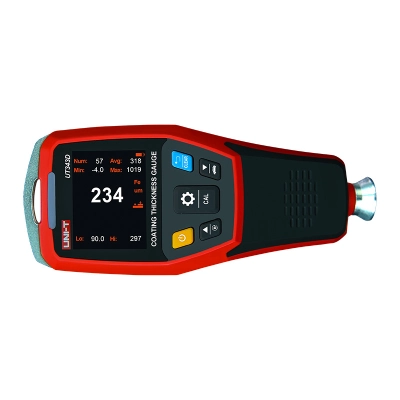

    UT343D Coating Thickness Gauge

    UT343D coating thickness gauge can measure coating thickness on ferrous and non-ferrous materials. This device is designed with a unique quick test feature, which allows users to set thickness range and using a 3-color LED and audio alarm to quickly determine if coating being tested falls within the preset range, greatly increasing work efficiency.
    UT343 display is auto rotatable. This CE certified device can store up to 500 sets of data for further analysis through the PC analytical software that is included.

    REQUEST A QUOTE     DOWNLOAD CATLOUGE

    Compare
    Categories: Coating Thickness Gauges, Environmental Testers, UNI-T
    Share:
    • Description
    Description

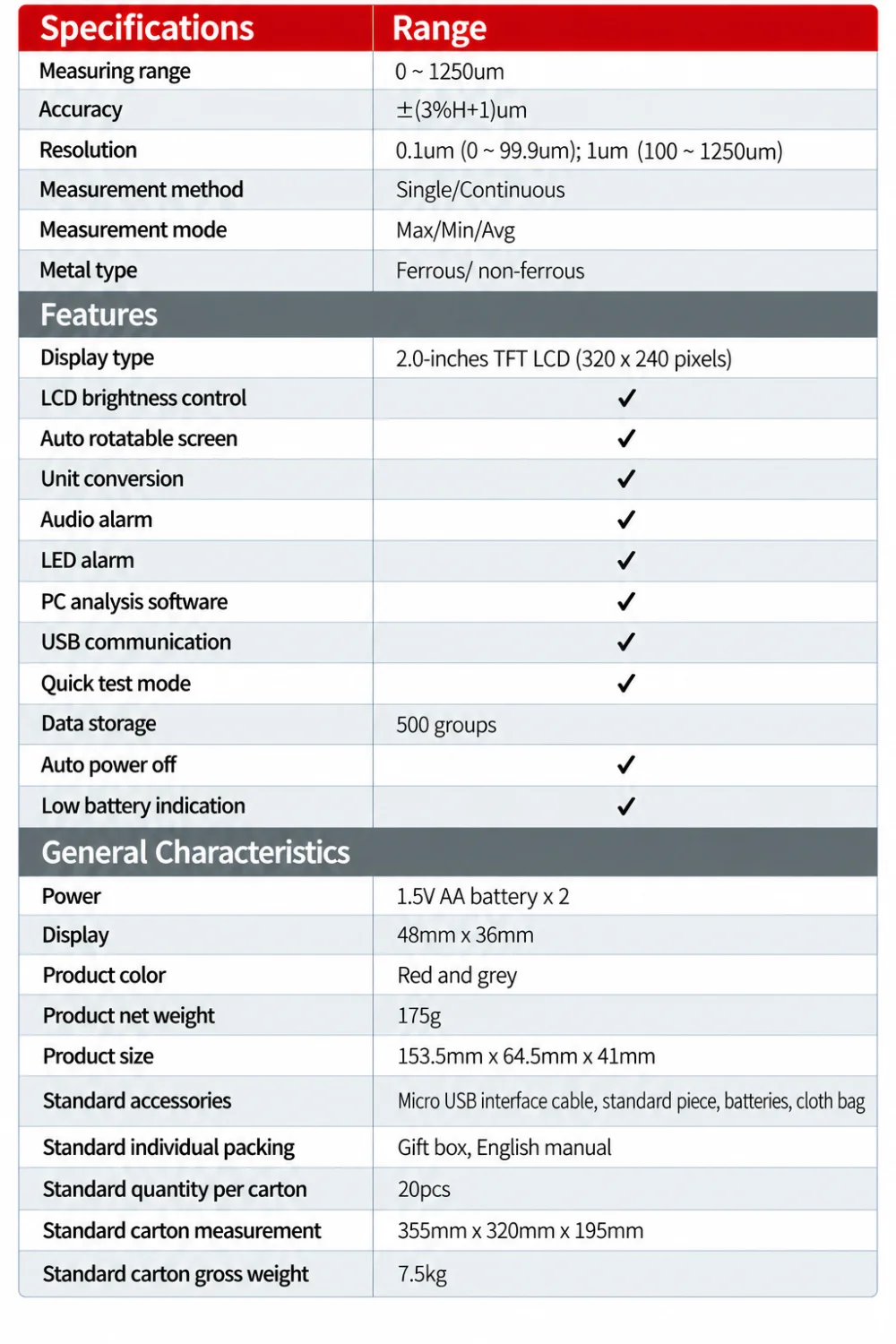

    Features of UT343D Coating Thickness Gauge

    Certificates: CE, UKCA

    • LCD brightness control
    • Auto rotatable screen
    • Unit conversion
    • Audio alarm
    • LED alarm
    • PC analysis software
    • USB communication
    • Quick test mode
    • Auto power off
    • Low battery indication

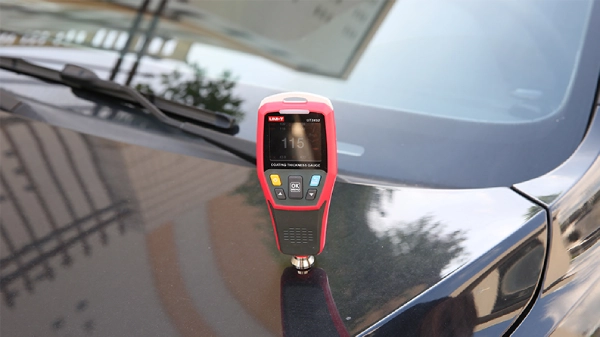

    UT343D-application-2

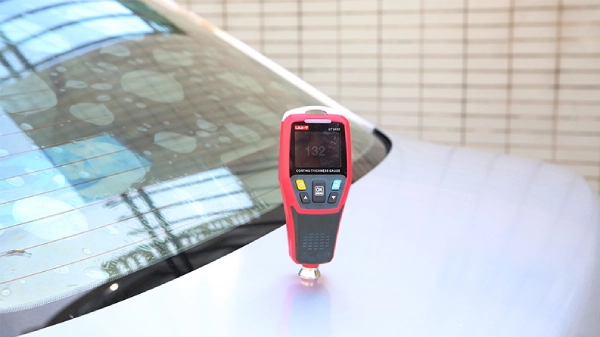

    UT343D-application-1

      UT343D | Datasheet

      UT343D | User Manual
