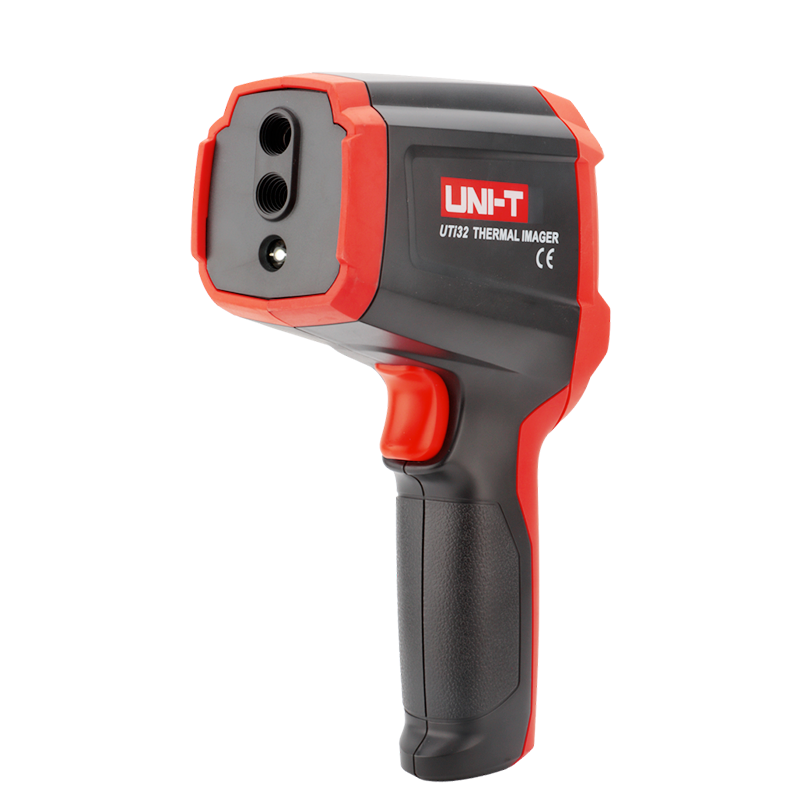

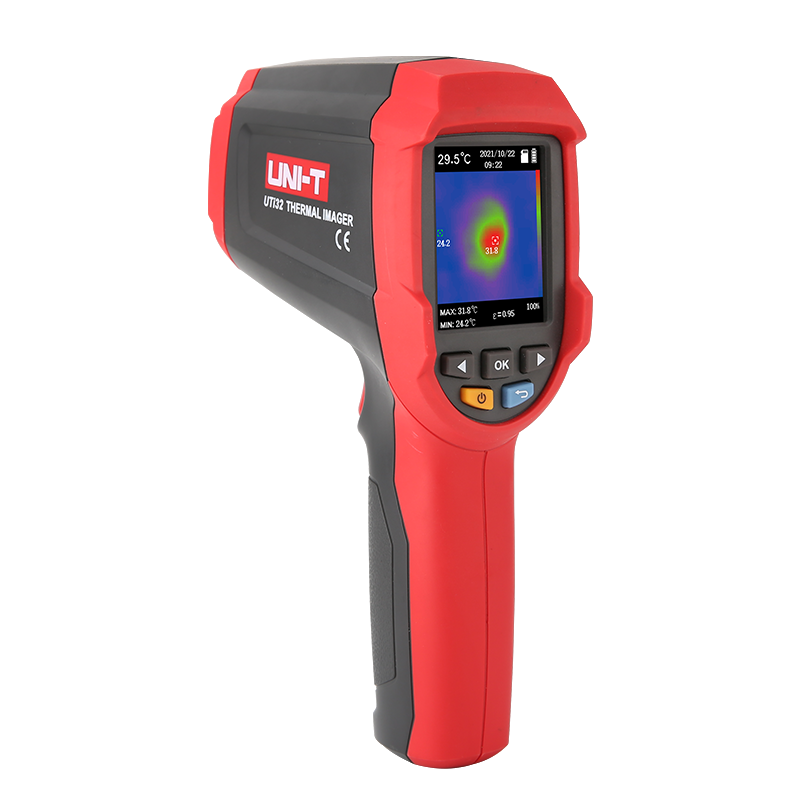

UTi32 High Temperature Thermal Camera

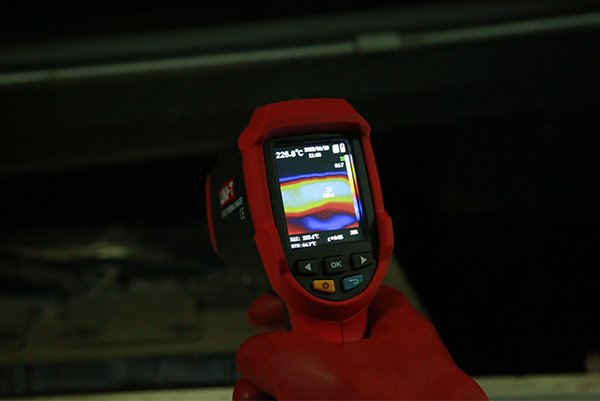

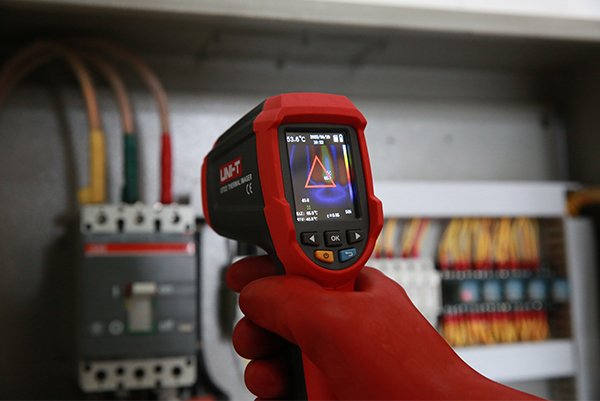

UTi32 is a high temperature thermal camera that specially designed for higher temperature applications，such as: iron forging, glassware & porcelain production, petrochemical, metallurgy, etc. It can quickly detect the temperature from -20℃ to 1000℃ and auto tracking and alarm for high/low spot. UTi32 is a portable and lightweight thermal imager with 300000 pixels digital camera, with three image modes: thermal, visual image, fusion, and more than 7 hours battery operation time. It is an affordable and reliable tool for high temperature inspection.

REQUEST A QUOTE DOWNLOAD CATLOGUE

Features

Temperature range: -20℃~1000℃ / -4℉ ~1832℉
IR resolution: 32×32
Display: 2.4″ IPS (480*320)
Digital camera resolution: 640×480
Image modes: Thermal,visual image,fusion
Auto tracking and alarm for high/low spots
Portable and lightweight
More than 7 hours battery operation time
With LED light

Specifications

Display	2.4″ IPS (320×240)
IR resolution(Pixels)	32×32
Spectral range	8~14µm
Pixel size	17µm
Frame rate	≤9Hz
Thermal sensitivity(NETD)	≤150mK
Focus	Focus Free
Field of view(FOV)	30°(H) × 30°(V)
Temperature measurement range	-20℃~1000℃
Accuracy	±2℃ or ±2% whichever is greater

Functions

Color palettes	Ironbow, Rainbow, Black Hot
Image modes	Thermal, Visual image, Fusion
Hi/Lo temperature alarm	LCD animation
Hi/Lo temperature tracking	✔
Digital camera resolution	300,000 pixels

General Characteristics

Battery	2600mAh rechargeable Li-ion battery
Operating time	≥7 hours
USB	Type-C
Image storage format	BMP
Certificates	CE, UKCA, FCC, RoHS
Languages	ZH, EN
Weight	303.7g
Dimension	205mmx124mmx65mm

Packing Details

Standard accessories	Type-C USB cable, SD card, English Manual, Documents, Download Operation Guide
Standard individual packing	Gift box
Standard Qty per carton	5pcs
Standard carton size	500mm×275mm×190mm
Standard carton G.W.	3.4kg

UTi32 Data Sheet

1 file(s) 1 MB

UTi32 User Manual

1 file(s) 6 MB
