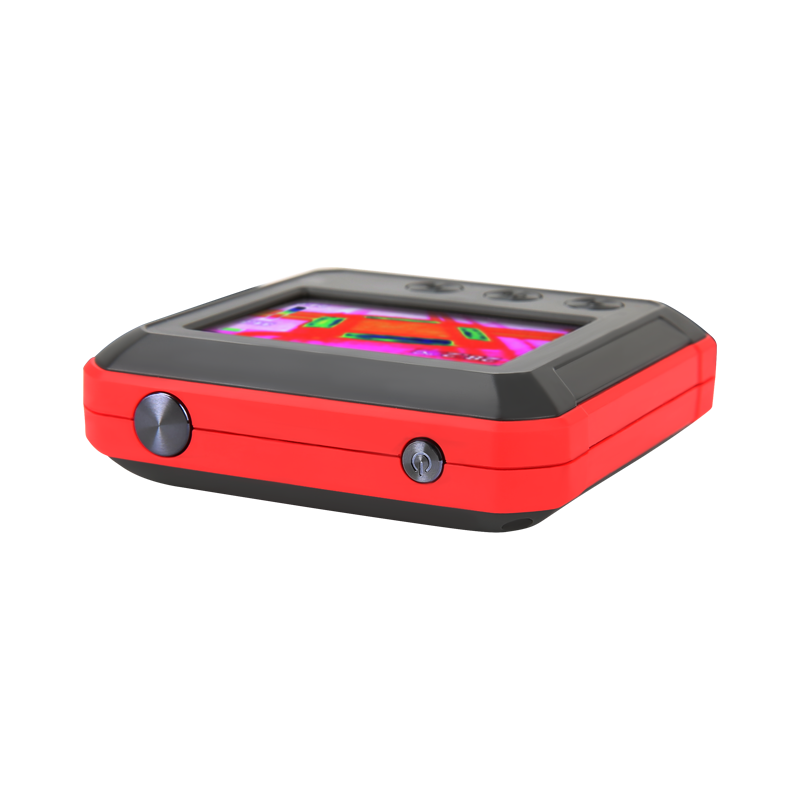

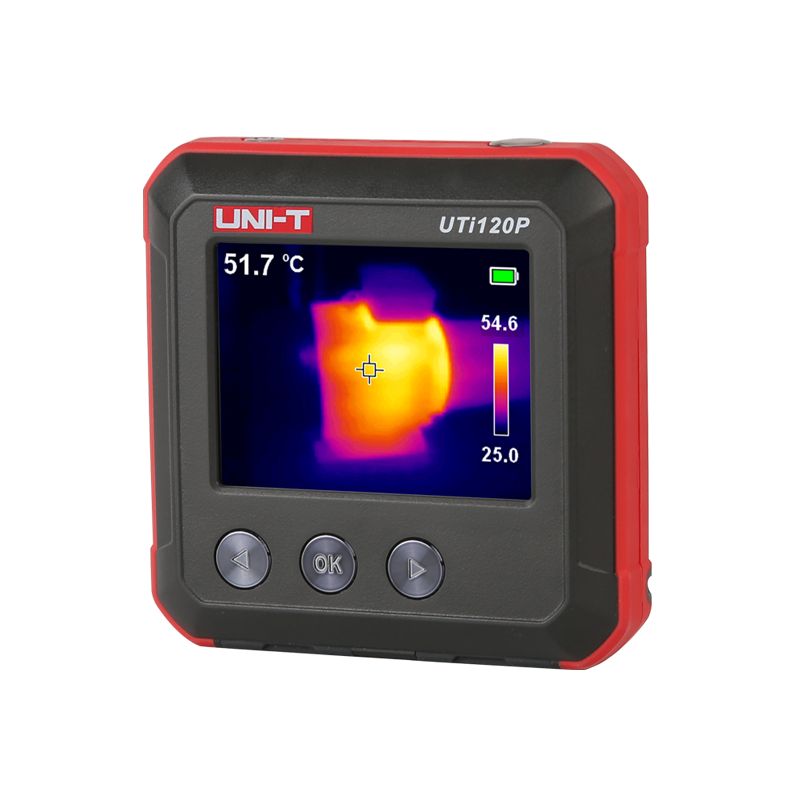

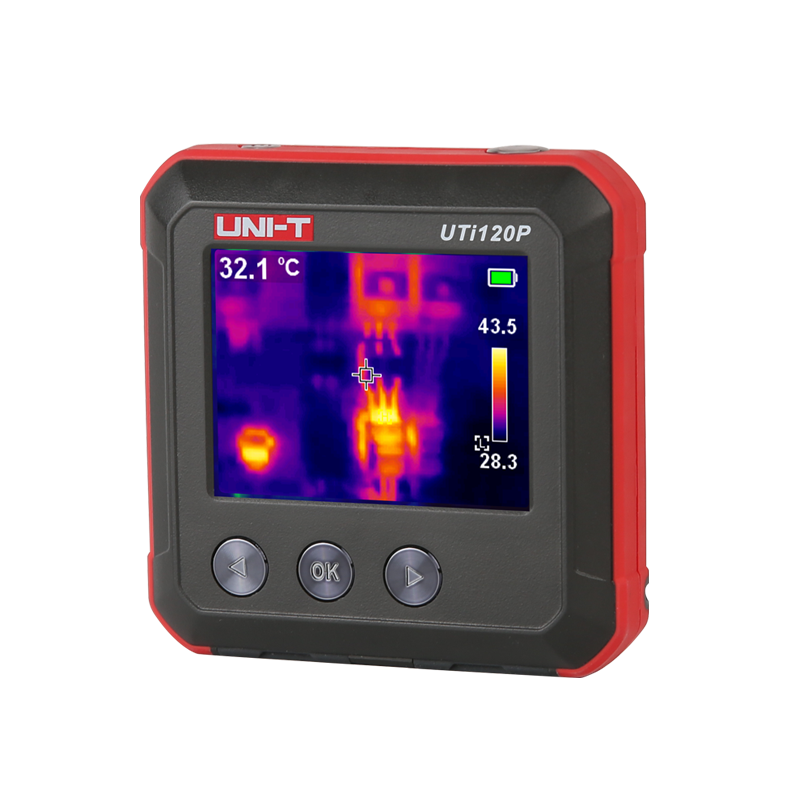

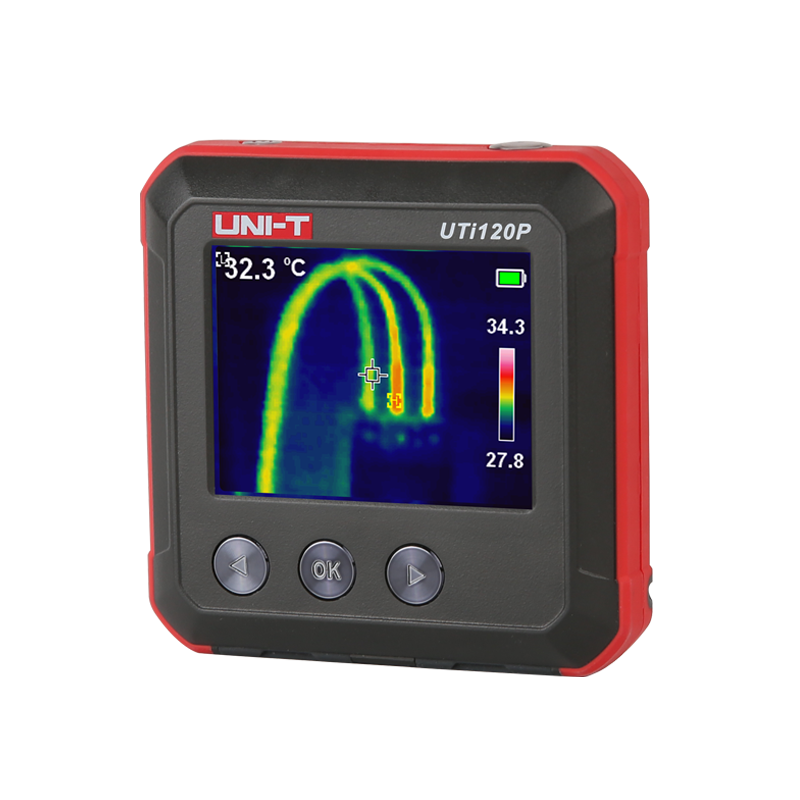

UTi120P Pocket-sized Thermal Camera

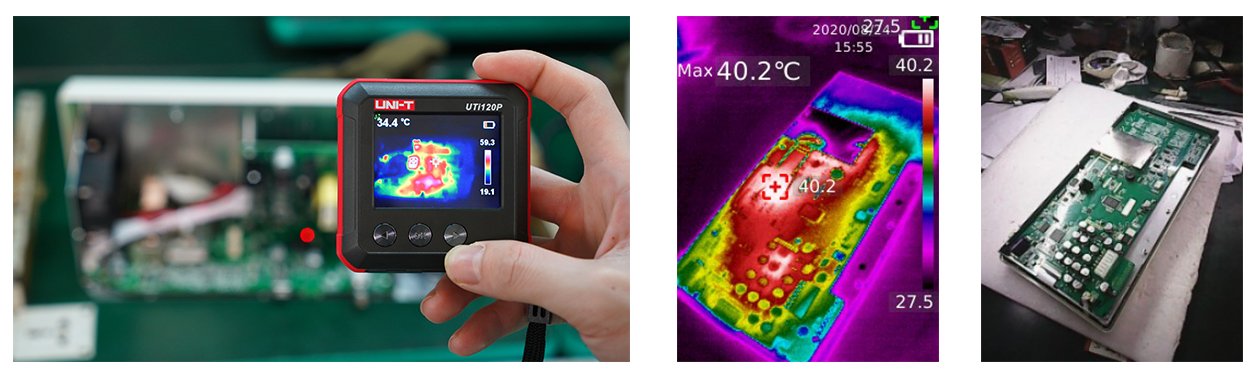

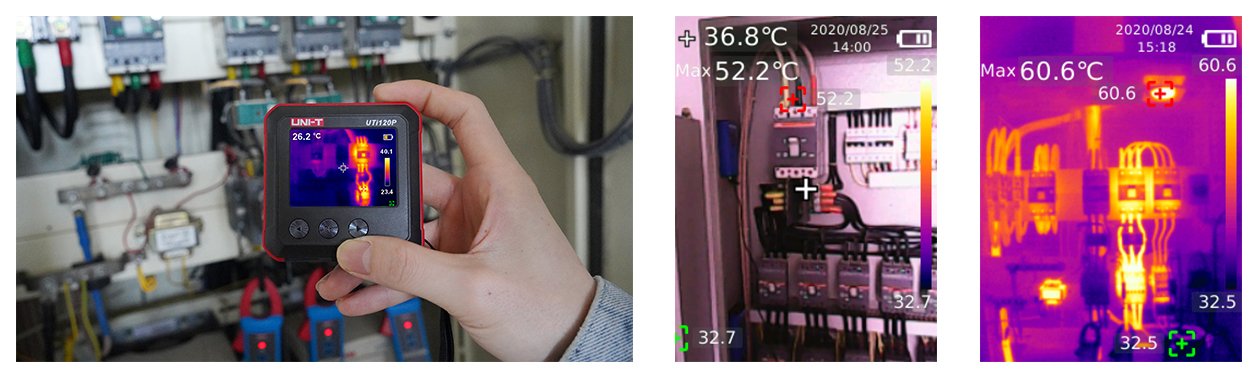

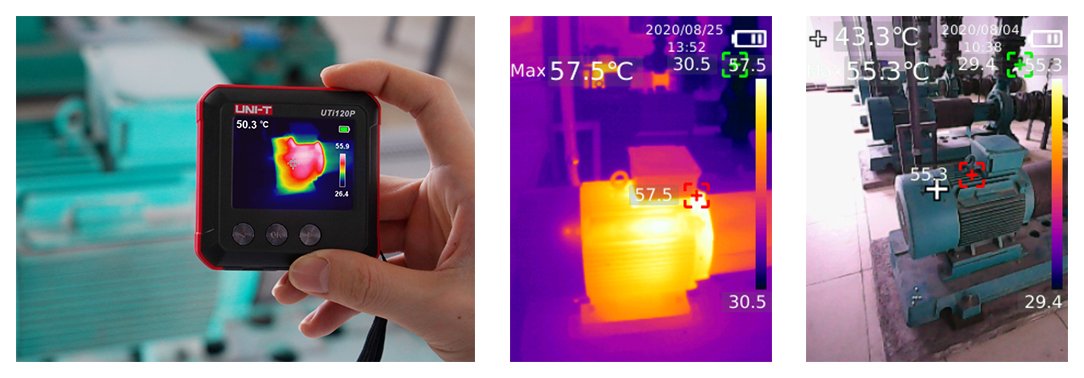

UTi120P thermal camera is mini and portable in size, users can put it into pocket to go anywhere to identify and troubleshoot problems, it can automatically track the objective’s temperature from -20°C to 400°C, which can be widely used in many applications.

REQUEST A QUOTE DOWNLOAD CATLOGUE

Features

Mini and portable
2.4” TFT display screen (320×240 Pixels)
IR resolution: 120×90
Temperature measurement range:-20℃ to 400℃ / -4℉ to 752 ℉
Auto alarm for high/low temperature
Auto tracking for hot spot/cold spot
Image capture
Color palettes: 3(Iron, Rainbow, Grey)
PC software analysis

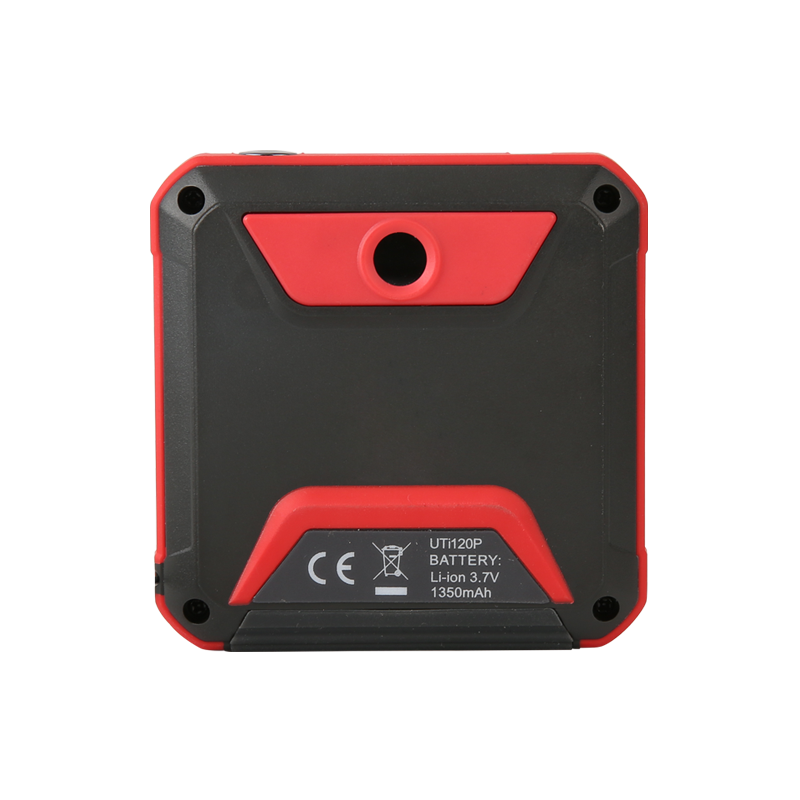

Rechargeable Li-ion battery

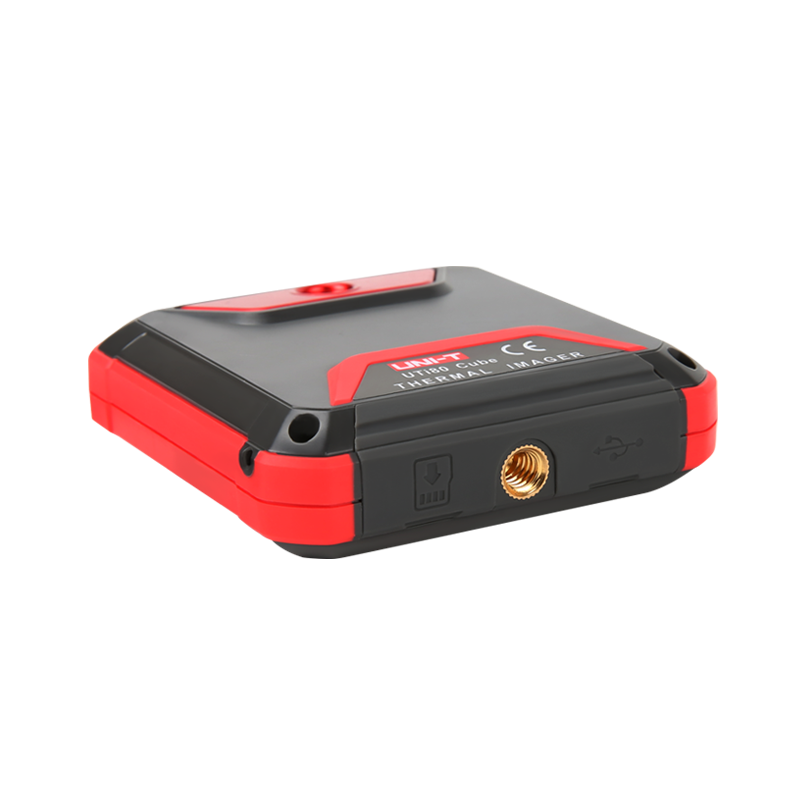

1/4” tripod mounting hole
1m drop proof

Specifications

Technical Data
IR resolution (Pixels)	120×90
Display	2.4” TFT LCD (320×240)
Field of view(FOV)	50°×38°
Thermal sensitivity(NETD)	≤60mK
Spatial resolution(IFOV)	7.3mrad
Frame rate	≤25Hz
Spectral range	8~14µm
Focus	Focus Free
Temperature measurement range	-20℃~400℃
Accuracy	±2℃ or ±2% whichever is greater
Emissivity	0.01~1.00 adjustable (0.95 default)

Functions

☑ Color palettes: 3 (Ironbow, Grey, Rainbow)
☑ Auto tracking and alarm for high/low temperature
☑ PC software analysis
☑ Auto power off: 5/10/30mins(default)/off

General Characteristics

Standard accessories	Hand strap, Carrying bag, Micro SD card, Micro USB cable, English manual,Documents download operation guide card
Standard individual packing	Gift box
Standard Qty per carton	5
Standard carton size	455mm×145mm×150mm
Standard carton G.W.	2.8kg

Packing Details

Standard accessories	Type-C USB cable, English Manual, Documents Download, Operation Guide
Standard individual packing	Gift box
Standard Qty per carton	10pcs
Standard carton size	500mm×315mm×295mm
Standard carton G.W.	10.1kg

UTi120P Data Sheet

1 file(s) 0 KB

UTi120P User Manual

1 file(s) 5 MB
