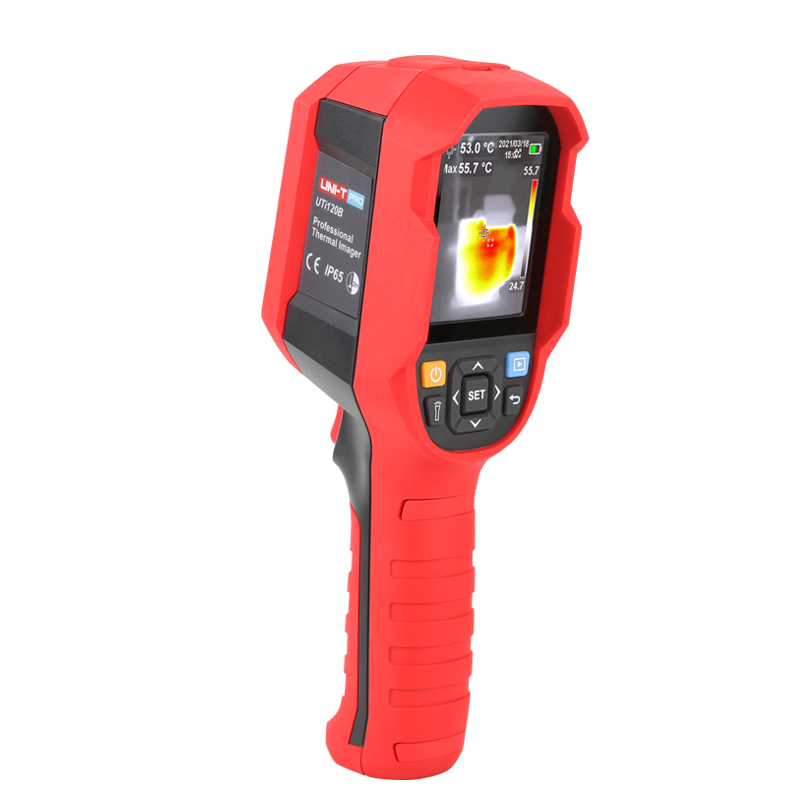

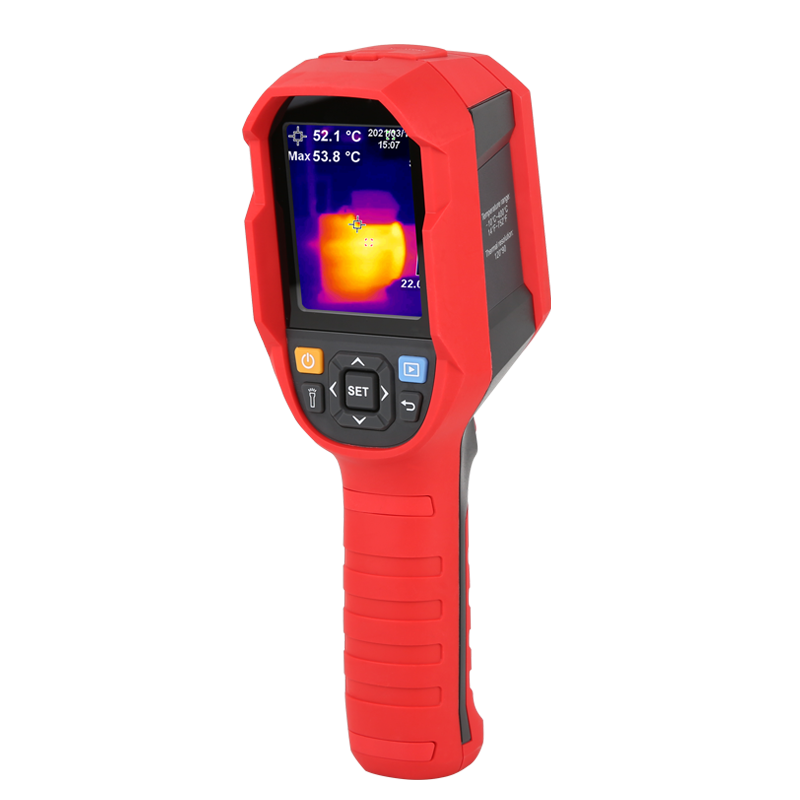

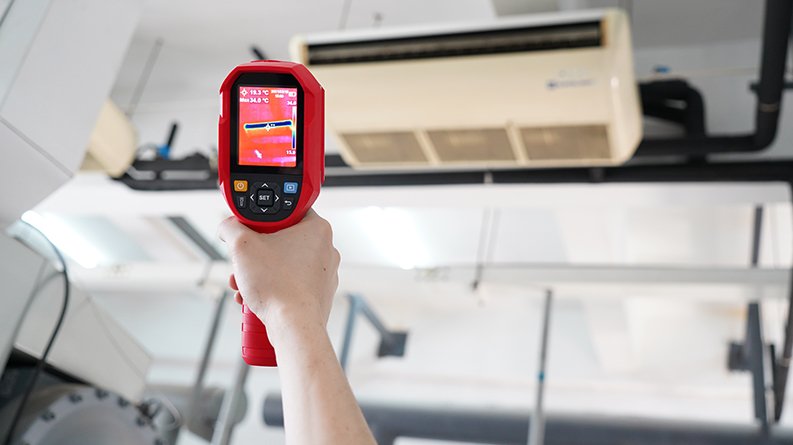

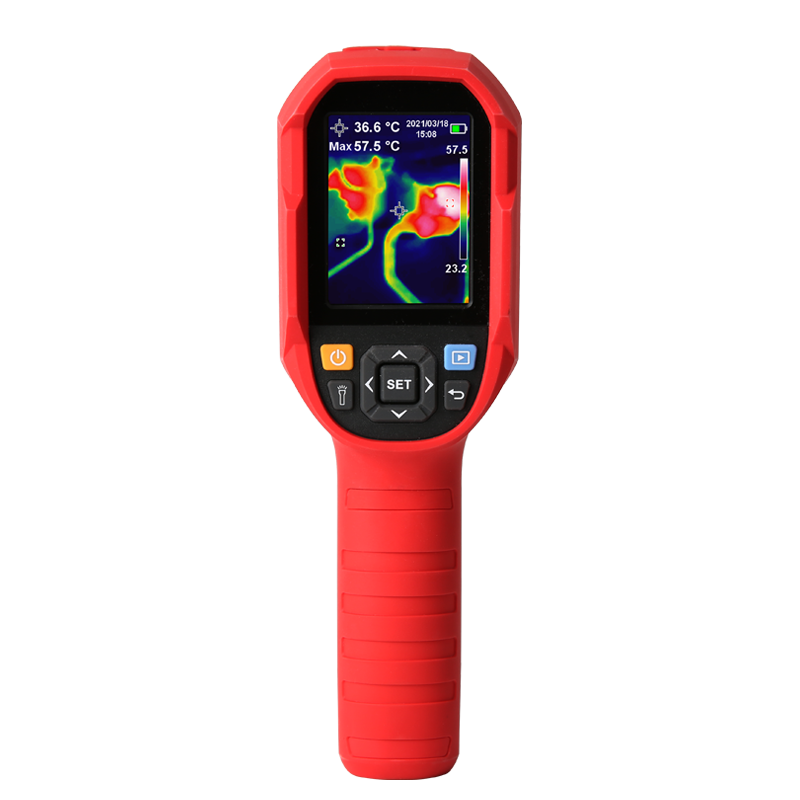

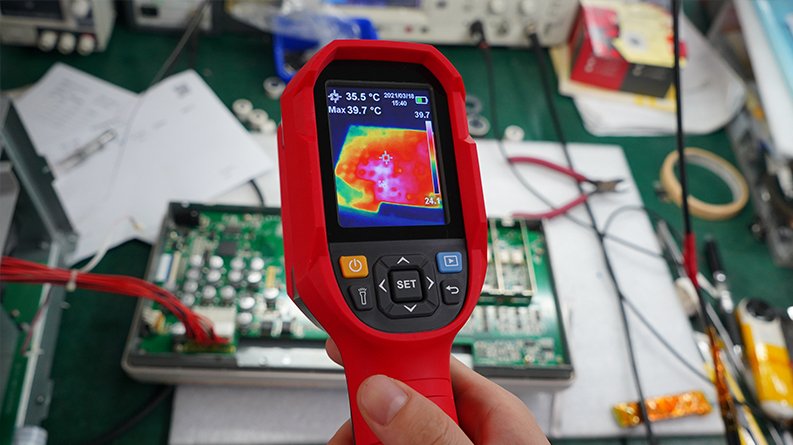

UTi120B Heavy Duty Thermal Camera

UTi120B is a rugged and ergonomically designed thermal camera, powerful and user friendly with great performance and attractive price, with 120×90 pixels IR resolution which can automatically track the objective’s temperature from -20℃~400℃. It is an affordable professional troubleshooting tool, widely used in many applications.

REQUEST A QUOTE DOWNLOAD CATLOGUE

Features

Durable and user-friendly
2.8” TFT display screen (320×240 Pixels)
IR resolution: 120×90
Temperature measurement range: -20℃ to 400℃ / -4℉ to 752 ℉
Auto alarm for high/low temperature
Auto tracking for hot spot/cold spot
On screen analyzer: 3 Points
Image capture
Image modess: Thermal,Visual image,Fusion,PIP
Color palettes: 7(White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC)

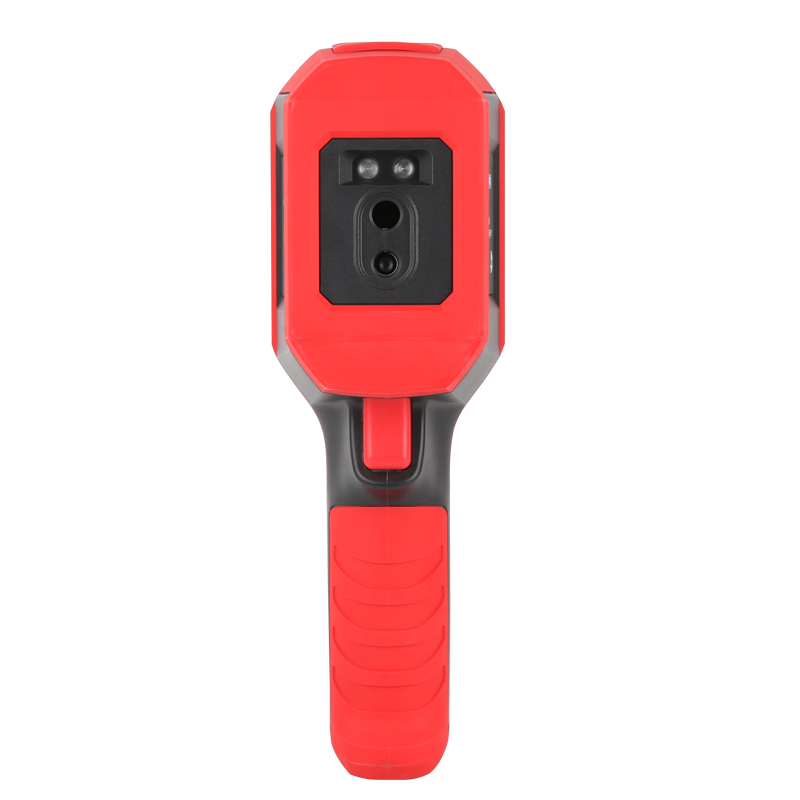

LED flashlight
PC software analysis
Rechargeable Li-ion battery

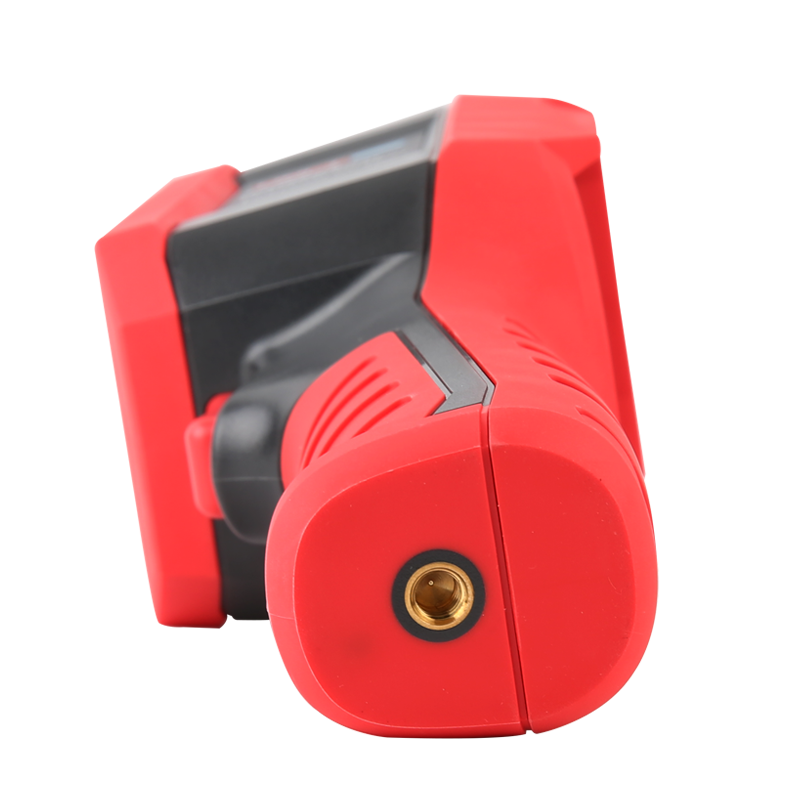

1/4”Tripod Mounting Hole
IP65
2m drop proof

Specifications

Technical Data
Display	2.8” TFT (320×240)
IR resolution(Pixels)	120×90
Spectral range	8~14µm
Pixel size	17µm
Frame rate	≤25Hz
Thermal sensitivity(NETD)	≤60mK
Focus	Focus Free
Field of view(FOV)	50°(H) × 38°(V)
Temperature measurement range	-20℃~400℃
Accuracy	±2℃ or ±2% whichever is greater

Functions

Color palettes	White Hot, Black Hot, Red Hot, Ironbow, Rainbow
Image modes	Thermal, Visual image, Fusion
Hi/Lo temperature alarm	LCD animation, LED flashlight, Buzzer
Hi/Lo temperature tracking	✔
Digital camera resolution	640×480
LED lighting	✔
Analysis software	PC

General Characteristics

Battery	5000mAh rechargeable Li-ion battery
Operating time	≥6 hours
USB	Type-C
Image storage format	BMP
Protection	IP65 & 2m drop proof
Certificates	CE, FCC, RoHS
Languages	ZH, EN
Weight	490g
Dimension	236mm×75.5mm×86mm

Packing Details

Standard accessories	Type-C USB cable, English Manual, Documents Download, Operation Guide
Standard individual packing	Gift box
Standard Qty per carton	10pcs
Standard carton size	500mm×315mm×295mm
Standard carton G.W.	10.1kg

UTi120B Data Sheet

1 file(s) 1 MB

UTi120B User Manual

1 file(s) 10 MB
