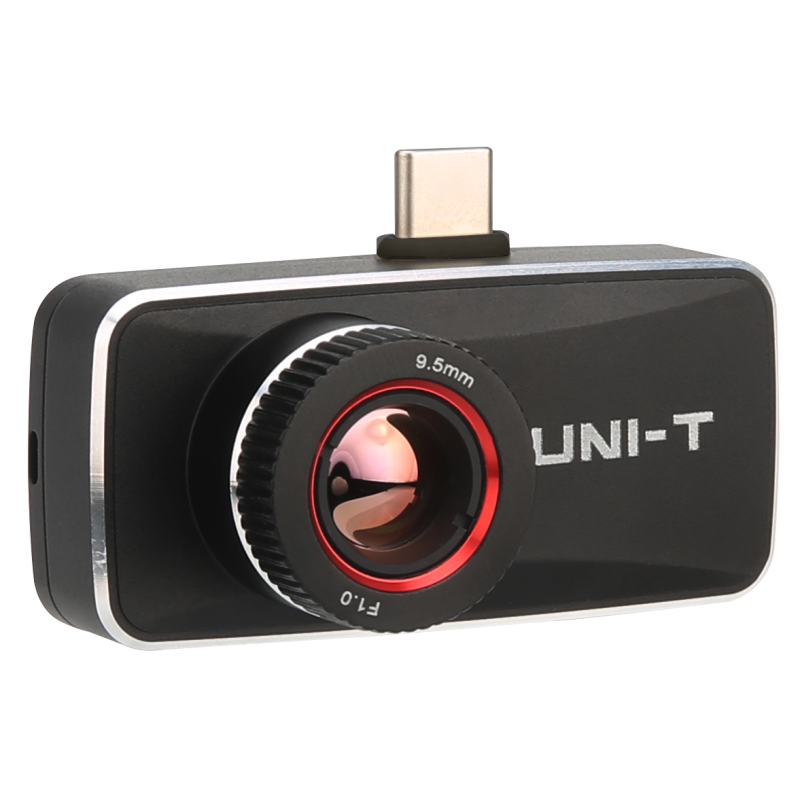

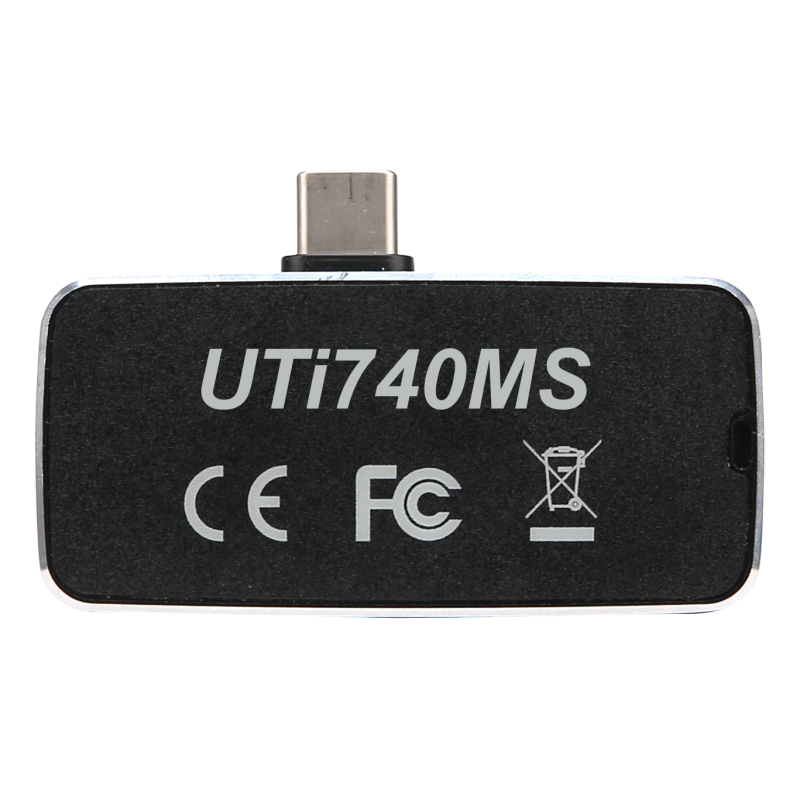

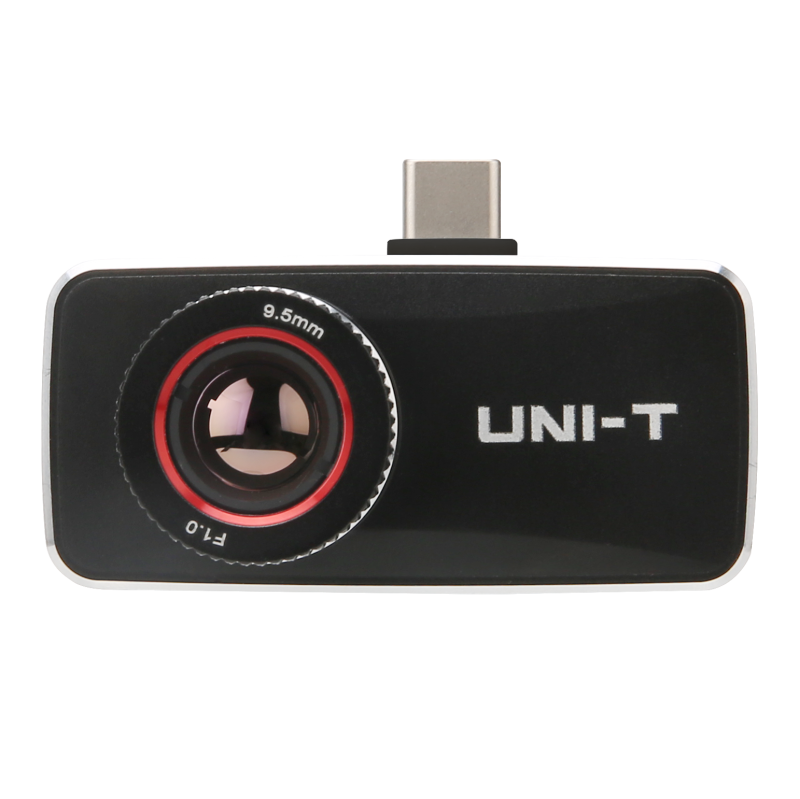

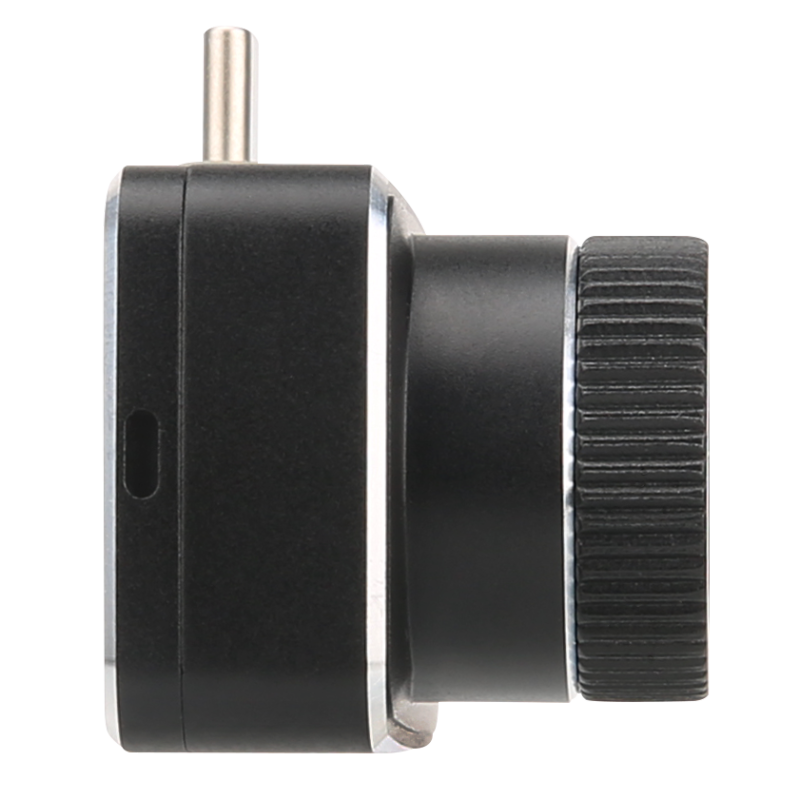

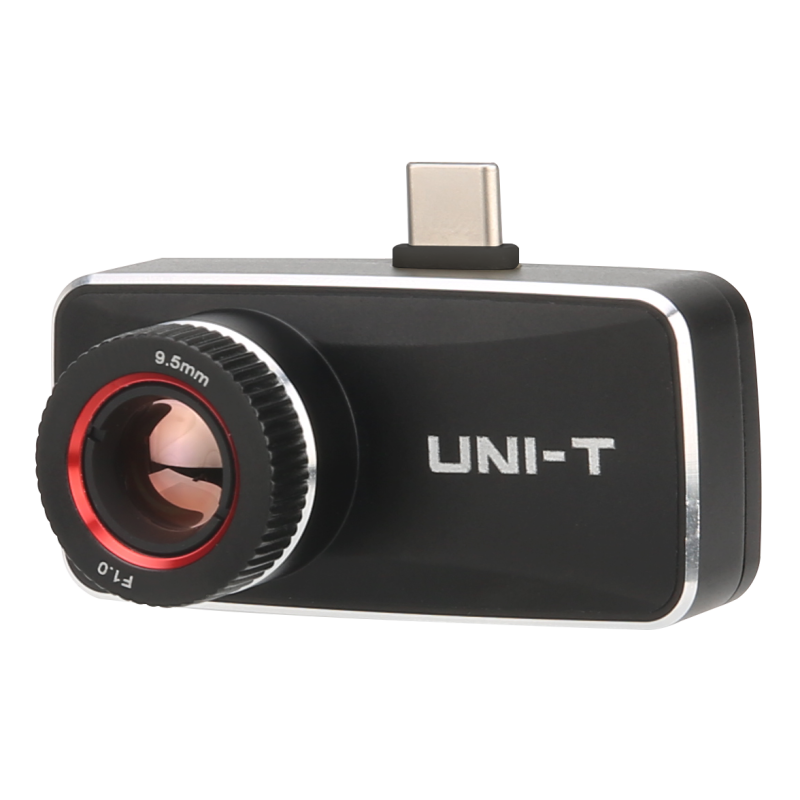

UTi740MS Smartphone Thermal Camera Module for Android

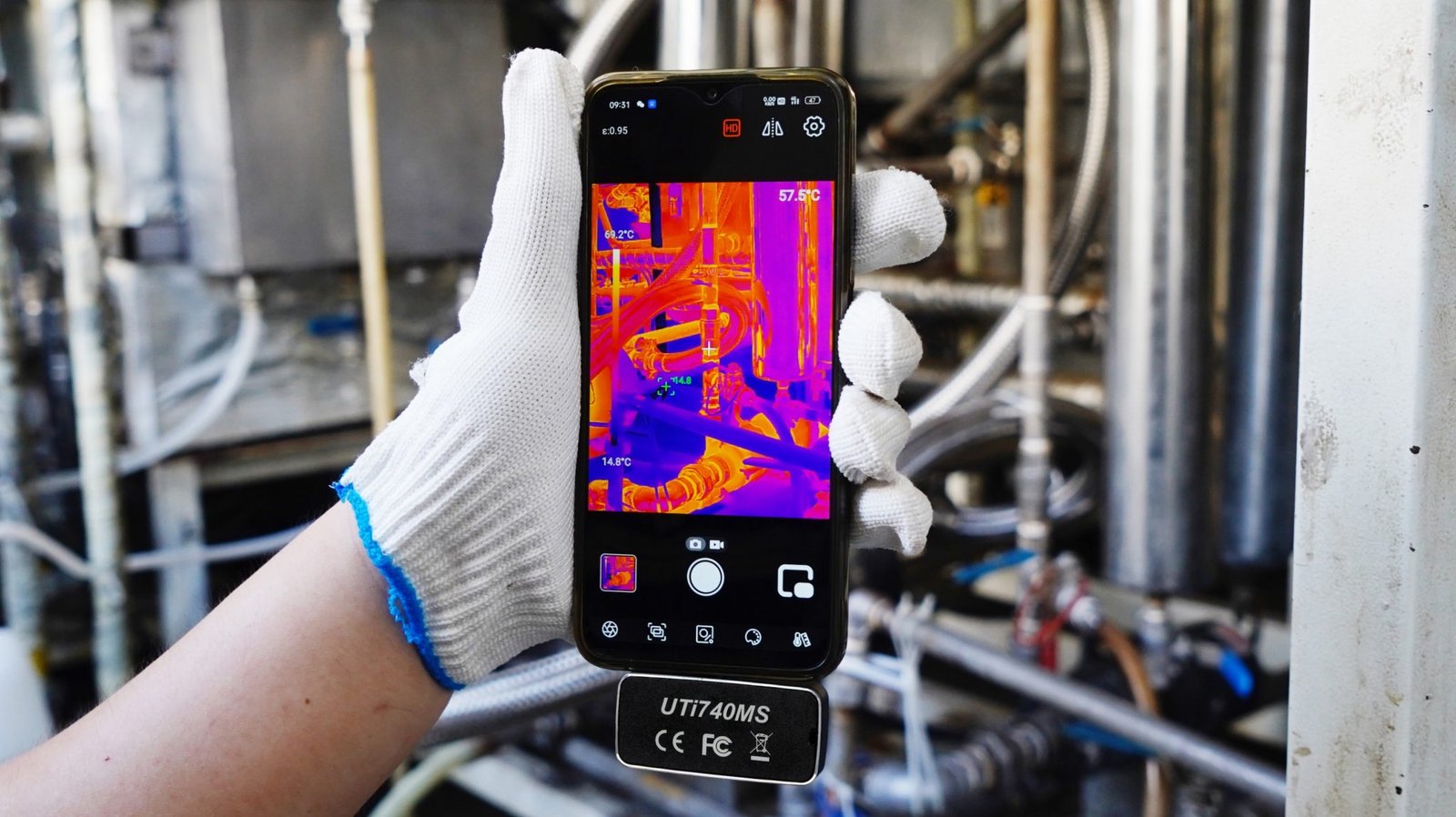

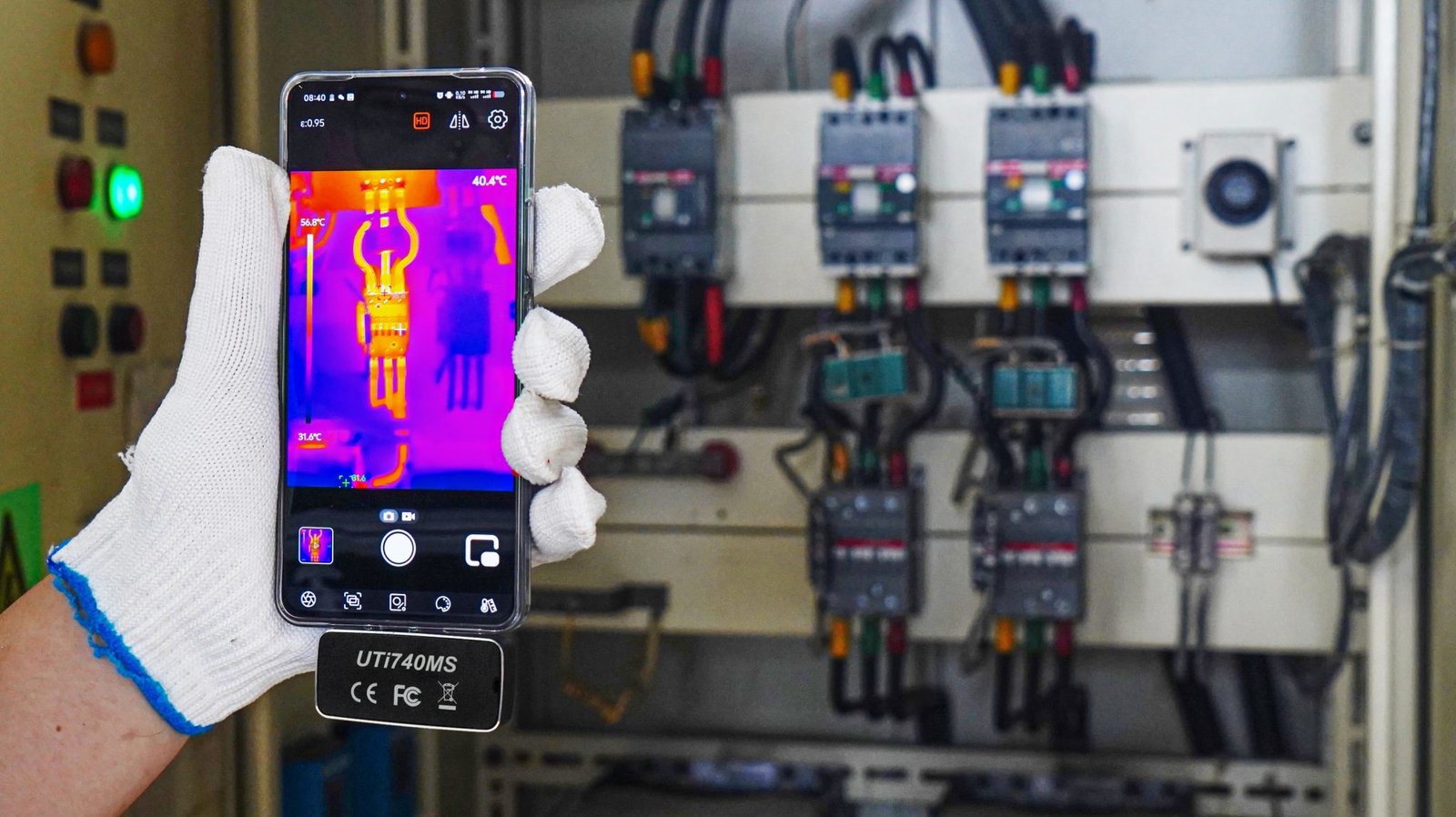

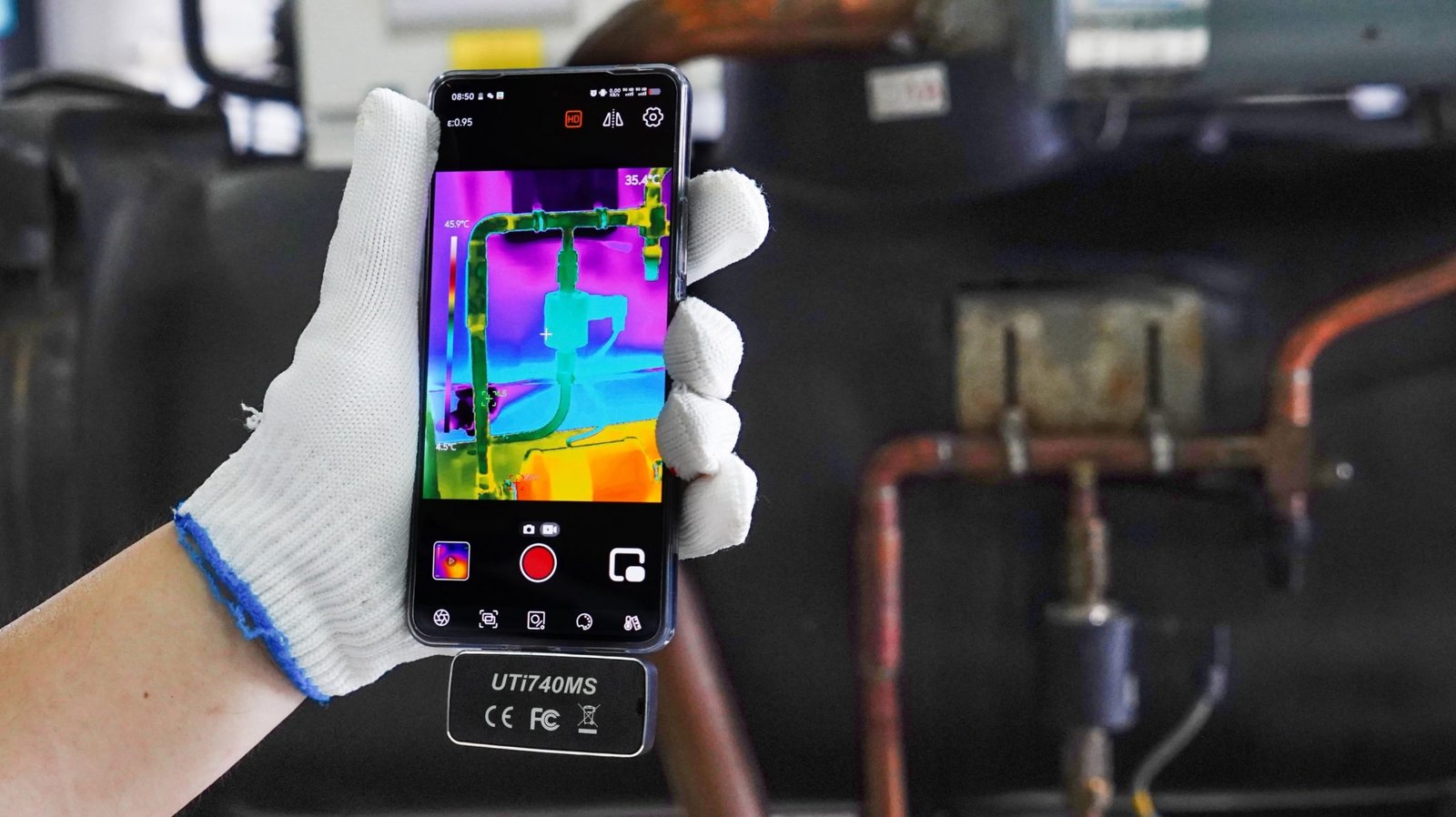

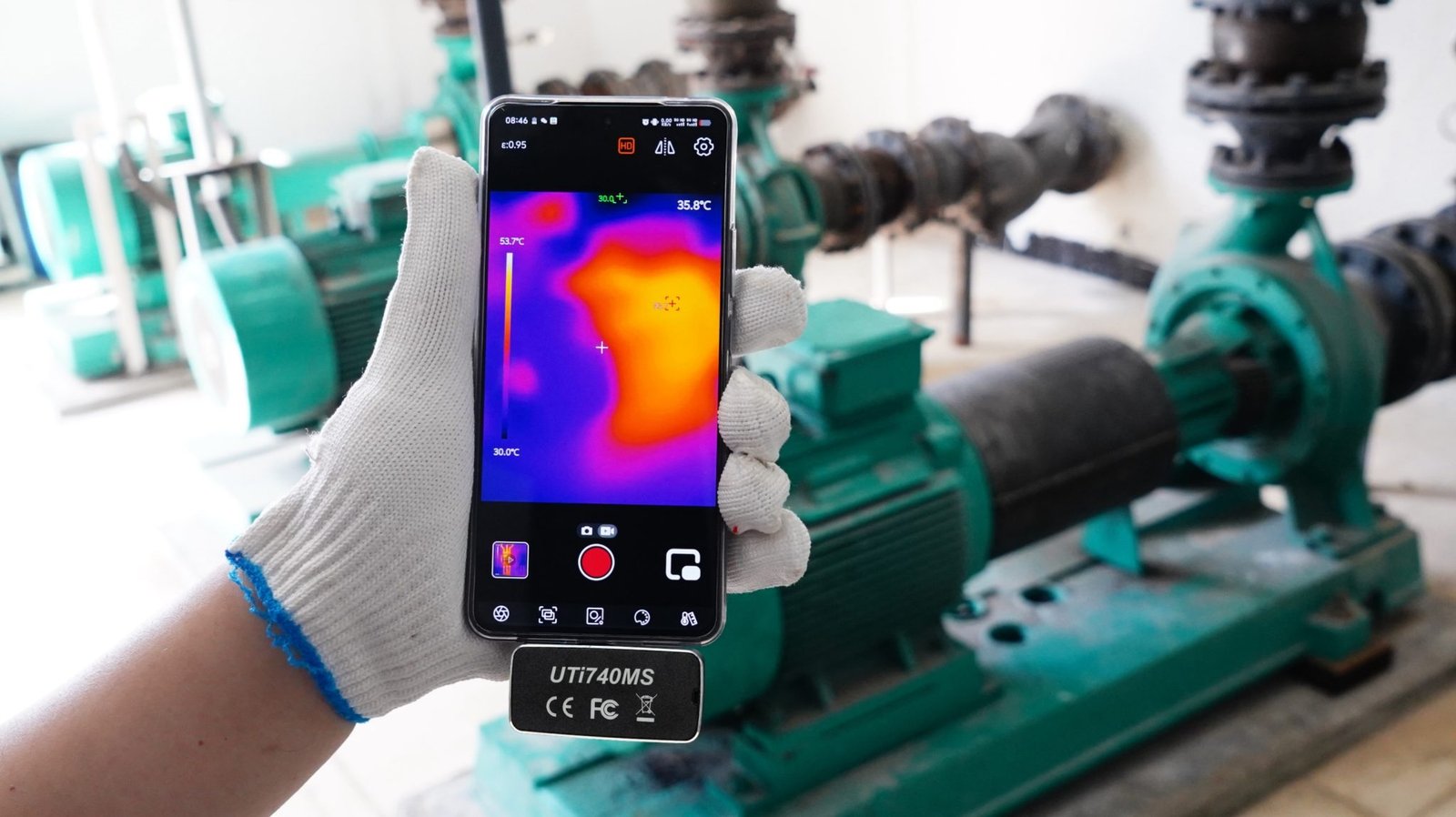

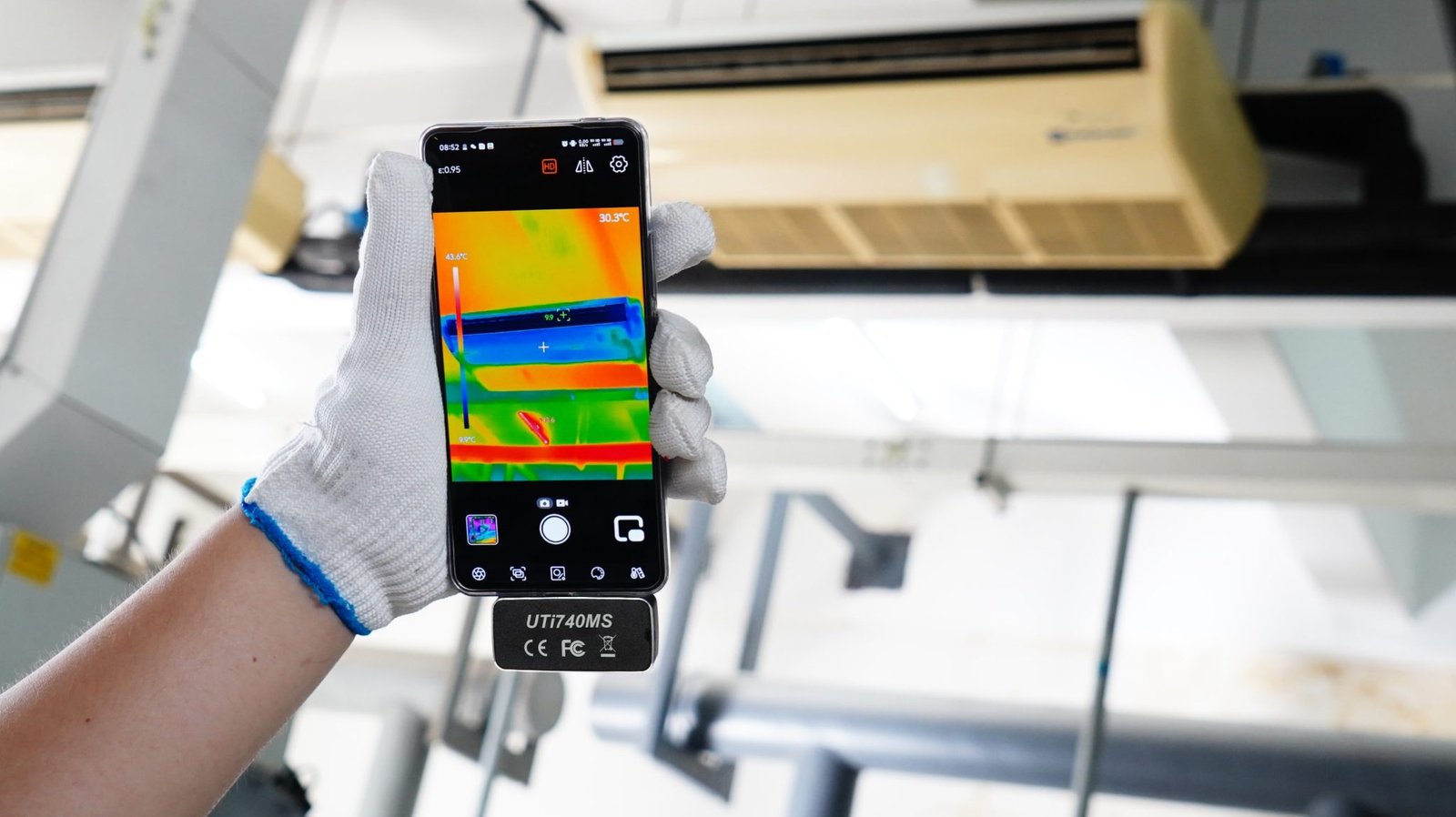

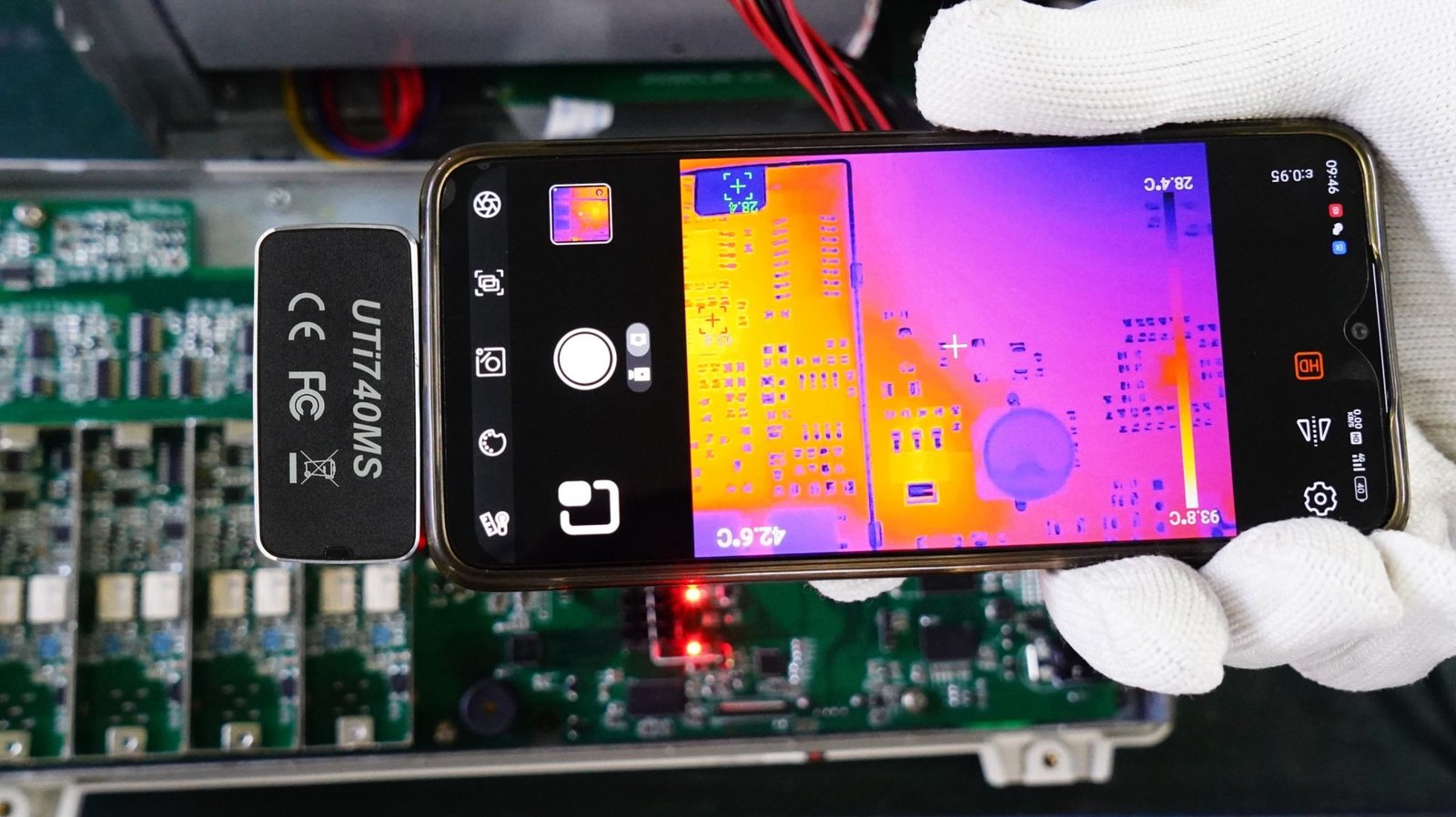

UTi740MS thermal camera module with manual focus feature is specially design for Android & iOS mobile devices with Type-C USB interface. With light-weight & battery-free design. Plug & play with “Thermal Mobile ”APP. User-friendly, fast imaging. Perfect measurement tool for building inspection & DIY use.

REQUEST A QUOTE DOWNLOAD CATLOGUE

Features

400×300 pixels (upgrades to 800×600 when Super Resolution is on)
Temp. measurement range from -20℃ to 550℃
Compatible with Android 7.0/iOS15 and later
Manual Focus
Plug & play with “Thermal Mobile” APP
PDF analysis report generation
Light-weight and easy-to–use
Battery-free design

Specifications

Technical Data
IR resolution(Pixels)	400×300
Spectral range	8~14µm
Pixel size	12µm
Frame rate	≤25Hz
Thermal sensitivity(NETD)	≤45mK @25℃
Focus	Manual Focus
Lens focal length	9.5mm
Field of view(FOV)	29°(H) × 21.5°(V)
Measurement modes	Industrial & EST screening
Temperature measurement range	-20℃~550℃
Accuracy	Industrial: ±2° or ±2% whichever is greater (-10℃~550℃) EST: ±0.5° (20℃~50℃)

Functions

Color palettes	Ironbow, White Hot, Black Hot, Red Hot, Lava, Rainbow, Rainbow HC
Image modes	Thermal, Fusion, PIP
On screen analyzer	5 Points/1 Lines/3 Rectangles/3 Circles
Isotherm	Auto/Below/Above/Section/Manual
Hi/Lo temperature alarm	LCD animation & Buzzer
Hi/Lo temperature tracking	√
Video recording	√

General Characteristics

USB	Type-C
Image storage format	JPG
Video storage format	MP4
Certificates	CE, FCC, RoHS
Languages	ZH, EN, FR, DE, IT, ES, SV, PL, CZ
Weight	46g
Dimension	58mm×27mm×28.6mm

UTi740MS Datasheet

1 file(s) 2.4 MB

UTi740MS Quick Start Guide

1 file(s) 16.7 MB
